Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Panel & Windshield Glass

26 part groups · 2 illustrations

Illustrations

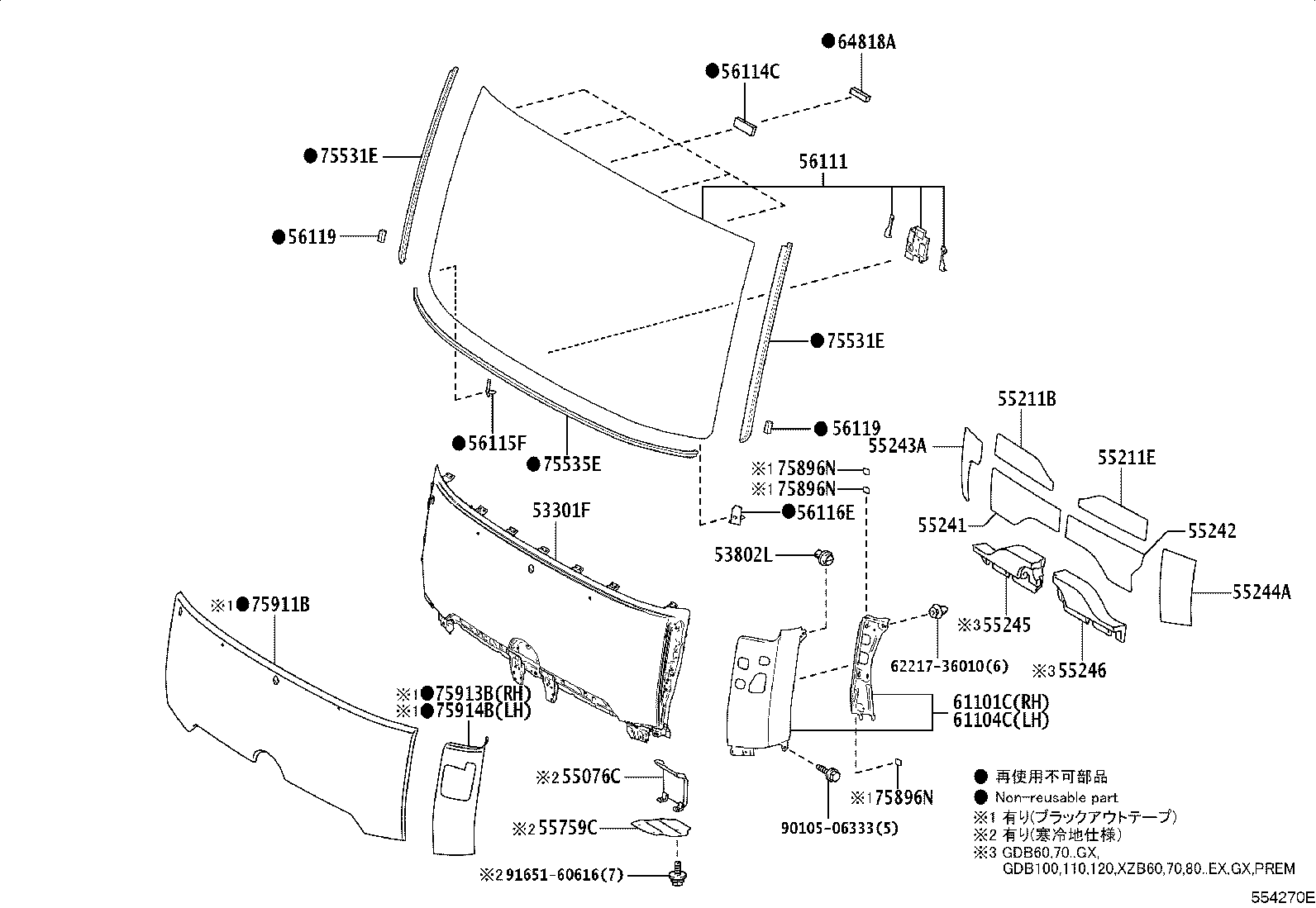

Figure 554821 554821 2017-01 → 2018-07 Figure 554270E 554270E 2018-07 → —

Part groups

PNCDescription
53301F Panel Sub-assy, Front
53802L Extension, Front Fender, LH
55076C Net Sub-assy, Air Duct
55211B Silencer, Front Panel
55211E Silencer, Front Panel
55241 Silencer, Front Panel Side, NO.1 RH
55242 Silencer, Front Panel Side, NO.1 LH
55243A Silencer, Front Panel Side, NO.2 RH
55244A Silencer, Front Panel Side, NO.2 LH
55245 Silencer, Front Panel Side, NO.3 RH
55246 Silencer, Front Panel Side, NO.3 LH
55759C Cover, Heater Air Duct
56111 Glass, Windshield
56114C Retainer, Windshield Glass
56115F Stopper, Windshield Glass
56116E Stopper, Windshield Glass, NO.2
56119 Seal, Windshield Glass
61101C Panel Sub-assy, Cowl Side, RH
61104C Panel Sub-assy, Cowl Side, LH
64818A Spacer, Back Window Glass
75531E Moulding, Windshield, Outside Upper
75535E Moulding, Windshield, Outside Lower
75896N Tape, Moulding, NO.1
75911B Tape, Black Out Hood
75913B Tape, Black Out Fender, RH
75914B Tape, Black Out Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
