Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05

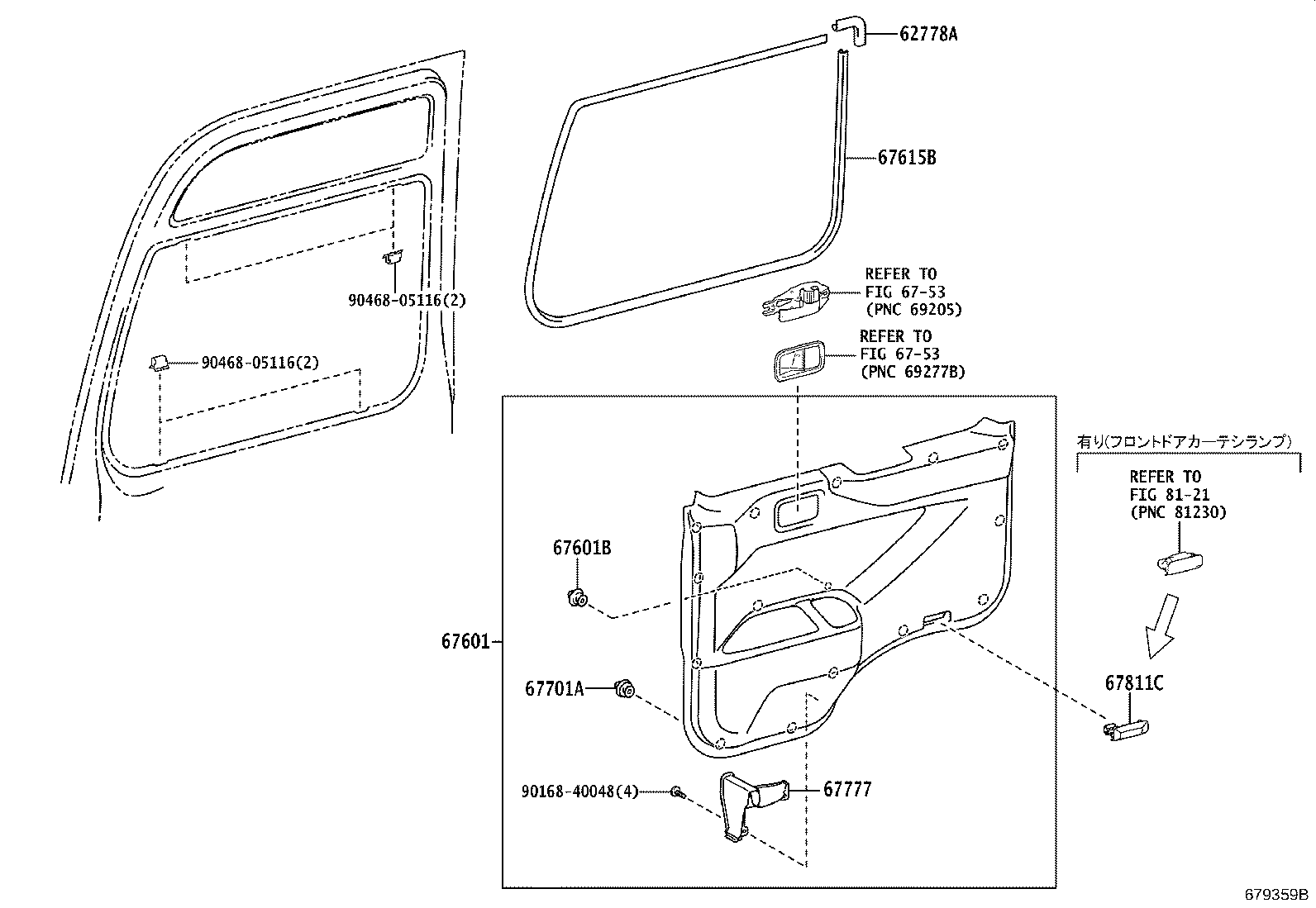

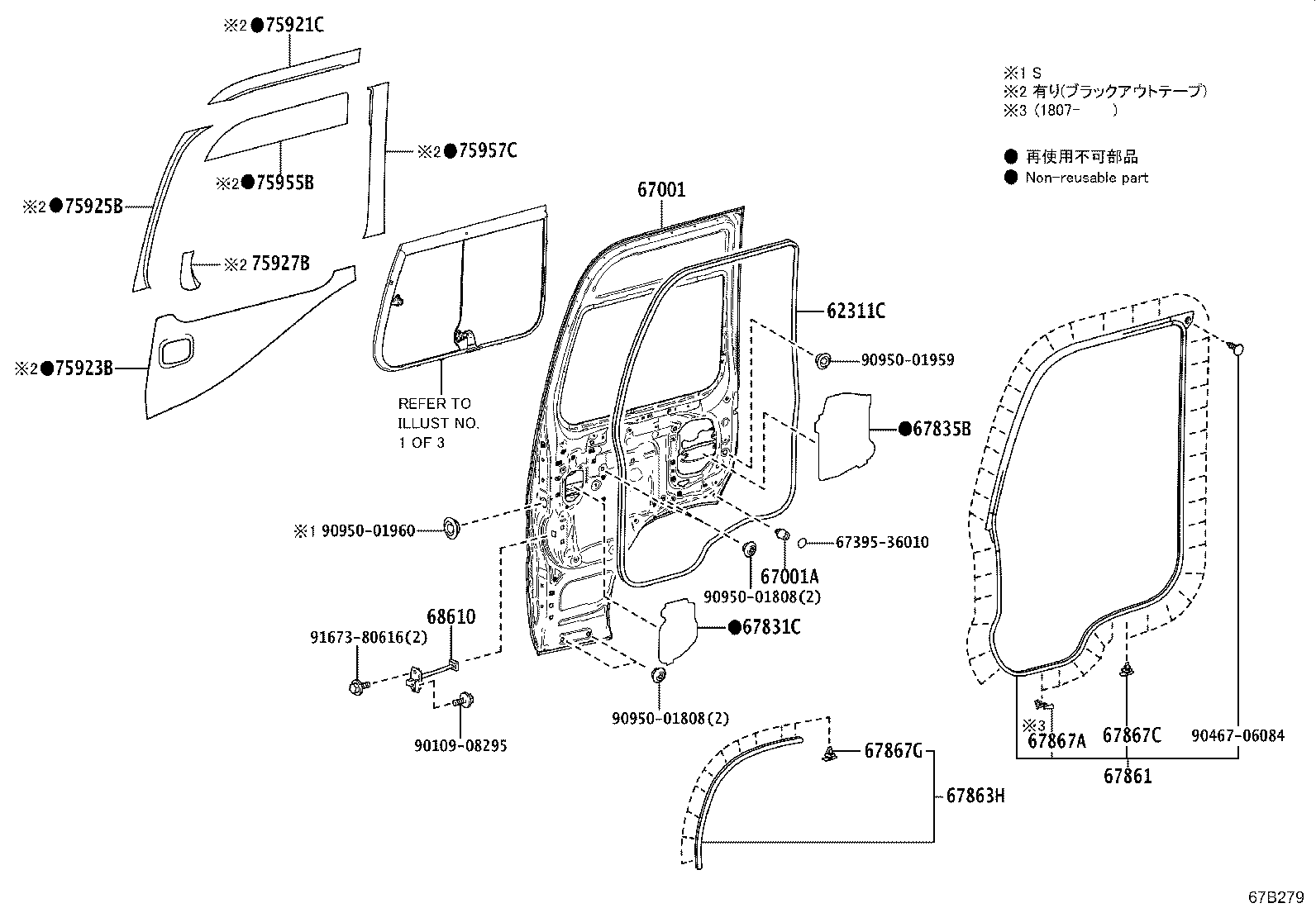

Front Door Panel & Glass

39 part groups · 3 illustrations

PNC	Description
62035A	Frame Sub-assy, Front Door Window, Outer RH
62039	Frame Sub-assy, Front Door Window, Center RH
62229D	Packing, Front Door Window
62269E	Film, Front Door Window Frame, RH
62311C	Weatherstrip, Front Door Opening Trim, RH
62315D	Glass, Front Door Window, Front RH
62317	Glass, Front Door Window, Rear RH
62385A	Seal, Front Door Window, NO.1
62385C	Seal, Side Window, NO.1
62411K	Run, Front Door Window, RH
62746G	Packing, Quarter Window
62777U	Cap, Front Door Window Center Sash, RH
62778A	Cap, Side Window Front Sash
62792F	Packing, Side Window Lock
62793G	Retainer, Side Window Lock
62910L	Lock Assy, Side Window
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67120D	Stopper, Front Door Window
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67615B	Trim, Front Door, Upper RH
67701A	Clip(FOR FRONT DOOR TRIM COVER)
67777	Pocket, Front Door Trim, RH
67811C	Cover, Front Door Hole
67831C	Cover, Front Door Service Hole
67835B	Cover, Front Door Service Hole Sub
67861	Weatherstrip, Front Door, RH
67863H	Weatherstrip, Front Door, NO.2 RH
67867A	Clip, Door Weatherstrip(FOR FRONT DOOR)
67867C	Retainer, Front Door Weatherstrip, RH
67867G	Retainer, Door Weatherstrip, RH
68610	Check Assy, Front Door
75921C	Tape, Black Out, NO.1 RH
75923B	Tape, Black Out, NO.2 RH
75925B	Tape, Black Out, NO.3 RH
75927B	Tape, Black Out, NO.4 RH
75955B	Tape, Black Out Front Door, Outer Upper RH
75957C	Tape, Black Out Front Door, Outer Rear RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
