Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

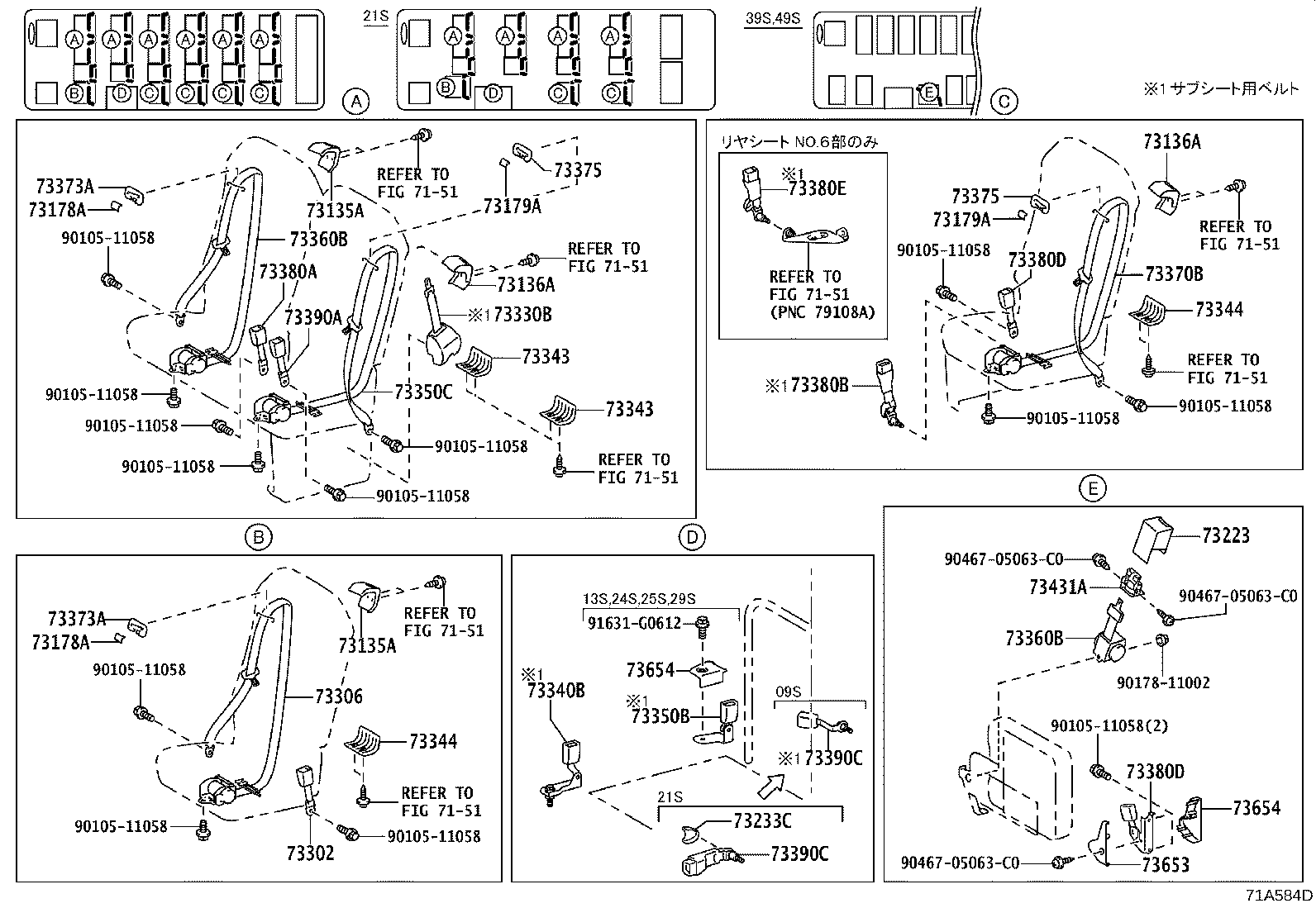

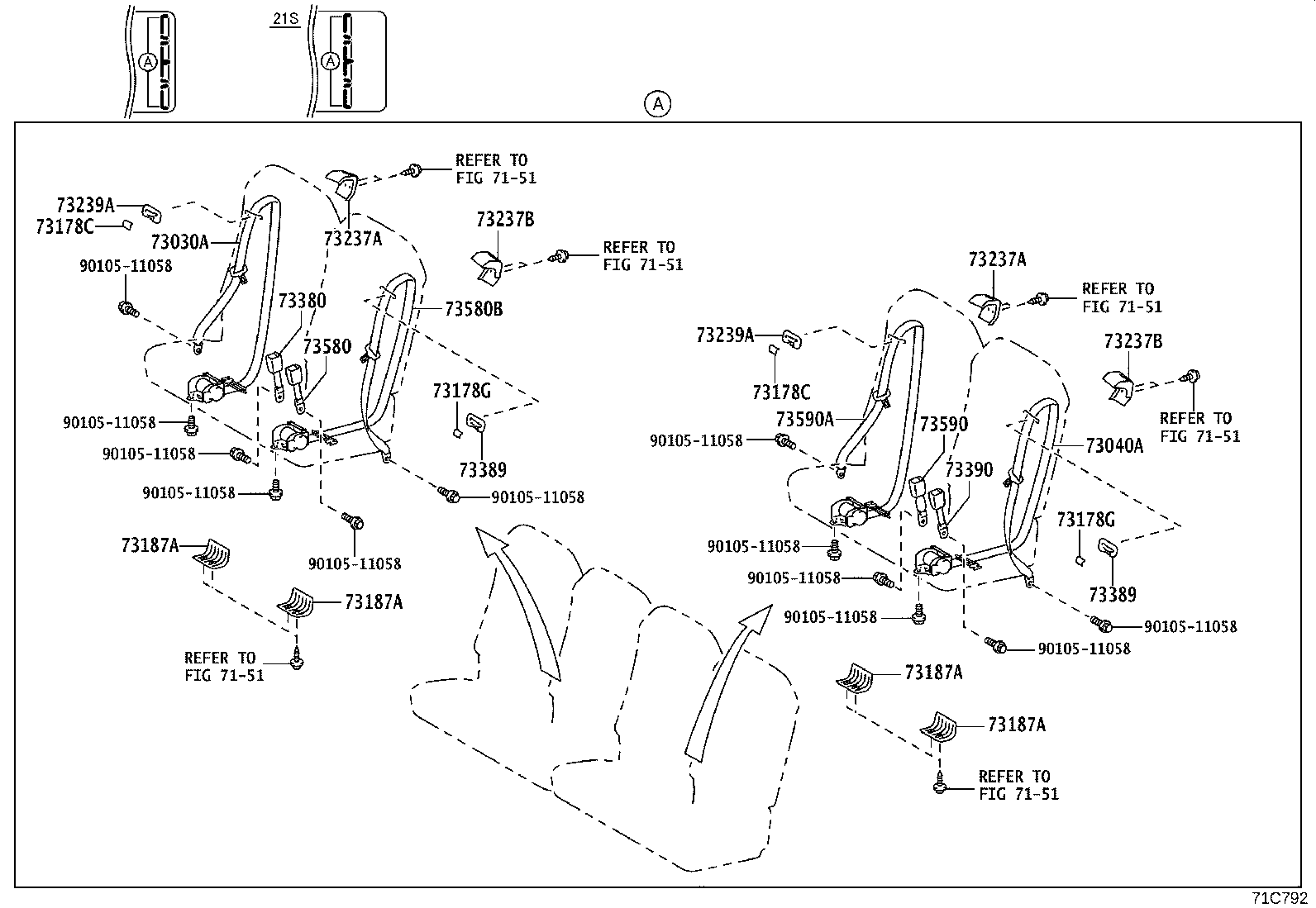

Seat Belt
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 73030A | Belt Assy, Rear Seat Lap Type, RH |
| 73040A | Belt Assy, Rear Seat Lap Type, LH |
| 73135A | Cover, Shoulder Belt Anchor, RH |
| 73136A | Cover, Shoulder Belt Anchor, LH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73178C | Cap, Seat Belt Anchor Cover |
| 73178G | Cap, Seat Belt Anchor Cover |
| 73179A | Cap, Seat Belt Anchor Cover, LH |
| 73187A | Guide, Rear Seat Shoulder Belt |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223 | Cover, Seat Belt Retractor |
| 73224 | Cover, Front Seat Belt Retractor, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73233C | Cover, Lap Belt Outer Anchor, LH |
| 73237A | Cover, Shoulder Belt Anchor |
| 73237B | Cover, Shoulder Belt Anchor |
| 73239A | Cover, Rear Seat Shoulder Belt, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73302 | Belt Sub-assy, Rear Seat Outer |
| 73306 | Belt Sub-assy Seat, Inner |
| 73330B | Belt Assy, Seat Lap Type, NO.1 |
| 73340B | Belt Assy, Seat Lap Type, NO.2 |
| 73343 | Guide, Rear Seat Shoulder Belt, RH |
| 73344 | Guide, Rear Seat Shoulder Belt, LH |
| 73350B | Belt Assy, Seat Lap Type, NO.3 |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360B | Belt Assy, Rear Seat, Outer |
| 73370B | Belt Assy, Rear Seat, Outer |
| 73373A | Cover, Rear Seat Shoulder Belt, RH |
| 73375 | Cover, Rear Seat Shoulder Belt, LH |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73380B | Belt Assy, Seat Lap Type, NO.4 |
| 73380D | Belt Assy, Rear Seat, Inner |
| 73380E | Belt Assy, RR Seat, Inner |
| 73389 | Cover, Rear Seat Shoulder Belt, LH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73390A | Belt Assy, Rear Seat, Inner |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73431A | Cover, Rear Seat Belt Retractor |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73580B | Belt Assy, Rear Seat, Inner RH |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
| 73590A | Belt Assy, Rear Seat, Inner LH |
| 73653 | Cover, Rear Seat Belt Inner Anchor, RH |
| 73654 | Cover, Rear Seat Belt, Inner Anchor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
