Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

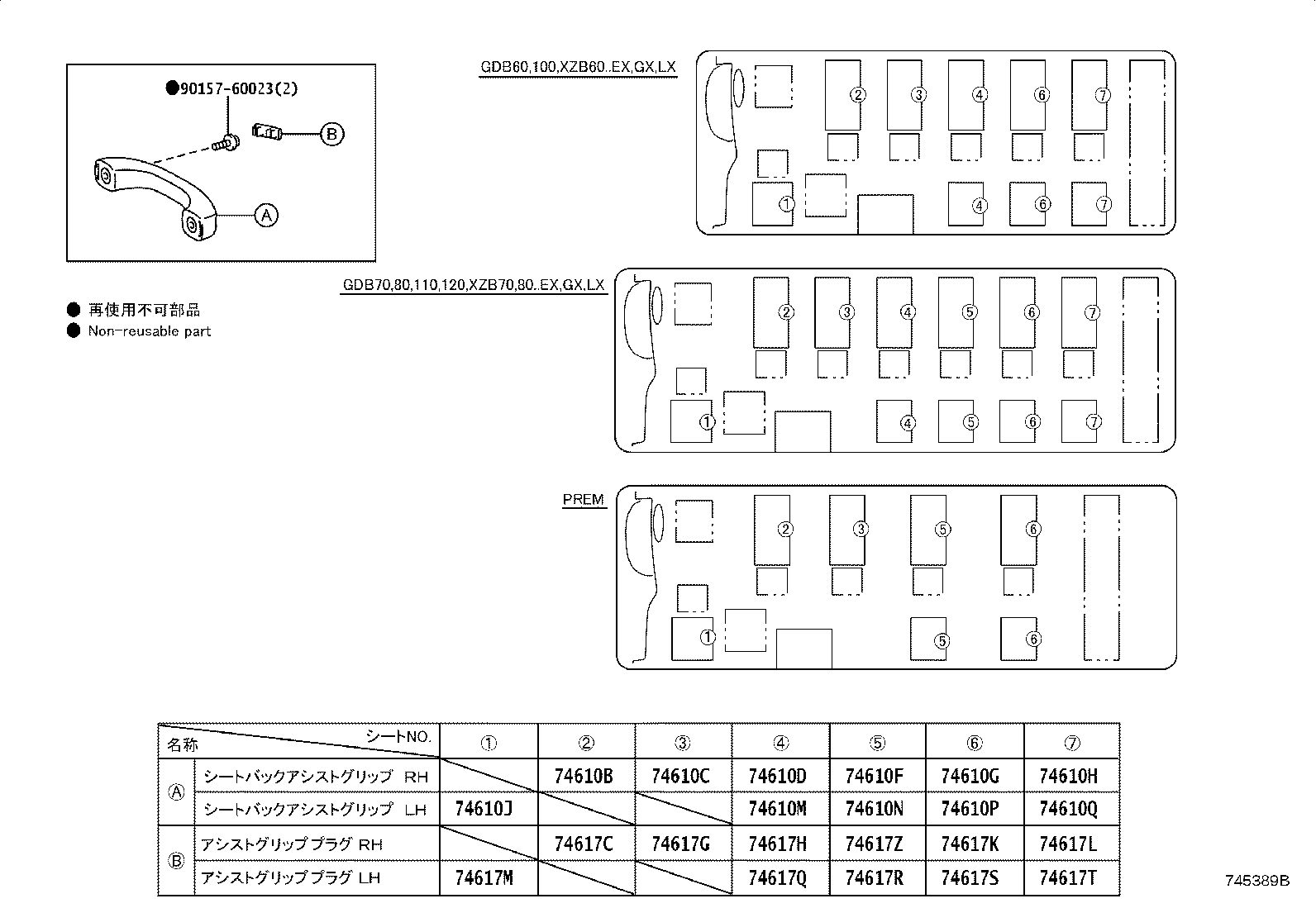

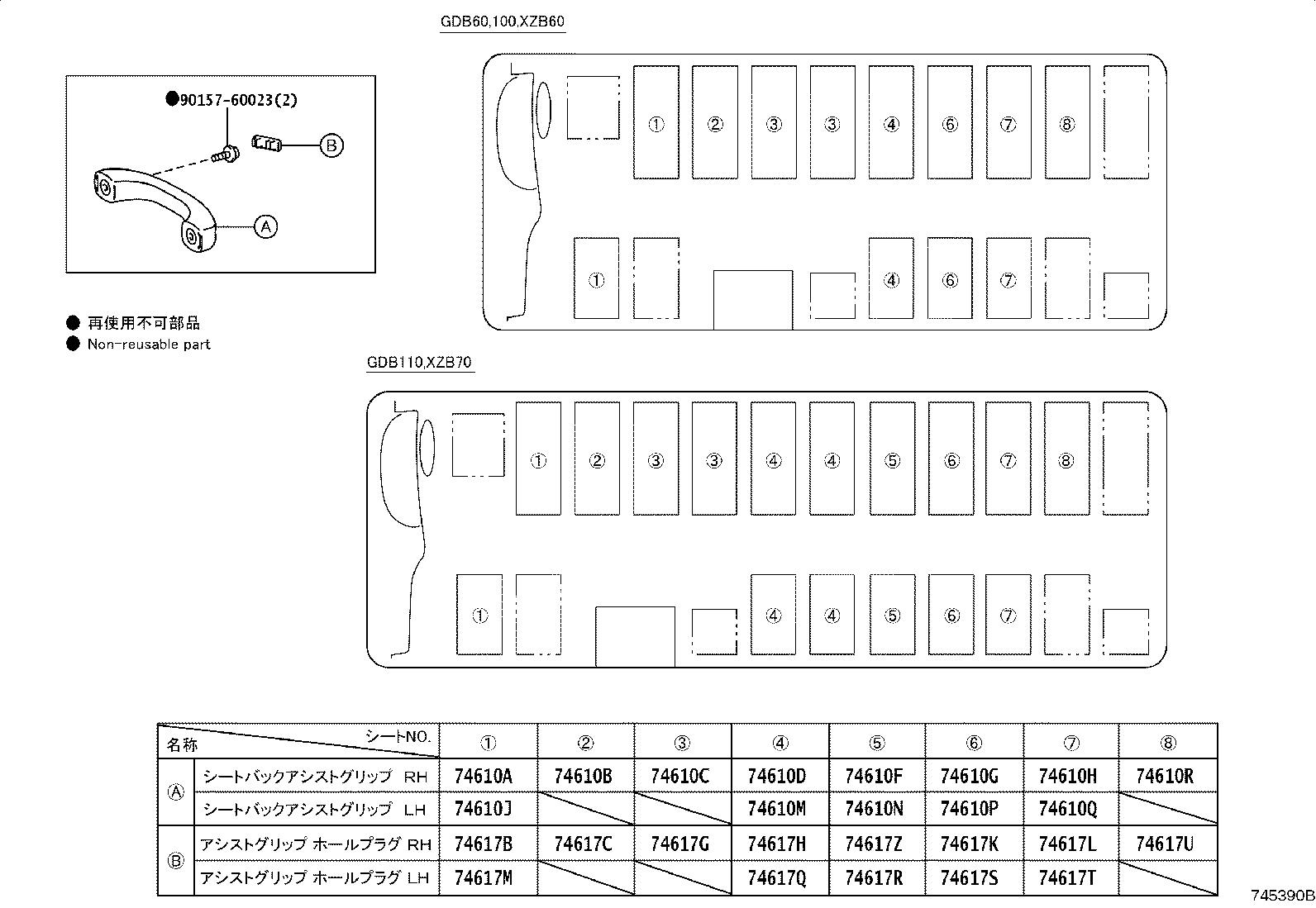

Armrest & Visor
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 65470B | Board Assy, Header |
| 69271B | Handle, Front Door Inside, RH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74603 | Grip Sub-assy, Assist, Front |
| 74610A | Grip Sub-assy, Assist |
| 74610B | Grip Assy, Assist, NO.2 RH |
| 74610C | Grip Assy, Assist, NO.3 RH |
| 74610D | Grip Assy, Assist, NO.4 RH |
| 74610F | Grip Assy, Assist, NO.5 RH |
| 74610G | Grip Assy, Assist, NO.6 RH |
| 74610H | Grip Assy, Assist, NO.7 RH |
| 74610J | Grip Assy, Assist, NO.1 LH |
| 74610M | Grip Assy, Assist, NO.4 LH |
| 74610N | Grip Assy, Assist, NO.5 LH |
| 74610P | Grip Assy, Assist, NO.6 LH |
| 74610Q | Grip Assy, Assist, NO.7 LH |
| 74610R | Grip Assy, Assist, NO.8 RH |
| 74611B | Grip, Assist |
| 74617B | Plug, Door Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74617G | Plug, Assist Grip, NO.3 RH |
| 74617H | Plug, Assist Grip, NO.4 RH |
| 74617K | Plug, Assist Grip, NO.6 RH |
| 74617L | Plug, Assist Grip, NO.7 RH |
| 74617M | Plug, Assist Grip, NO.1 LH |
| 74617Q | Plug, Assist Grip, NO.4 LH |
| 74617R | Plug, Assist Grip, NO.5 LH |
| 74617S | Plug, Assist Grip, NO.6 LH |
| 74617T | Plug, Assist Grip, NO.7 LH |
| 74617U | Plug, Assist Grip, NO.8 RH |
| 74617V | Plug, Assist Grip |
| 74617Z | Plug, Assist Grip, NO.5 RH |
| 74620G | Grip Assy, Assist, Front |
| 74627 | Plug, Rear Assist Grip |
| 74710 | Extinguisher Assy |
| 75241 | Flag, Red |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
