Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

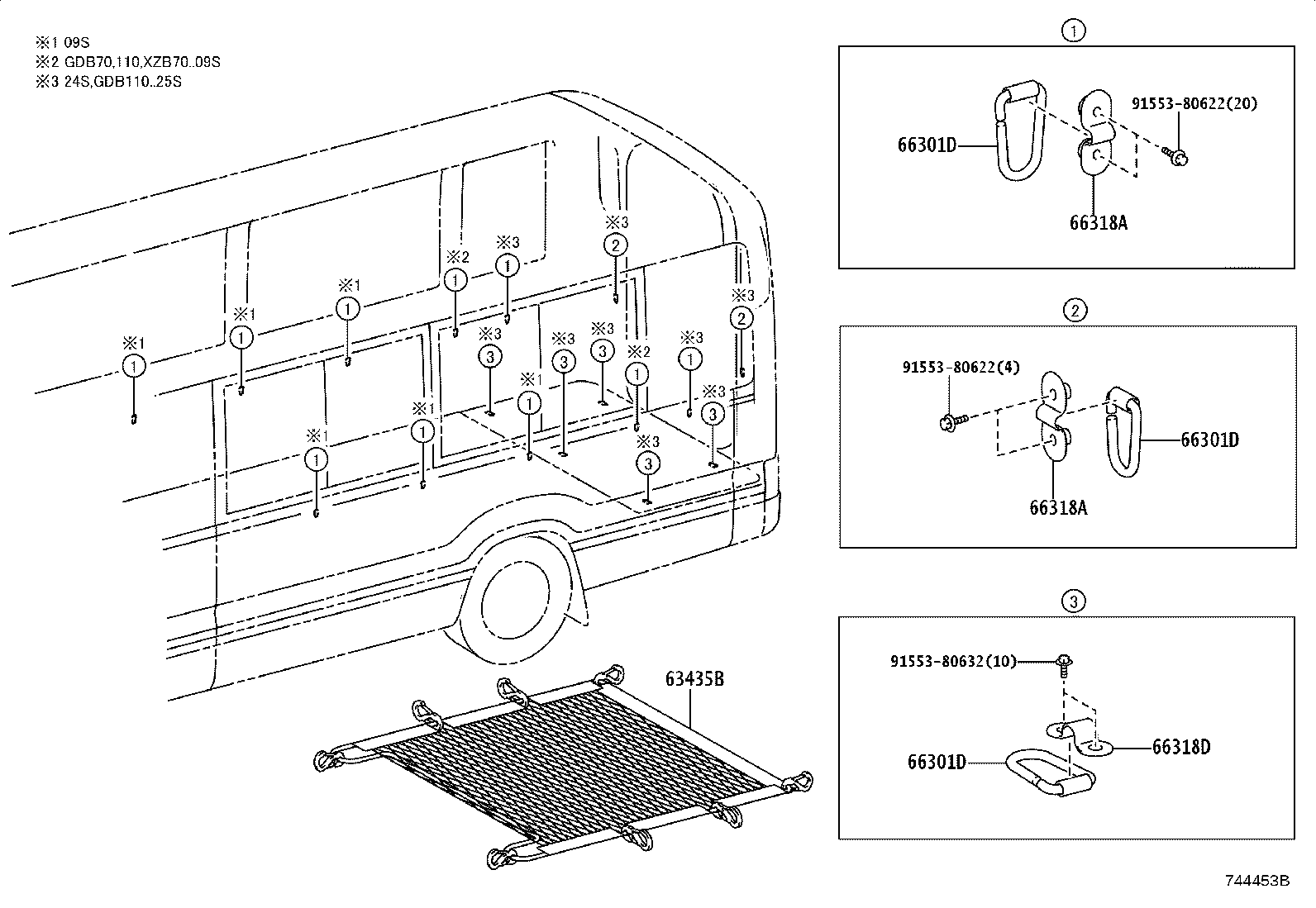

Separator & Separator Curtain
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63435B | Net, Room Rack |
| 66301D | Hook Sub-assy, Rope |
| 66318A | Band, Rope Hook |
| 66318D | Band, Rope Hook, NO.2 |
| 74802A | Bar Sub-assy, Separator, E |
| 74804A | Bar Sub-assy, Separator, D |
| 74805F | Bar Sub-assy, Separator, A |
| 74806B | Bar Sub-assy, Separator, B |
| 74808E | Separator Sub-assy, Rear |
| 74825D | Bracket, Separator Bar, NO.5 |
| 74826B | Bracket, Separator Bar, NO.6 |
| 74855 | Plate, Separator Curtain Set |
| 74870A | Curtain Assy, Separator |
| 74891C | Wire, Separator Cutain, NO.1 |
| 74893A | Wire, Separator Curtain, NO.3 |
| 74894A | Wire, Separator Curtain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
