Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Protector Pipe, Roll Bar & Handrail

21 part groups · 3 illustrations

Illustrations

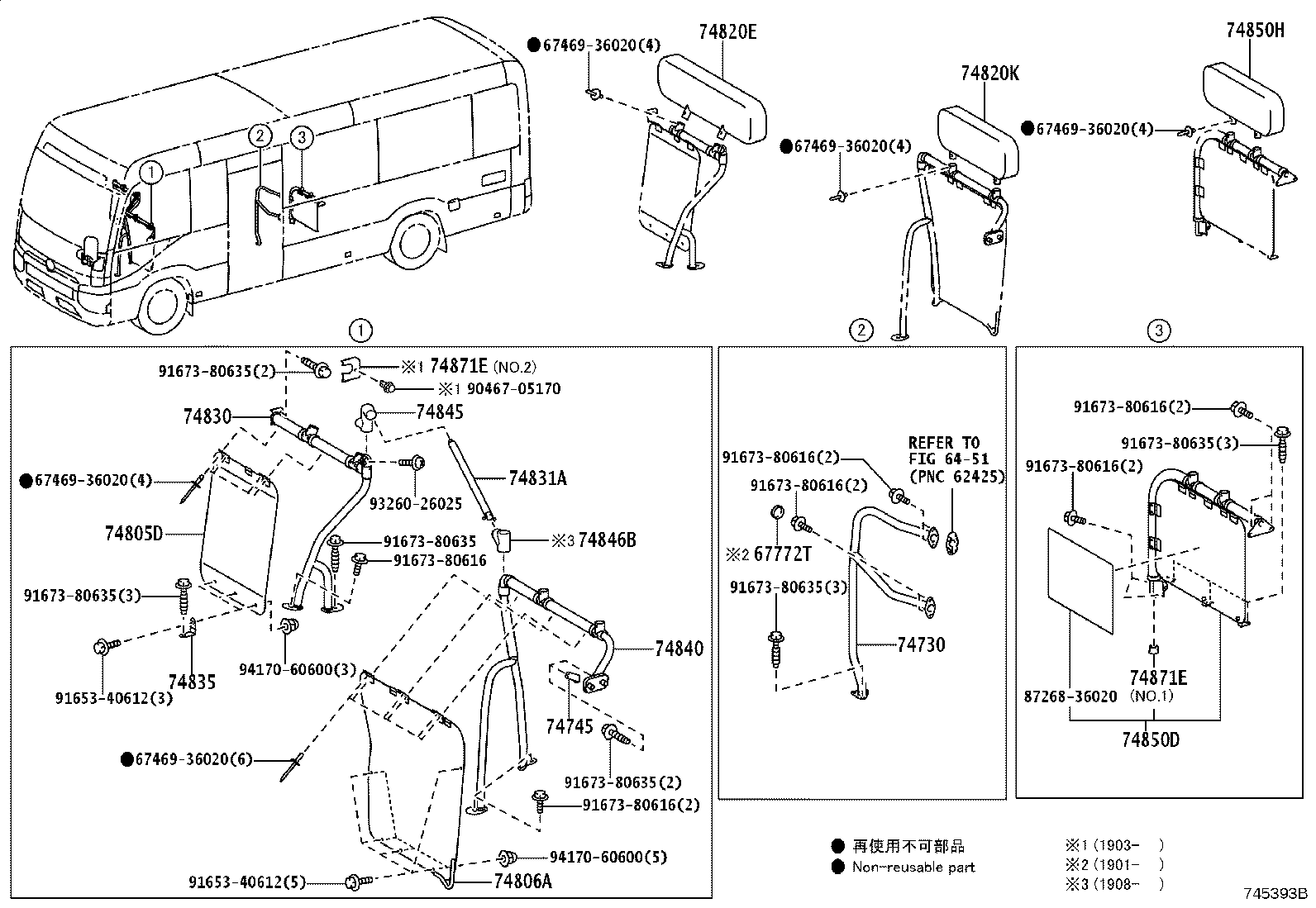

Figure 745392A 745392A 2017-01 → — Figure 745393B 745393B 2017-01 → — Figure 744455 744455 2017-01 → —

Part groups

PNCDescription
62591B Stand, Umbrella
62594C Mat, Umbrella Stand
62598C Box, Umbrella
67772T Cap, Door Trim Retainer
74705B Net Sub-assy, Hand Grip Protector
74708 Frame Sub-assy, Hand Grip, NO.2
74730 Frame Assy, Hand Grip
74745 Bracket, Hand Grip TO Net, NO.2
74805D Net Sub-assy, Front Protector, RH
74806A Net Sub-assy, Front Protector, LH
74820E Protector Assy, Front RH
74820K Protector Assy, Front LH
74830 Pipe Assy, Front Protector, RH
74831A Pipe, Front Protector, Center
74835 Bracket, Front Protector Net, Lower RH
74840 Pipe Assy, Front Protector, LH
74845 Cover, Front Protector Pipe Horizontal, RH
74846B Cover, Front Protector Pipe Horizontal, LH
74850D Protector Assy, Center
74850H Protector Assy, Center
74871E Protector, Hand Grip Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
