Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

22 part groups · 2 illustrations

Illustrations

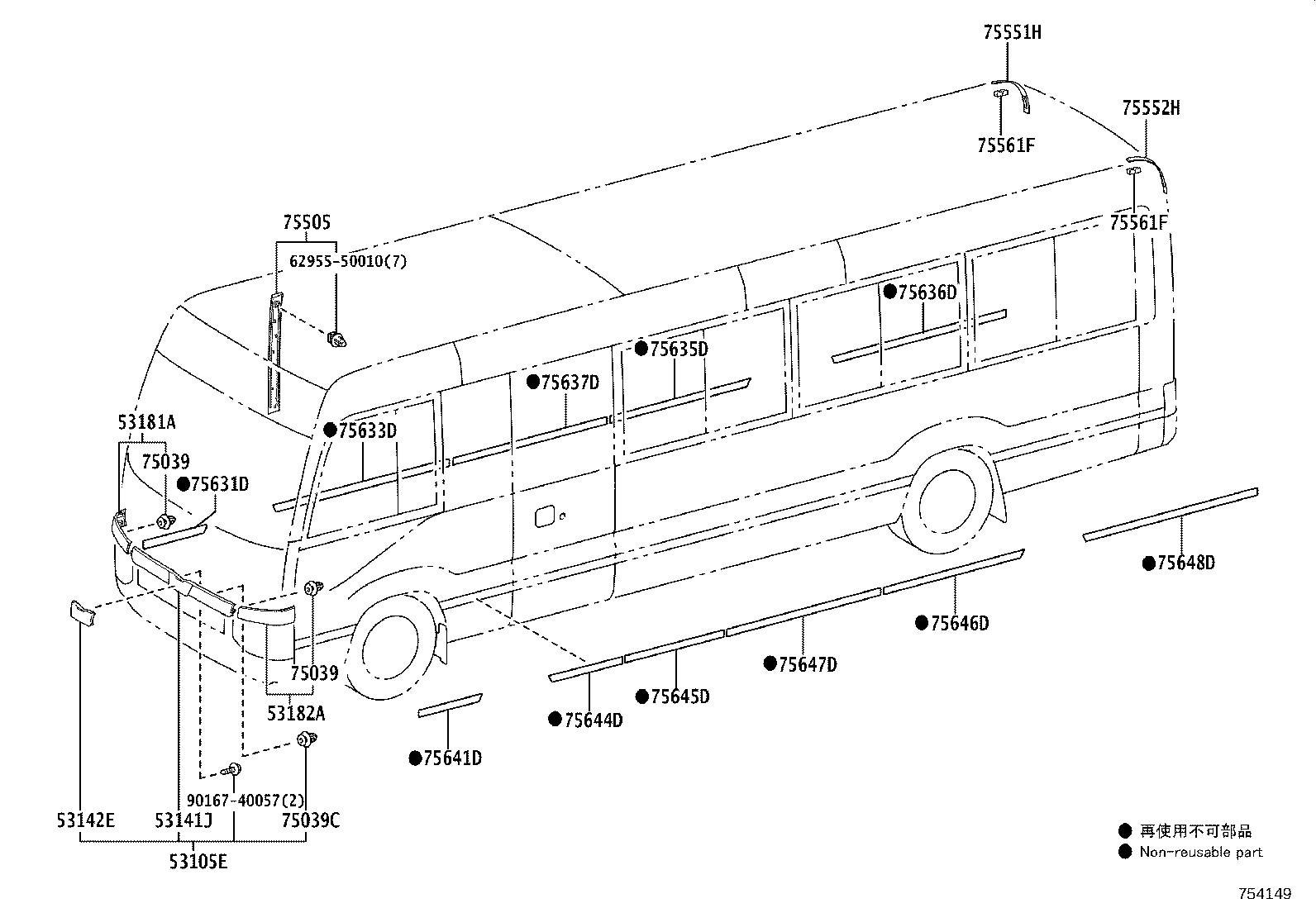

Figure 754148 754148 2017-01 → — Figure 754149 754149 2019-08 → —

Part groups

PNCDescription
53105E Garnish Sub-assy, Radiator Grille
53141J Garnish, Radiator Grille, NO.1
53142E Garnish, Radiator Grille, NO.2
53181A Cover, Headlamp, RH
53182A Cover, Headlamp, LH
75039 Clip Sub-assy, Outside Moulding
75039C Clip Sub-assy, Outside Moulding, NO.1
75505 Garnish Sub-assy, Roof Side, Front RH
75551H Moulding, Roof Drip Side, RH
75552H Moulding, Roof Drip Side, LH
75561F Clip, Roof Drip Side Finish Moulding
75631D Moulding, Side Panel, Lower NO.1 RH
75633D Moulding, Side Panel, Lower NO.3 RH
75635D Moulding, Side Panel, Lower NO.5 RH
75636D Moulding, Side Panel, Lower NO.6 RH
75637D Moulding, Side Panel, Lower NO.7 RH
75641D Moulding, Side Panel, Lower NO.1 LH
75644D Moulding, Side Panel, Lower NO.4 LH
75645D Moulding, Side Panel, Lower NO.5 LH
75646D Moulding, Side Panel, Lower NO.6 LH
75647D Moulding, Side Panel, Lower NO.7 LH
75648D Moulding, Side Panel, Lower NO.8 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
