Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05
Fuel Tank & Tube

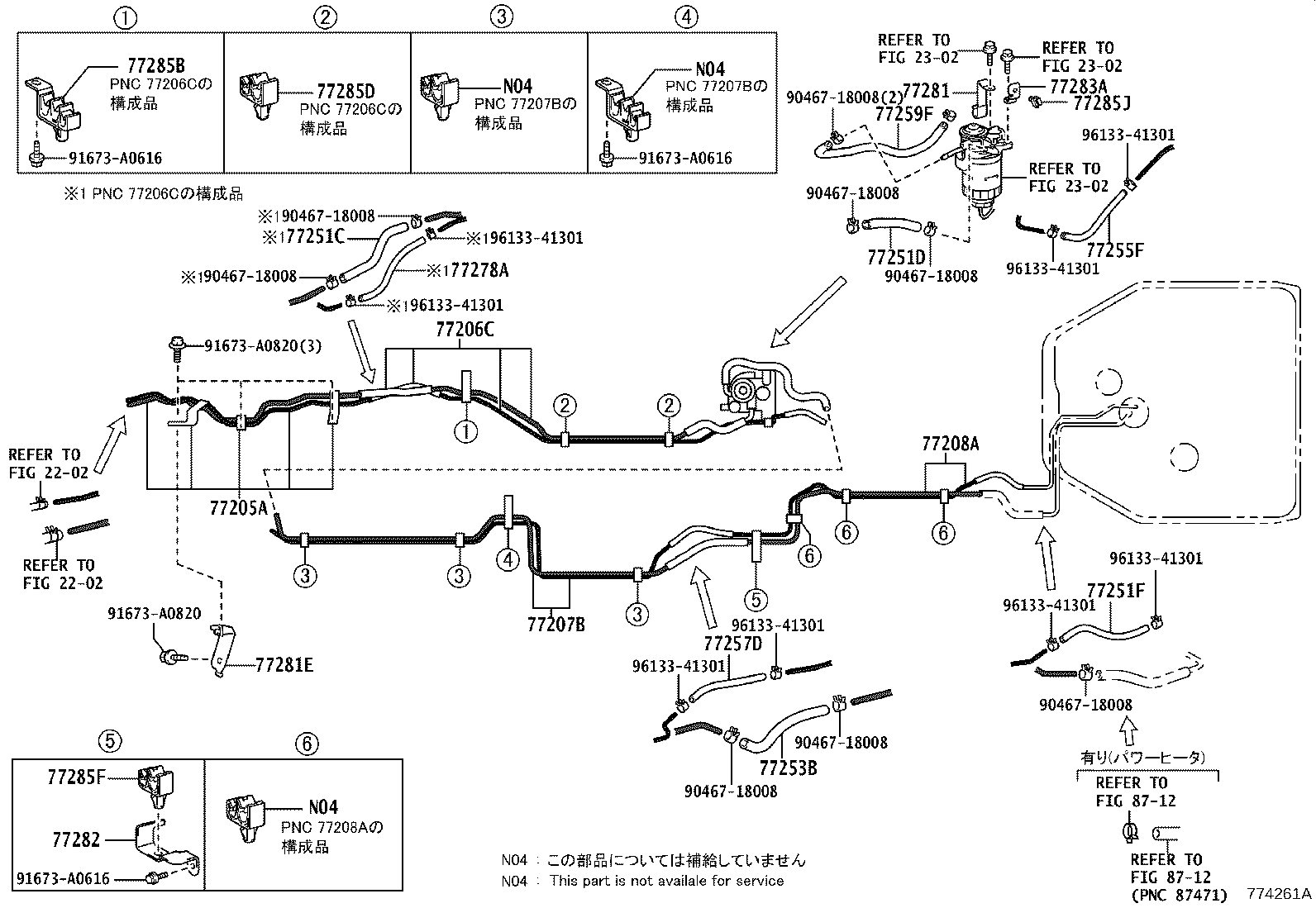

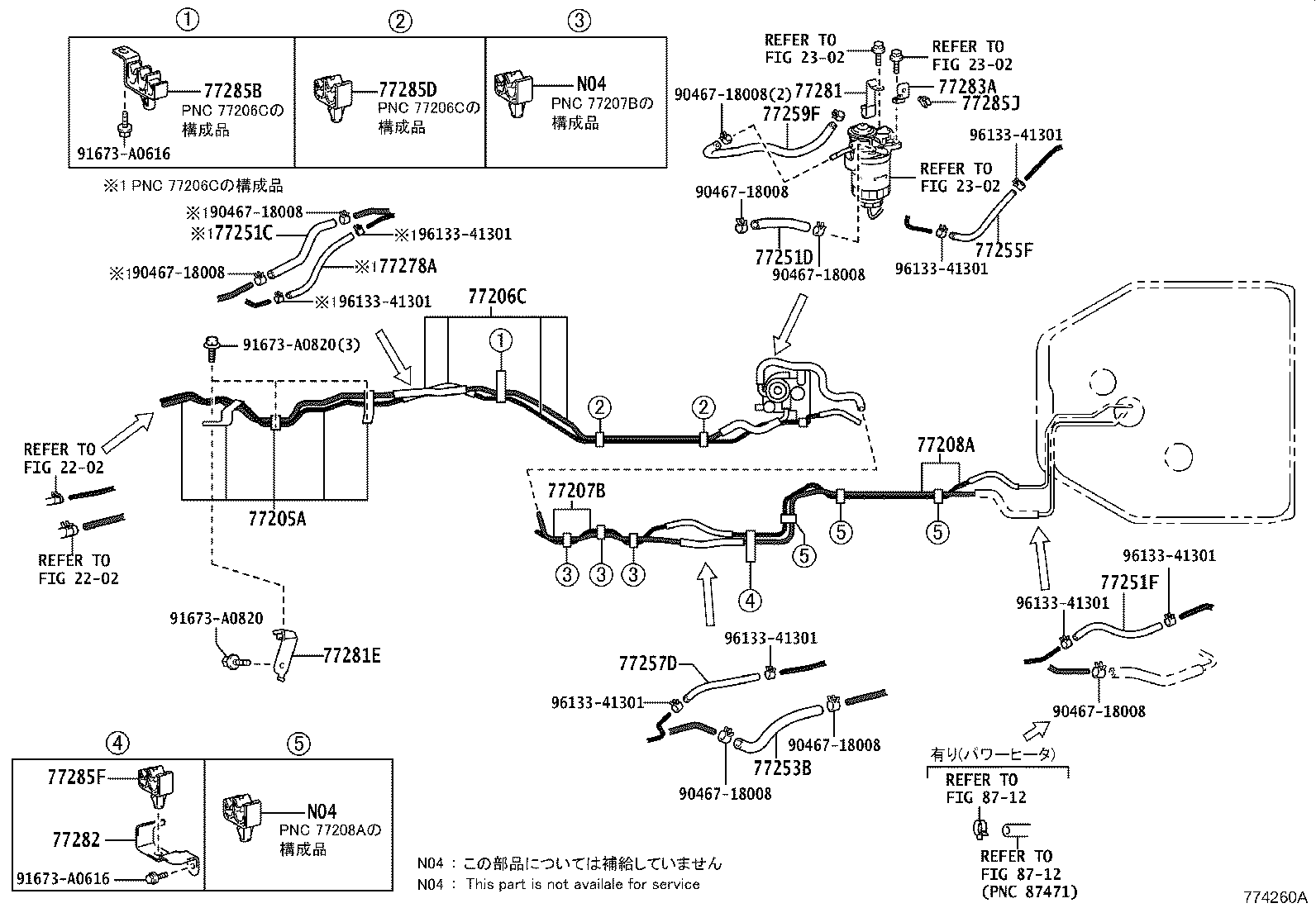

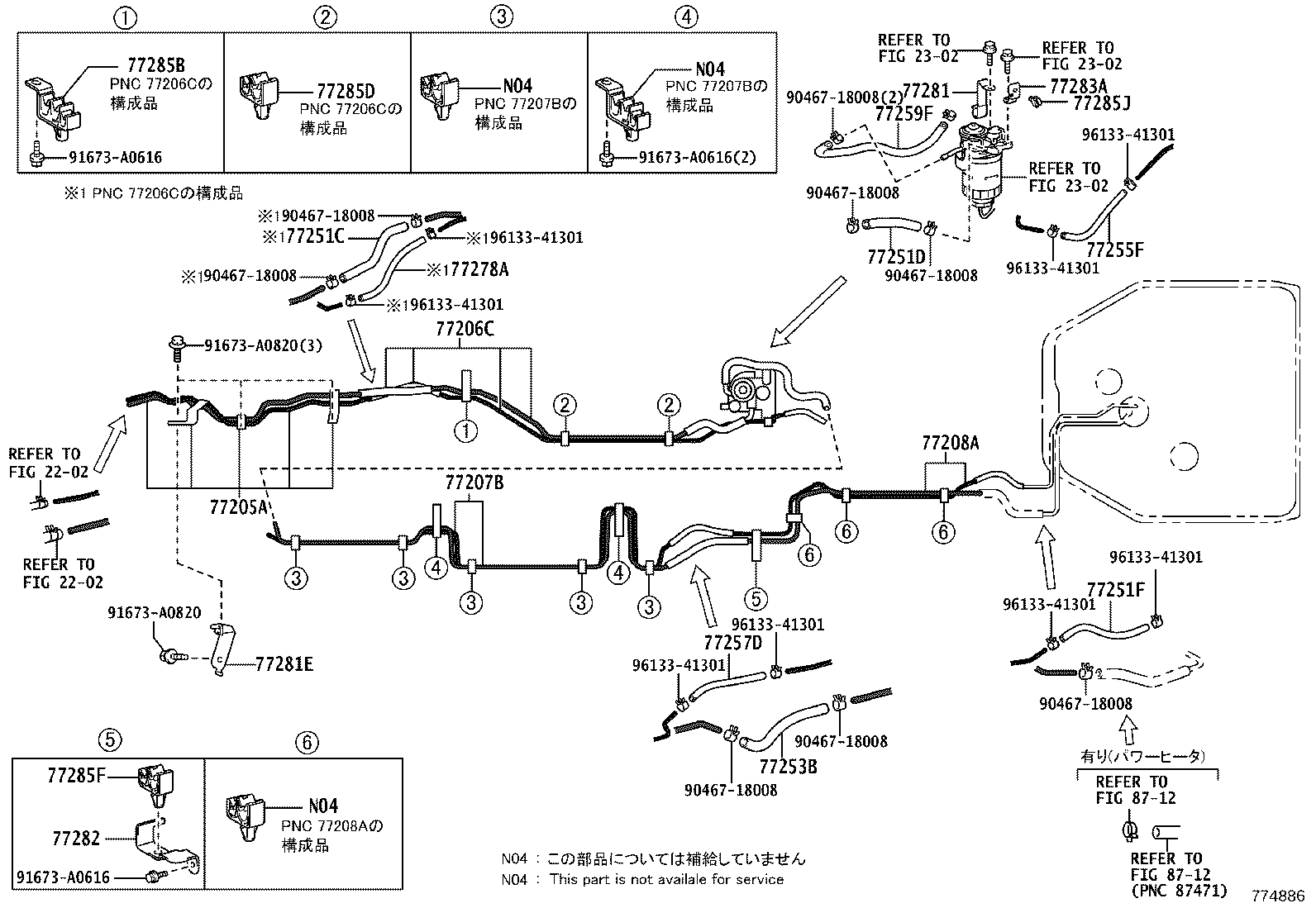

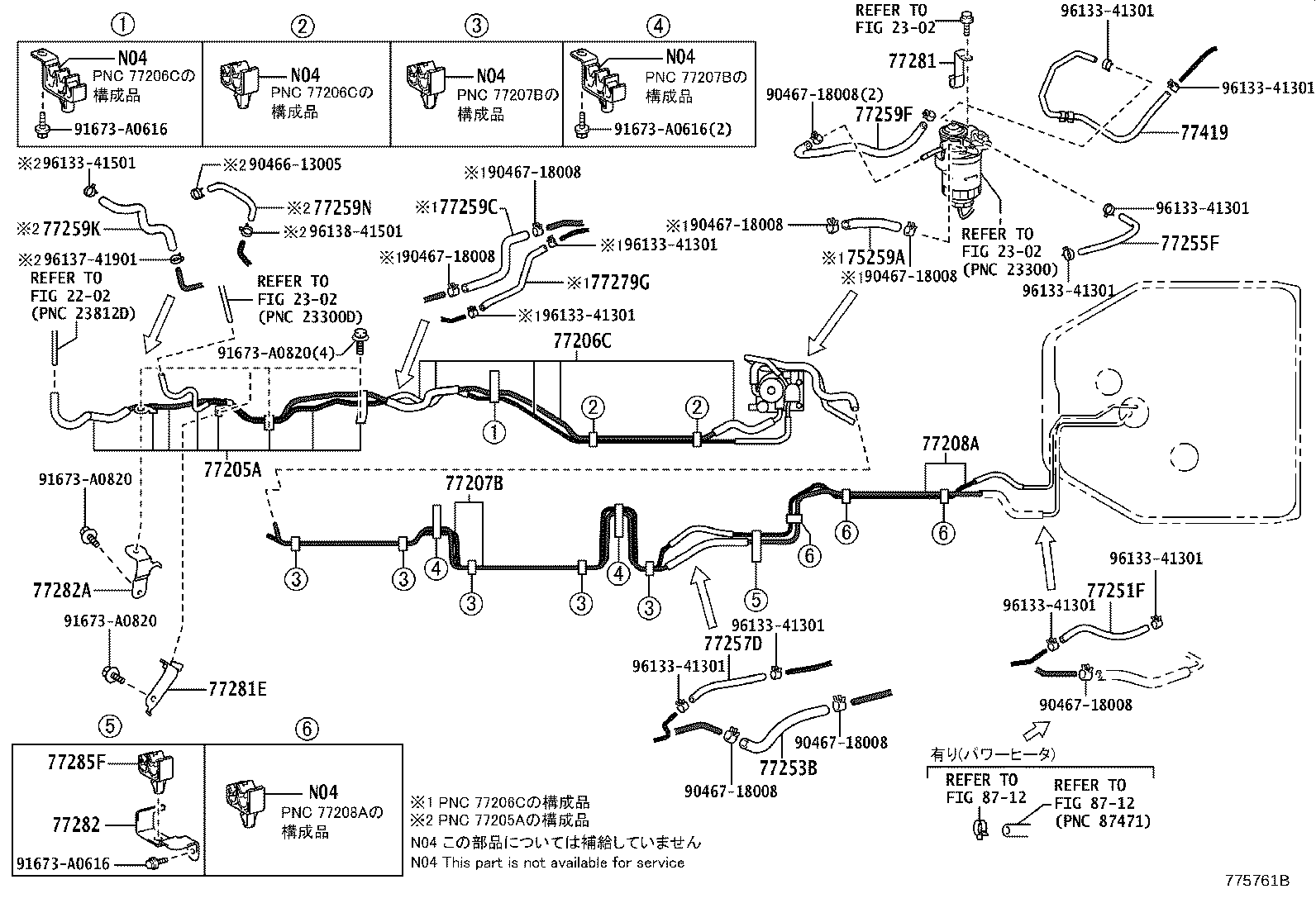

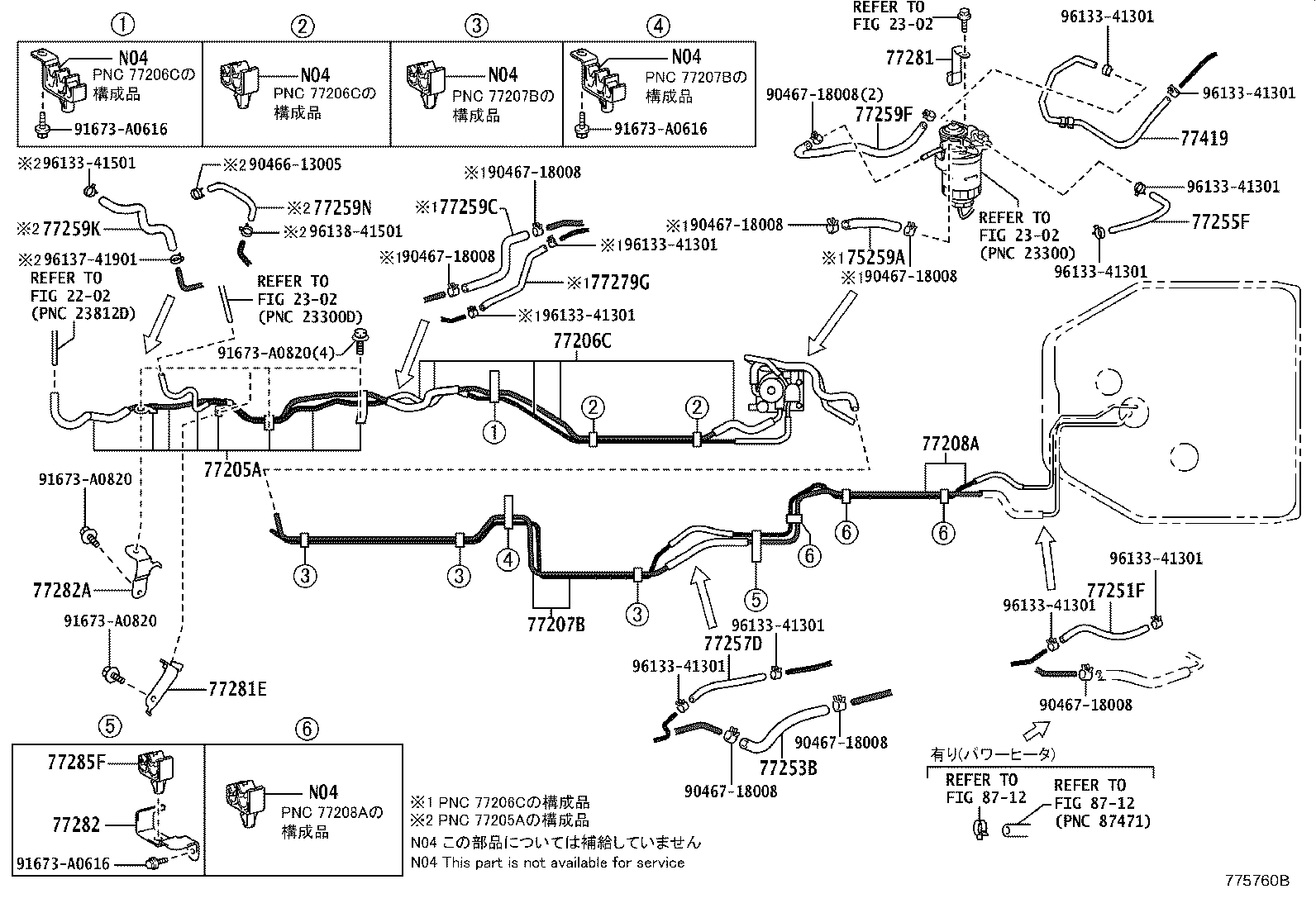

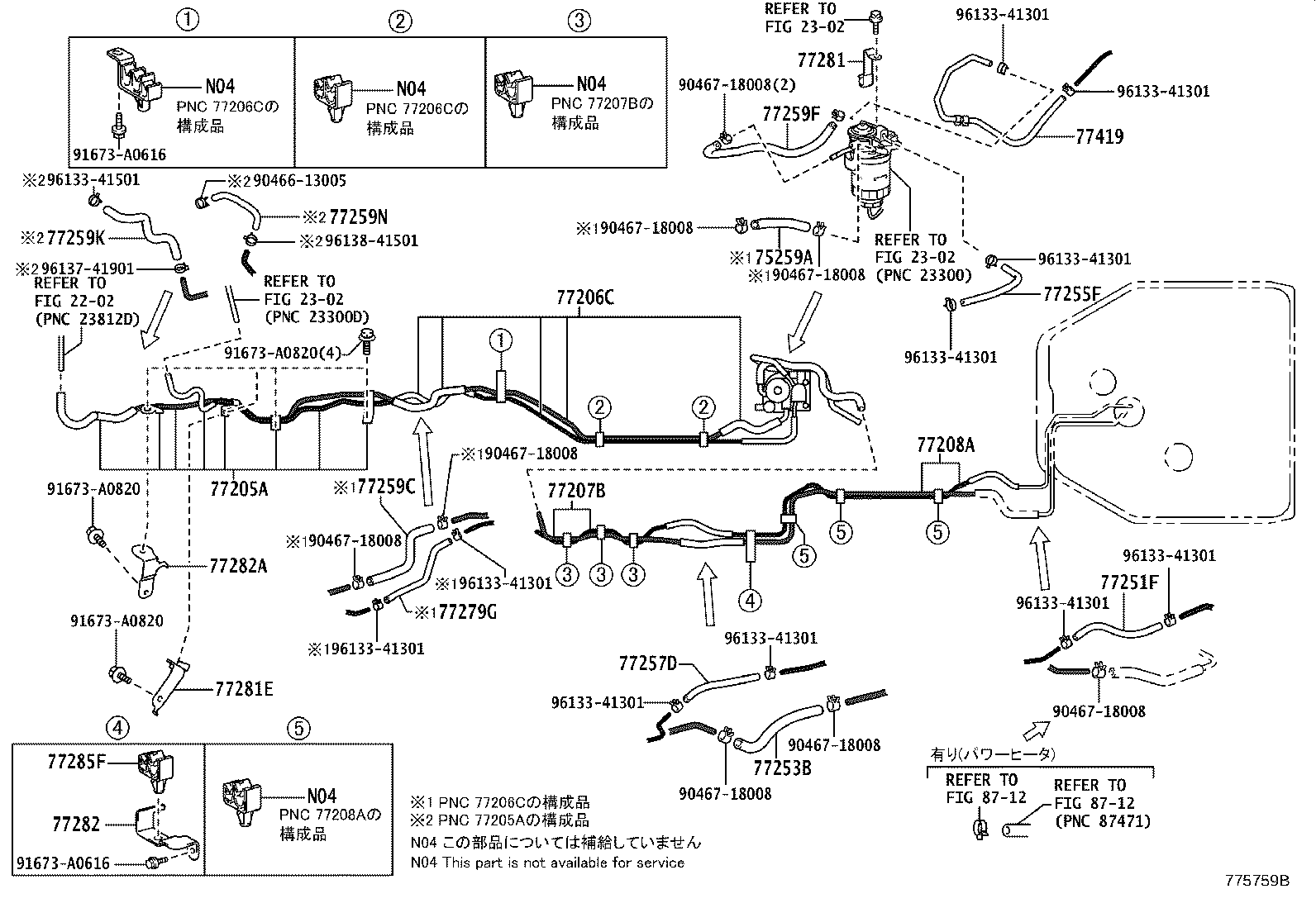

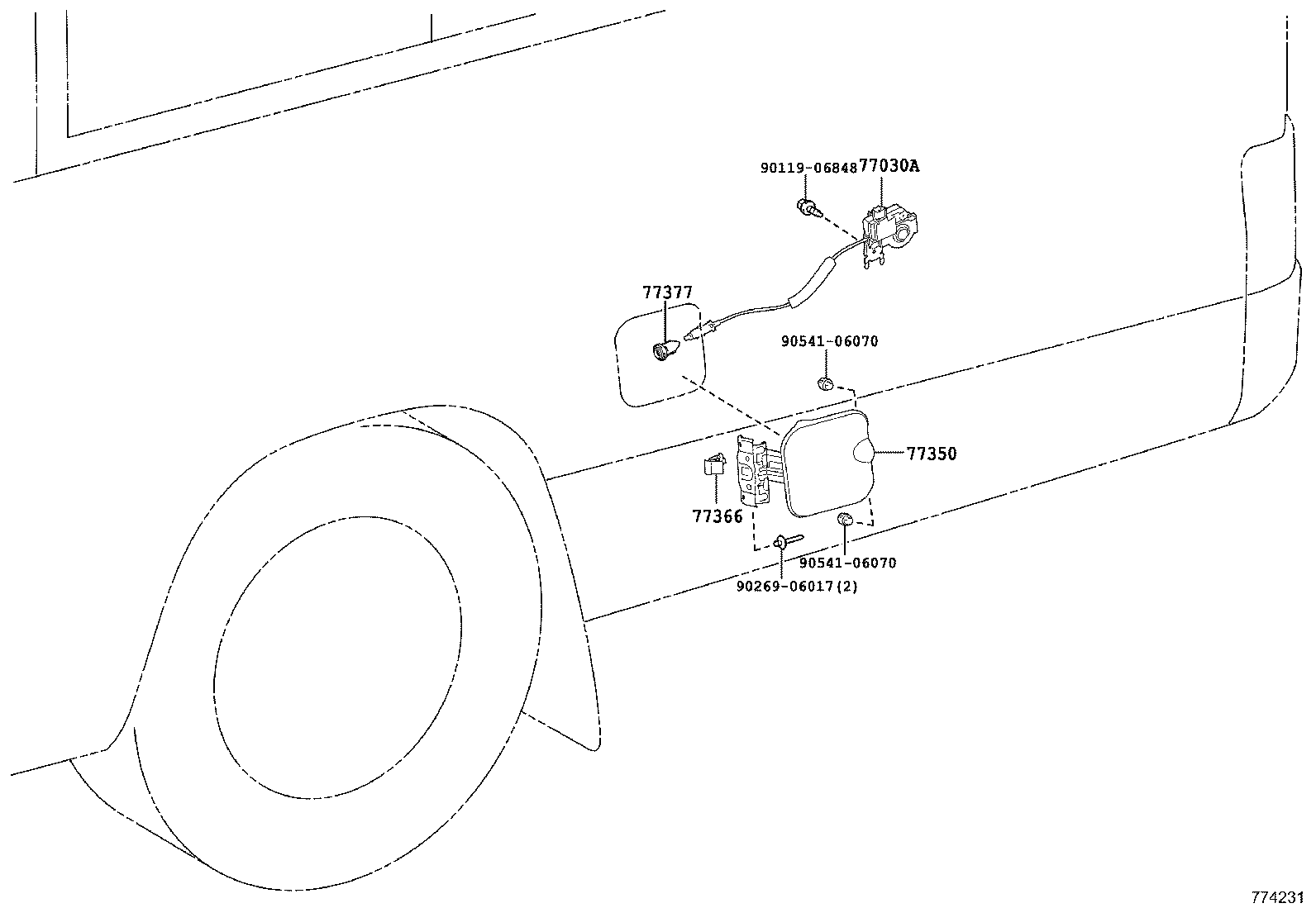

64 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 75259A | Hose, Fuel |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77205A | Tube Sub-assy, Fuel Main |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77207B | Tube Sub-assy, Fuel Main, NO.3 |
| 77208A | Tube Sub-assy, Fuel Main, NO.4 |
| 77210 | Pipe Assy, Fuel Tank Filler |
| 77211B | Clamp (FOR FUEL FILLER PIPE) |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77251F | Hose, Fuel |
| 77253B | Hose, Fuel, NO.1(FOR FUEL MAIN NO.3 TUBE) |
| 77254D | Hose, Fuel |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77257D | Hose, Fuel, NO.1(FOR FUEL RETURN NO.3 TUBE) |
| 77259C | Hose, Fuel |
| 77259D | Hose, Fuel, NO.1 |
| 77259F | Hose, Fuel |
| 77259K | Hose, Fuel |
| 77259N | Hose, Fuel, NO.2 |
| 77278A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2) |
| 77279G | Hose, Fuel, NO.2 |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77281E | Bracket, Fuel Main Tube, NO.1 |
| 77282 | Bracket, Fuel Main Tube, NO.2 |
| 77282A | Bracket, Fuel Main Tube, NO.2 |
| 77283A | Bracket, Fuel Tube Clamp, NO.1 |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285J | Clamp, Fuel Tube, NO.1 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77419 | Hose, Fuel, NO.3 |
| 77420 | Valve Assy, Fuel Cut Off, NO.2 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77613A | Bracket, Fuel Tank Band, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77655 | Cushion, Fuel Tank, NO.3 |
| 77681A | Seat, Fuel Tank Band |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
