Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

11 part groups · 3 illustrations

Illustrations

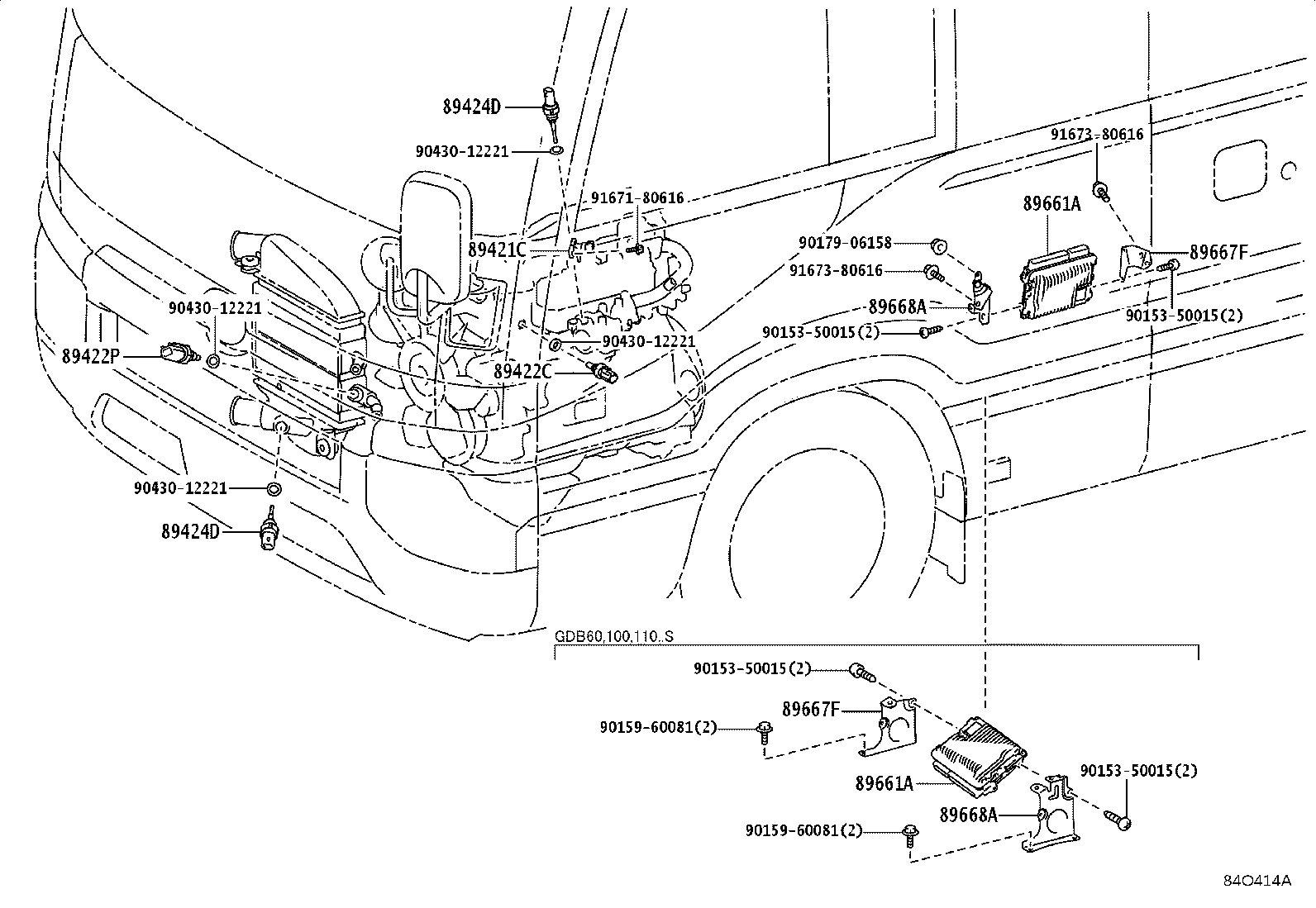

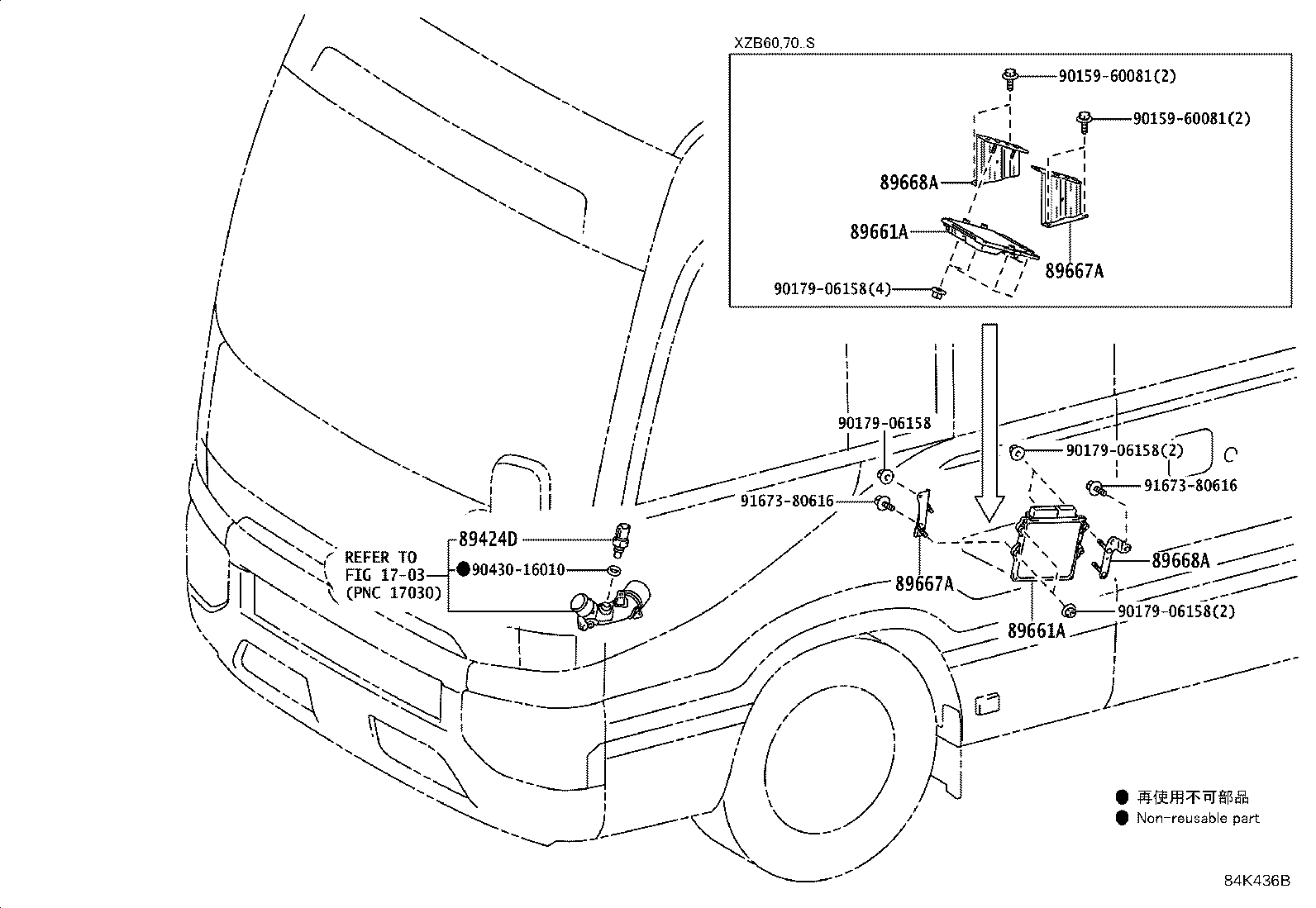

Figure 84I076 84I076 2017-01 → 2019-08 Figure 84K436B 84K436B 2019-08 → — Figure 84O414A 84O414A 2022-01 → —

Part groups

PNCDescription
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89422P Sensor, Water Temperature
89424D Sensor, Inlet Air Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89667F Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89870A Driver Assy, Injector
89871A Driver, Injector
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
