Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05
Rear Wiper

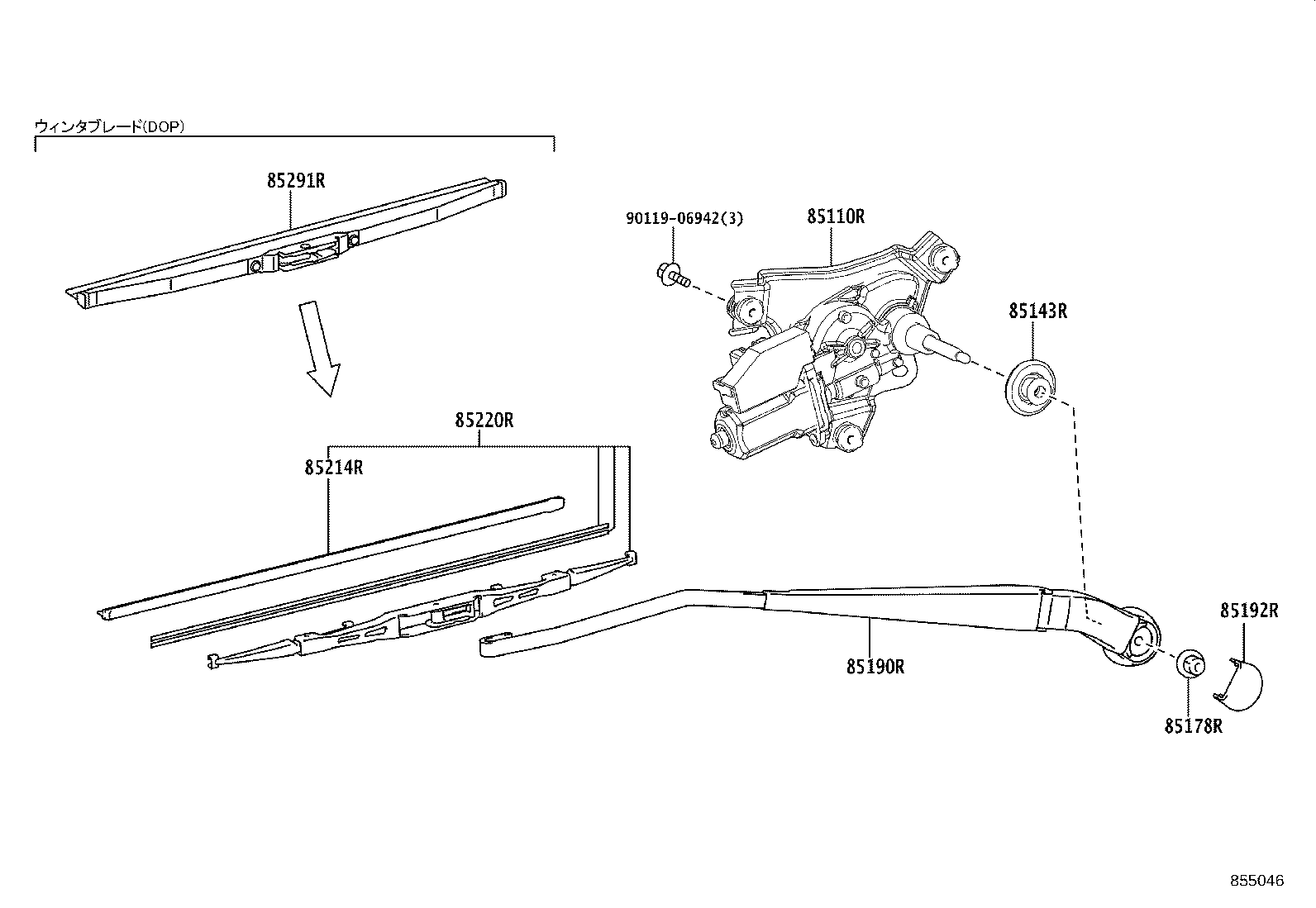

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110R | Motor Assy, Rear Wiper |
| 85143R | Grommet, Rear Wiper Motor |
| 85178R | Nut (FOR REAR WIPER ARM SETTING) |
| 85190R | Arm Assy, Rear Wiper |
| 85192R | Cover, Rear Wiper Arm |
| 85214R | Rubber, Rear Wiper |
| 85220R | Blade Assy, Rear Wiper |
| 85291R | Blade,Rear Wiper, Winter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
