Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

10 part groups · 2 illustrations

Illustrations

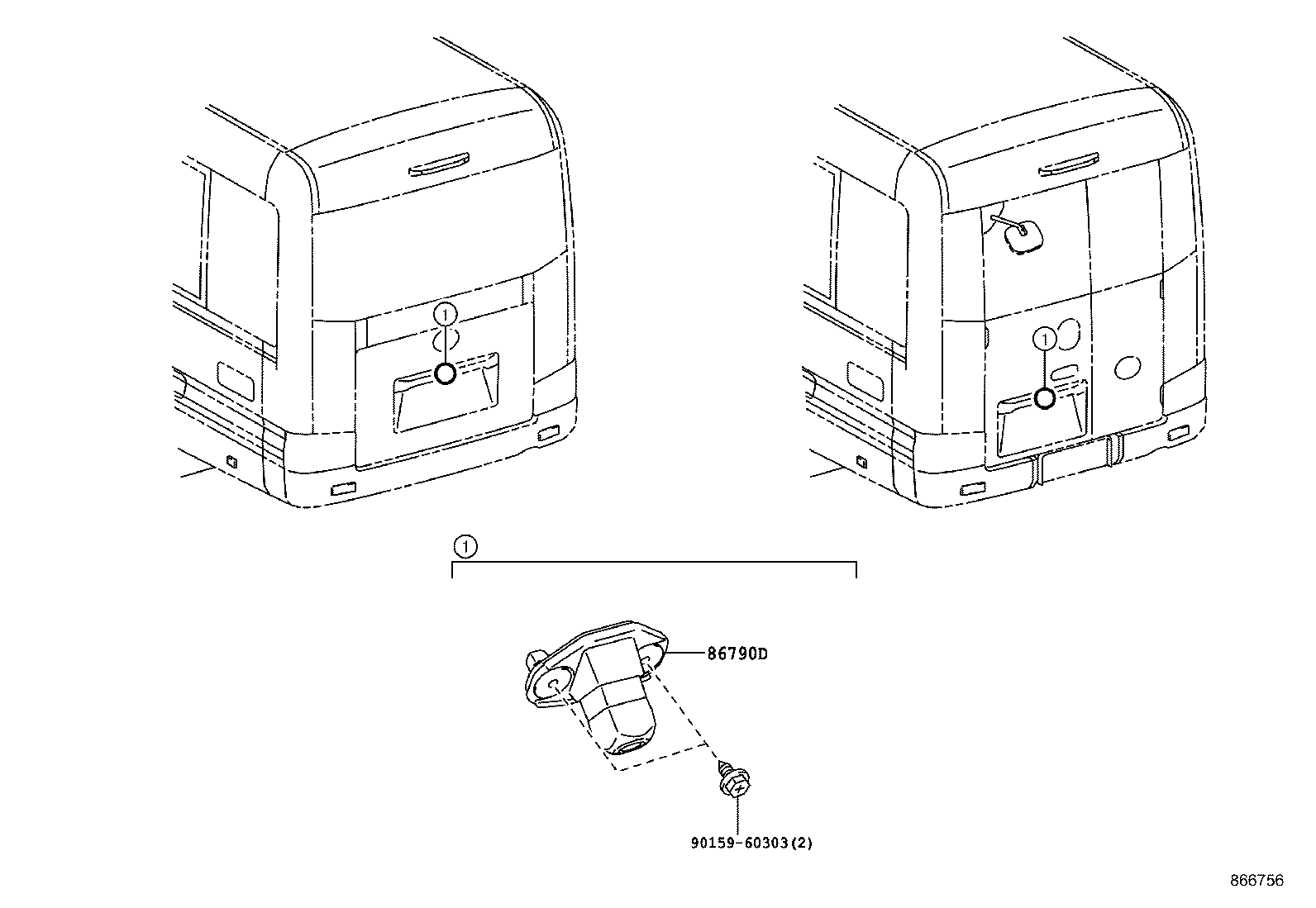

Figure 866755C 866755C 2017-01 → — Figure 866756 866756 2017-01 → —

Part groups

PNCDescription
46467A Clamp, Cable, RH
86203J Wiring Sub-assy, Television, NO.1
86203K Wiring Sub-assy, Television, NO.2
86203L Wiring Sub-assy, Television, NO.3
86292 Cover, Television Set
86292A Cover, Television Set
86292D Clip(FOR TELEVISION SET COVER)
86680A Display Assy, Television
86681A Relay, Television
86790D Camera Assy, Television, RR
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
