Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

21 part groups · 3 illustrations

Illustrations

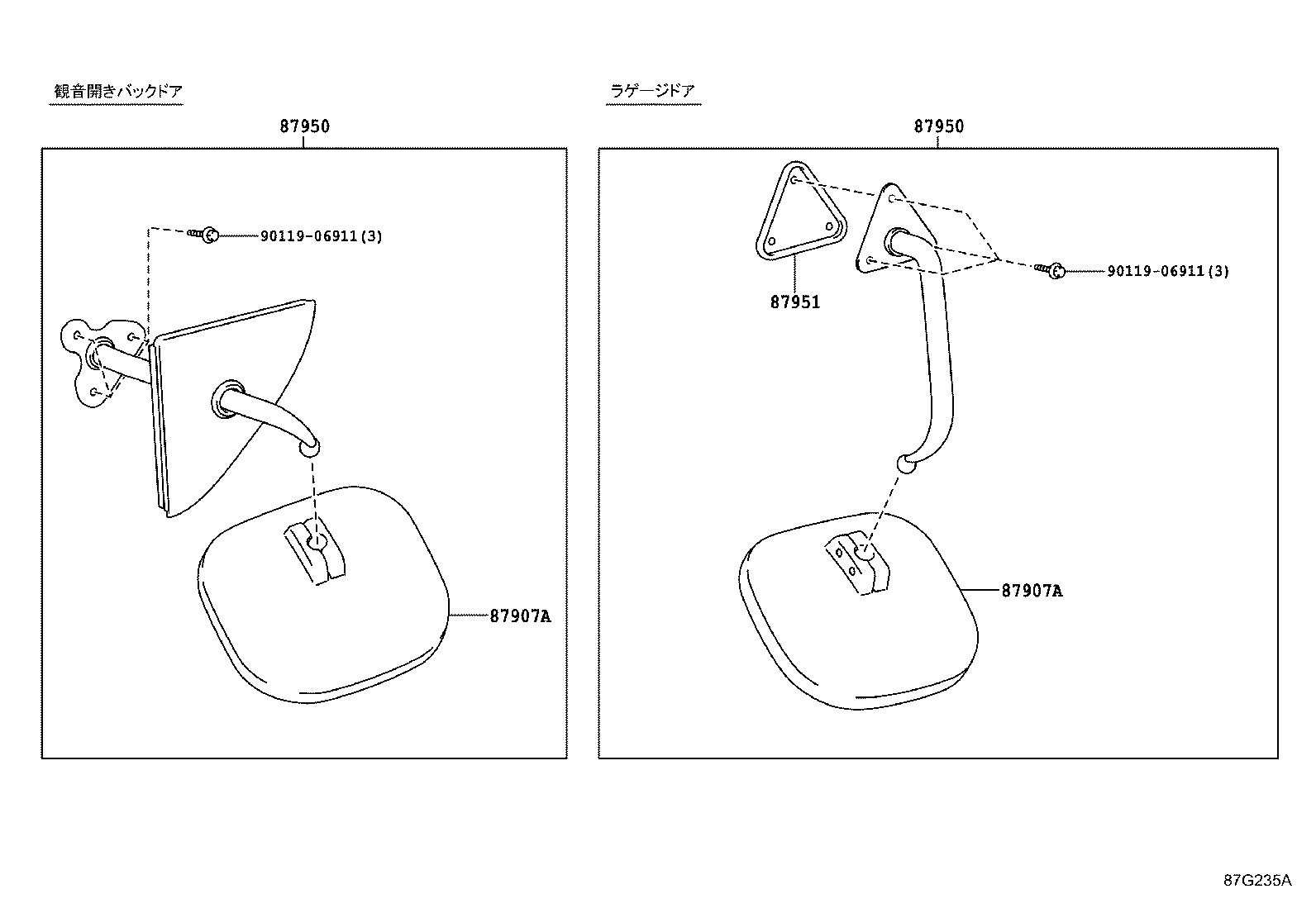

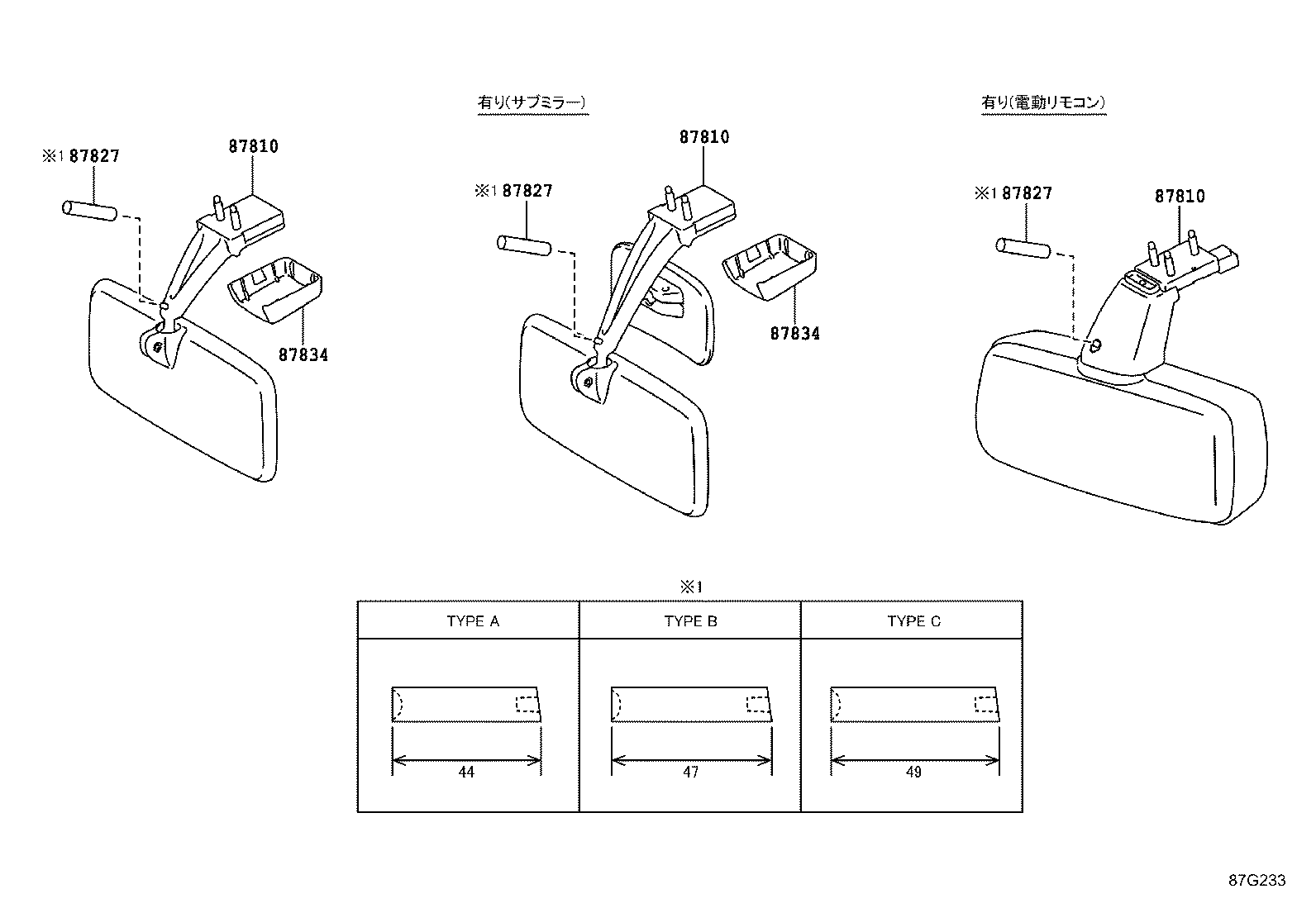

Figure 87G234A 87G234A 2017-01 → — Figure 87G233 87G233 2017-01 → — Figure 87G235A 87G235A 2017-01 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87902A Arm Sub-assy, Outer Rear View Mirror, RH
87905A Arm Sub-assy, Outer Rear View Mirror, LH
87906B Mirror Sub-assy, Outer Rear View, LH
87907 Mirror Sub-assy, Outer Under View
87907A Mirror Sub-assy, Outer Under Rear View
87910 Mirror Assy, Outer Rear View, RH
87914B Cover, Outer Mirror Knob, RH
87914C Cover, Outer Mirror Knob, LH
87917C Screw, Outer Mirror
87917D Clip, Outer Mirror
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87945 Cover, Outer Mirror, LH
87945B Cover, Outer Mirror, LH
87950 Mirror Assy, Outer Under Rear View
87951 Gasket, Outer Under Rear View Mirror
87965 Grommet, Outer Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
