Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

27 part groups · 11 illustrations

Illustrations

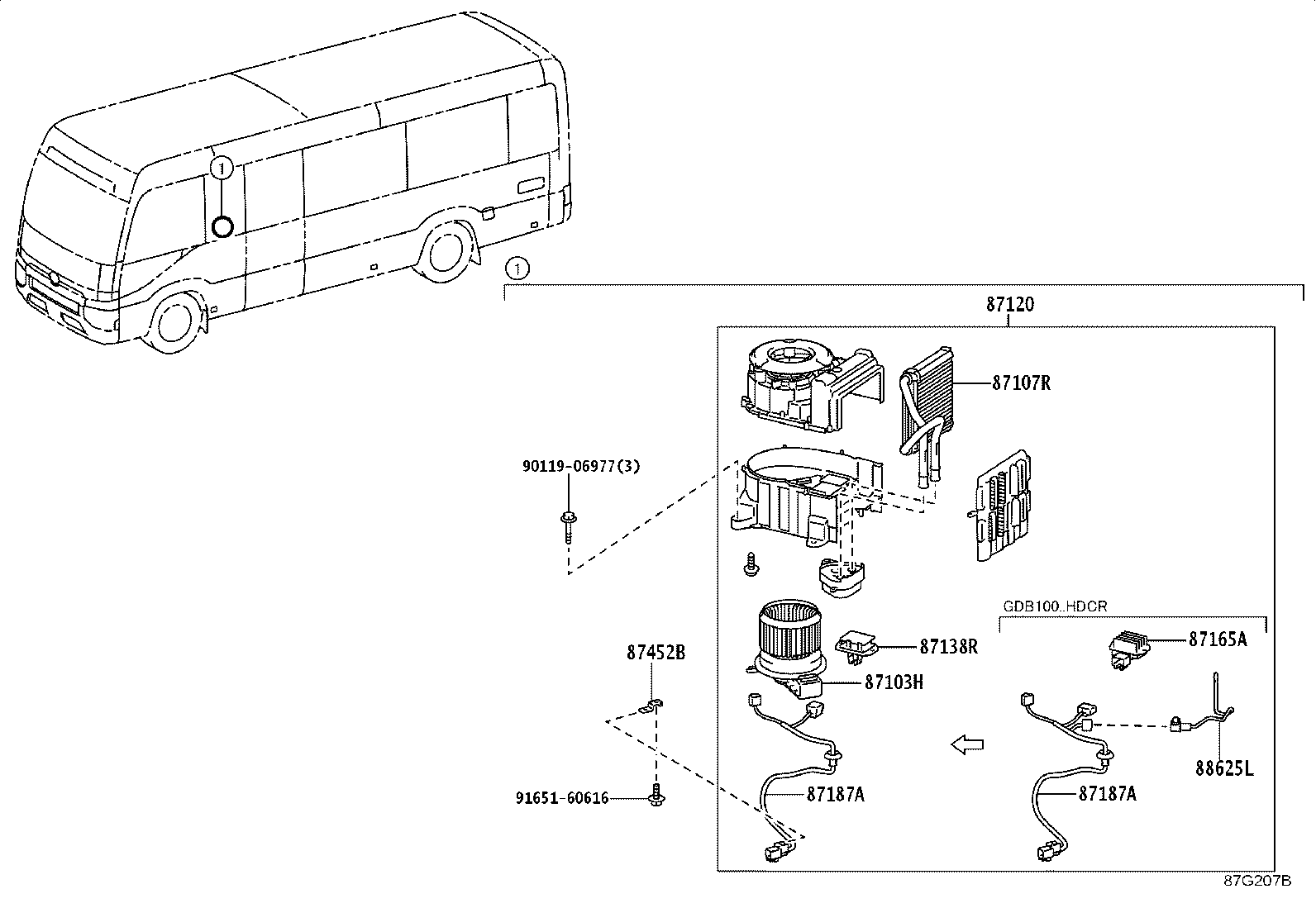

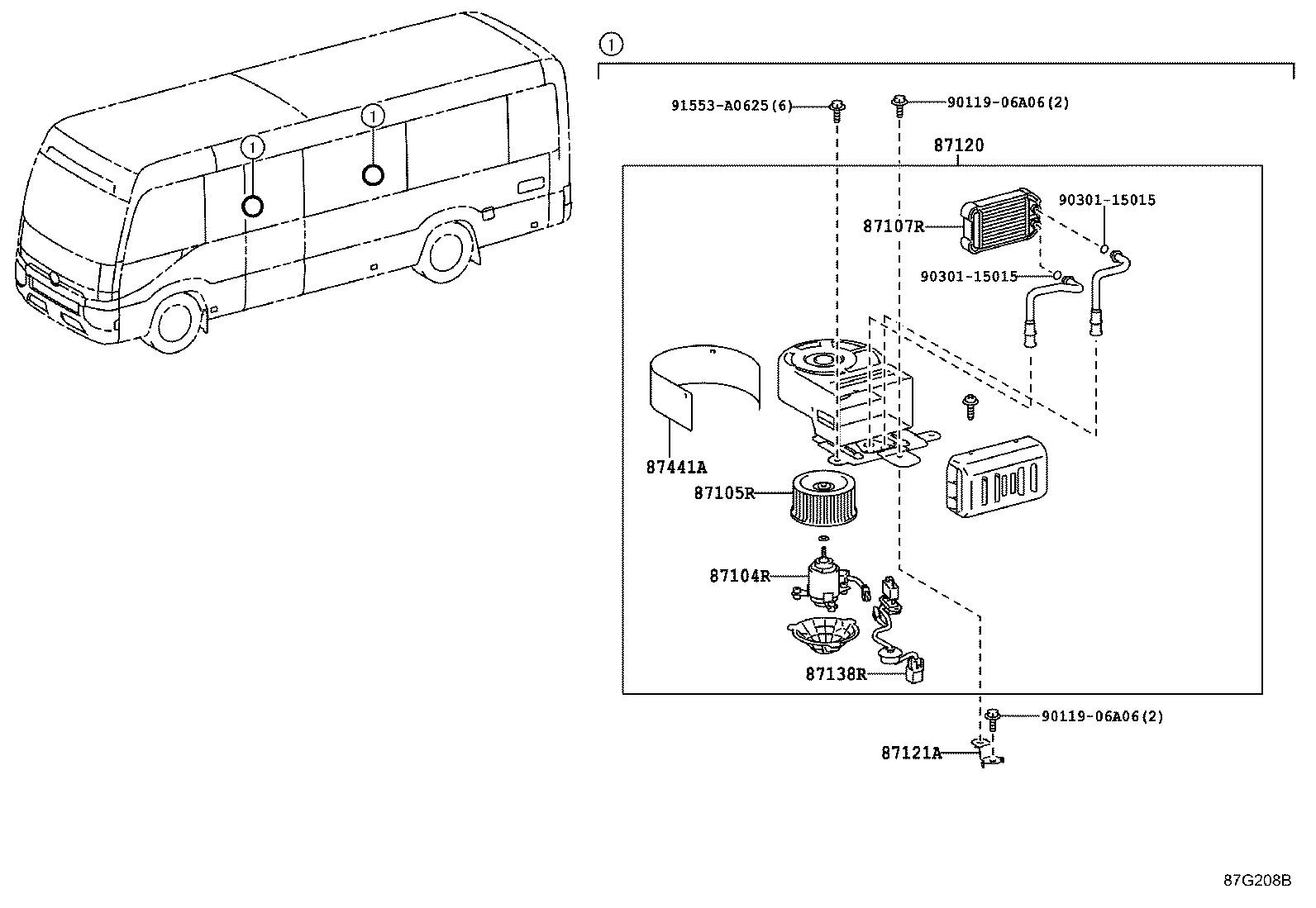

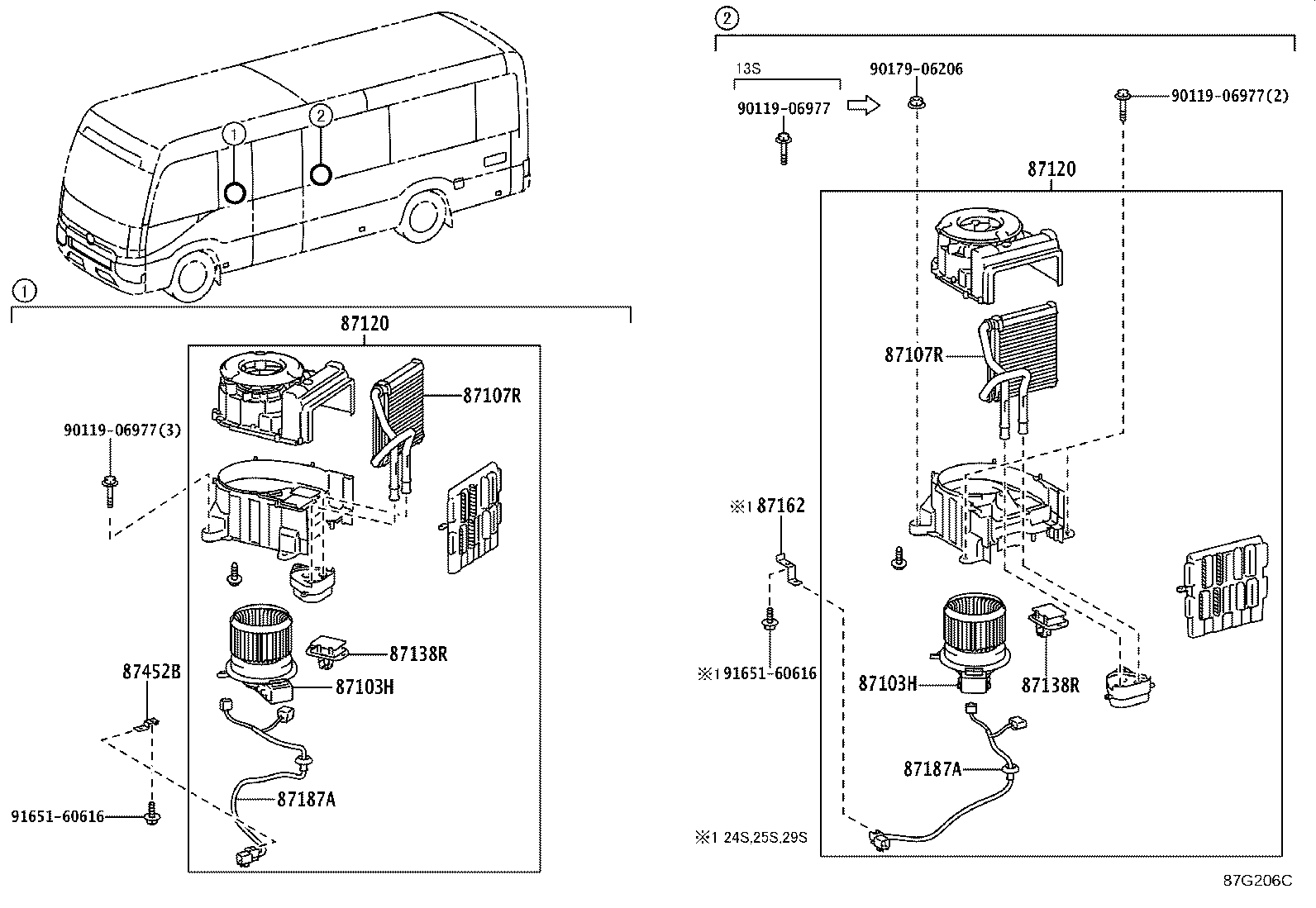

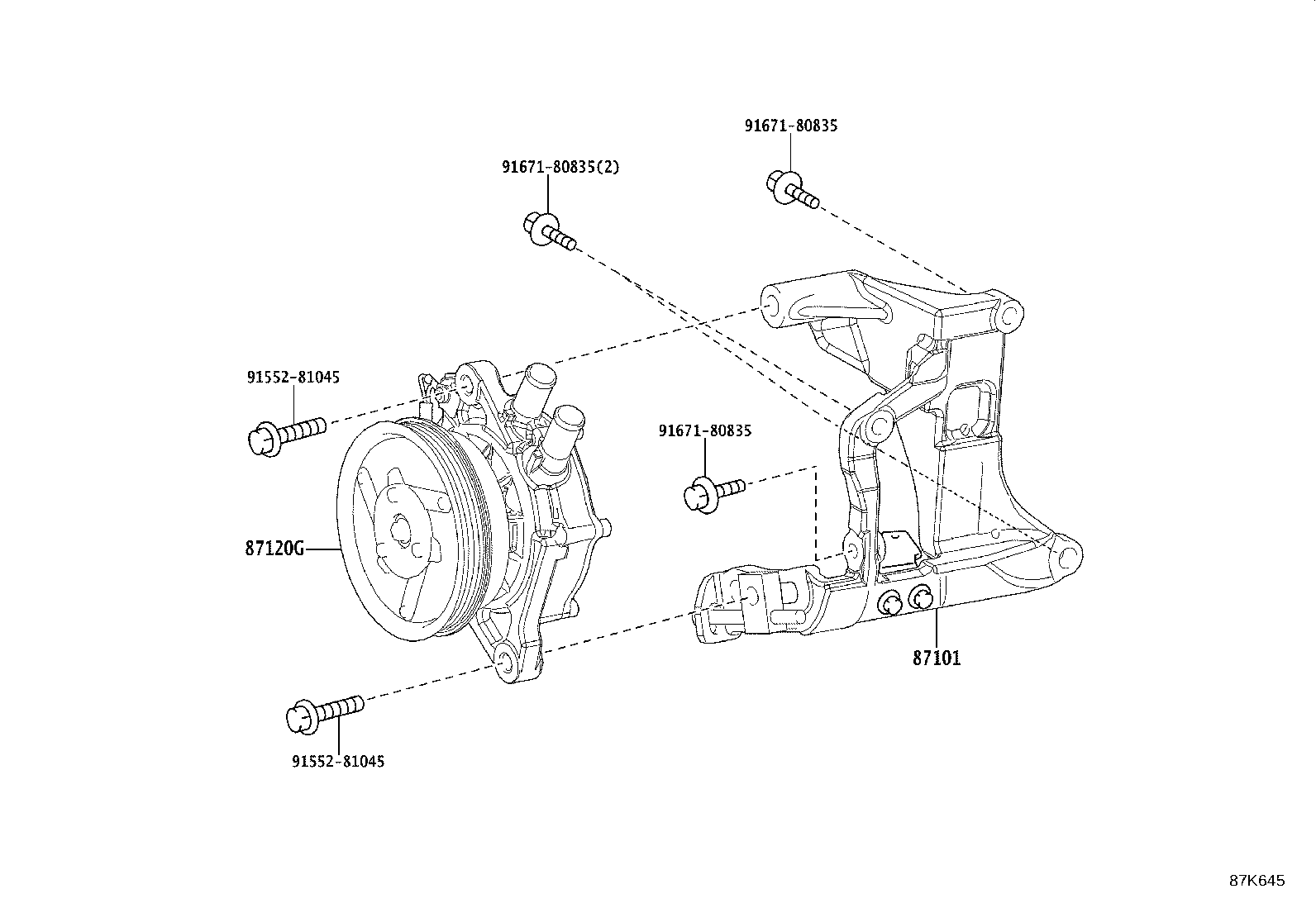

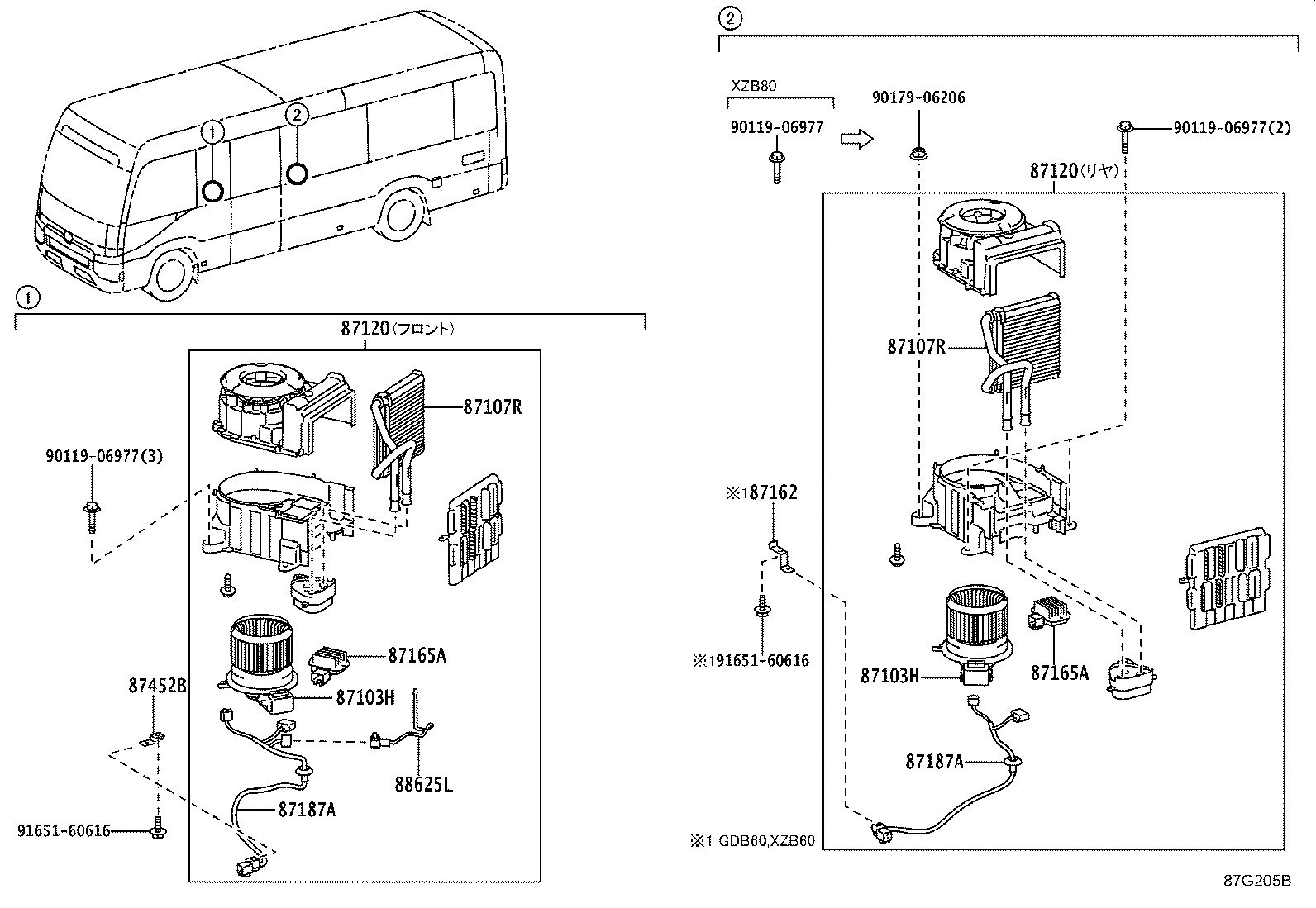

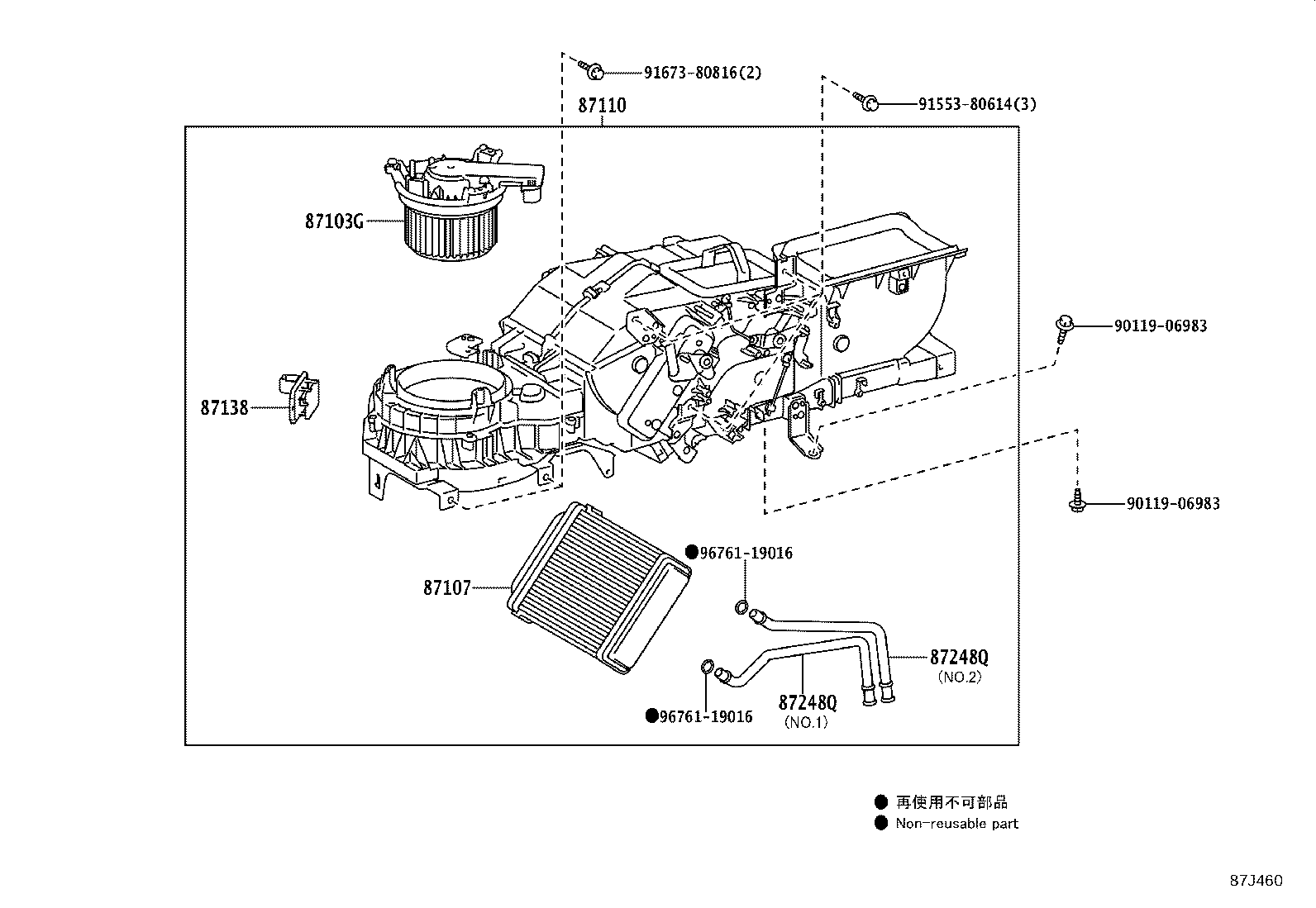

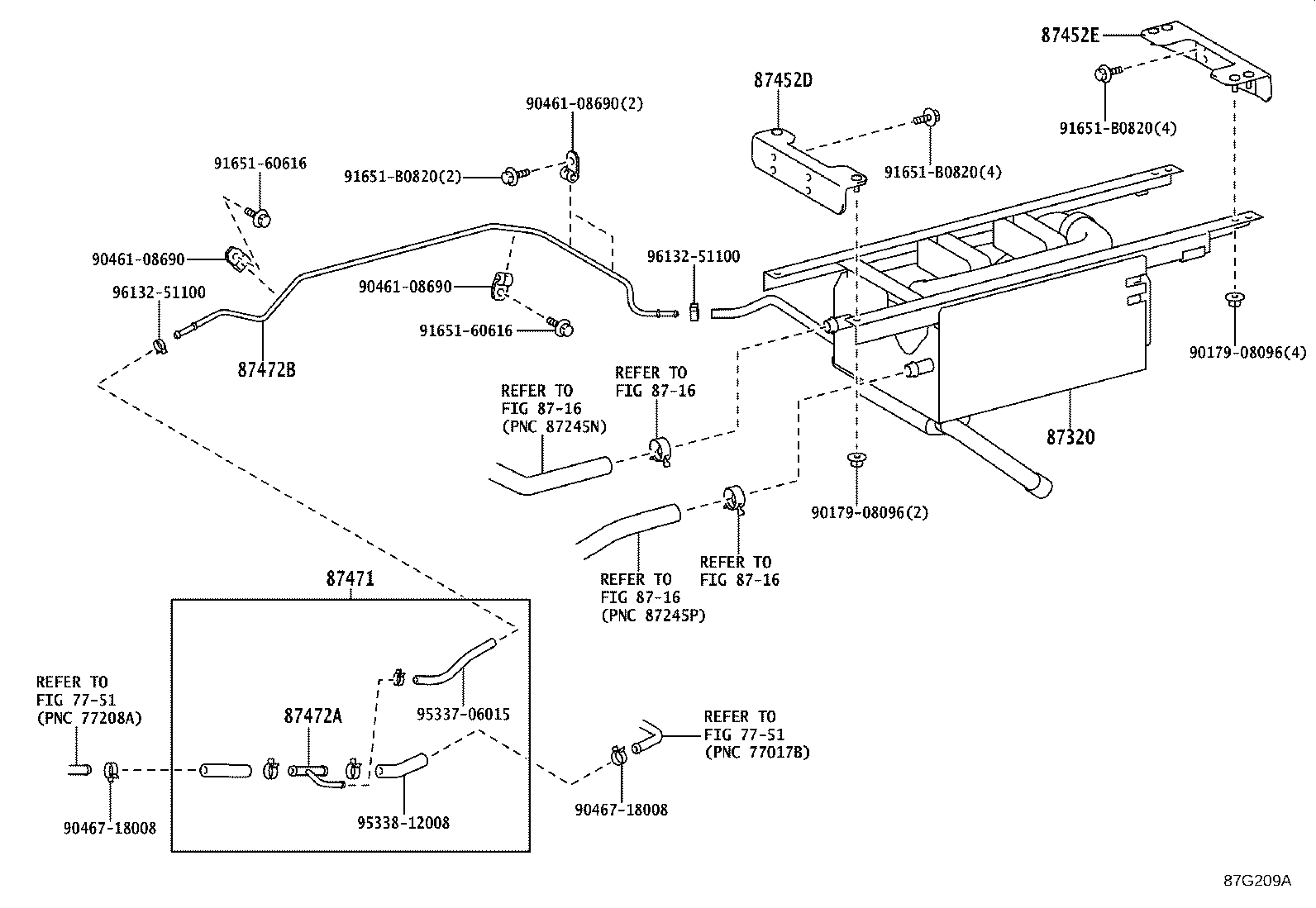

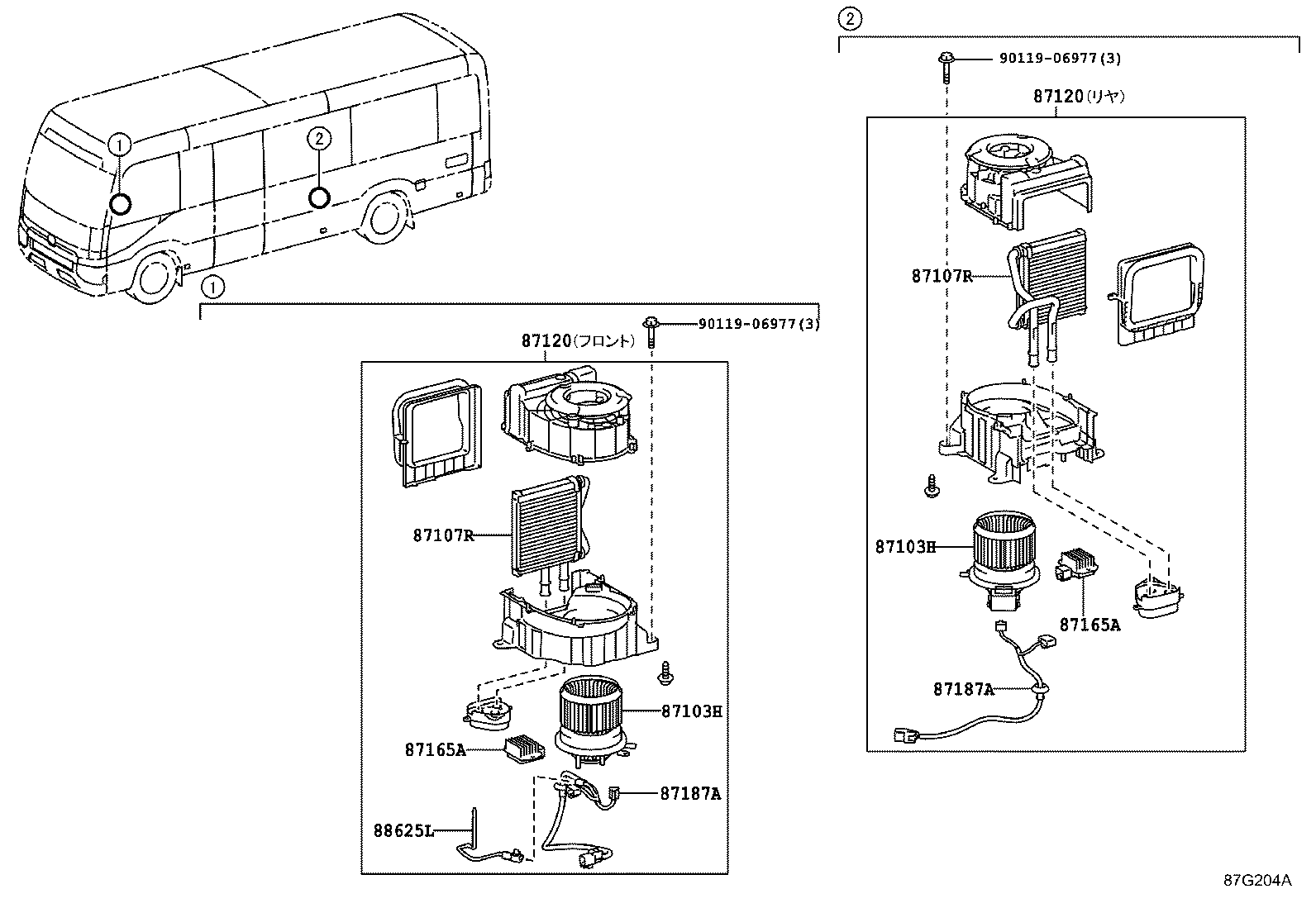

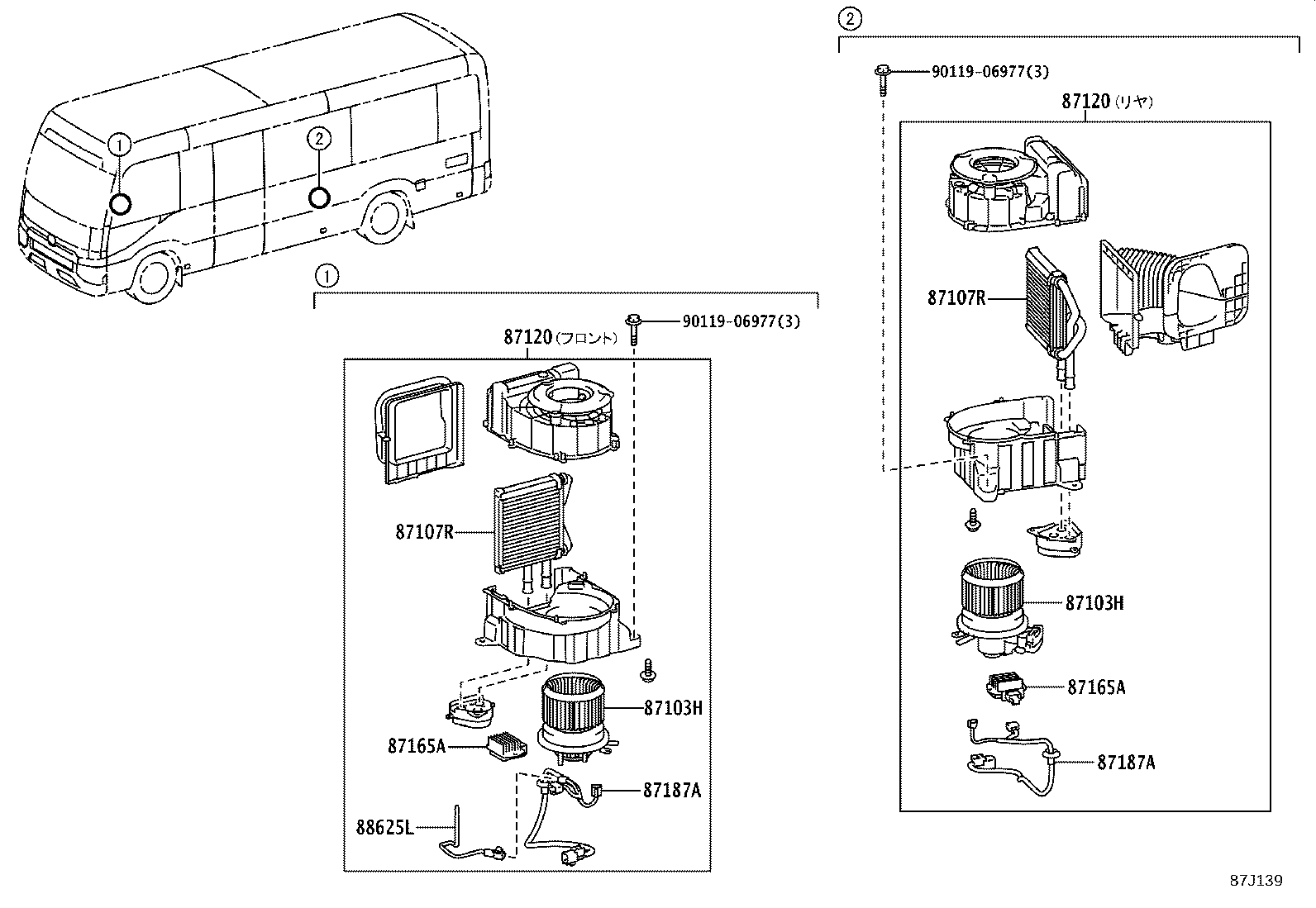

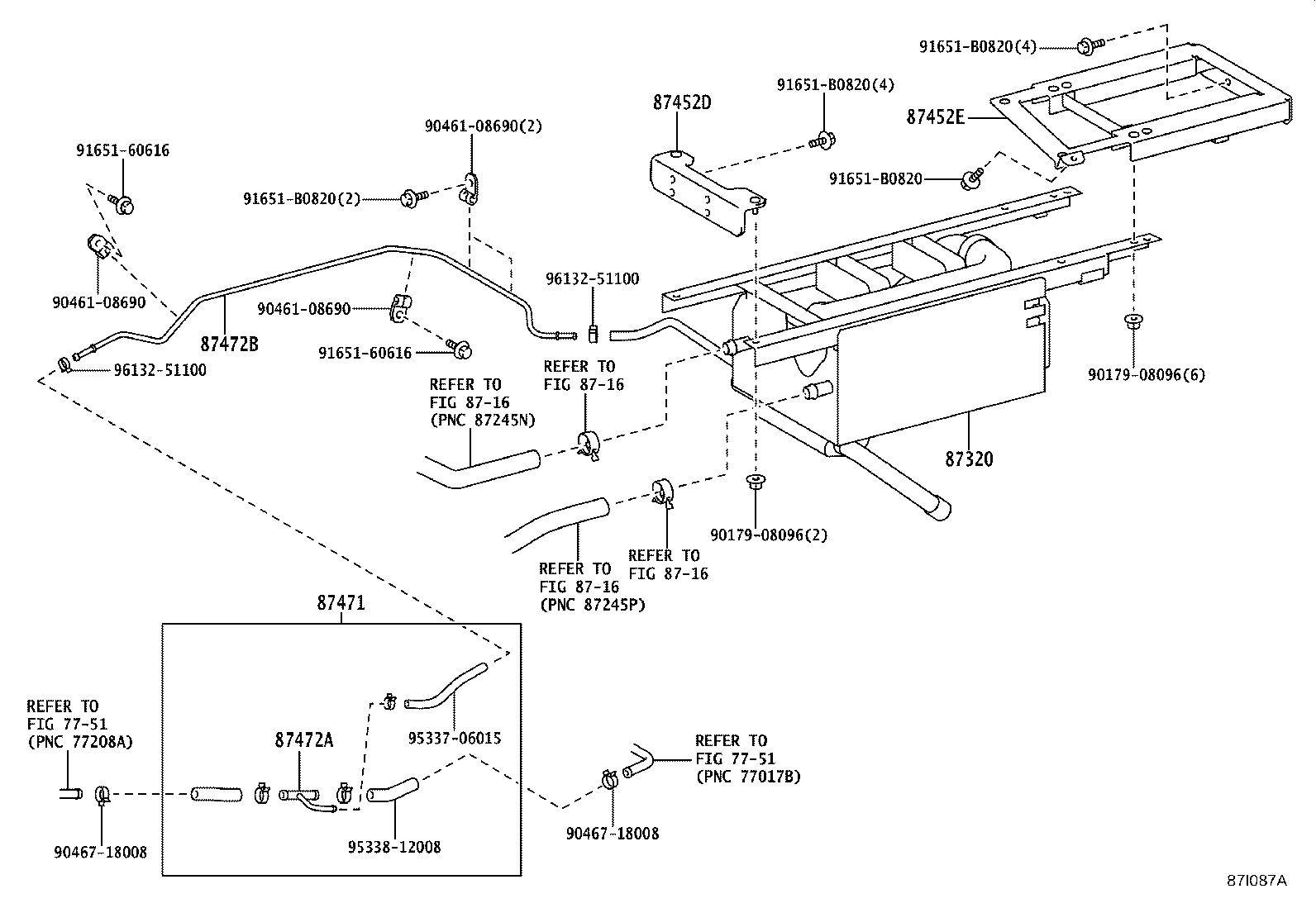

Figure 87J459 87J459 2017-01 → — Figure 87J460 87J460 2017-01 → — Figure 87G204A 87G204A 2017-01 → — Figure 87G205C 87G205C 2017-01 → — Figure 87G206C 87G206C 2017-01 → — Figure 87G207B 87G207B 2017-01 → — Figure 87G208B 87G208B 2017-01 → — Figure 87J139 87J139 2020-06 → — Figure 87G209A 87G209A 2017-01 → — Figure 87I087A 87I087A 2019-08 → — Figure 87K645 87K645 2022-01 → —

Part groups

PNCDescription
87101 Bracket Sub-assy, Viscous Heater NO.1
87103G Case Sub-assy, Front Heater Blower
87103H Case Sub-assy, Rear Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87120 Heater Assy, Rear
87120G Heater Assy, Viscous W/Magnet Clutch
87121A Bracket, Heater
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87162 Bracket, Heater Set
87165 Control, Blower Motor, NO.1
87165A Control, Blower Motor, NO.2
87187A Wire, Blower Motor Lead
87248Q Pipe, Front Heater Radiator Water
87320 Exchanger Assy, Heater Heat
87441A Filter, Heater Air
87452B Bracket, Heater, Rear
87452D Bracket, Power Heater, NO.1
87452E Bracket, Power Heater, NO.2
87471 Joint, Combustion Heater Fuel
87472A Pipe, Heater Fuel, NO.1
87472B Pipe, Heater Fuel, NO.2
88625L Thermistor, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
