Heating & Air Conditioning - Cooler Unit

27 part groups · 8 illustrations

Illustrations

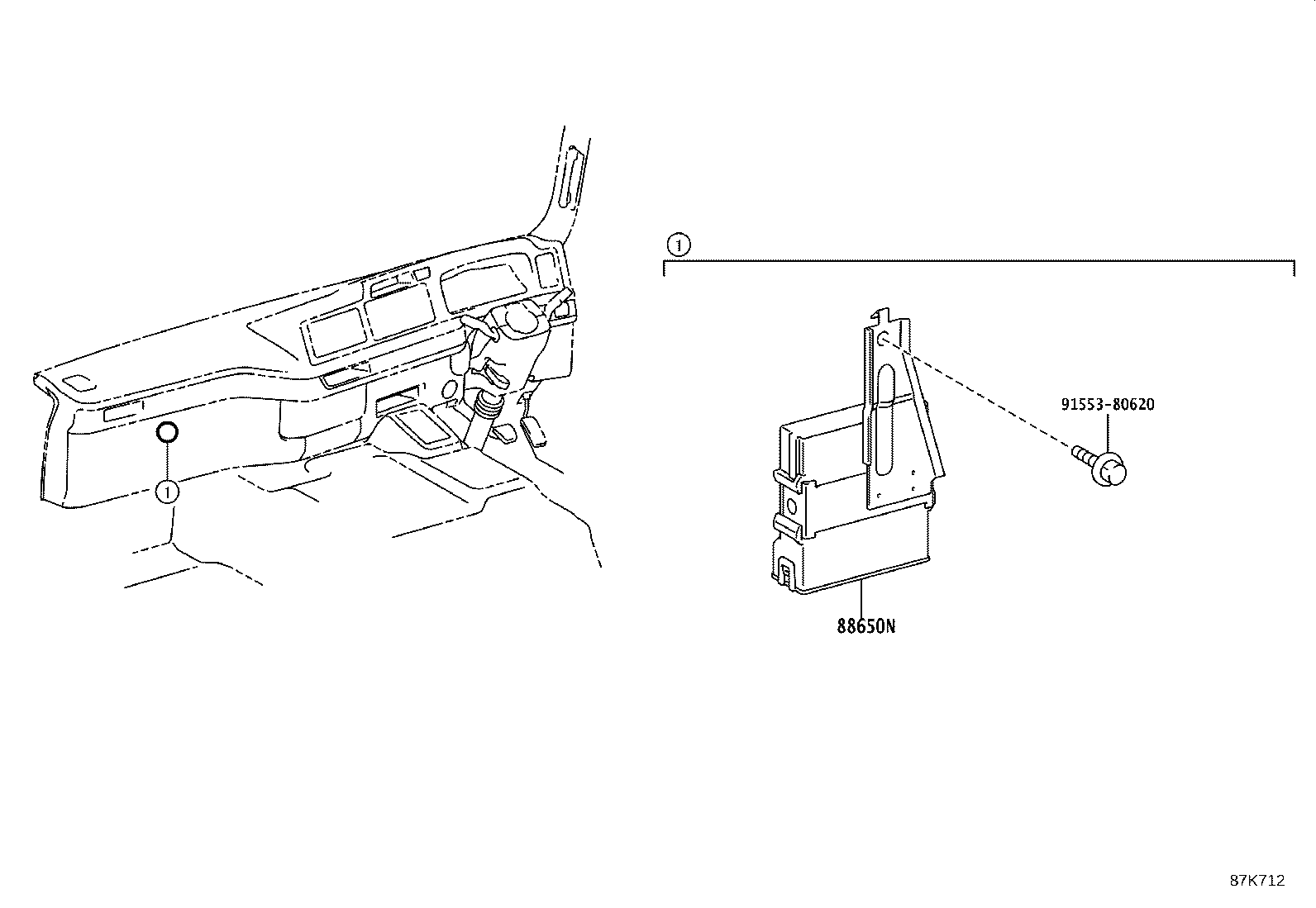

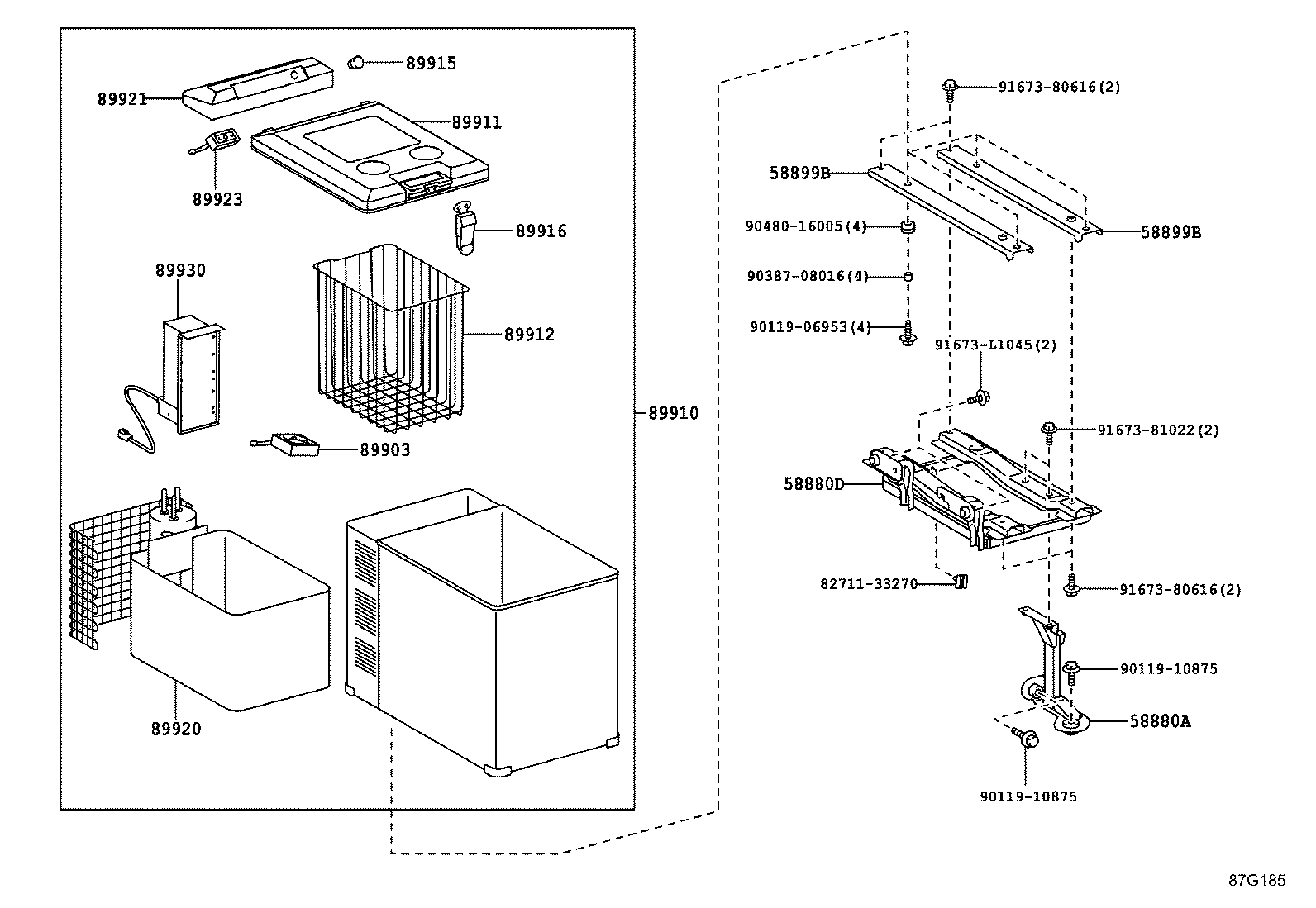

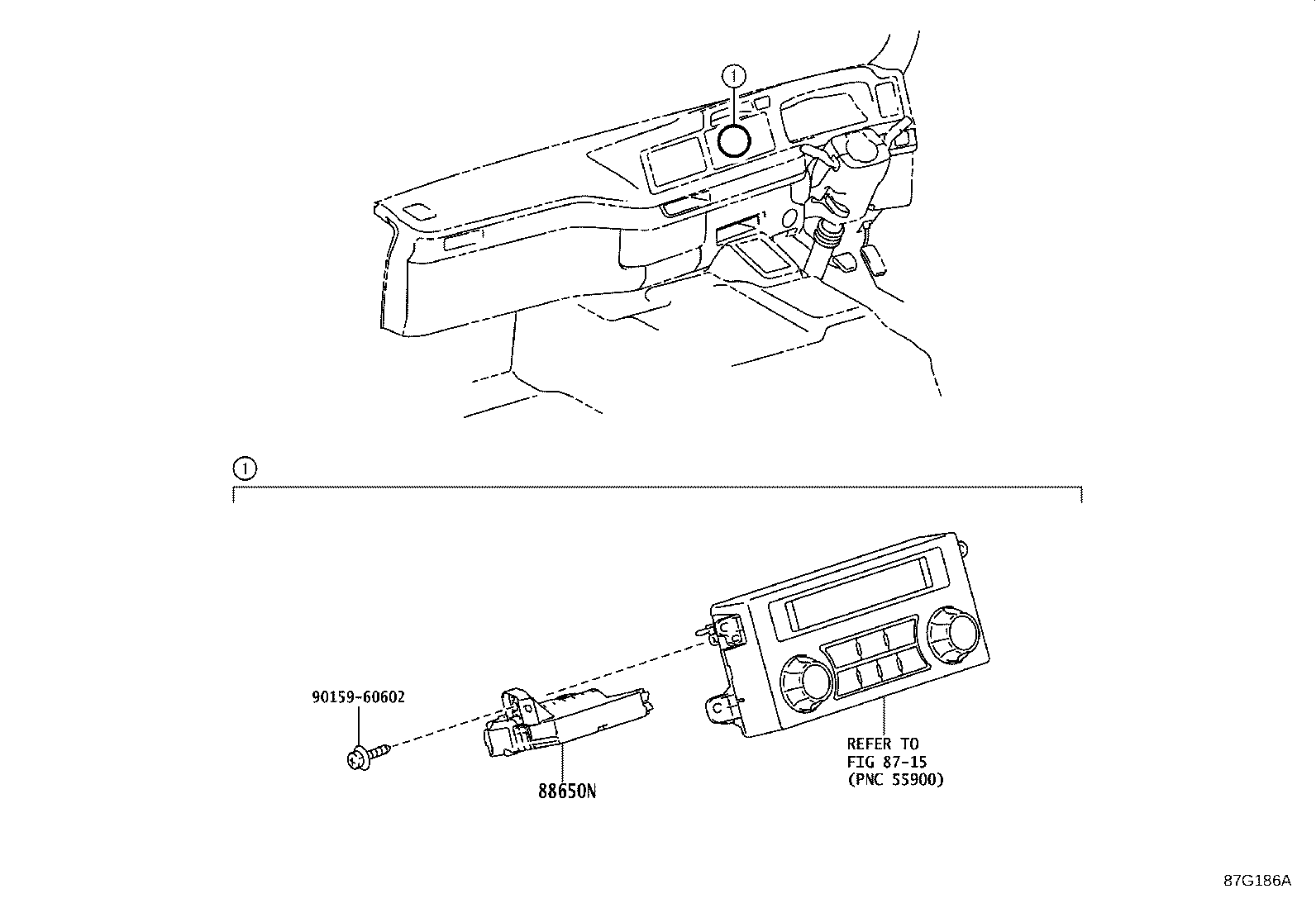

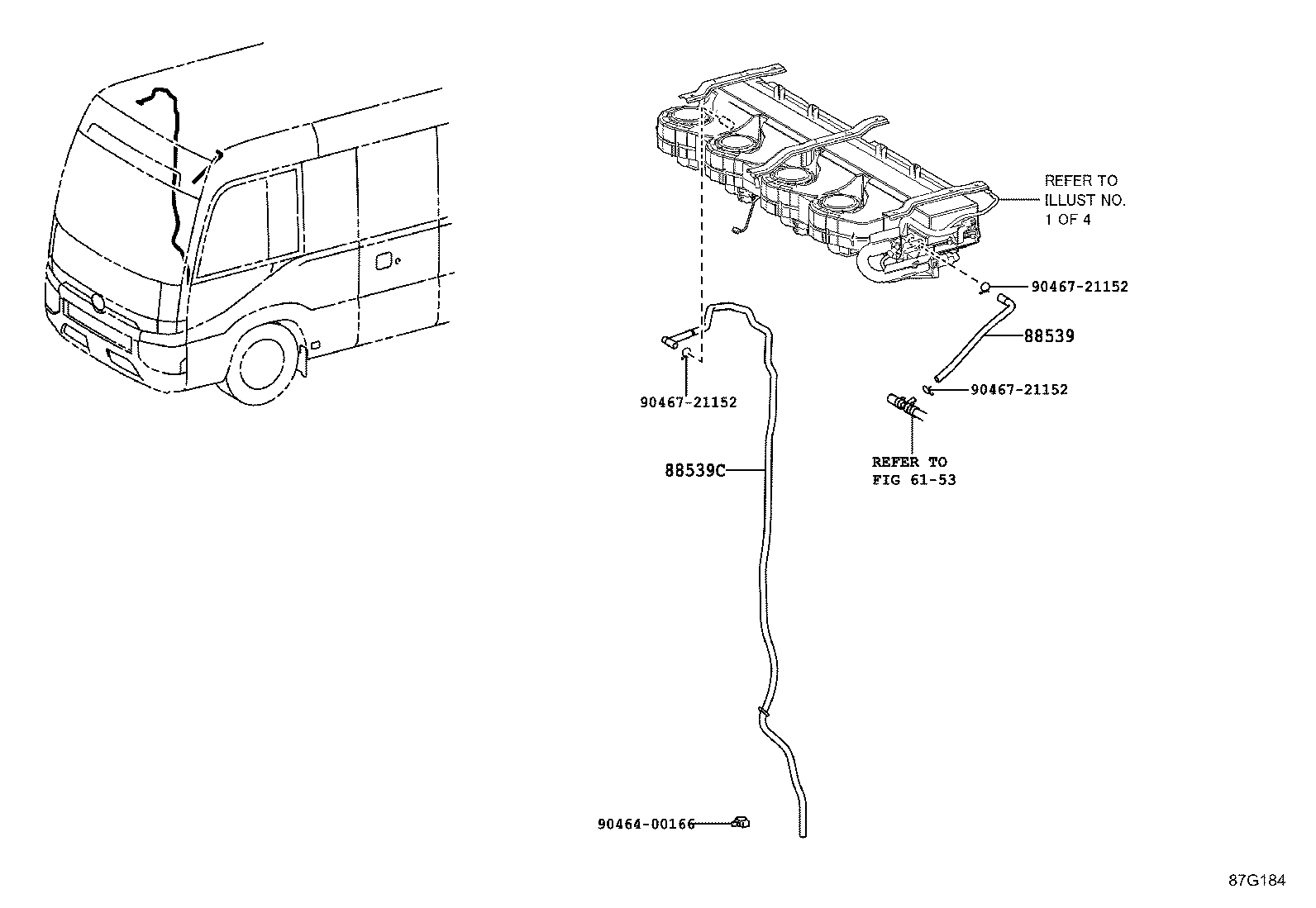

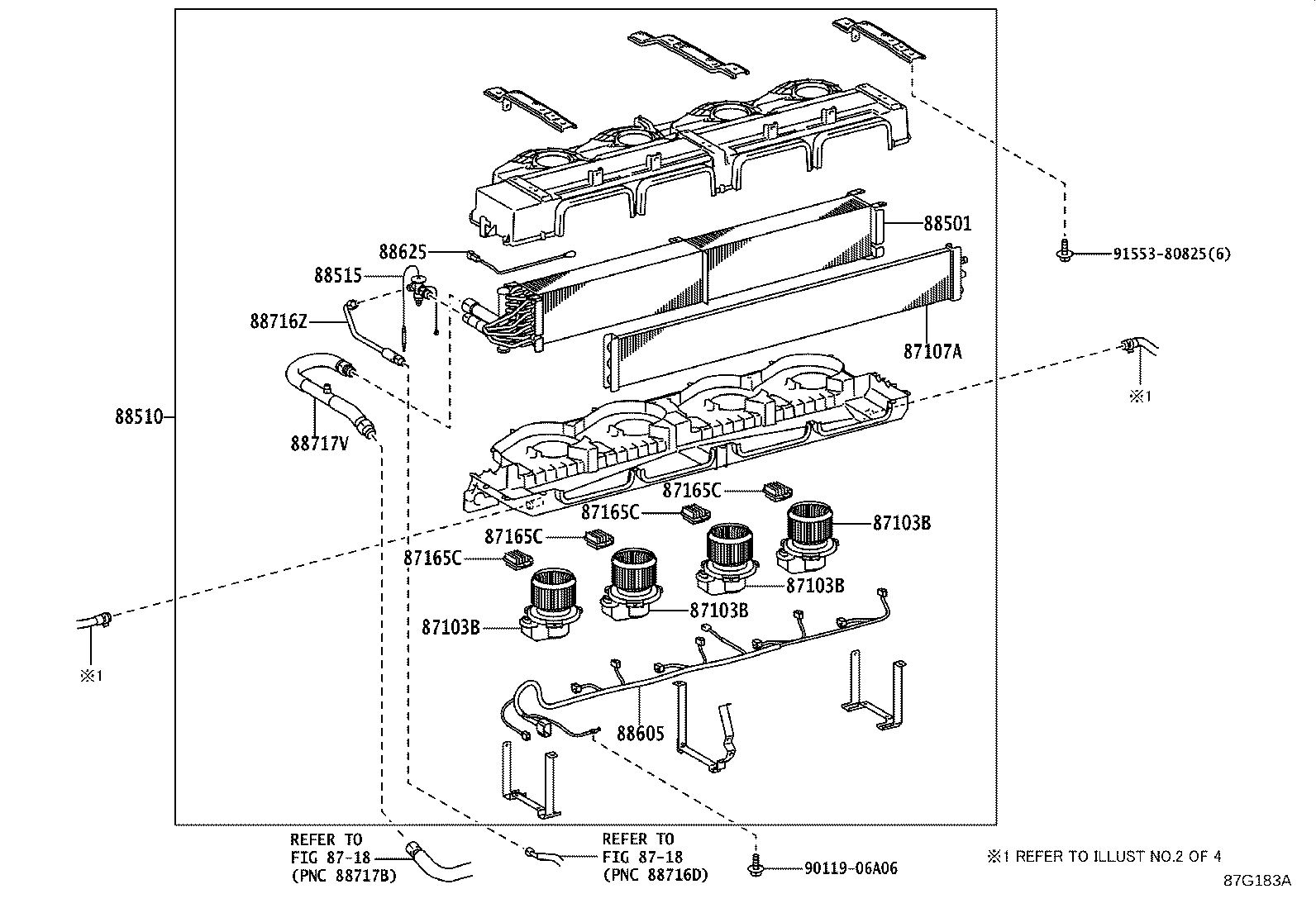

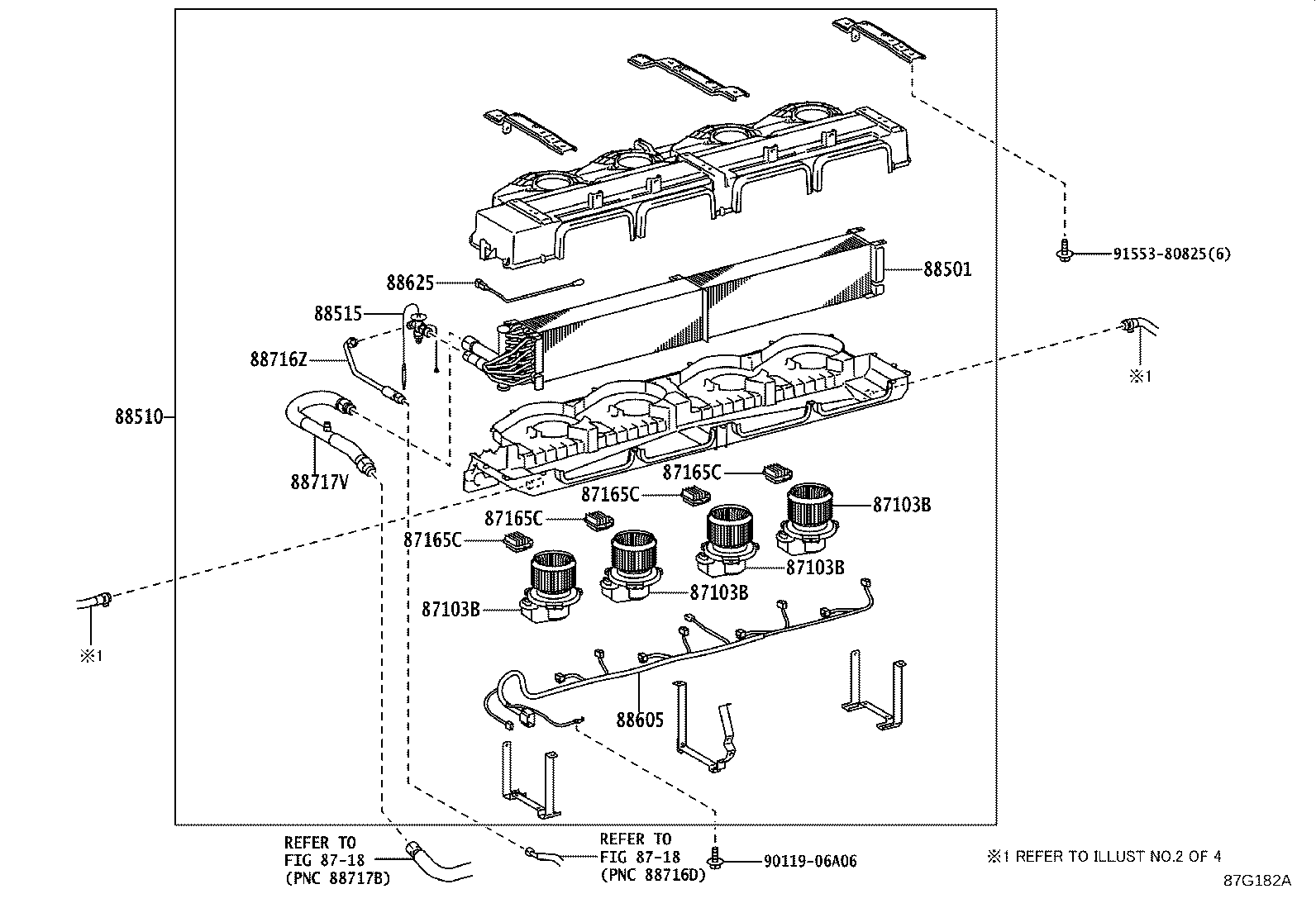

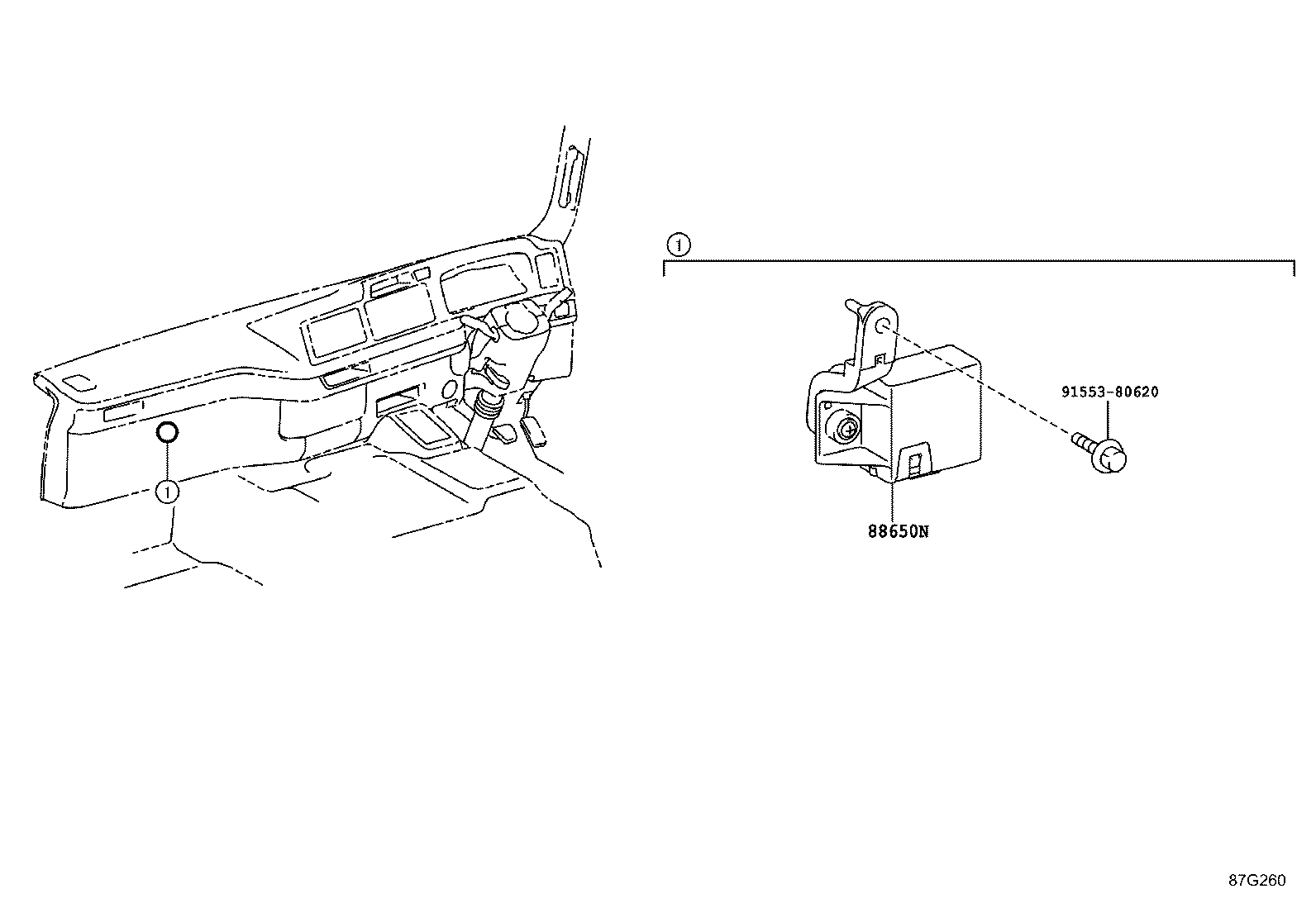

Figure 87G181B 87G181B 2017-01 → — Figure 87G182A 87G182A 2017-01 → — Figure 87G183A 87G183A 2017-01 → — Figure 87G184 87G184 2017-01 → — Figure 87G186A 87G186A 2017-01 → — Figure 87G260 87G260 2017-01 → — Figure 87K712 87K712 2022-01 → — Figure 87G185 87G185 2017-01 → —

Part groups

PNCDescription
58880A Leg Assy, Cooling Box
58880D Leg Assy, Cooling Box, NO.2
58899B Bracket, Cooling Box, NO.2
87103B Motor Sub-assy, Blower W/Fan
87107A Unit Sub-assy, Heater Radiator
87138C Resistor, Blower
87165C Control, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88716Z Tube, Liquid, NO.1
88717V Tube, Suction, NO.1
89903 Motor Sub-assy, Cooler Box Fan
89910 Box Assy, Cooler
89911 Door, Cooler Box
89912 Tray, Cooler Box
89915 Dial, Cooler Control
89916 Lock, Cooler Box
89920 Unit Assy, Cooler Drive Mechanism
89921 Case, Cooler Drive Unit
89923 Thermistor, Cooler Box
89930 Parts Assy, Cooler Box Electrical
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
