Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

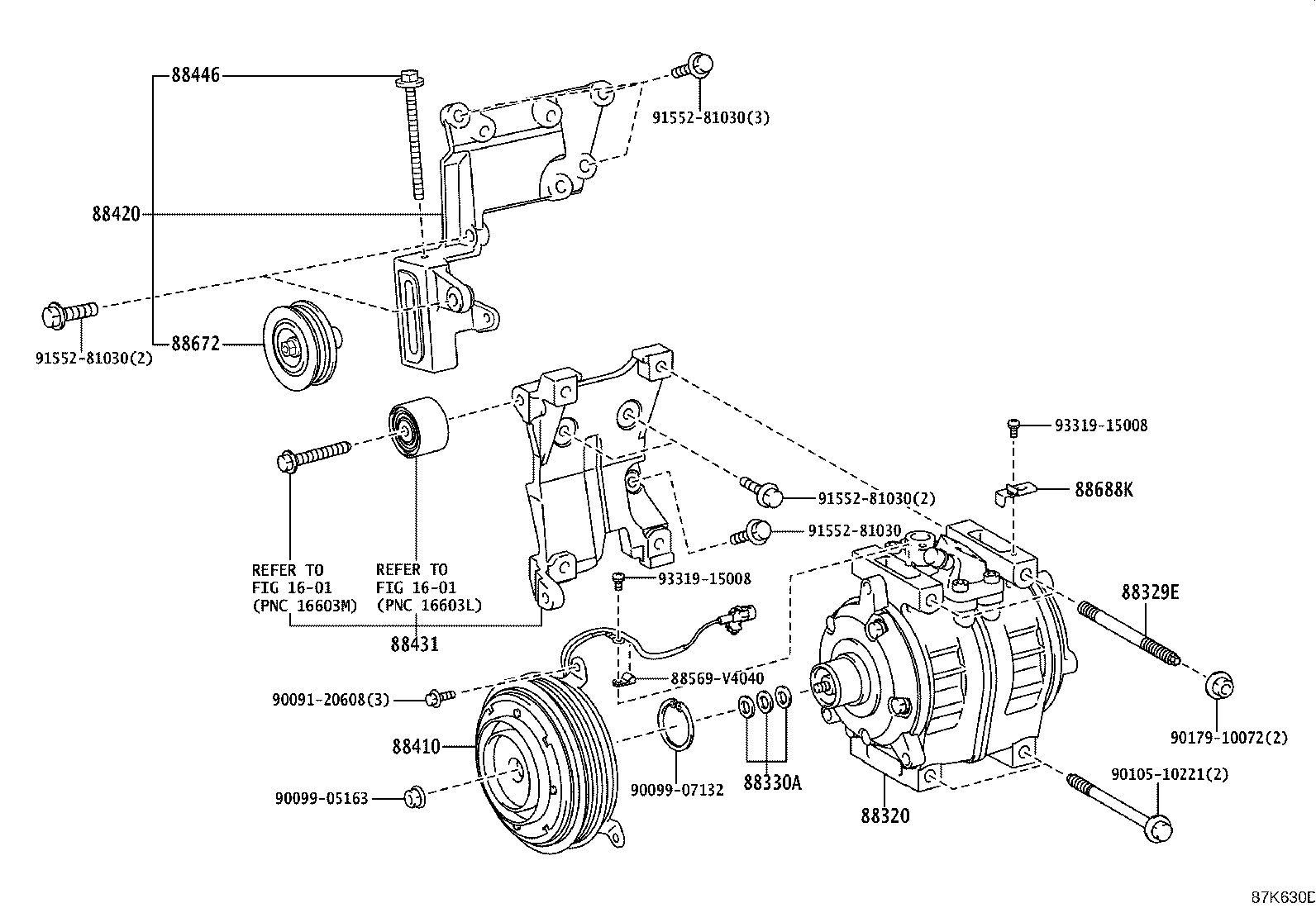

Heating & Air Conditioning - Compressor
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88329E | Bolt, Compressor, NO.1 |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88420 | Pulley Assy, Idle, W/Bracket |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88431A | Bracket, Compressor Mounting, NO.2 |
| 88440B | Pulley Assy, Idle |
| 88446 | Bolt, Idle Pulley |
| 88672 | Pulley, Idler |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
