Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05
Ventilator

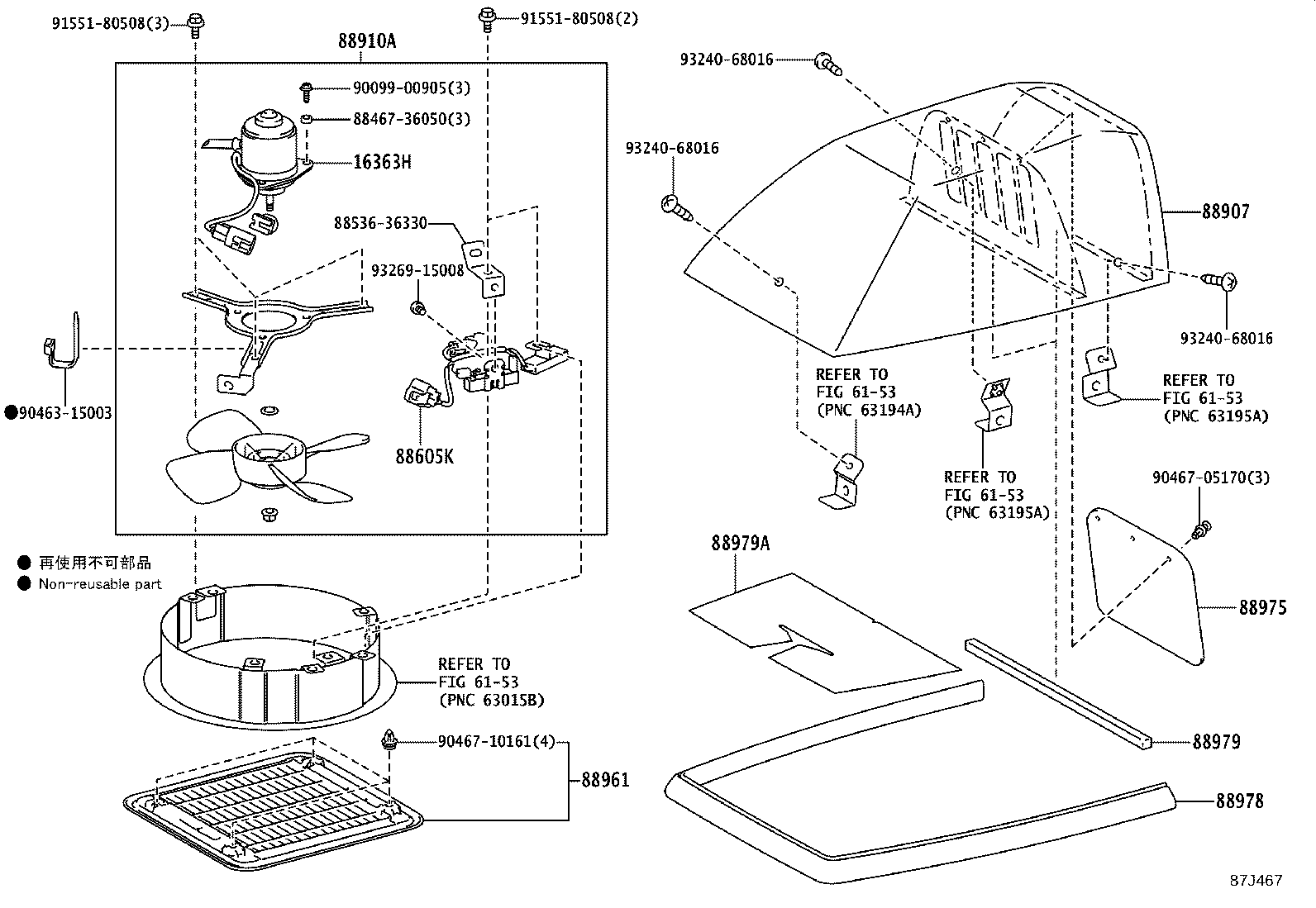

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16363H | Motor, Cooling Fan |
| 88605K | Harness Sub-assy, Wiring Air Conditioner |
| 88907 | Cover Sub-assy, Boost Ventilator |
| 88910A | Ventilator Assy, Boost |
| 88961 | Grille, Boost Ventilator |
| 88975 | Butterfly, Boost Ventilator |
| 88978 | Trim, Boost Ventilator Cover |
| 88979 | Seal, Boost Ventilator |
| 88979A | Seal, Boost Ventilator NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
