Toyota Deliboy
1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan
Discontinued model
Data version 1996-03

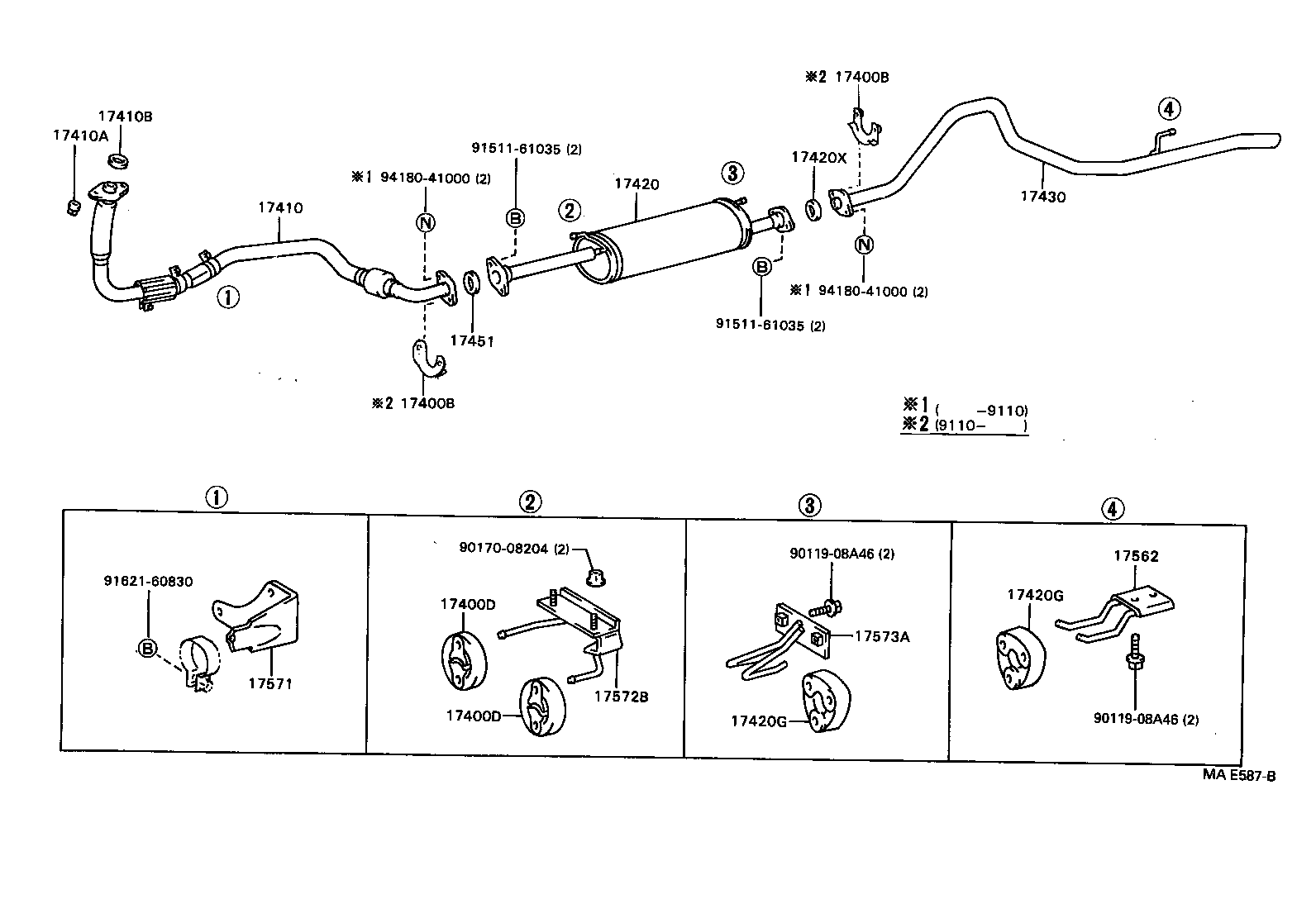

Exhaust Pipe
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400B | Retainer, Exhaust Pipe |
| 17400D | Bracket, Catalytic Converter Support |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420G | Cushion, Exhaust Pipe Center, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17451 | Gasket, Exhaust Pipe |
| 17507 | Bracket Sub-assy, Exhaust Pipe NO.2 Support |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17599 | Holder, Exhaust Pipe Support Stopper |
| 18435 | Protector, Catalytic Converter |
| 18439A | Bracket, Converter Protector, RH |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
