Toyota Deliboy

1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 4 illustrations

Illustrations

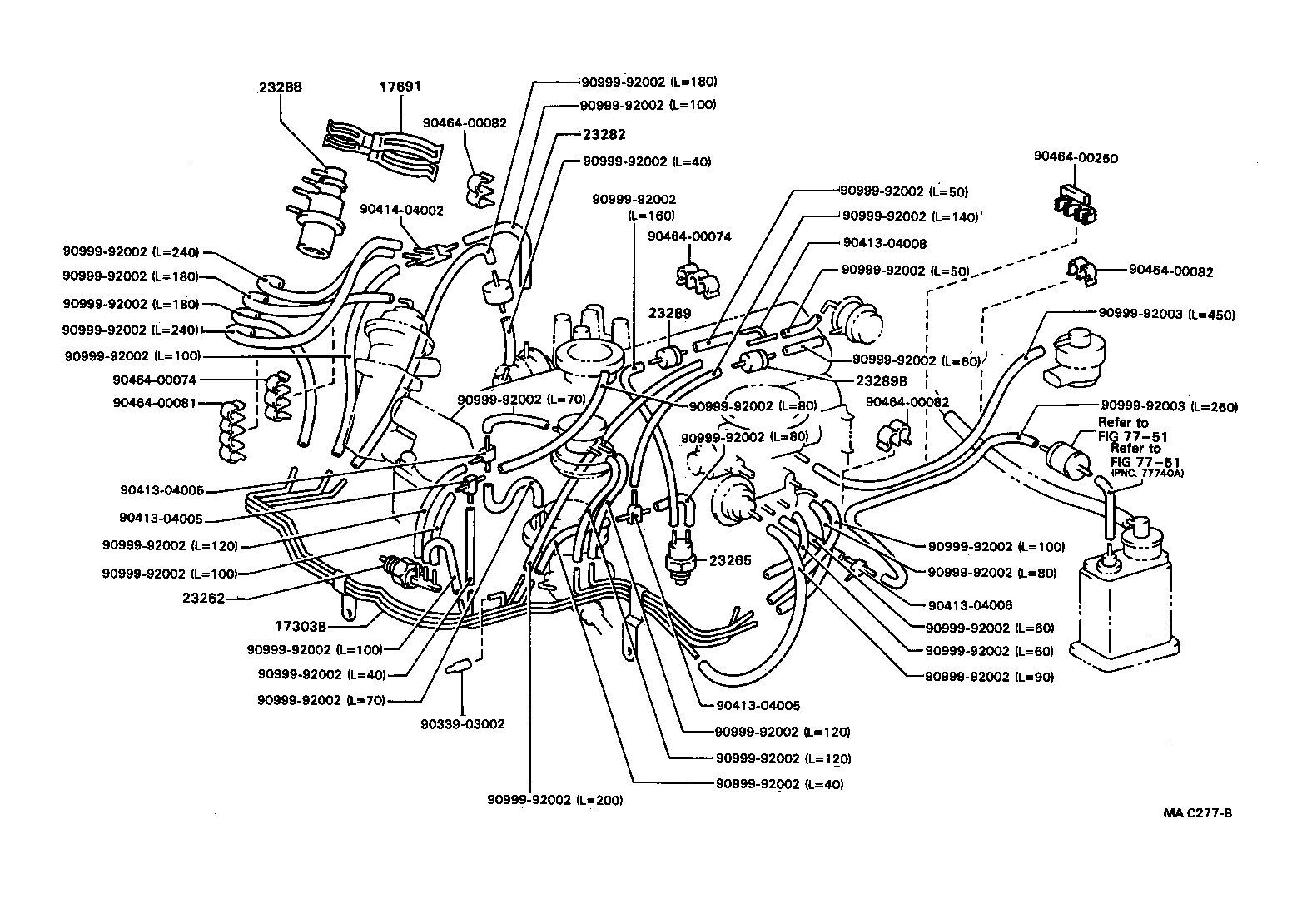

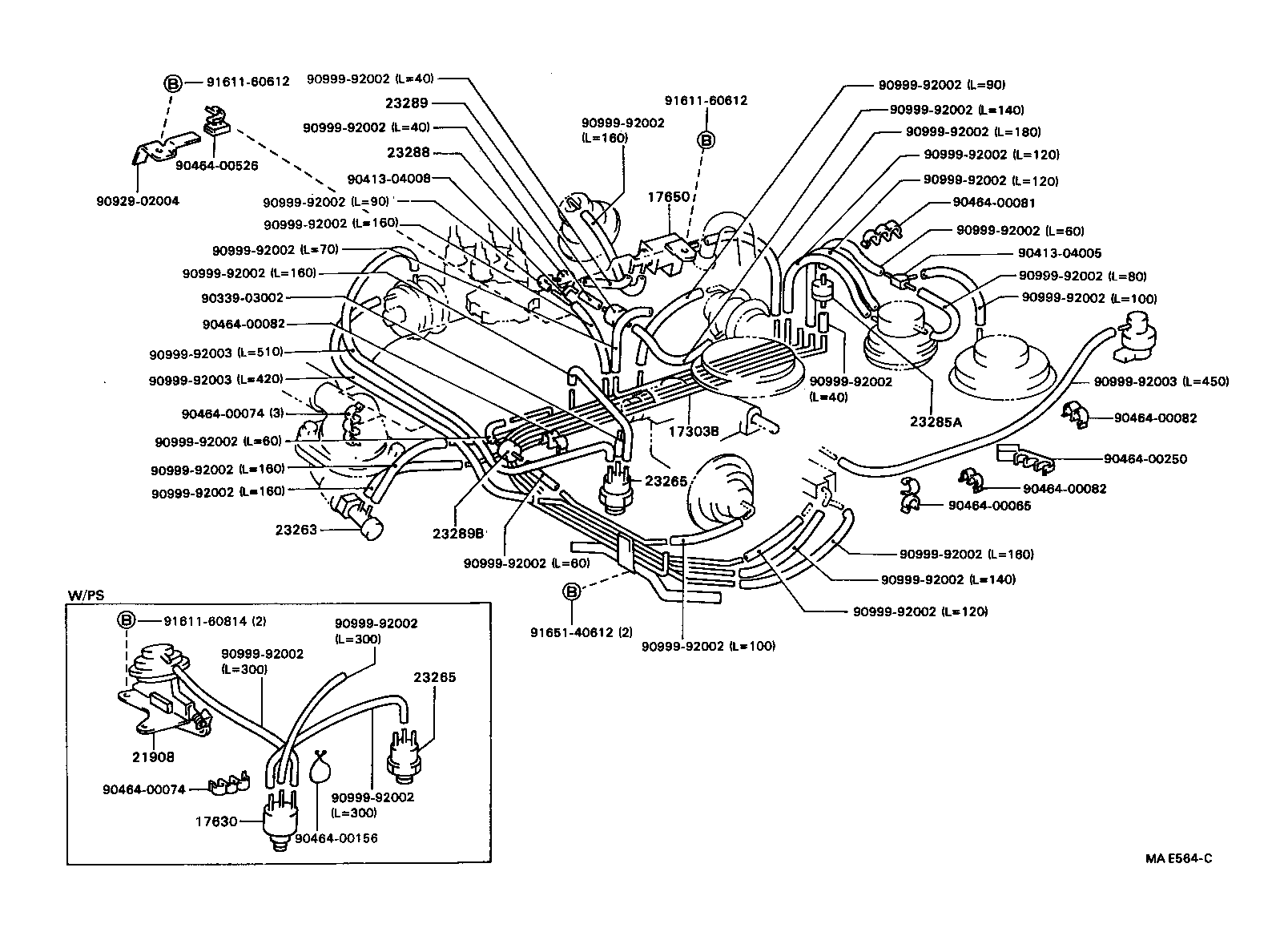

Figure MA9503A MA9503A 1989-07 → — Figure MA9503A MA9503A 1989-07 → — Figure MAC277B MAC277B 1989-07 → 1991-05 Figure MAE564C MAE564C 1991-05 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
23289B Jet, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
