Toyota Deliboy

1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

16 part groups · 2 illustrations

Illustrations

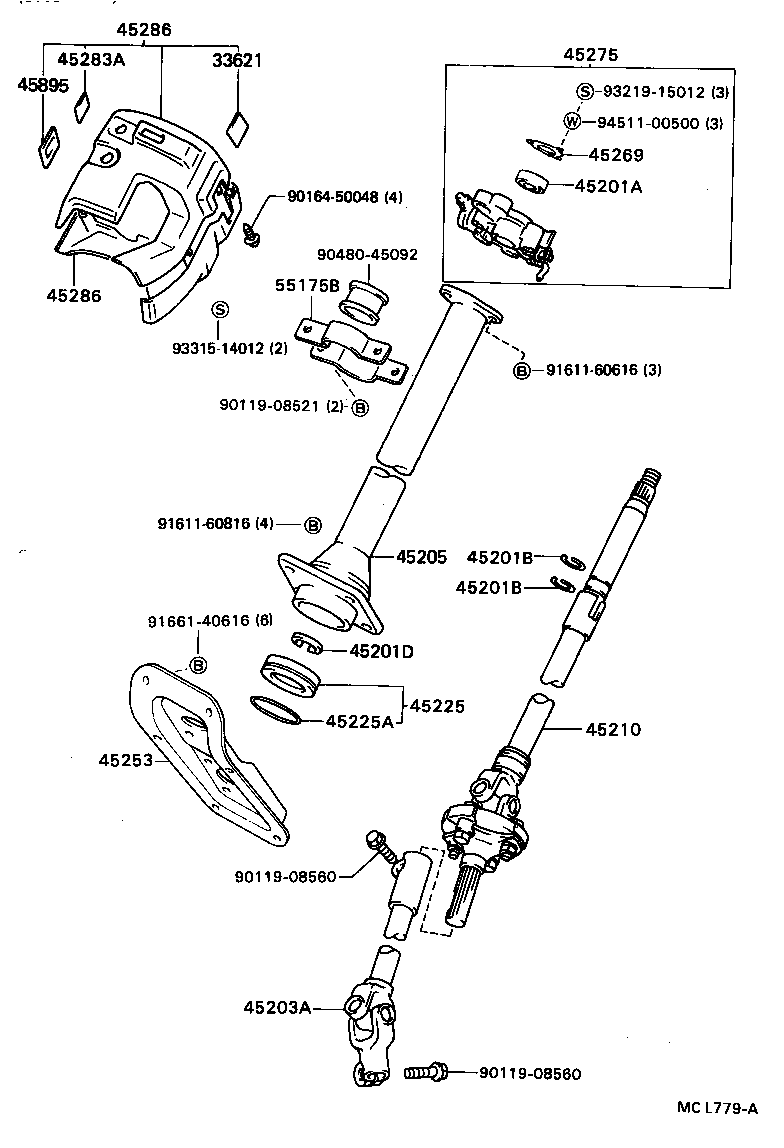

Figure MCH891D MCH891D 1989-07 → 1991-05 Figure MCL779A MCL779A 1991-05 → —

Part groups

PNCDescription
33621 Plate, Control Lever Caution
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45203A Shaft, Steering Intermediate, NO.2
45205 Tube Sub-assy, Steering Column
45210 Shaft Assy, Steering Main
45225 Block, Bearing
45225A Ring, O(FOR BEARING BLOCK)
45253 Cover, Steering Column Hole
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45283A Plate, Beam Change & Turn Signal Caution
45286 Cover, Steering Column
45895 Plate, Steering Lock Caution
55175B Clamp, Steering Column Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
