Toyota Deliboy
1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan
Discontinued model
Data version 1996-03

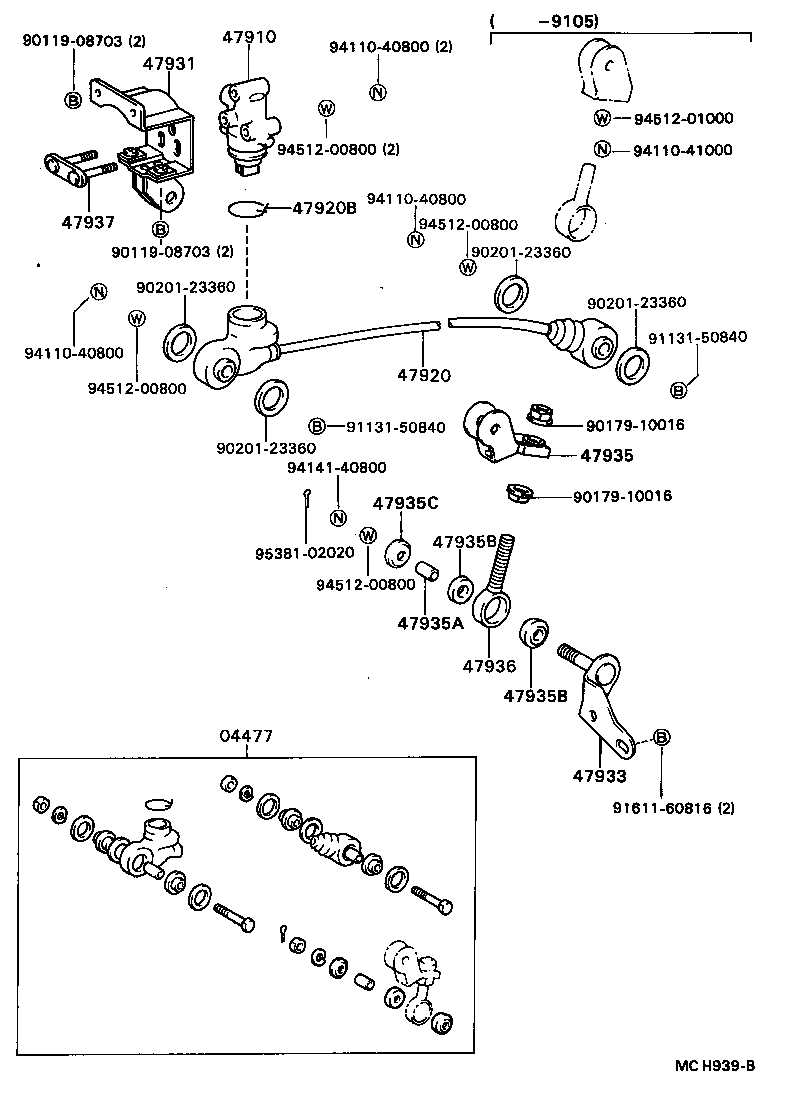

Brake Tube & Clamp
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04477 | Bush & Boot Kit, Load Sensing Spring |
| 47311 | Tube, Front Brake, NO.1 |
| 47311A | Way(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312D | Way, 2(FOR REAR BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321A | Way(FOR REAR BRAKE TUBE) |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47351B | Bracket, Flexible Hose, NO.1 |
| 47352B | Bracket, Flexible Hose, NO.2 |
| 47353B | Bracket, Flexible Hose, NO.3 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47910 | Valve Assy, Load Sensing Proportioning |
| 47920 | Spring Assy, Load Sensing |
| 47920B | Clip(FOR LOAD SENSING VALVE BOOT) |
| 47931 | Bracket, Load Sensing Valve |
| 47933 | Bracket, Load Sensing Shackle, NO.1 |
| 47935 | Shackle, Load Sensing Spring, NO.1 |
| 47935A | Collar(FOR LOAD SENSING SPRING SHACKLE) |
| 47935B | Bush(FOR LOAD SENSING SPRING SHACKLE) |
| 47935C | Retainer(FOR LOAD SENSING SPRING SHACKLE) |
| 47936 | Shackle, Load Sensing Spring, NO.2 |
| 47937 | Plate, Load Sensing Valve Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
