Toyota Deliboy

1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Support & Wind Guide

13 part groups · 2 illustrations

Illustrations

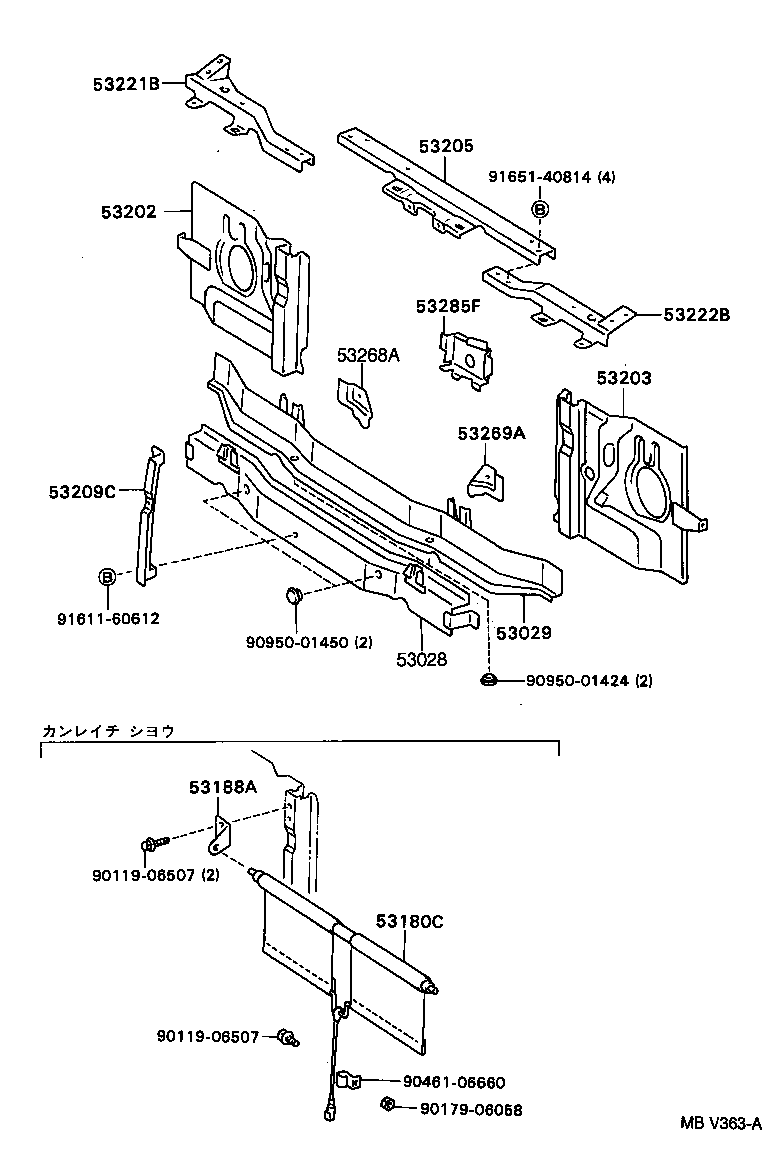

Figure MBS718A MBS718A 1989-07 → 1991-05 Figure MBV363A MBV363A 1991-05 → —

Part groups

PNCDescription
53028 Support Sub-assy, Radiator, Lower
53029 Support Sub-assy, Radiator, Lower Rear
53180C Shutter Assy, Radiator
53188A Bracket, Radiator Shutter Support, RH
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53209C Brace Sub-assy, Hood Lock Support
53221B Brace, Radiator Support Apron, RH
53222B Brace, Radiator Support Apron, LH
53268A Reinforcement, Radiator Mounting, RH
53269A Reinforcement, Radiator Mounting, LH
53285F Duct, Cool Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
