Toyota Deliboy

1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

15 part groups · 2 illustrations

Illustrations

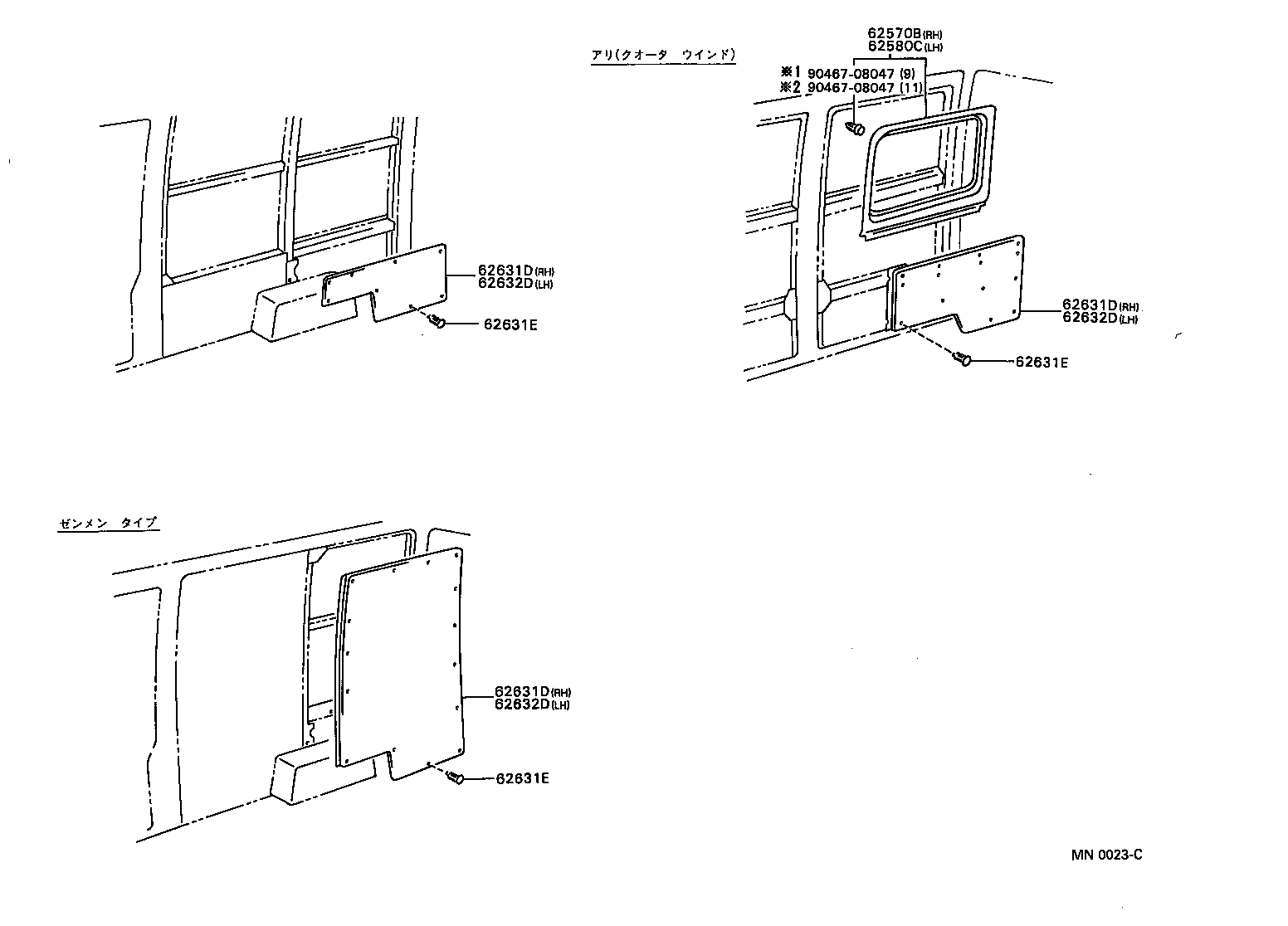

Figure MN0022C MN0022C 1989-07 → — Figure MN0023C MN0023C 1989-07 → —

Part groups

PNCDescription
62057C Moulding Sub-assy, Quarter Trim, NO.3
62505C Moulding Sub-assy, Quarter Trim
62506B Moulding Sub-assy, Quarter Trim, LH
62507B Moulding Sub-assy, Quarter Trim, NO.2
62508D Moulding Sub-assy, Quarter Trim, NO.2 LH
62511 Board, Quarter Inside Trim, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62570B Garnish Assy, Rear Window RH
62580C Garnish Assy, Rear Window LH
62581C Garnish, Rear Window Side, RH
62582C Garnish, Rear Window Side, LH
62631D Board, Quarter Trim, Rear RH
62631E Retainer, Quater Trim
62632D Board, Quarter Trim, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
