Toyota Deliboy
1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan
Discontinued model
Data version 1996-03

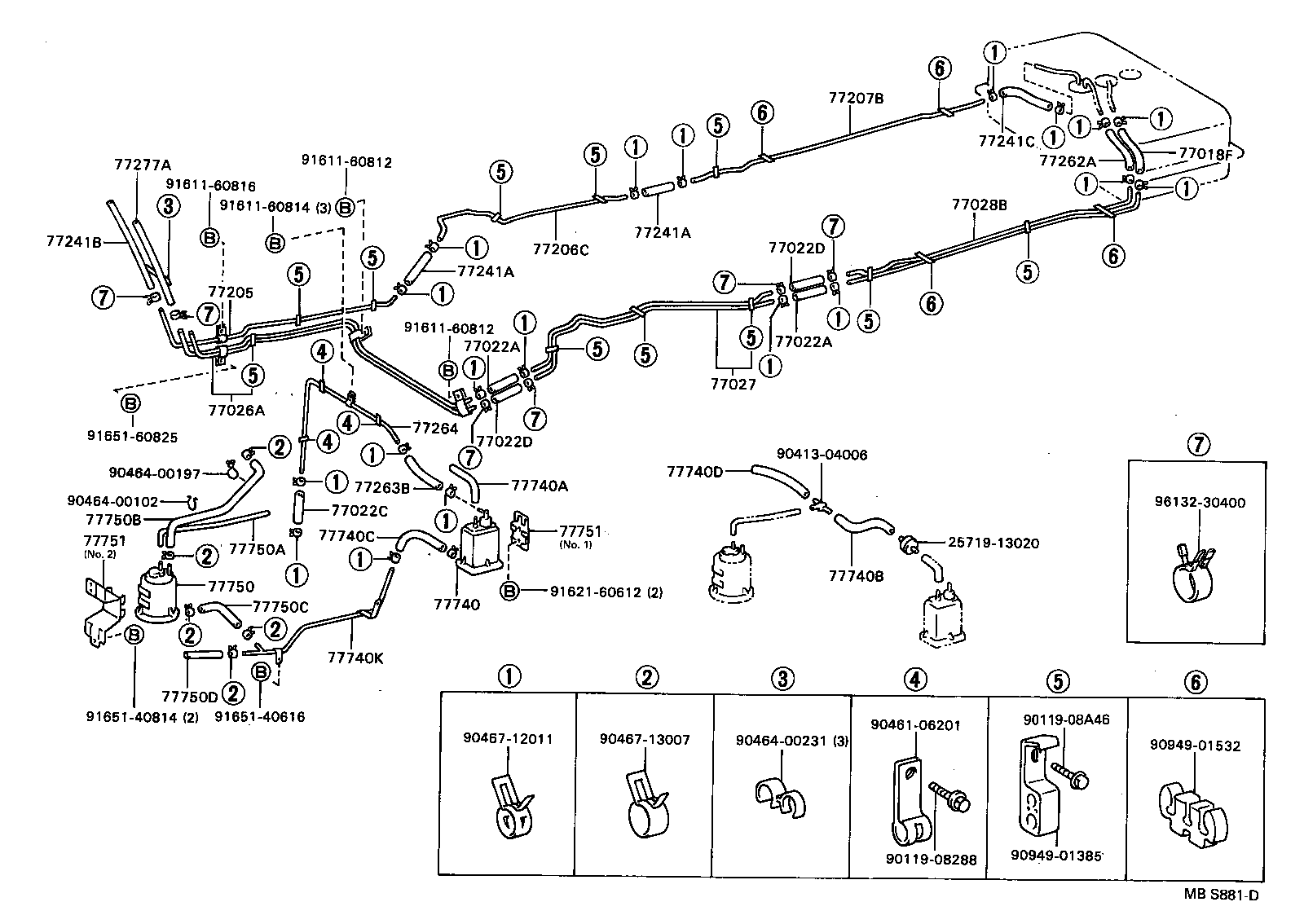

Fuel Tank & Tube
65 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 77012A | Tube Sub-assy, Fuel Tank Breather, NO.1 |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77018F | Hose, Fuel Tank Evaporation Vent |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022C | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022D | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77027 | Tube Sub-assy, Fuel Evaporation, NO.2 |
| 77028B | Tube Sub-assy, Fuel Evaporation, NO.3 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100B | Gasket(FOR FUEL TANK) |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77205 | Tube Sub-assy, Fuel Main |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77207B | Tube Sub-assy, Fuel Main, NO.3 |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77214 | Pipe, Fuel Tank Filler |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77241C | Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1) |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77242B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2) |
| 77243A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3) |
| 77259A | Hose, Fuel(FOR BREATHER TUBE) |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77262A | Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) |
| 77263B | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER NO.3 TUBE) |
| 77264 | Tube, Canister TO Front Side Member |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77277T | Bracket, Check Valve |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77319 | Knob, Fuel Tank Cap |
| 77338A | Bracket, Fuel Tank Cap Lock Control Rod |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77614 | Seat, Fuel Tank Band |
| 77633 | Stay, Fuel Tank |
| 77681A | Seat, Fuel Tank Band |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740D | Hose, Fuel, NO.4(FOR CHARCOAL CANISTER) |
| 77740K | Pipe, Fuel Vapor Feed |
| 77750 | Canister Assy, Charcoal |
| 77750A | Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER) |
| 77750B | Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER) |
| 77750C | Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER) |
| 77750D | Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
