Toyota Deliboy

1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan

Discontinued model Data version 1996-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 7 illustrations

Illustrations

Figure MEM923B

MEM923B 1989-07 → —

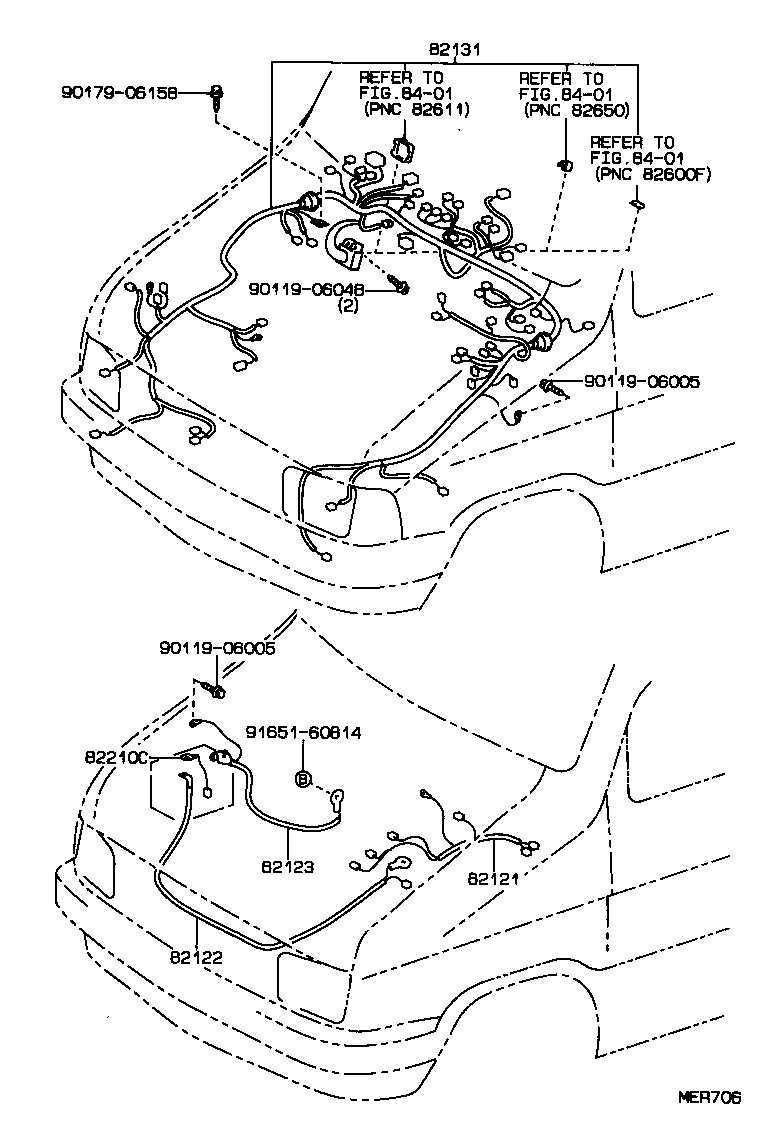

Figure MER706

MER706 1991-05 → 1994-09

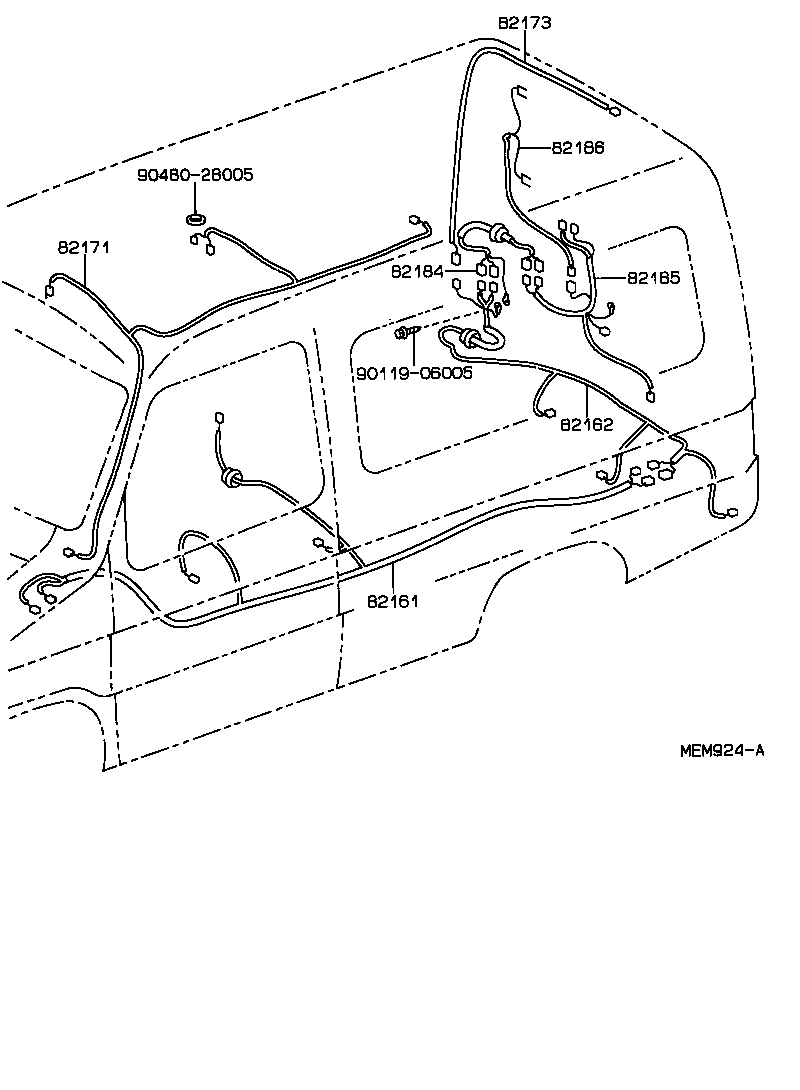

Figure MEM924A

MEM924A 1989-07 → —

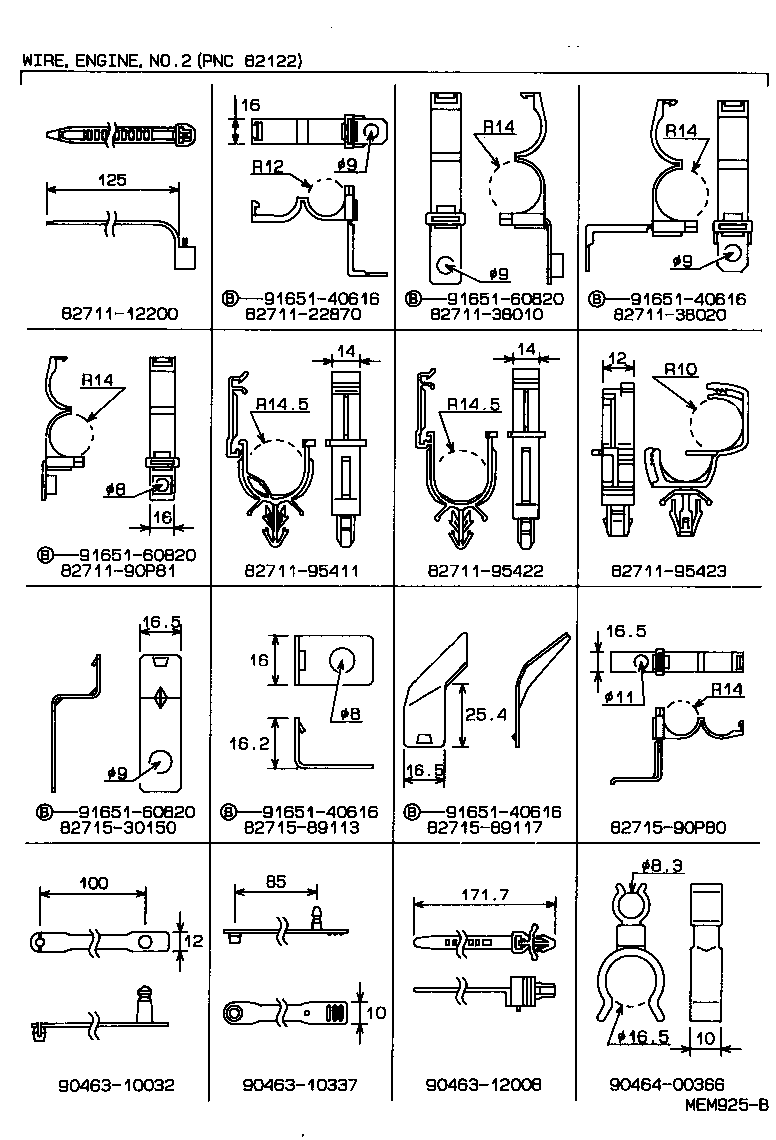

Figure MEM925B

MEM925B 1989-07 → —

Figure MET946

MET946 1989-07 → —

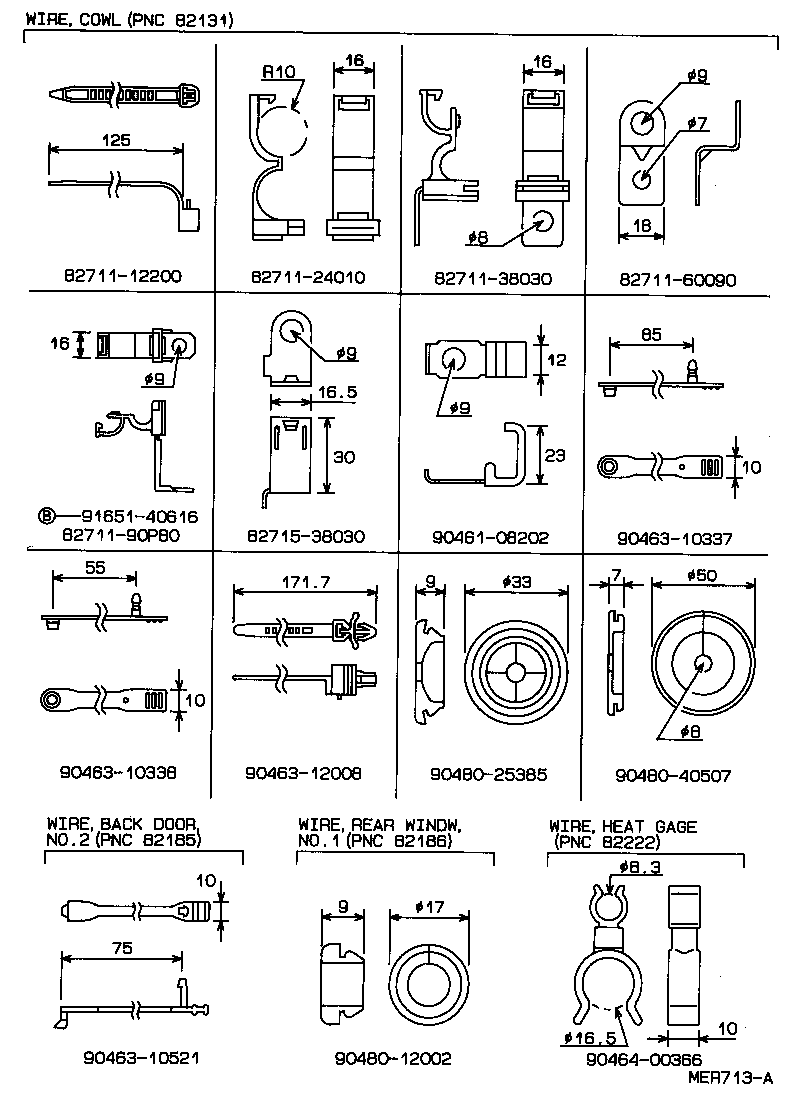

Figure MER713A

MER713A 1989-07 → —

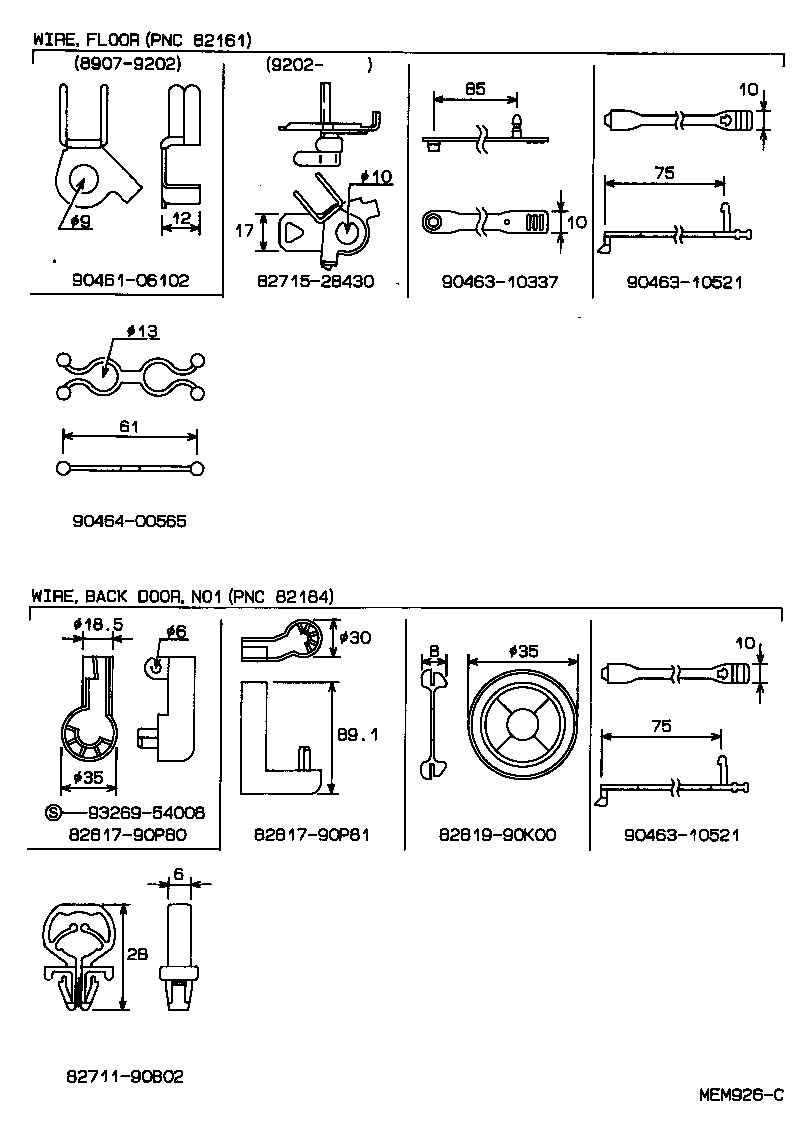

Figure MEM926C

MEM926C 1989-07 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82112	Wire, Engine Room, NO.2
82121	Wire, Engine
82122	Wire, Engine, NO.2
82123	Wire, Engine, NO.3
82124	Wire, Engine, NO.4
82131	Wire, Cowl
82161	Wire, Floor
82162	Wire, Floor, NO.2
82171	Wire, Roof, NO.1
82173	Wire, Roof, NO.3
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82210C	Fusible Link
82222	Wire, Heat Gage
82822	Bracket,Connector Block

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
