Toyota Deliboy
1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan
Discontinued model
Data version 1996-03

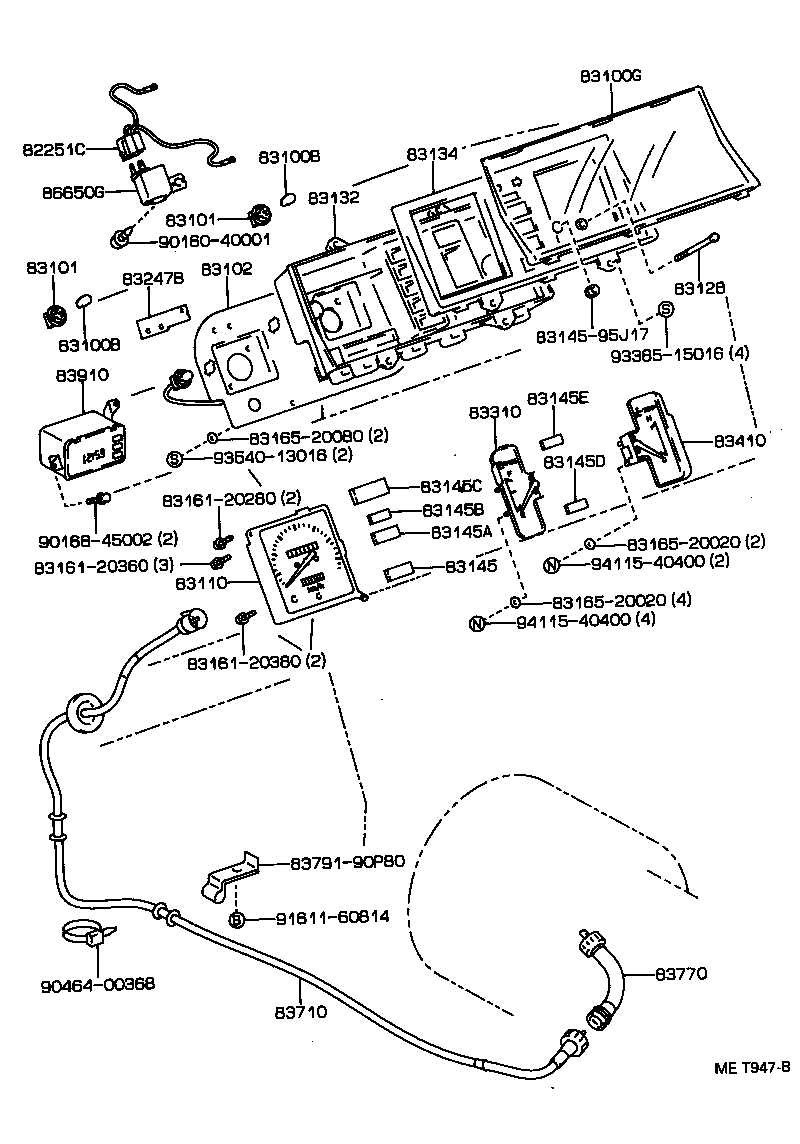

Meter
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82251C | Wire, Speed Sensor |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83145E | Lens, Meter, NO.6 |
| 83147 | Lamp, Meter NO.1 |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83770 | Adapter Assy, Speedometer Cable |
| 83910 | Clock Assy |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
