Toyota Deliboy
1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan
Discontinued model
Data version 1996-03
Switch & Relay & Computer
57 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

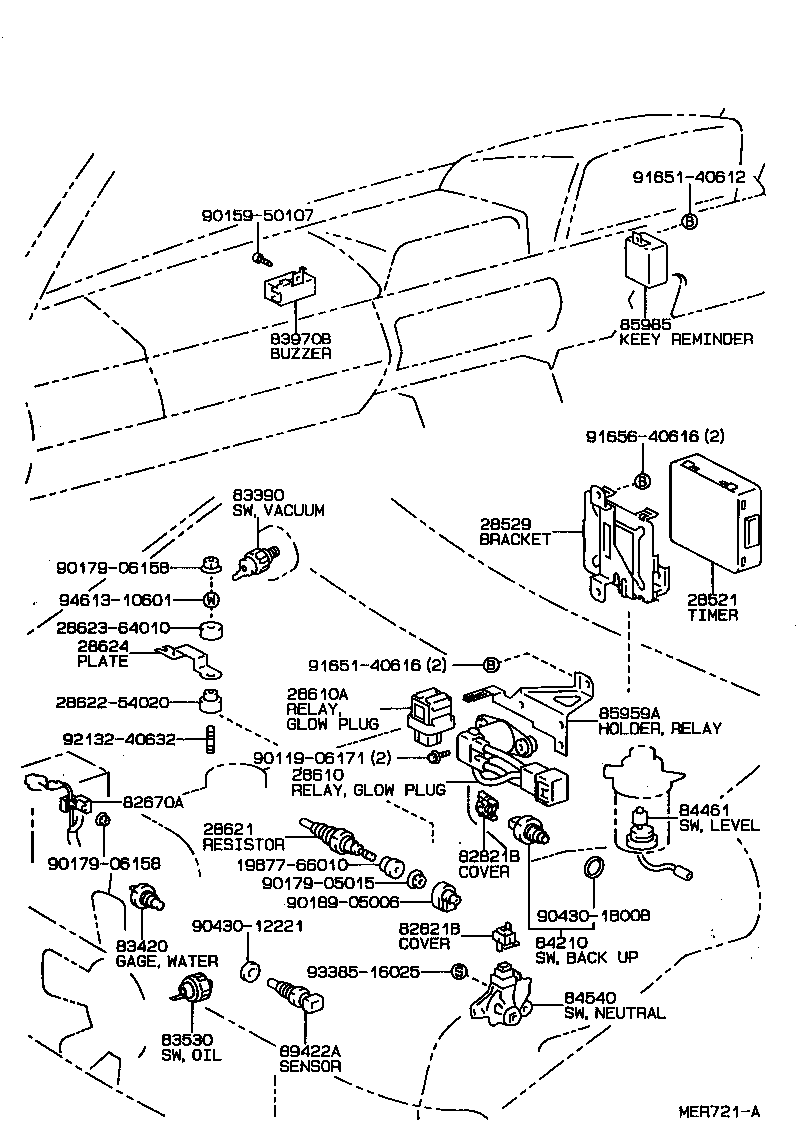

| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |

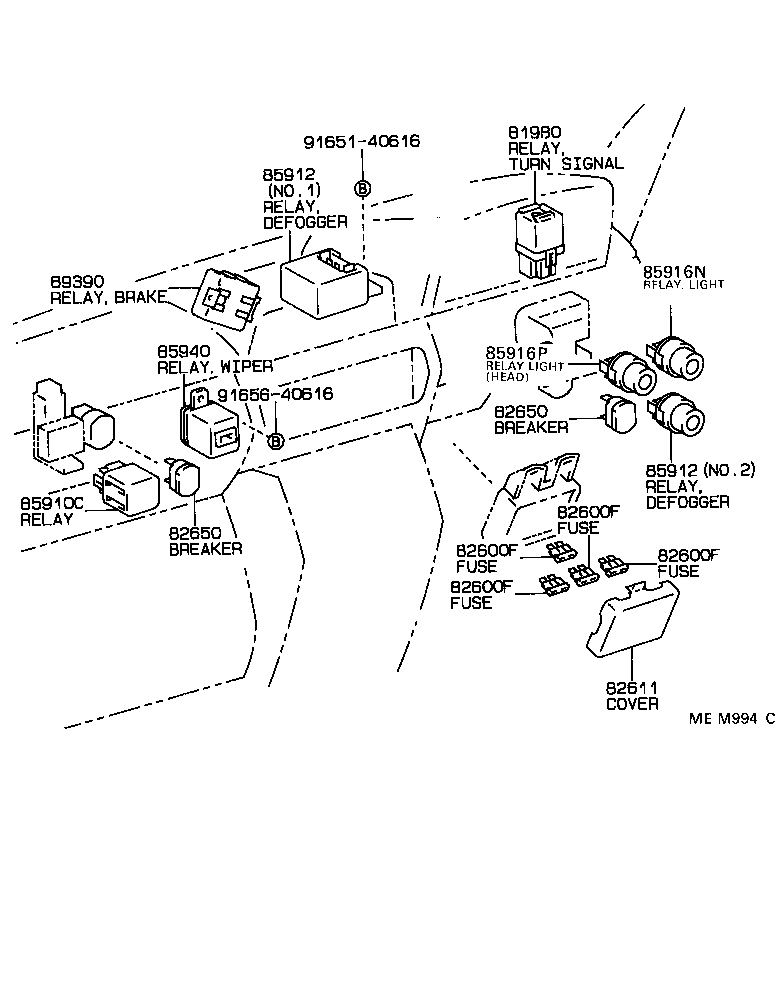

| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82670A | Block Assy, Junction, NO.1 |
| 82821B | Cover, Connector |

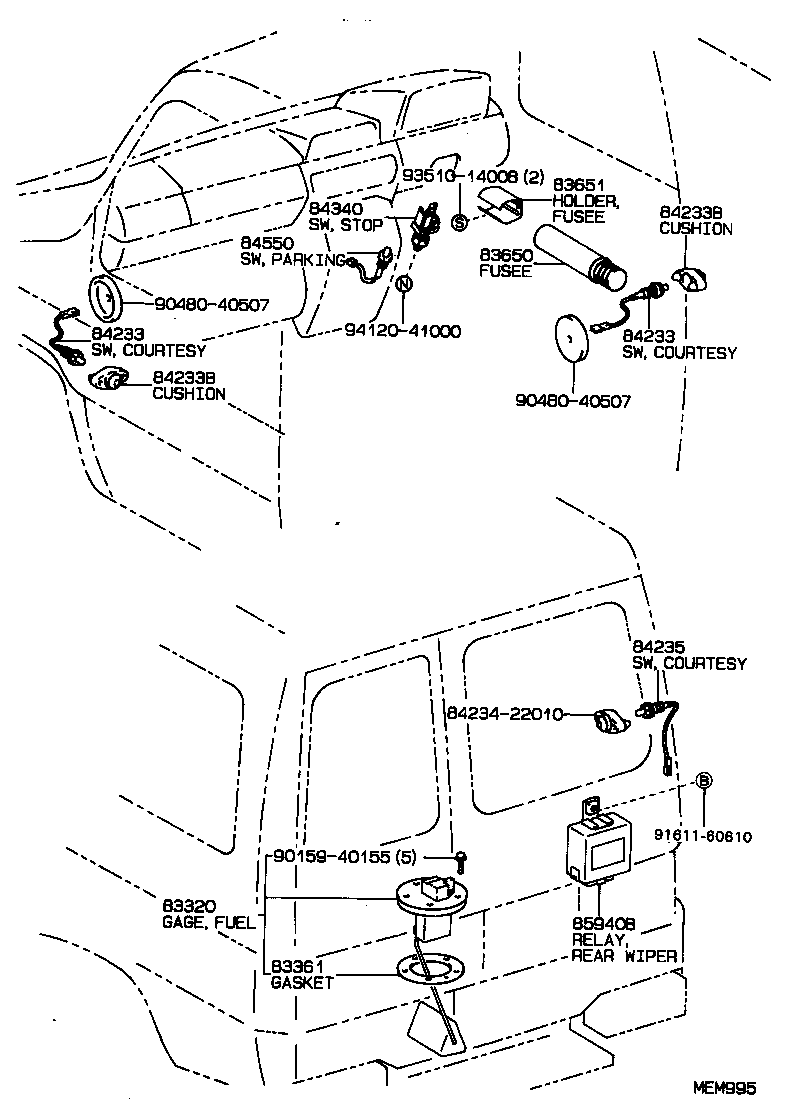

| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 83651 | Clamp, Fusee |
| 83970B | Buzzer Assy, Reverse Warning |

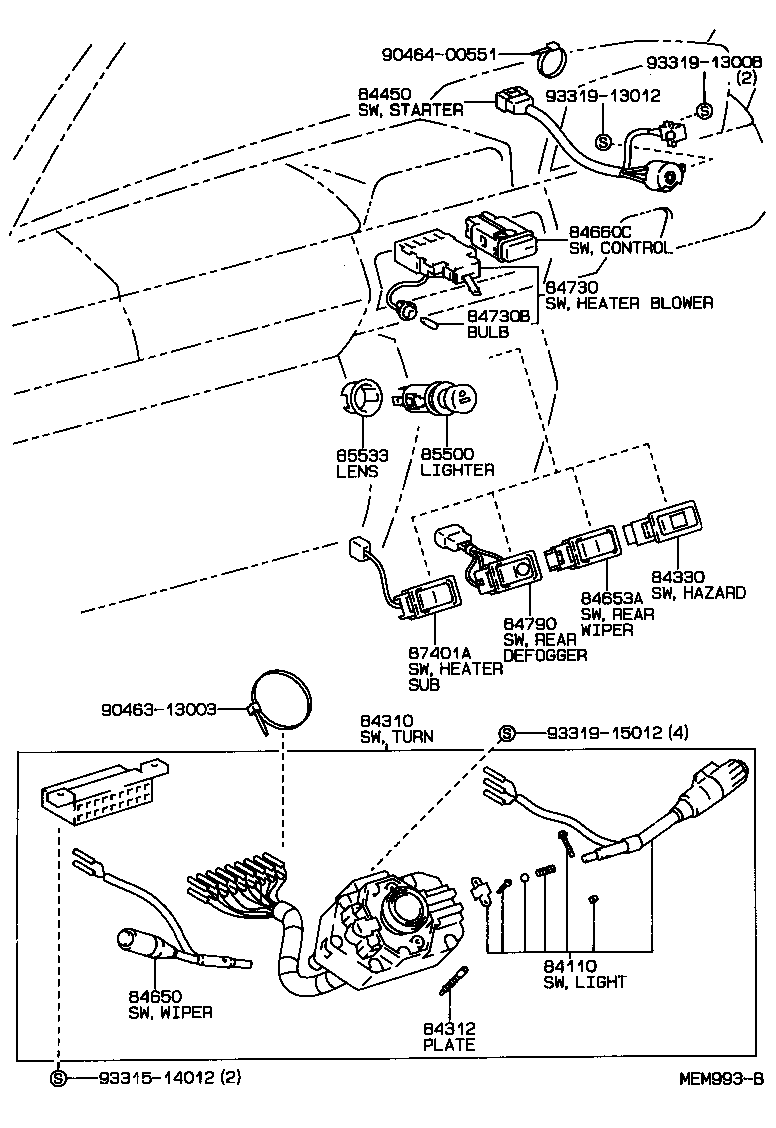

| 84110 | Switch Assy, Light Control, NO.1 |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84233B | Cushion, Courtesy Switch (FOR FRONT DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84660C | Switch, Cooler |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 85500 | Lighter Assy, Cigarette |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85940 | Relay Assy, Windshield Wiper |
| 85940B | Relay Assy, Rear Wiper |
| 85959A | Holder, Relay |
| 85985 | Relay, Key Reminder |
| 87401A | Switch Sub-assy, Heater |
| 89390 | Relay, Brake Warning |
| 89422A | Sensor, Water Temperature |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89465 | Sensor, Oxygen |
| 89550 | Computer Assy, Emission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
