Toyota Deliboy
1989-07 → 1995-11 · chassis KXC10,CXC10 · catalogue 831110 · Japan
Discontinued model
Data version 1996-03

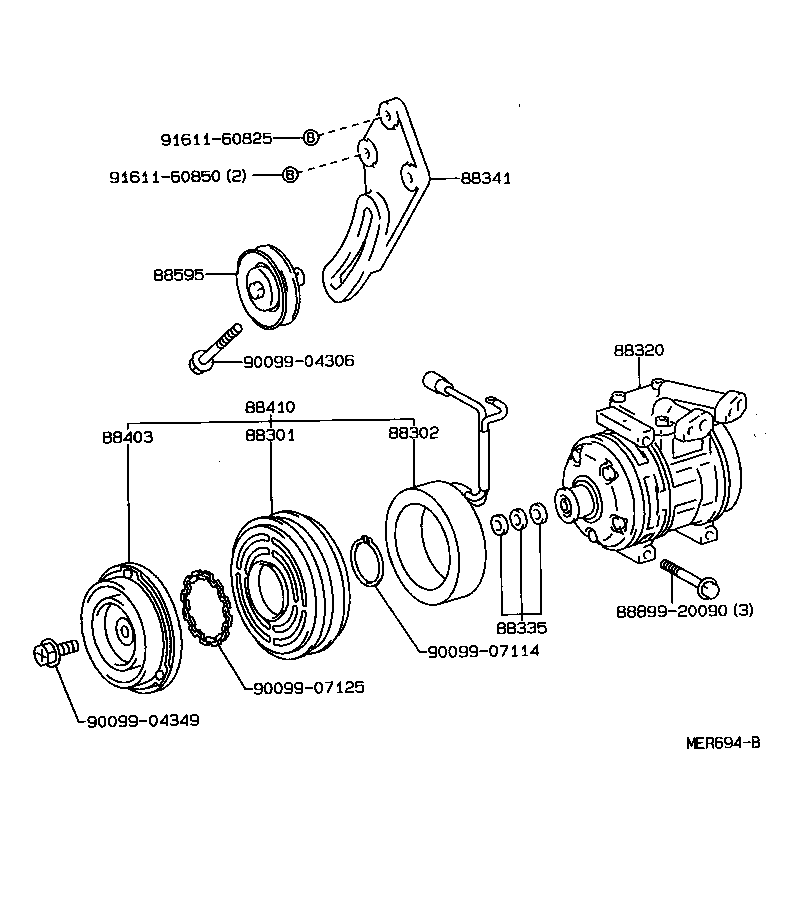

Heating & Air Conditioning - Compressor
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88335 | Gasket Kit, Overhaul |
| 88341 | Plate, Front Valve |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88437A | Attachment, Compressor |
| 88595 | Pulley, Cooler Compressor Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
