Toyota Mega Cruiser
1996-01 → 2001-10 · chassis BXD20 · catalogue 851110 · Japan
Discontinued model
Data version 2004-01
Manifold

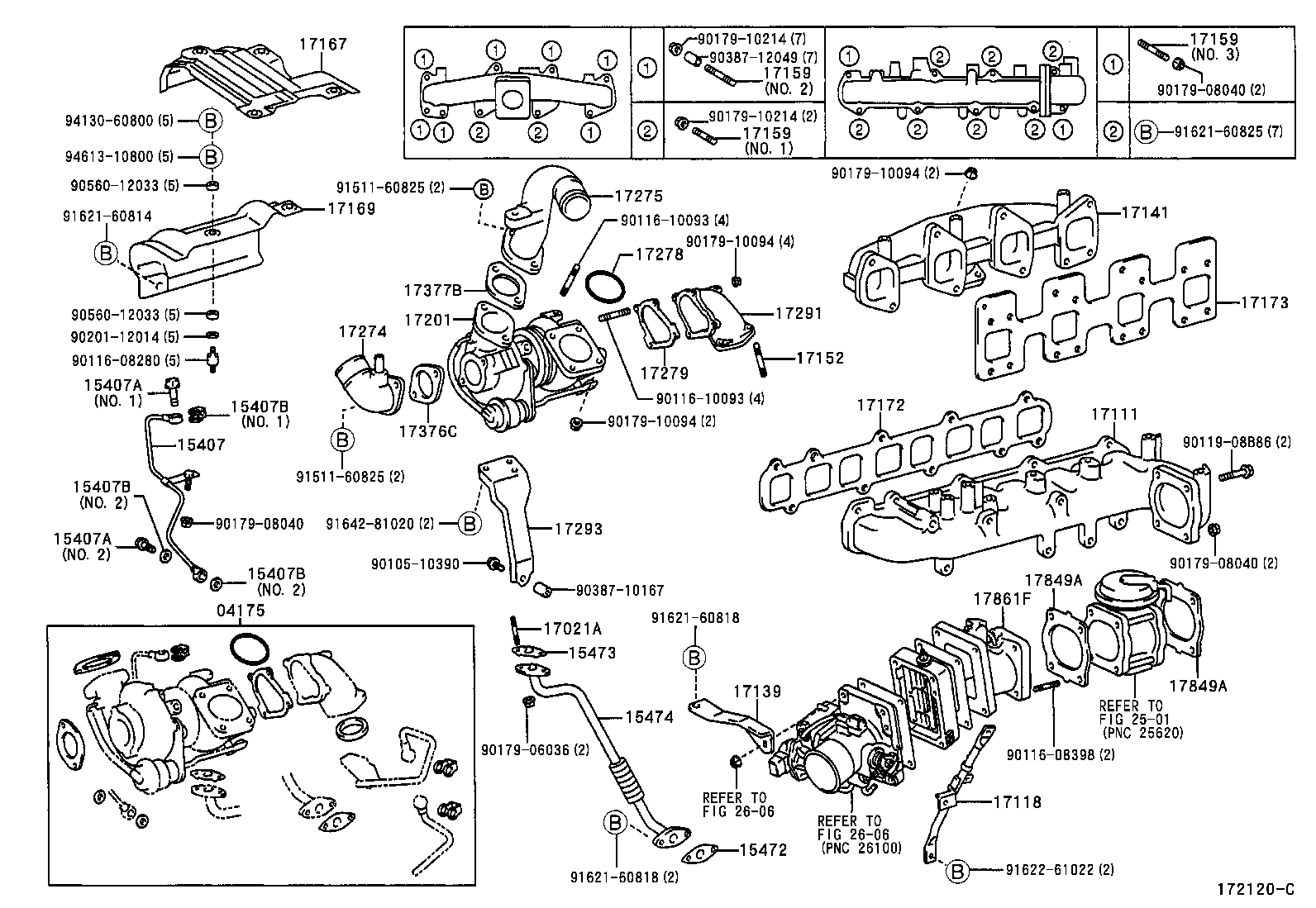

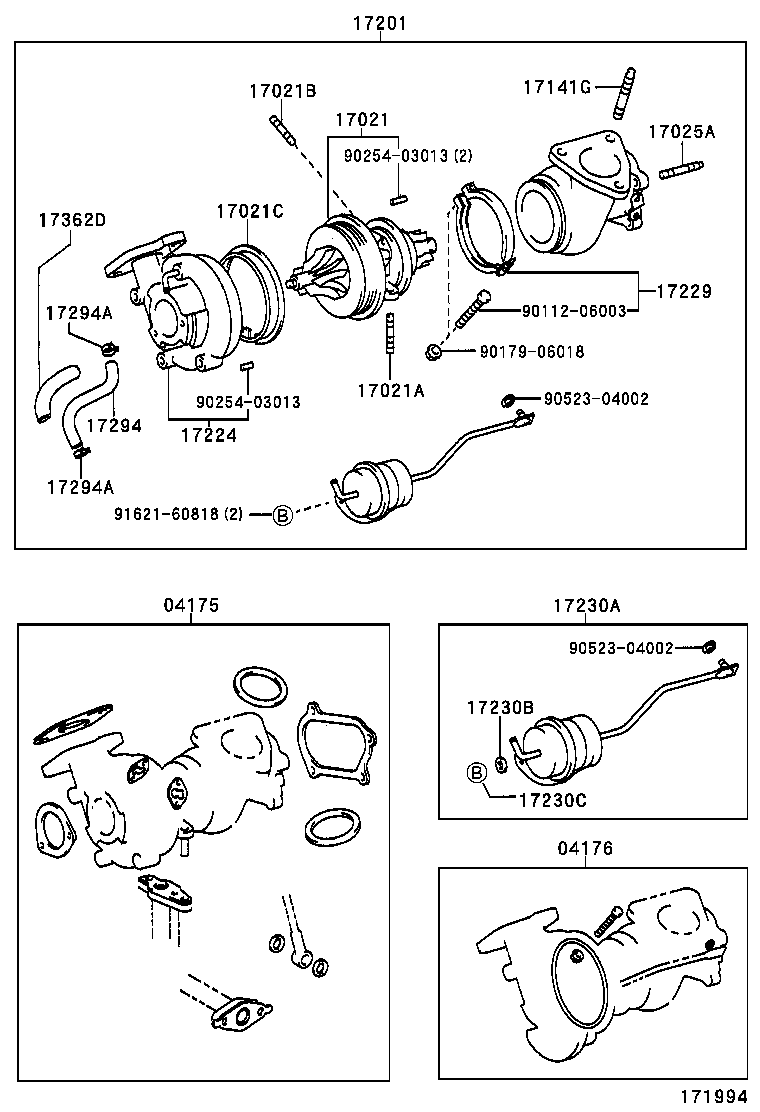

53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 04176 | Seal Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15473 | Gasket, Turbo Oil Outlet, NO.2 |
| 15474 | Pipe, Turbo Oil Outlet |
| 16347C | Gasket(FOR TURBO WATER PIPE) |
| 17021 | Housing Sub-assy, Bearing |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17021C | Ring, Hole Snap(FOR BEARING HOUSING) |
| 17024 | Housing Sub-assy, Compressor |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17118 | Stay, Manifold |
| 17139 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17201 | Turbocharger Sub-assy |
| 17224 | Housing, Compressor |
| 17229 | Band, V |
| 17230 | Actuator Assy, W/Bracket |
| 17230A | Repair Actuaor Assy, W/Bracket |
| 17230B | Washer, Plate(FOR REPAIR ACTUATOR SET) |
| 17230C | Bolt, W/Washer(FOR REPAIR ACTUATOR SET) |
| 17246 | Plate, Compressor Housing Clamp |
| 17274 | Elbow, Compressor Inlet |
| 17275 | Elbow, Compressor Outlet |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 17362D | Protector, Actuator Hose |
| 17376C | Gasket, Air Tube |
| 17377B | Gasket, Air Tube, NO.2 |
| 17378B | Gasket, Air Tube, NO.3 |
| 17849A | Gasket, Intake Air Connector |
| 17861F | Connector, Intake Air |
