Toyota Mega Cruiser

1996-01 → 2001-10 · chassis BXD20 · catalogue 851110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 3 illustrations

Illustrations

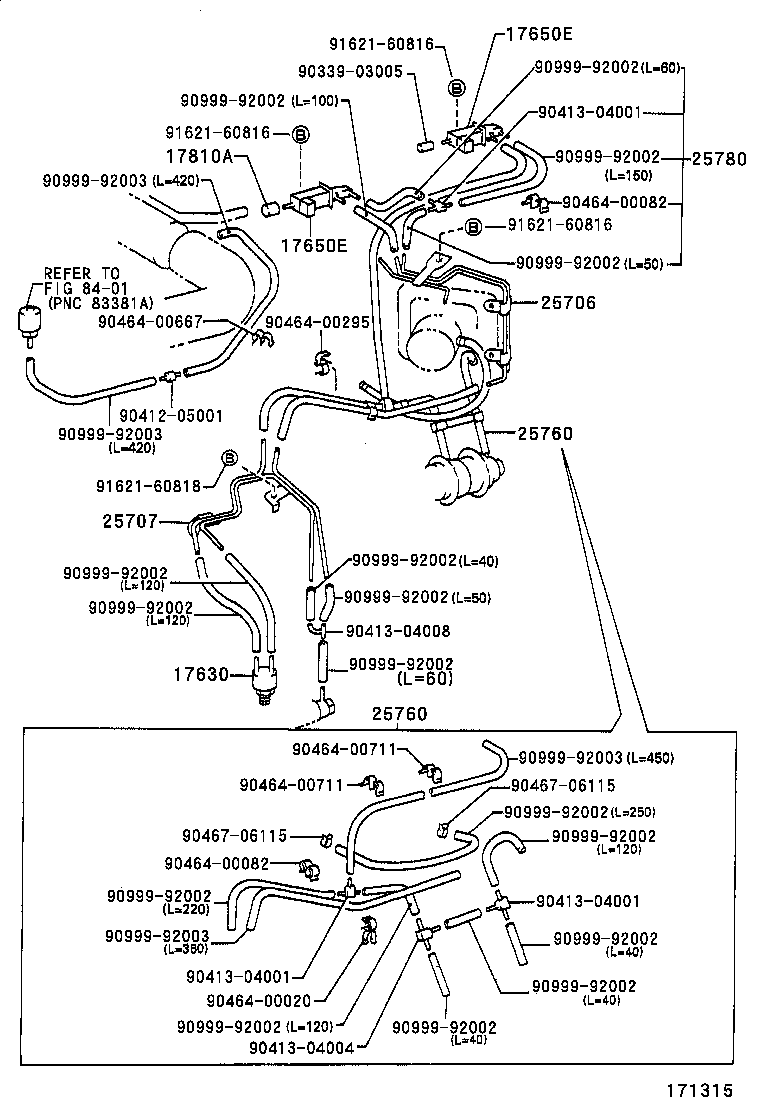

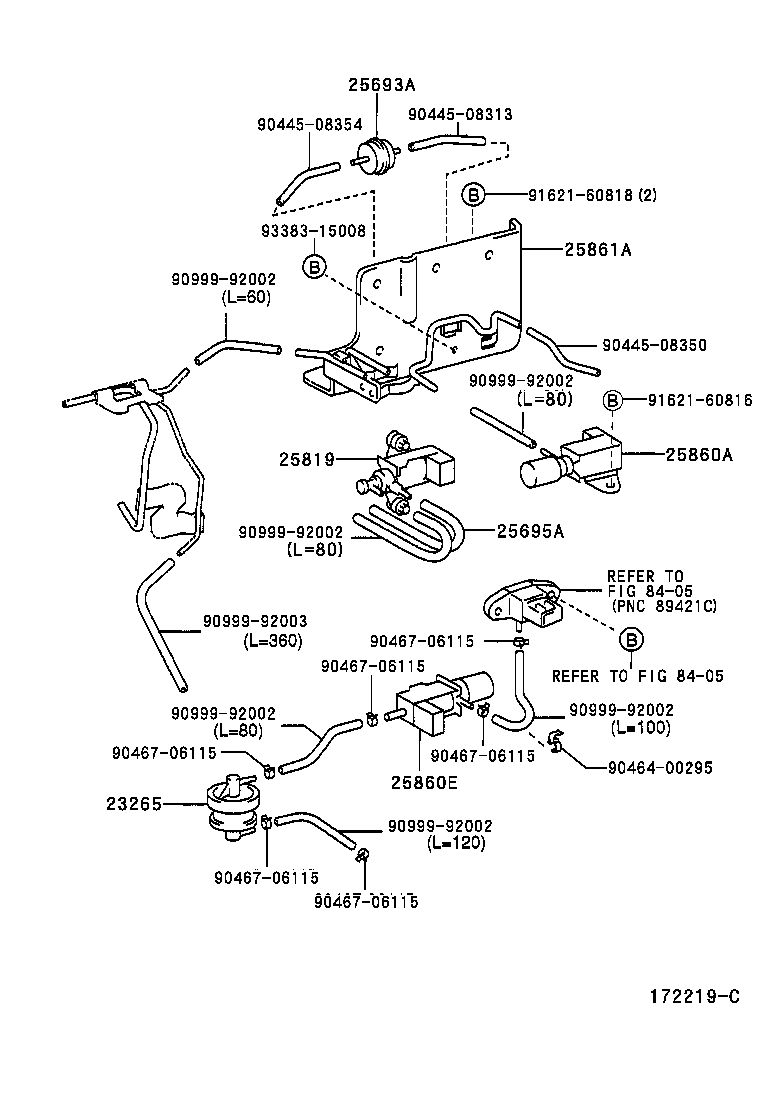

Figure 170020 170020 1996-01 → — Figure 171315 171315 1996-01 → 1999-06 Figure 172219C 172219C 1999-06 → —

Part groups

PNCDescription
17630 Valve Assy, Air Control
17650E Valve, Vacuum Switching
17810A Filter Assy, Air
23265 Filter, Gas, NO.1
25693A Damper, Egr Vacuum Modulator
25695A Hose, Egr Vacuum Modulator
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25780 Hose Assy, Vacuum Transmitting, NO.3
25819 Valve Assy, Vacuum Regulating
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
