Toyota Mega Cruiser

1996-01 → 2001-10 · chassis BXD20 · catalogue 851110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

77 part groups · 3 illustrations

Illustrations

710589B 1996-01 → —

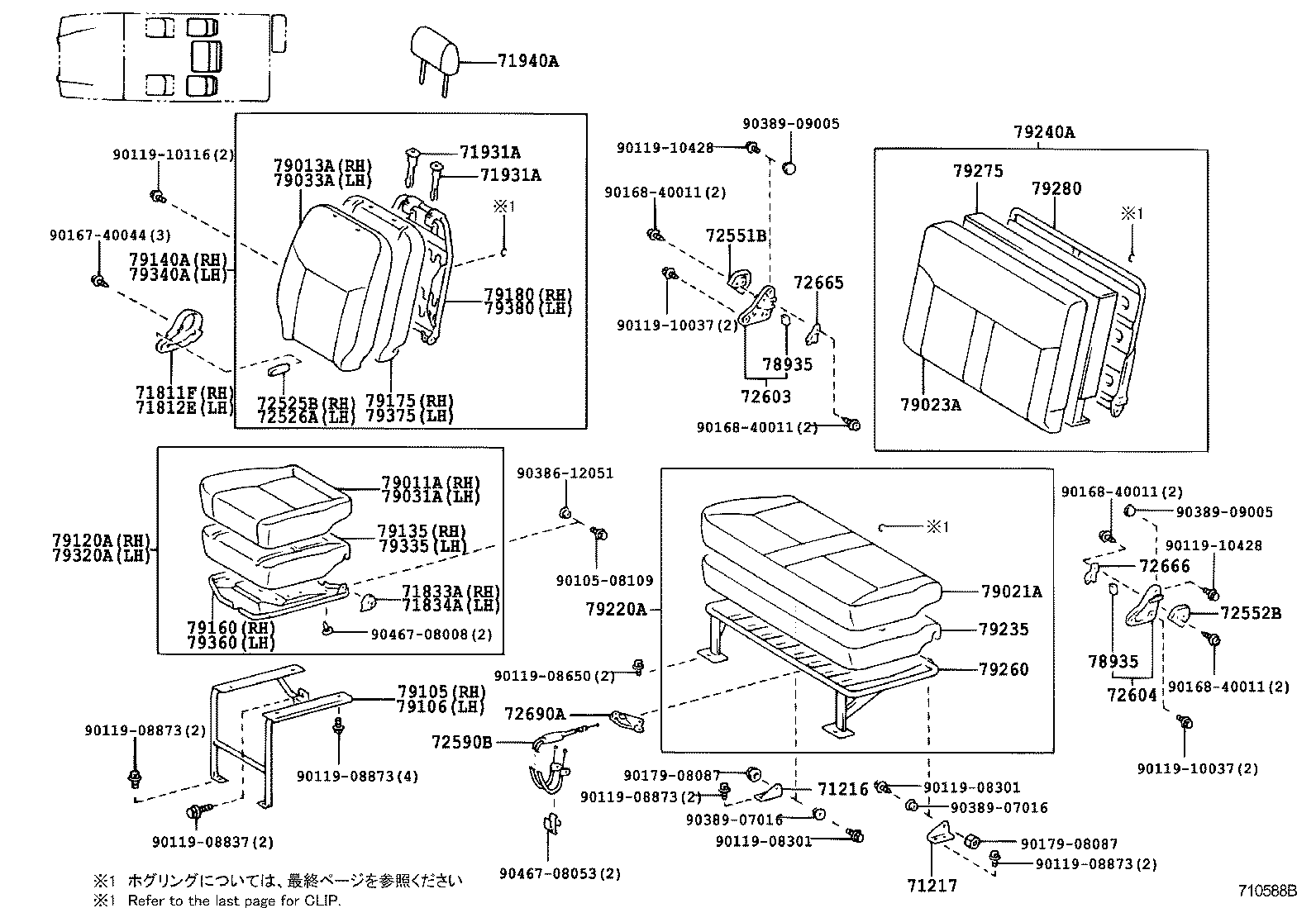

710588B 1996-01 → —

718165A 1996-01 → —

Part groups

PNC	Description
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71130	Leg Assy, Front Seat, RH
71131C	Bracket, Front Seat Leg, Front RH
71140	Leg Assy, Front Seat, LH
71216	Frame, Rear Seat Cushion, Rear RH
71217	Frame, Rear Seat Cushion, Rear LH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71811C	Cover, Reclining Adjuster, RH
71811F	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71812E	Cover, Reclining Adjuster, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72023	Rail Sub-assy, Front Out Seat Track, Upper RH
72110A	Track Assy, Front Seat, Outer RH
72130A	Track Assy, Front Seat, Inner RH
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72551B	Cover, Reclining Hinge, RH
72552B	Cover, Reclining Hinge, LH
72590B	Cable Assy, Reclining Remote Control
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72665	Cover, Rear Seatback Lock, RH
72666	Cover, Rear Seatback Lock, LH
72690A	Strap Assy, Rear Seat Lock Release
78935	Cushion, Fold Seatback Lock
79011A	Cover Sub-assy, NO.1 Seat Cushion
79013A	Cover Sub-assy, NO.1 Seatback
79021A	Cover Sub-assy, NO.2 Seat Cushion
79023A	Cover Sub-assy, NO.2 Seatback
79031A	Cover Sub-assy, NO.3 Seat Cushion
79033A	Cover Sub-assy, NO.3 Seatback
79105	Leg Sub-assy, NO.1 Seat, RH
79106	Leg Sub Assy, NO.1 Seat, LH
79120A	Cushion Assy, NO.1 Seat
79135	Pad, NO.1 Seat Cushion
79140A	Back Assy, NO.1 Seat
79160	Spring Assy, NO.1 Seat Cushion
79175	Pad, NO.1 Seatback
79180	Spring Assy, NO.1 Seatback
79220A	Cushion Assy, NO.2 Seat
79235	Pad, NO.2 Seat Cushion
79240A	Back Assy, NO.2 Seat
79260	Spring Assy, NO.2 Seat Cushion
79275	Pad, NO.2 Seatback
79280	Spring Assy, NO.2 Seatback
79320A	Cushion Assy, NO.3 Seat
79335	Pad, NO.3 Seat Cushion
79340A	Back Assy, NO.3 Seat
79360	Spring Assy, NO.3 Seat Cushion
79375	Pad, NO.3 Seatback
79380	Spring Assy, NO.3 Seatback

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
