Toyota Mega Cruiser
1996-01 → 2001-10 · chassis BXD20 · catalogue 851110 · Japan
Discontinued model
Data version 2004-01
Accelerator Link
19 part groups · 2 illustrations
Part groups

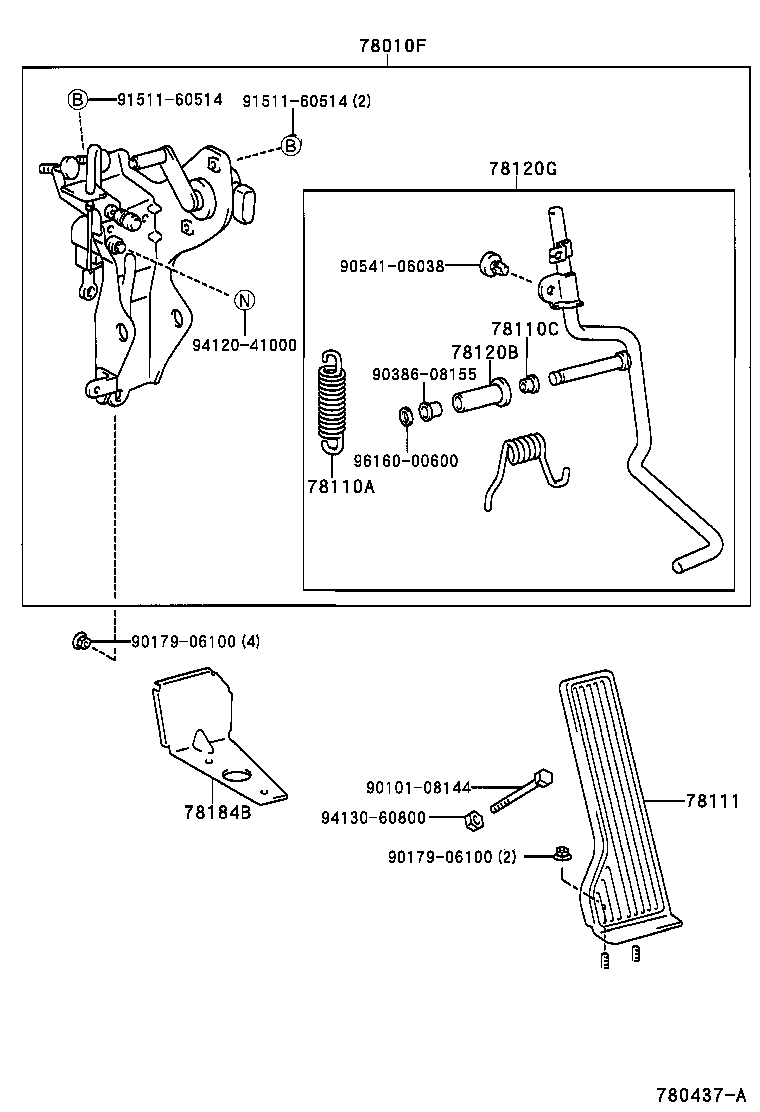

| PNC | Description |
|---|---|
| 21905H | Rod Sub-assy, Accelerator Connecting |
| 78010F | Pedal Assy, Accelerator |
| 78100 | Link Assy, Accelerator |
| 78103 | Rod Sub-assy, Accelerator Connecting, NO.1 |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78110C | Bush (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78120B | Bush (FOR ACCELERATOR LINK ROD) |
| 78120G | Rod Assy, Accelerator Pedal |
| 78127 | Bush, Accelerator Pedal, NO.2 |
| 78131 | Rod, Accelerator Connecting |
| 78169 | Hanger, Accelerator Spring |
| 78180P | Cable Assy, Accelerator Control |
| 78184B | Bracket, Accelerator Control Cable |
| 78185A | Clamp, Accelerator Control Cable, NO.2 |
| 78195 | Bracket, Accelerator Link |
| 78401 | Cable Sub-assy, Throttle Control |
| 78411A | Knob, Throttle Control Cable |
| 78481 | Clamp, Throttle Wire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
