Toyota Mega Cruiser

1996-01 → 2001-10 · chassis BXD20 · catalogue 851110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

11 part groups · 2 illustrations

Illustrations

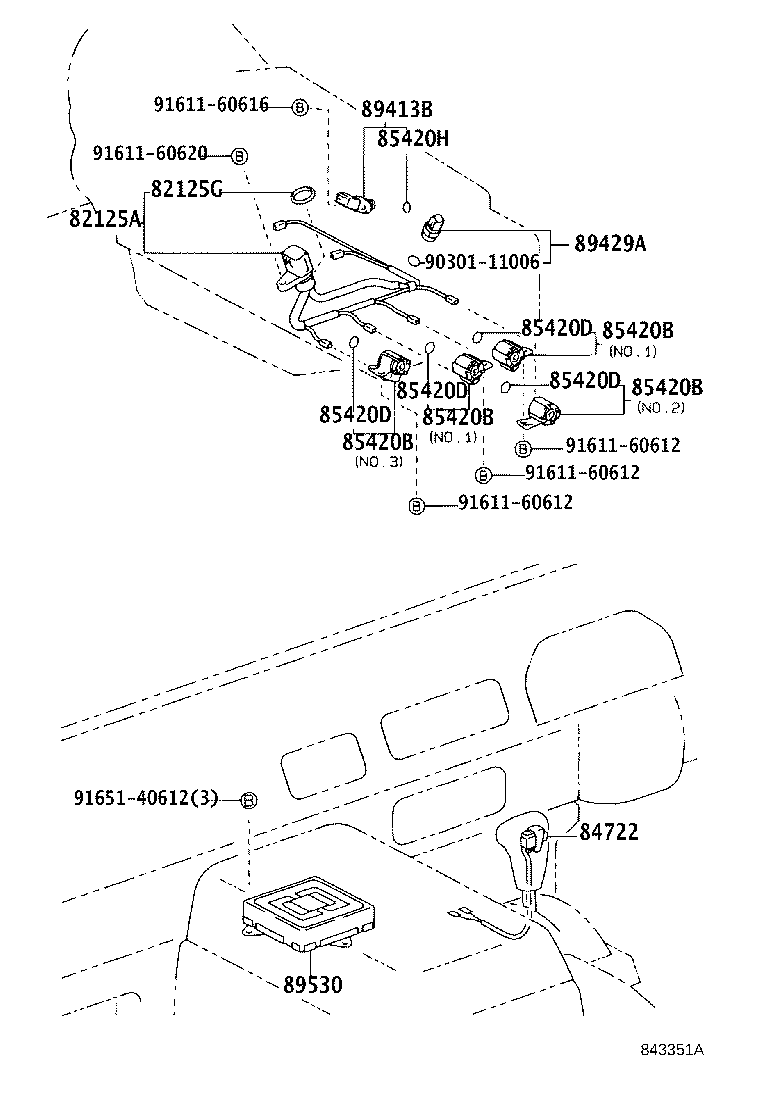

Figure 840822B 840822B 1996-01 → 1999-06 Figure 843351A 843351A 1999-06 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125A Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
84722 Switch, Transmission Control
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85420H Ring, O(FOR SPEED SENSOR)
89413B Sensor, Transmission Revolution
89428D Switch, Temperature, NO.2
89429A Sensor, Temperature
89530 Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
