Toyota Mega Cruiser

1996-01 → 2001-10 · chassis BXD20 · catalogue 851110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 3 illustrations

Illustrations

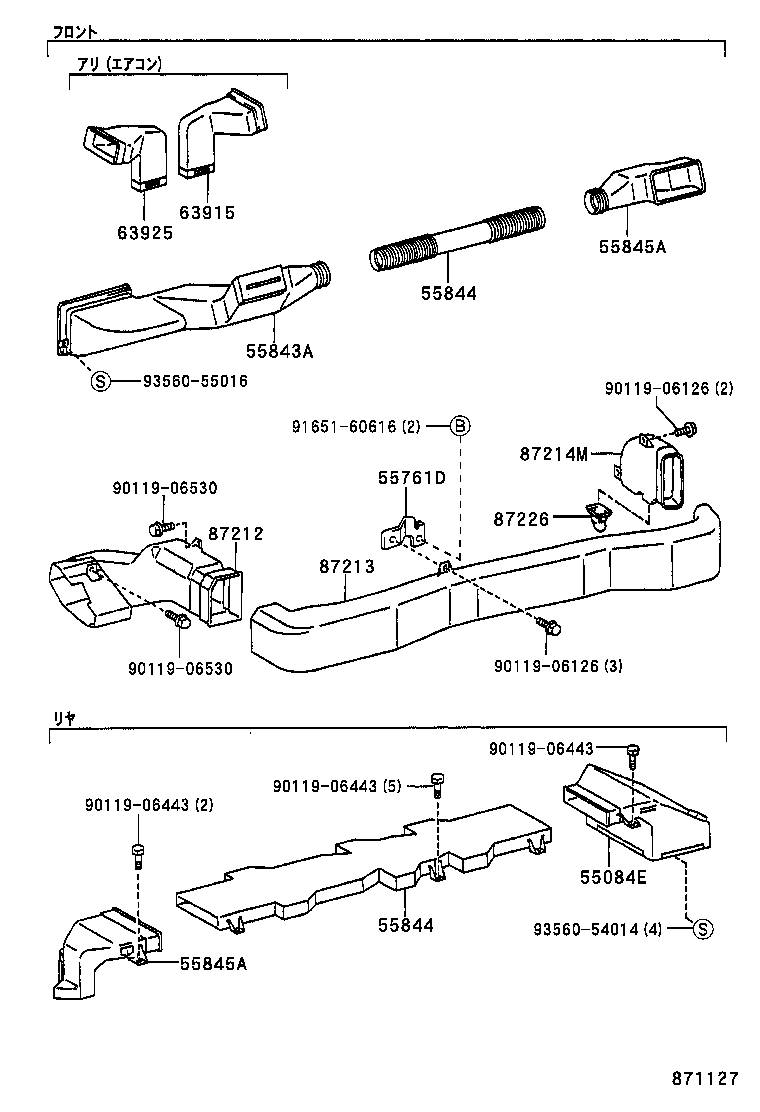

Figure 87D494 87D494 1996-01 → — Figure 871127 871127 1996-01 → — Figure 871305 871305 1996-01 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55519R Plate, Heater Control Name
55761D Bracket, Heater Mounting
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906 Cable Sub-assy, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907R Cable Sub-assy, Temperature Control
55910C Grommet(FOR HEATER CONTROL CABLE)
55910R Control Assy, Heater
55922 Bracket, Heater Control Base
55933A Clamp, Heater Control Cable
55939 Ornament, Heater Control
63915 Duct, Cooler, Inner NO.1 RH
63925 Duct, Cooler, Inner NO.1 LH
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214M Duct, Heater TO Foot, NO.3
87226 Adapter, Air Duct
88890B Switch Assy, Thermostat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
