Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

23 part groups · 9 illustrations

Illustrations

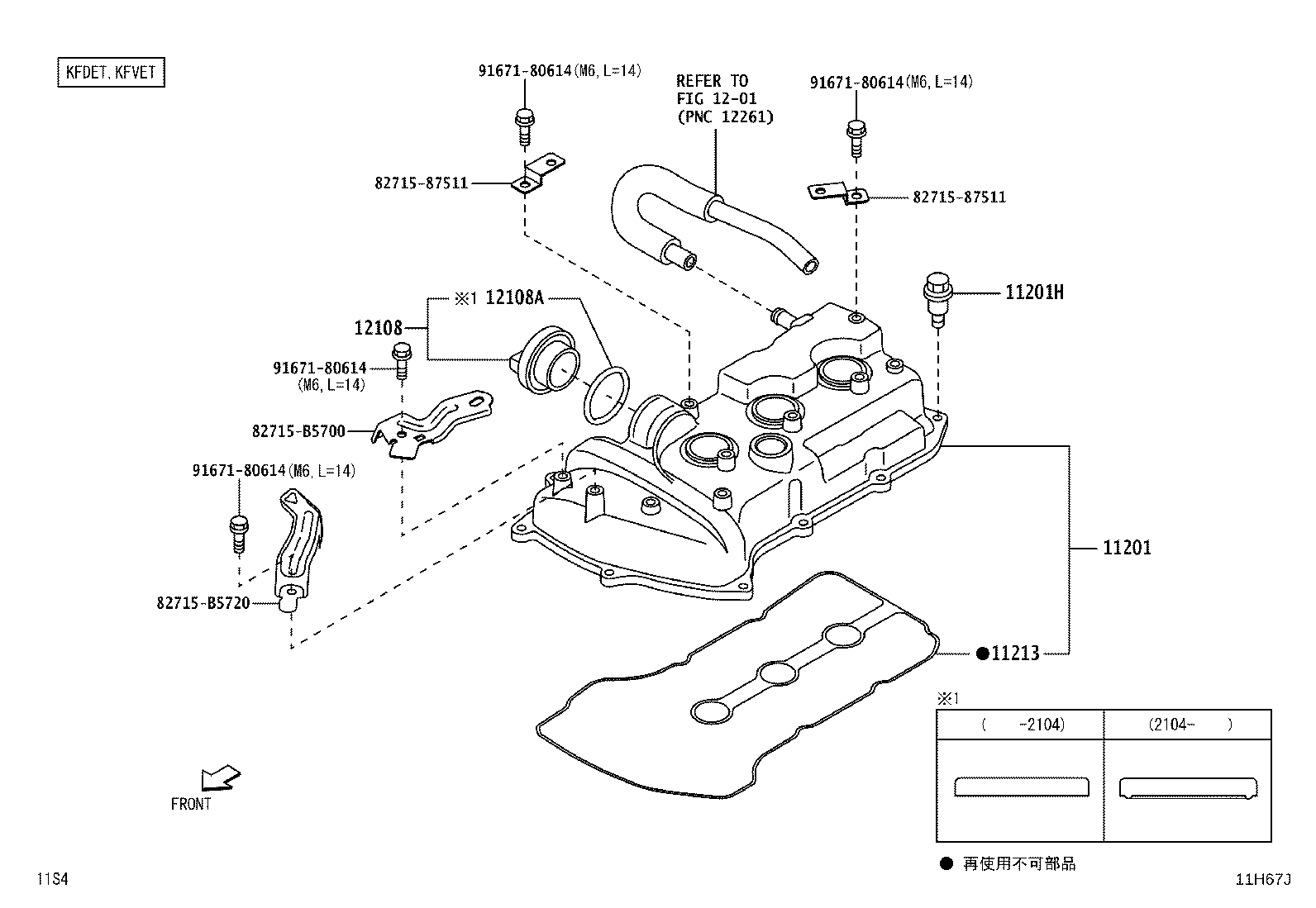

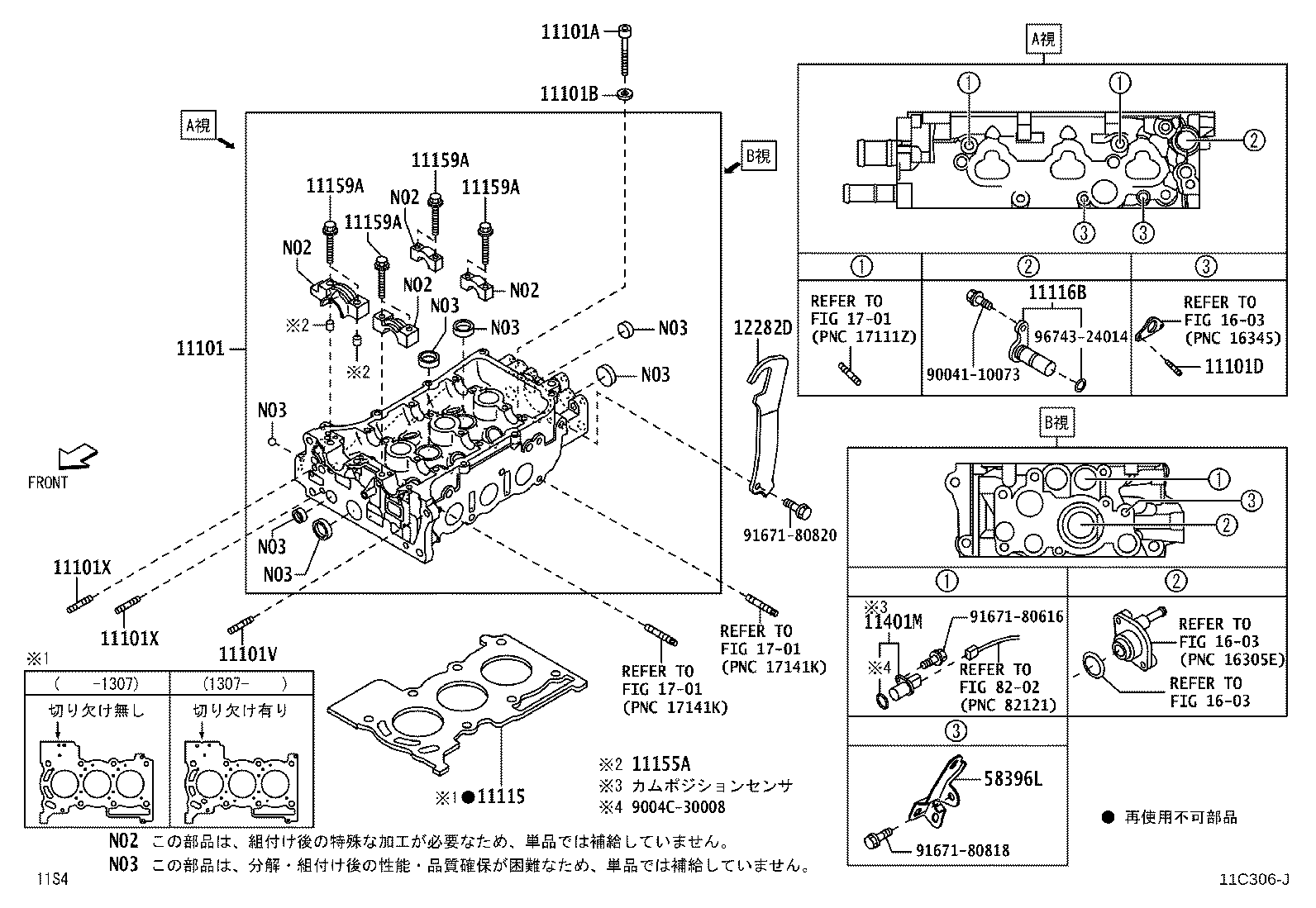

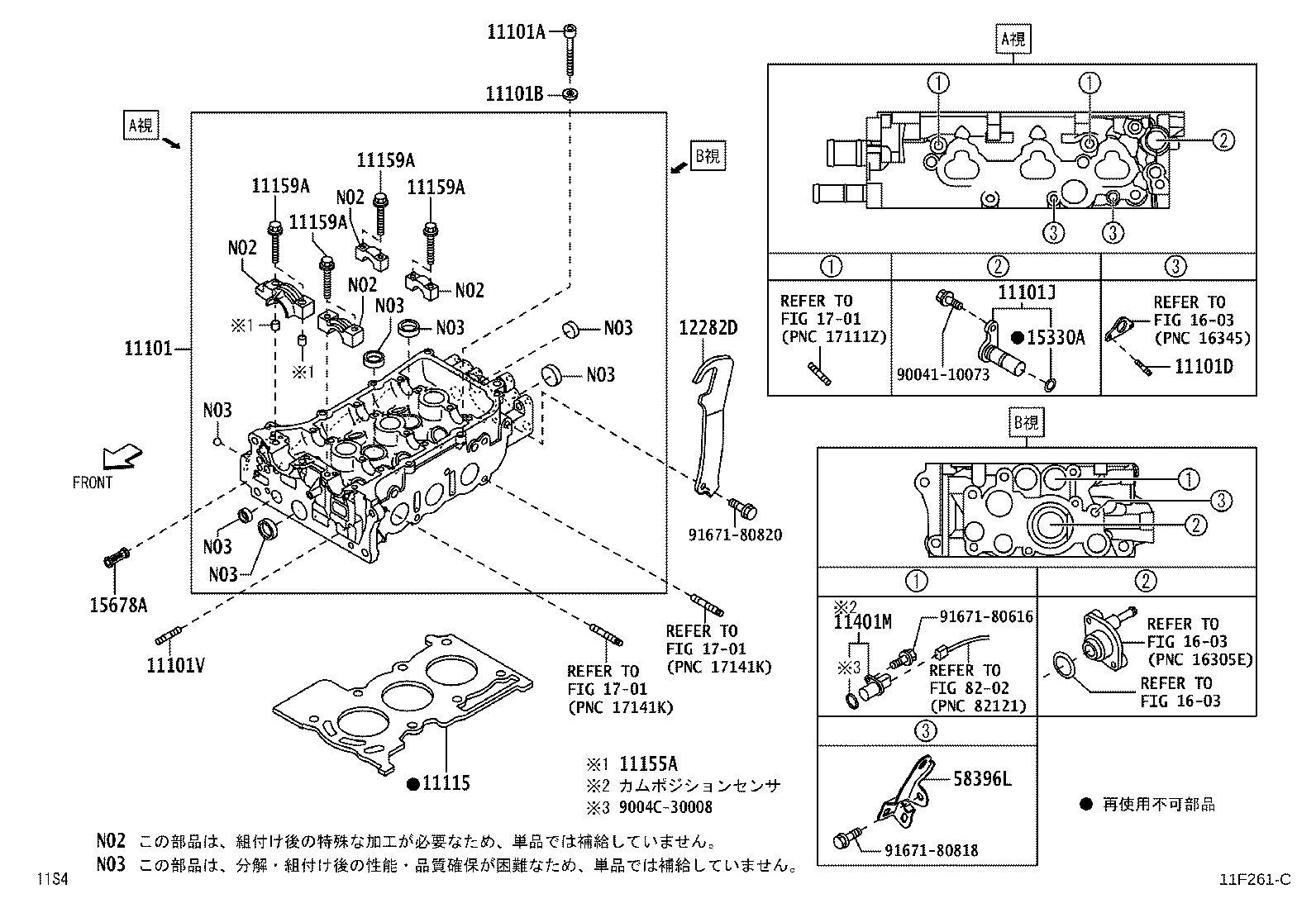

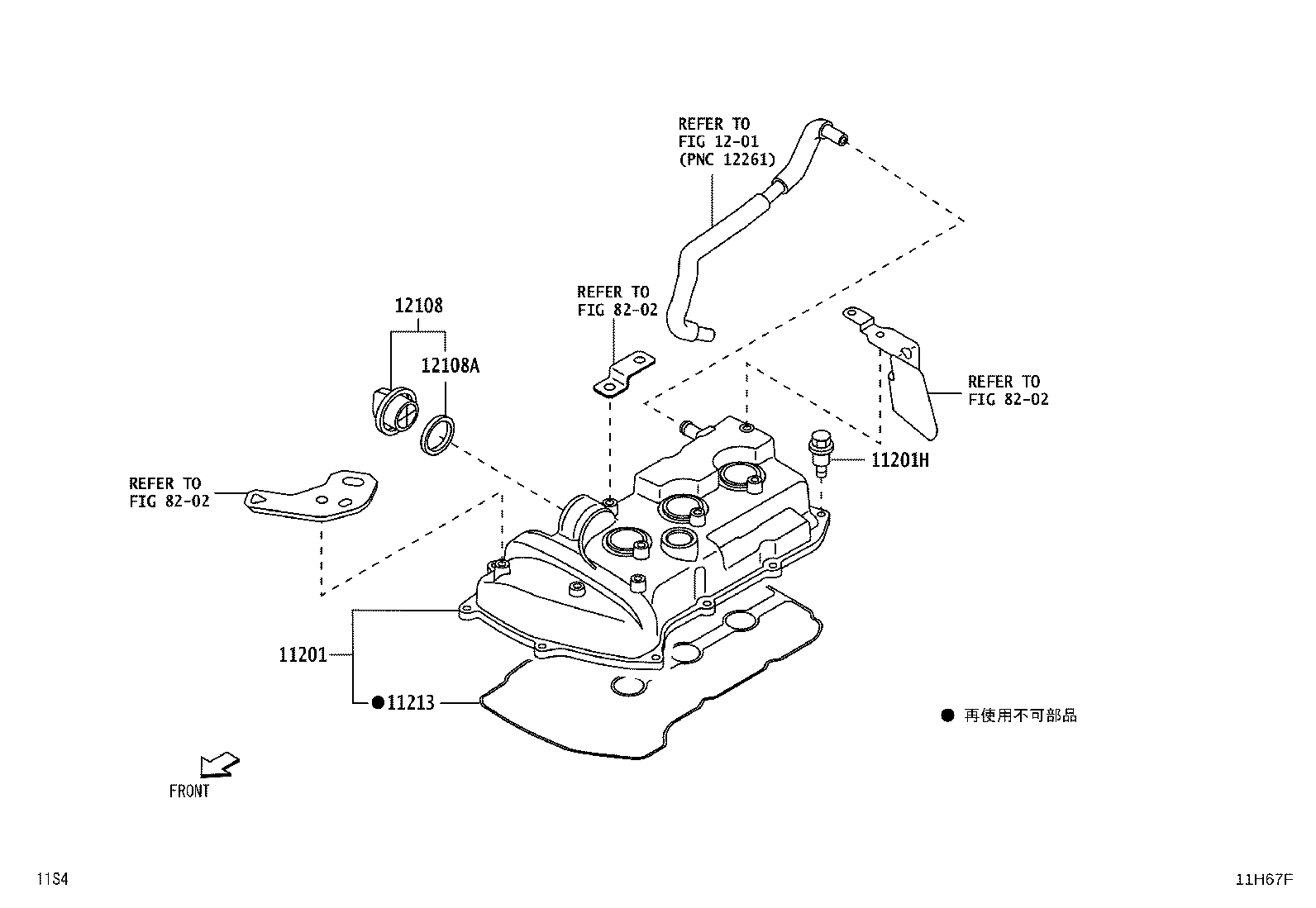

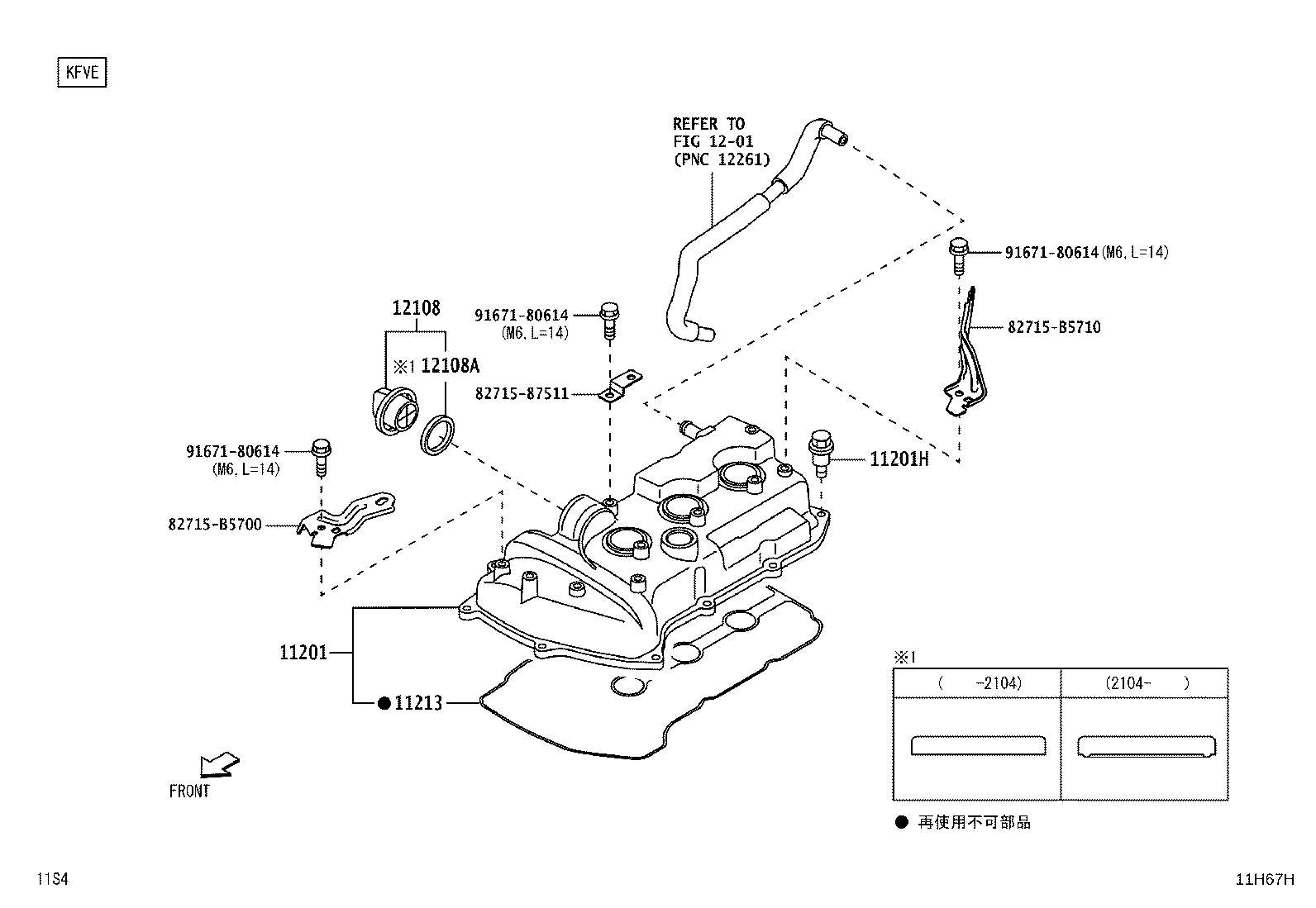

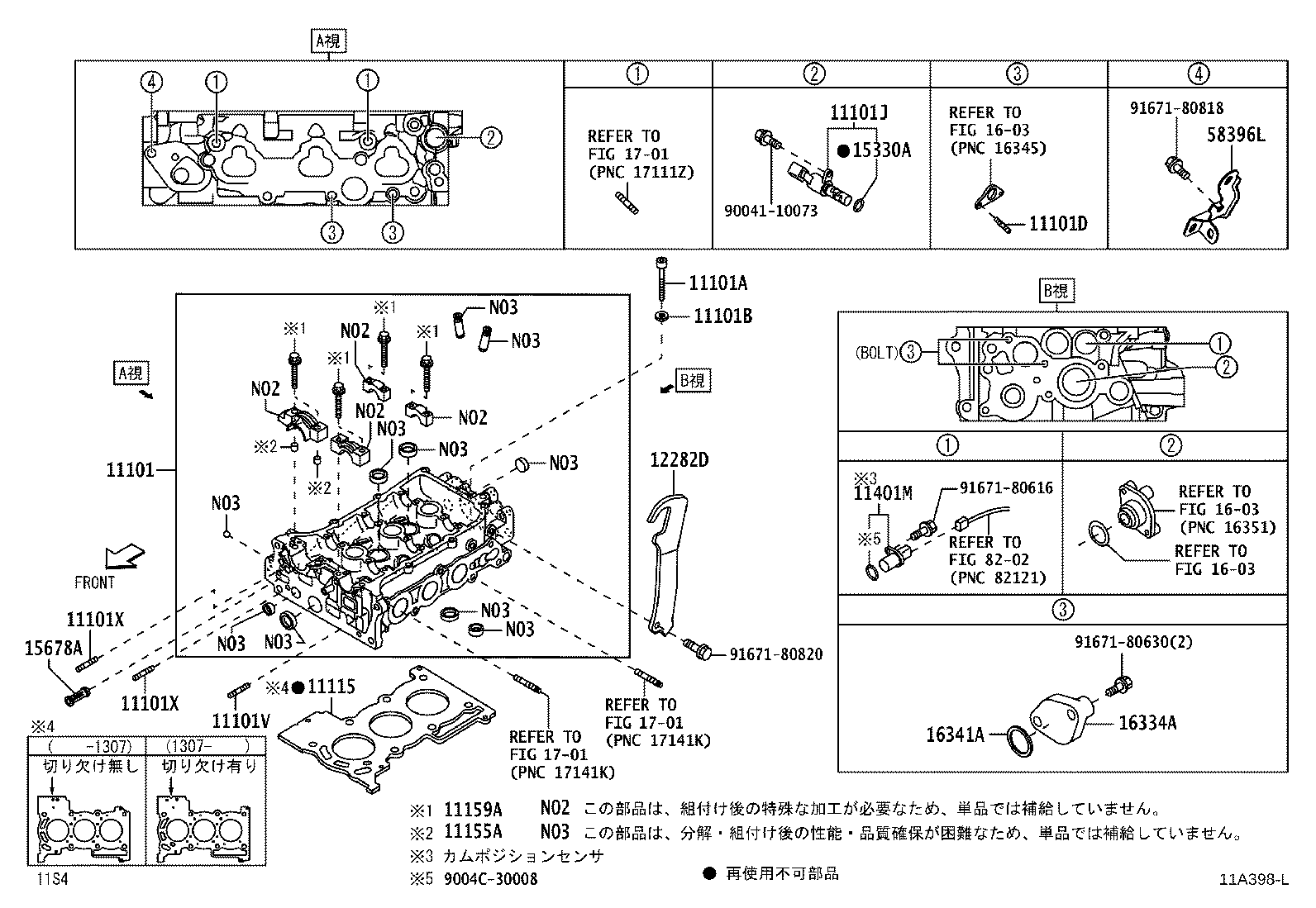

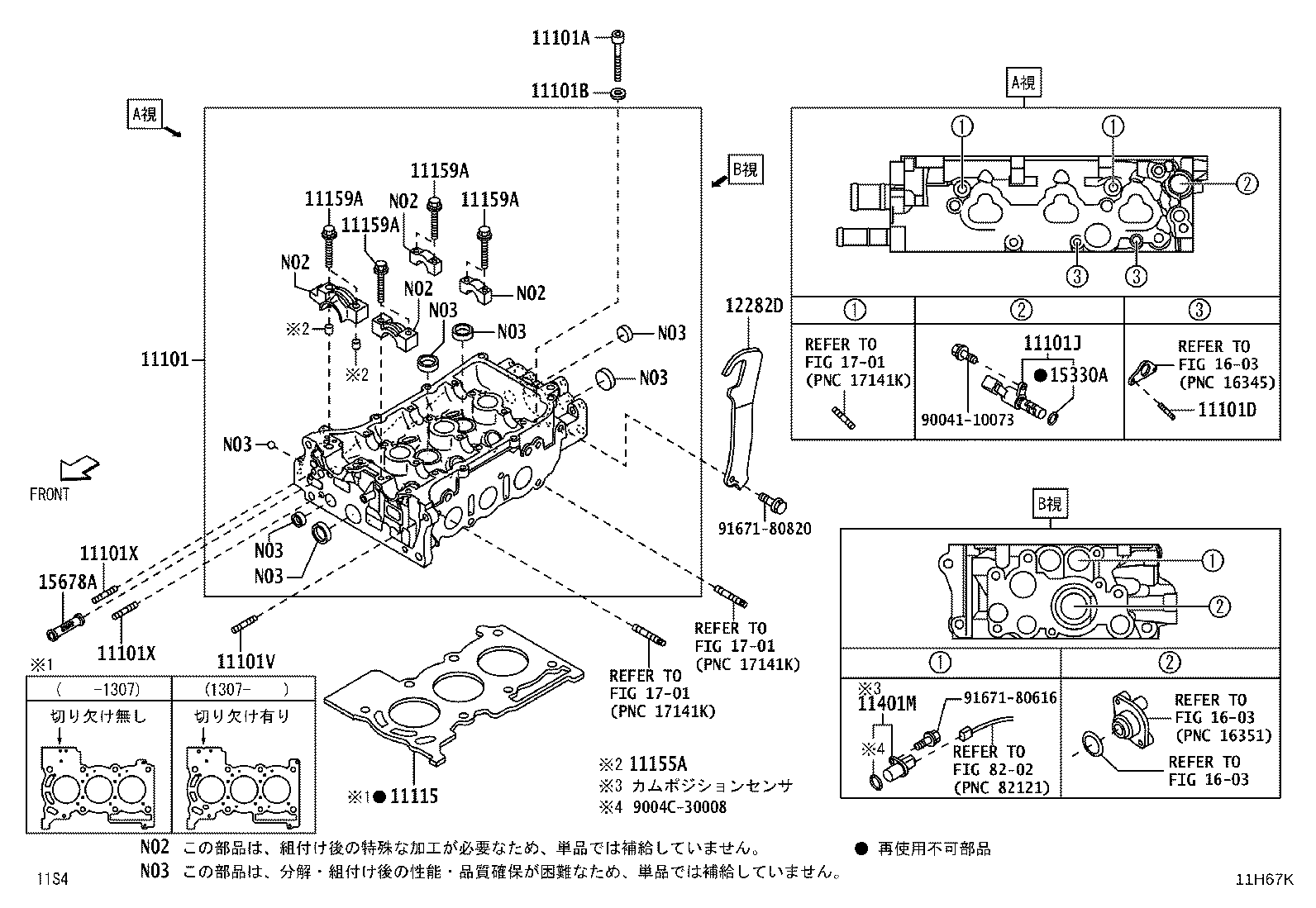

Figure 11H67G 11H67G 2011-12 → 2015-04 Figure 11H67F 11H67F 2015-04 → 2017-11 Figure 11H67H 11H67H 2017-11 → — Figure 11H67I 11H67I 2011-12 → 2017-11 Figure 11H67J 11H67J 2017-11 → — Figure 11H67K 11H67K 2011-12 → 2015-04 Figure 11A398L 11A398L 2015-04 → — Figure 11C306J 11C306J 2011-12 → 2020-09 Figure 11F261C 11F261C 2020-09 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101D Bolt, Stud(FOR WATER OUTLET)
11101J Valve Assy, Camshaft Timing Oil Control
11101V Bolt(FOR CYLINDER HEAD SET SUB)
11101X Bolt(FOR CYLINDER HEAD SET SUB)
11115 Gasket, Cylinder Head
11116B Plug, Tight, NO.2
11155A Pin, Ring W/Head
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11201 Cover Sub-assy, Cylinder Head
11201H Bolt(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11401M Sensor, Crank Position, NO.2
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12282D Hanger, Engine, NO.2
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
16334A Cover, Water Outlet Housing
16341A Gasket, Water Outlet
58396L Bracket, Wire Harness Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
