Toyota Pixis Van
2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan
Supported model
Data version 2020-09

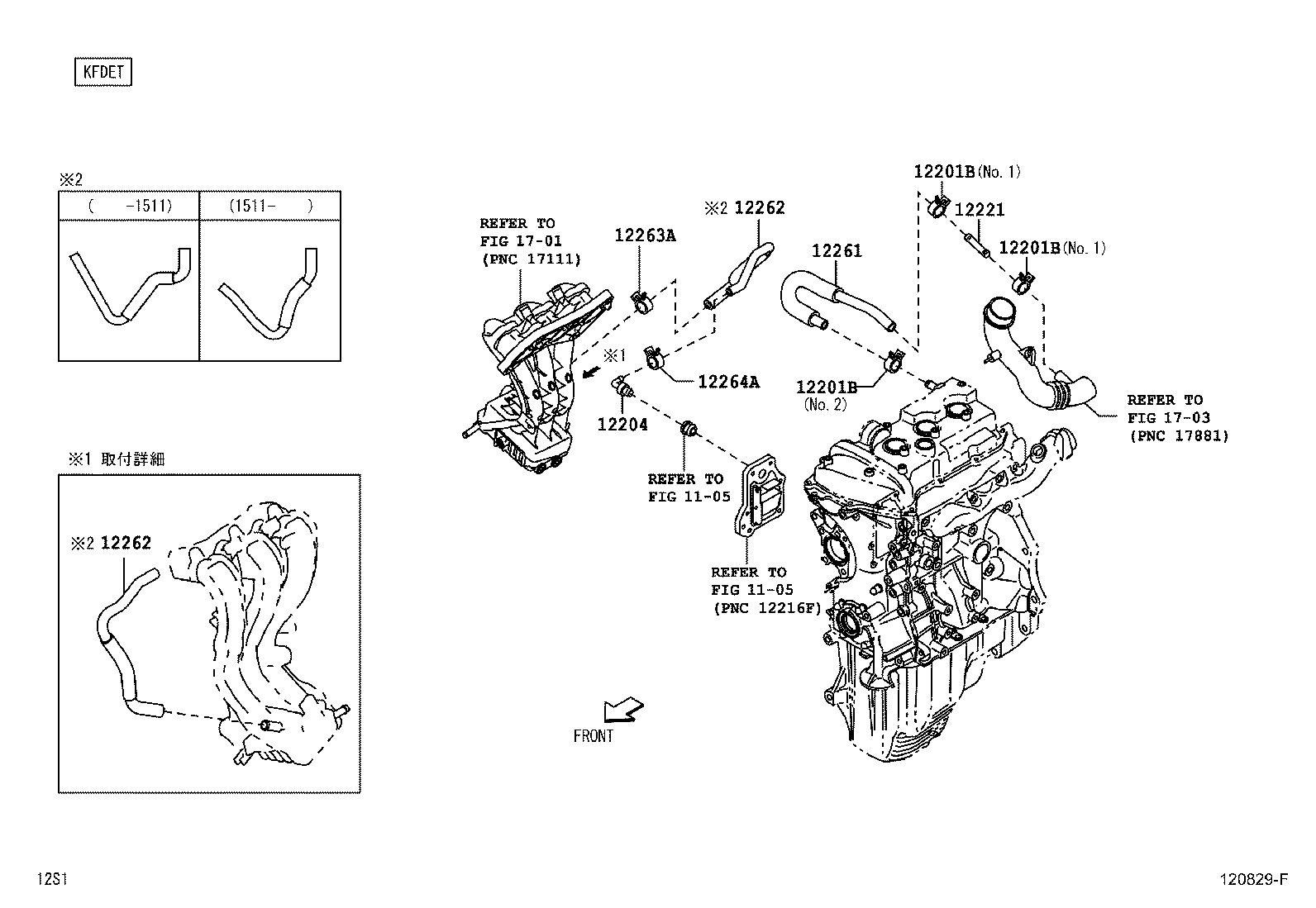

Ventilation Hose
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12201B | Clip(FOR VENTILATION TUBE HOSE) |
| 12204 | Valve Sub-assy, Ventilation |
| 12221 | Tube, Ventilation NO.1 |
| 12261 | Hose, Ventilation |
| 12262 | Hose, Ventilation, NO.2 |
| 12263A | Clip(FOR VENTILATION HOSE) |
| 12264A | Clip(FOR VENTILATION HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
