Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

19 part groups · 3 illustrations

Illustrations

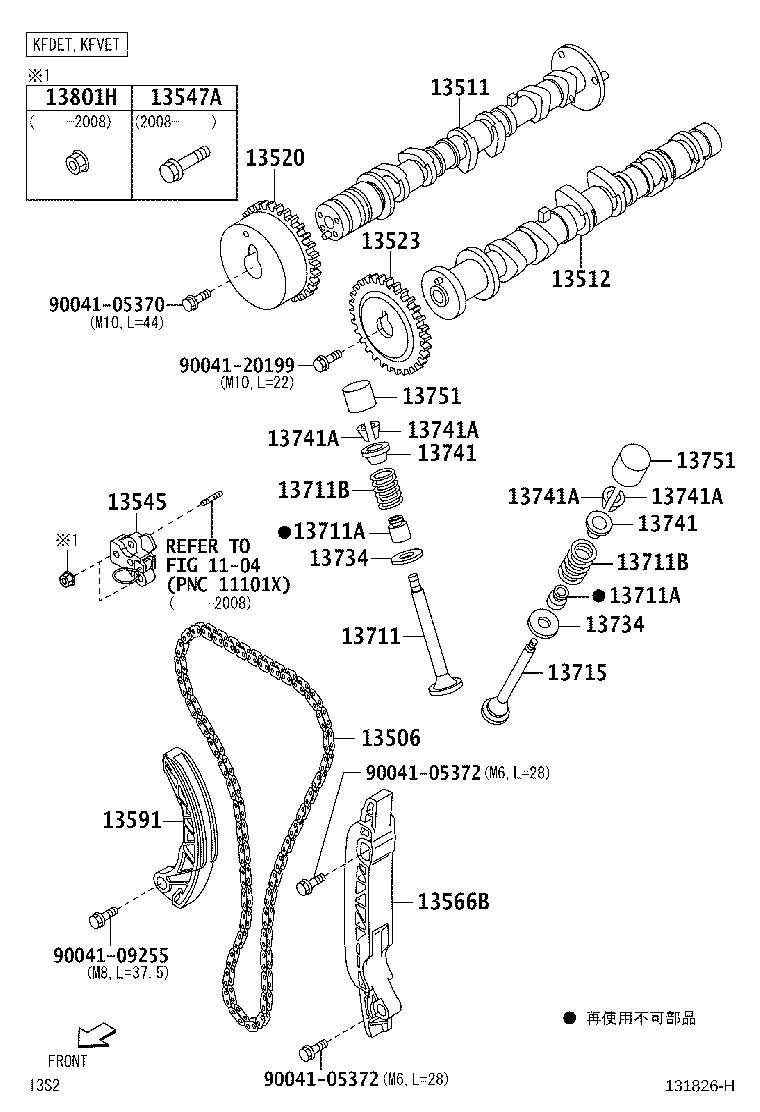

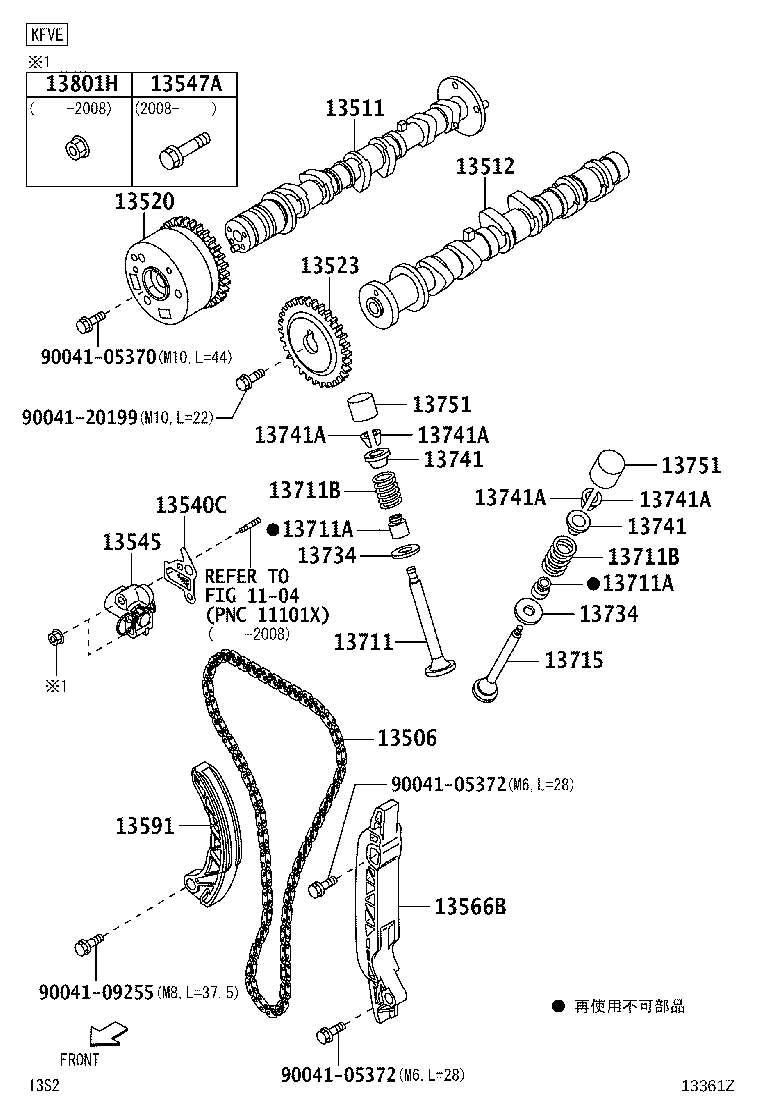

Figure 13361Y 13361Y 2011-12 → 2015-04 Figure 13361Z 13361Z 2015-04 → — Figure 131826H 131826H 2011-12 → —

Part groups

PNCDescription
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13520 Sprocket Assy, Camshaft Timing
13523 Gear OR Sprocket, Camshaft Timing
13540C Gasket(FOR CHAIN TENSIONER)
13545 Plunger, Chain Tensioner
13547A Bolt(FOR TENSIONER LOCK PLATE SET)
13566B Guide, Timing Chain
13591 Arm, Timing Chain Tension
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13801H Nut
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
