Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

60 part groups · 14 illustrations

Illustrations

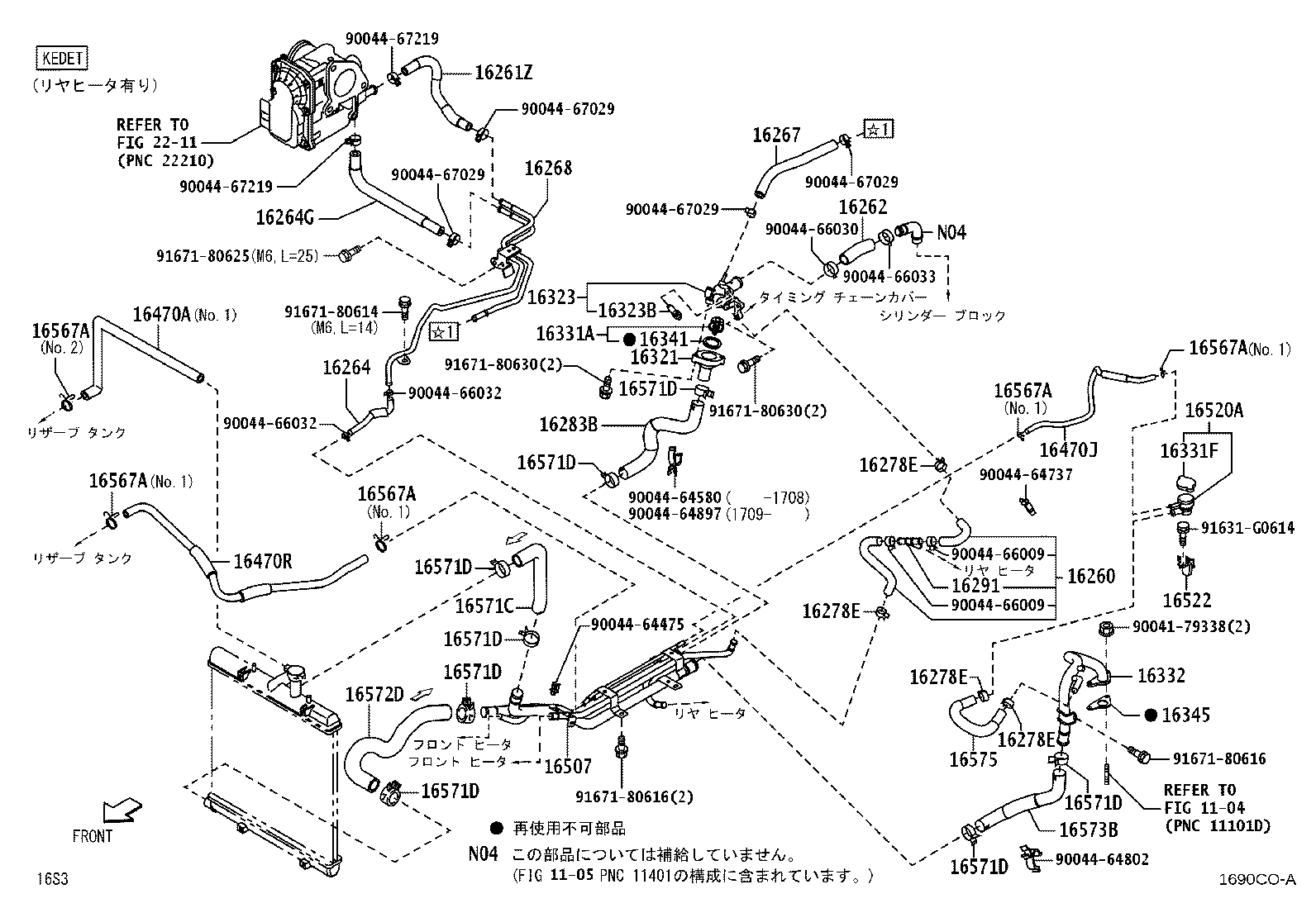

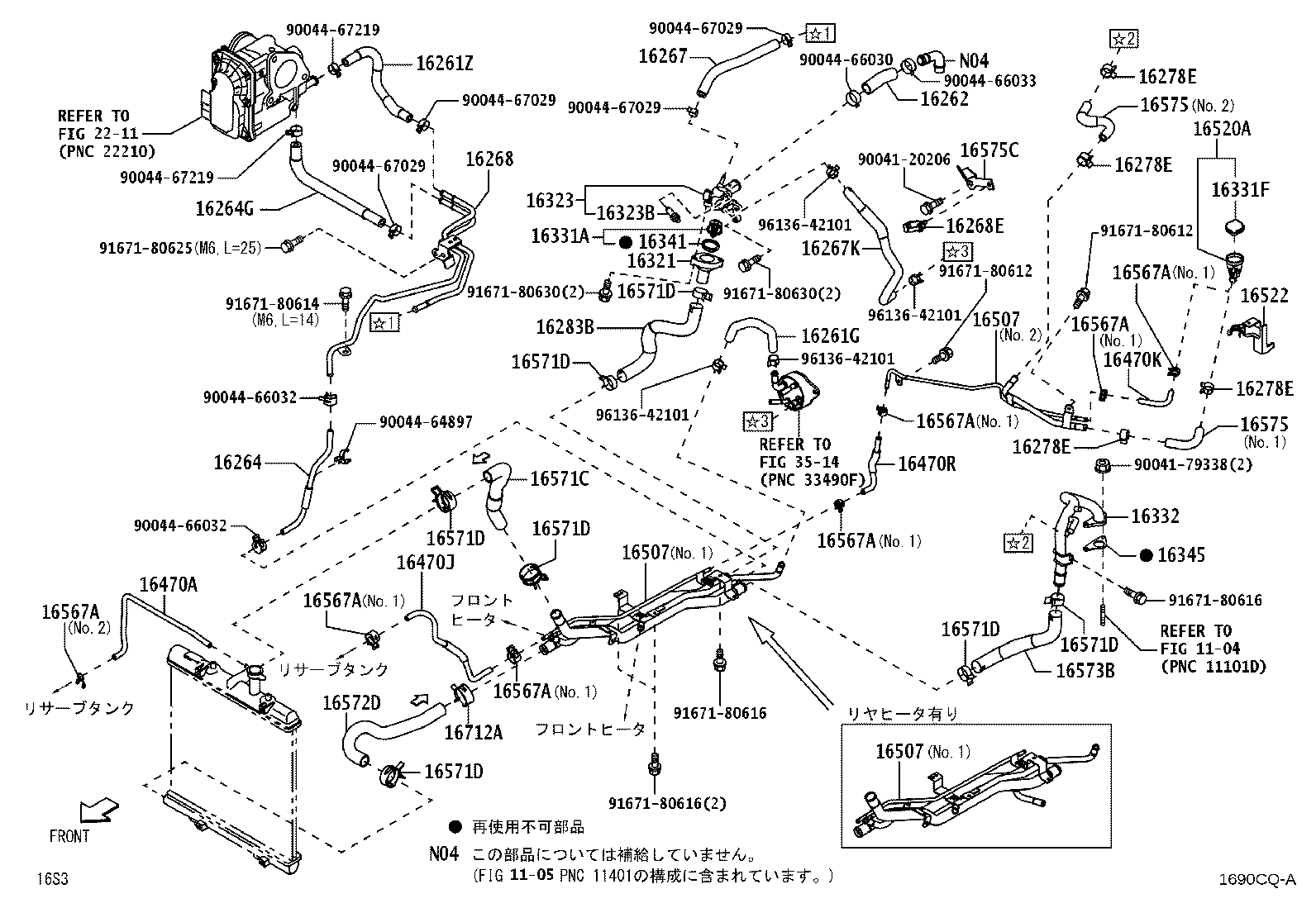

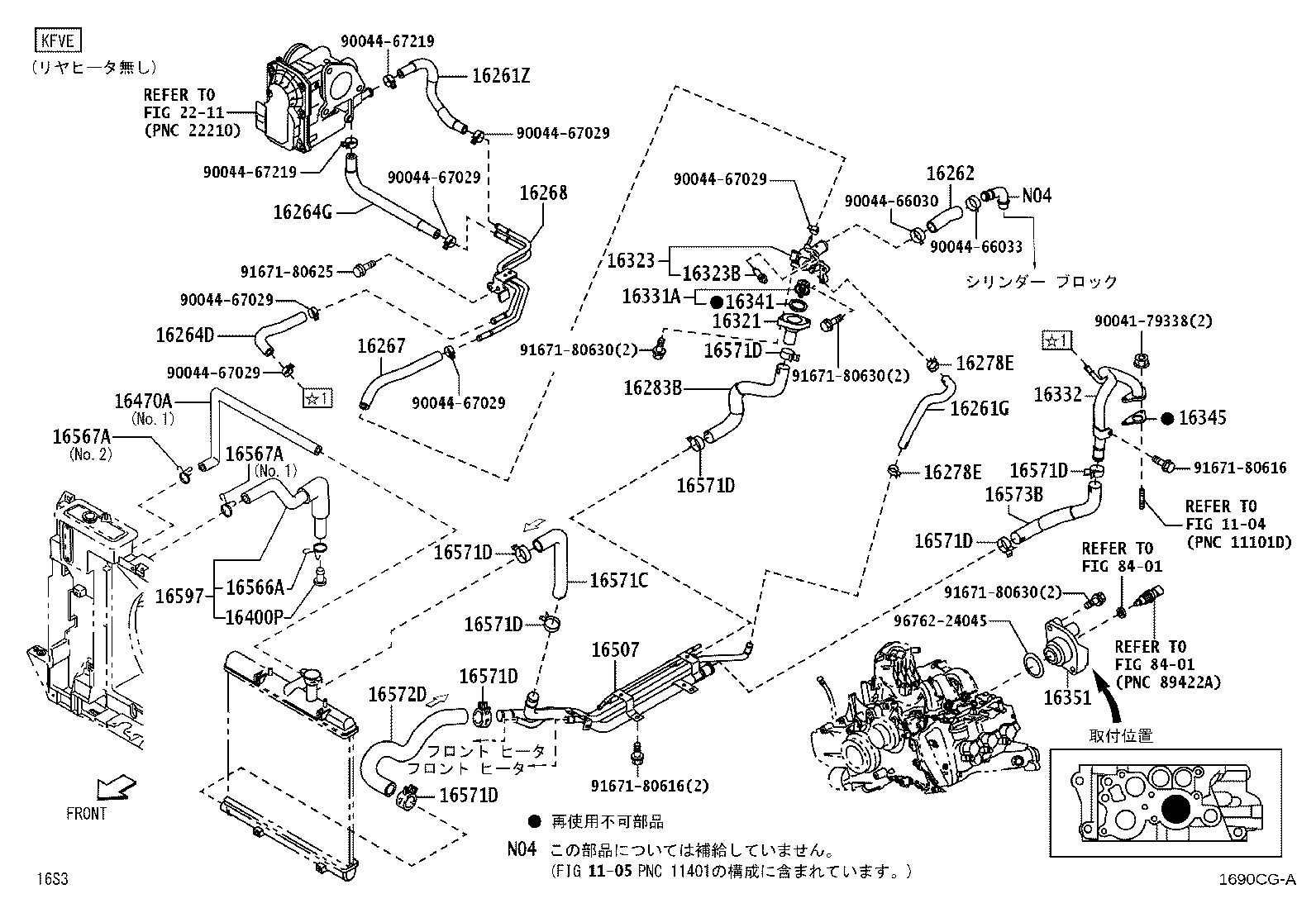

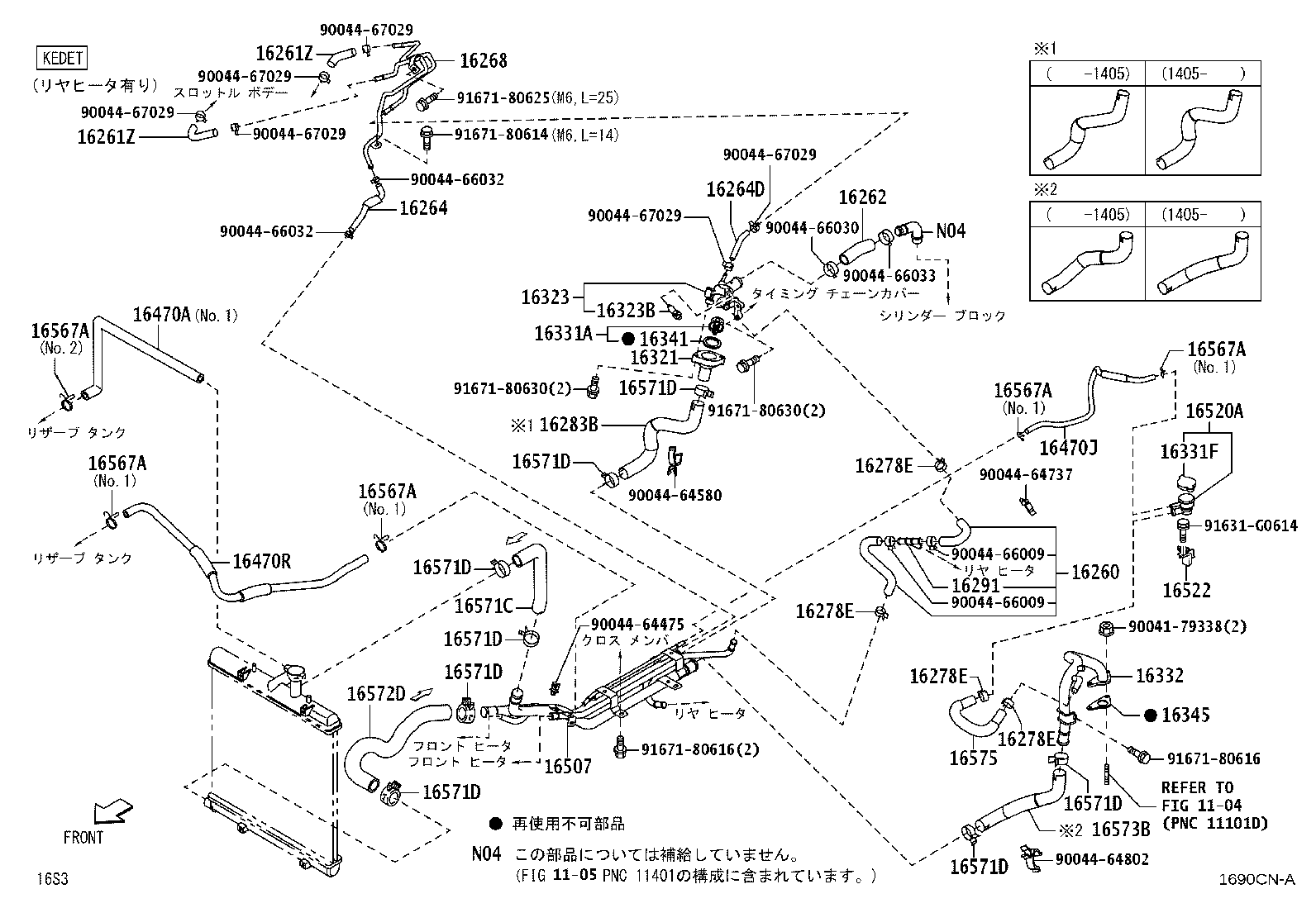

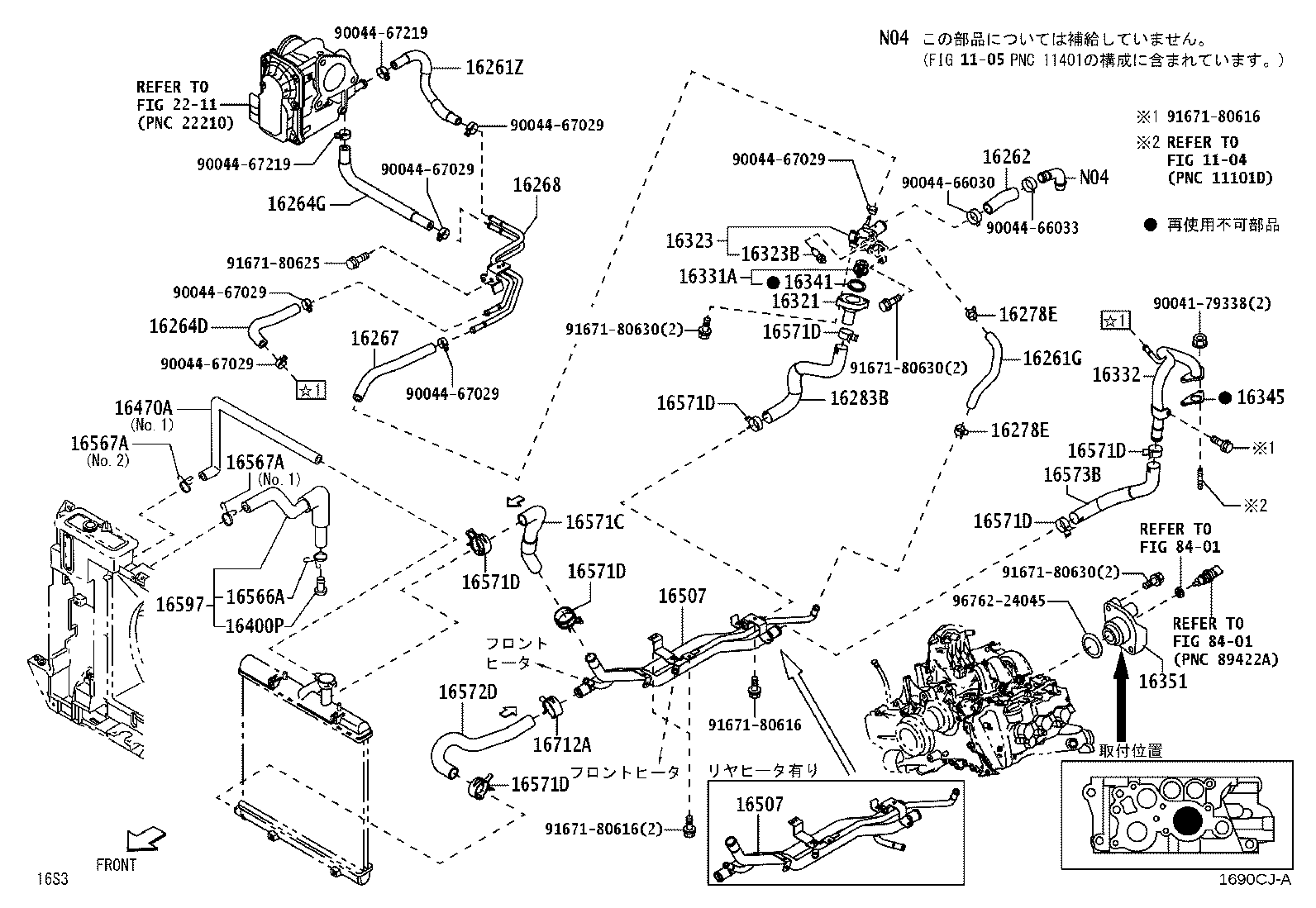

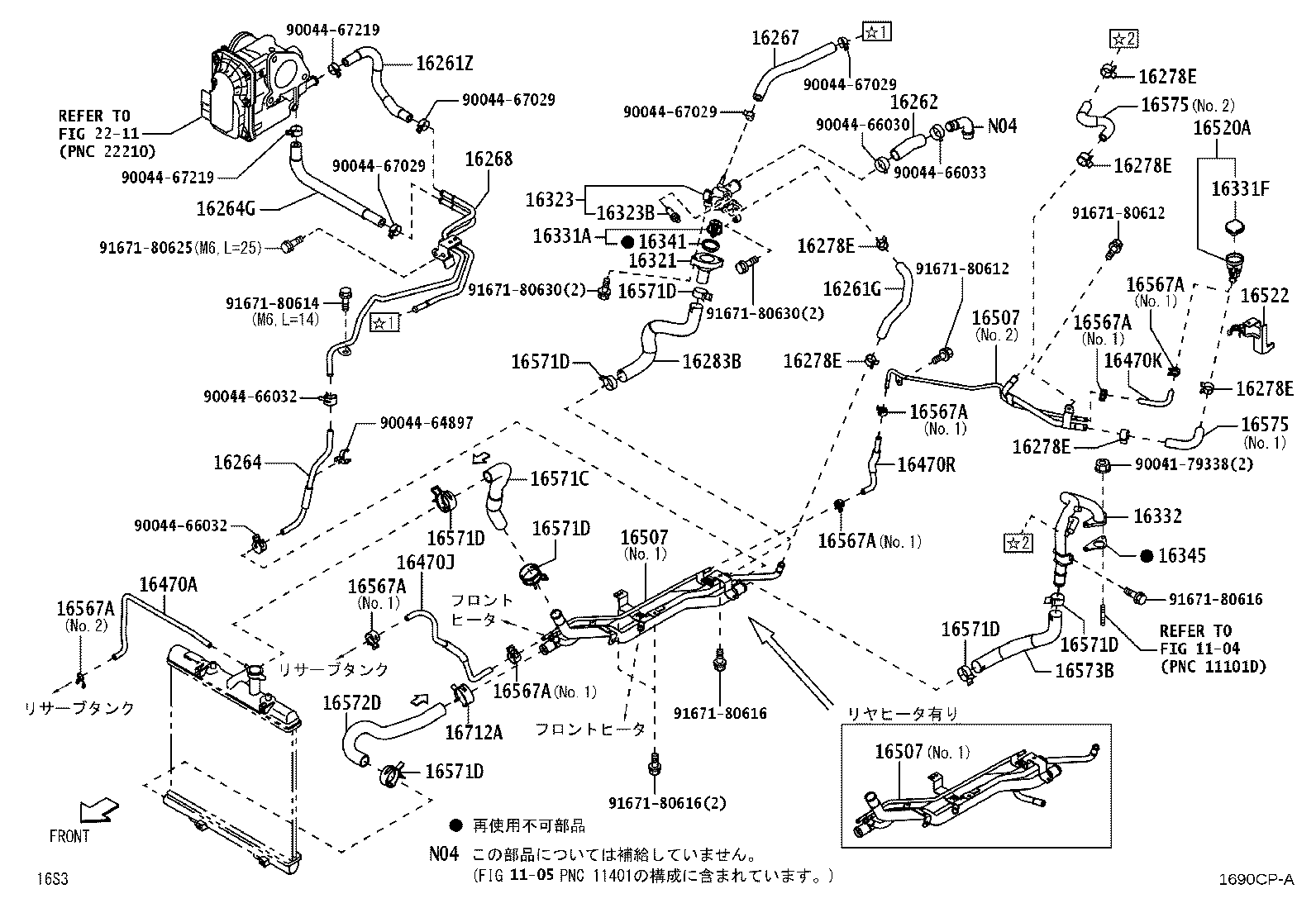

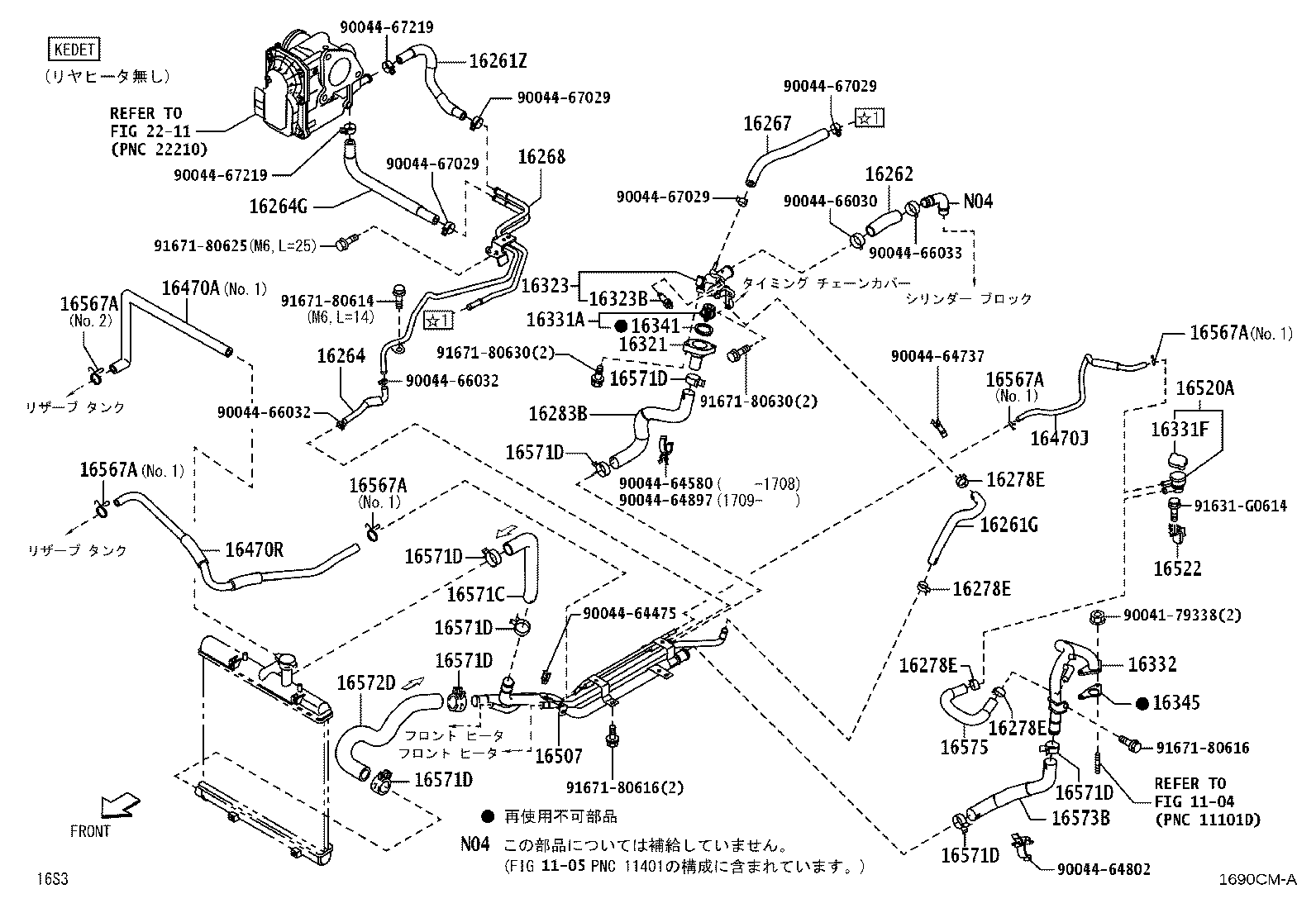

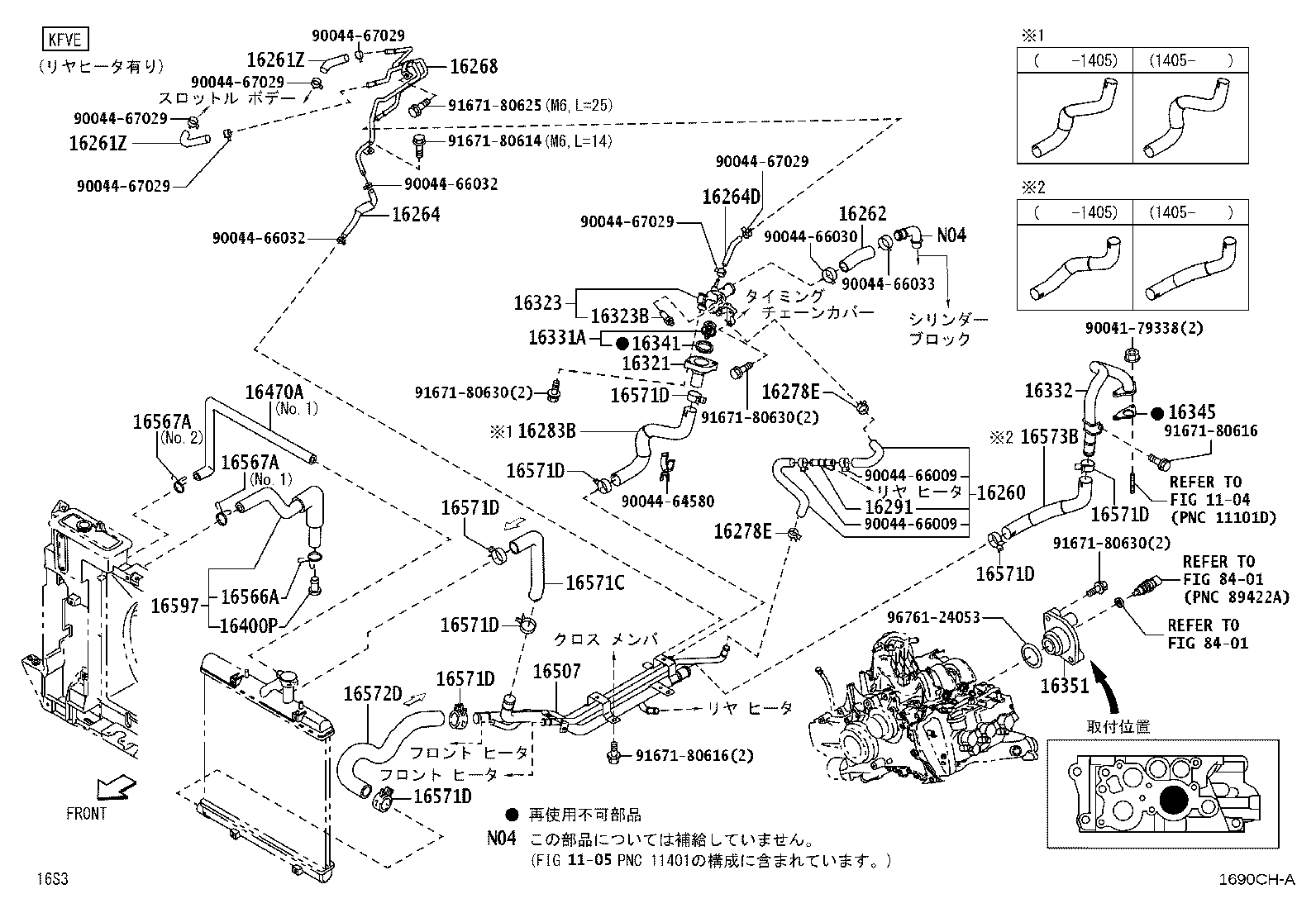

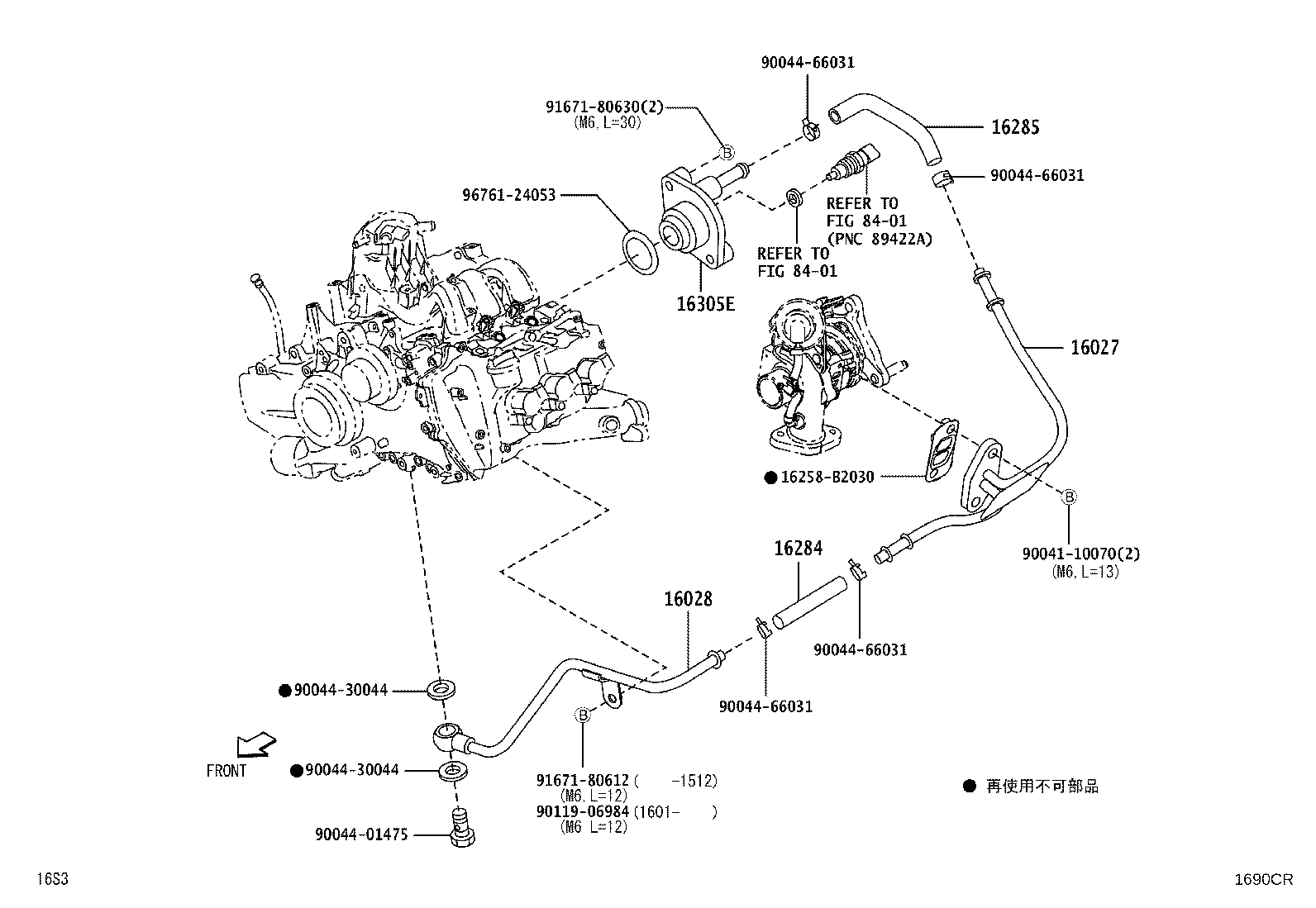

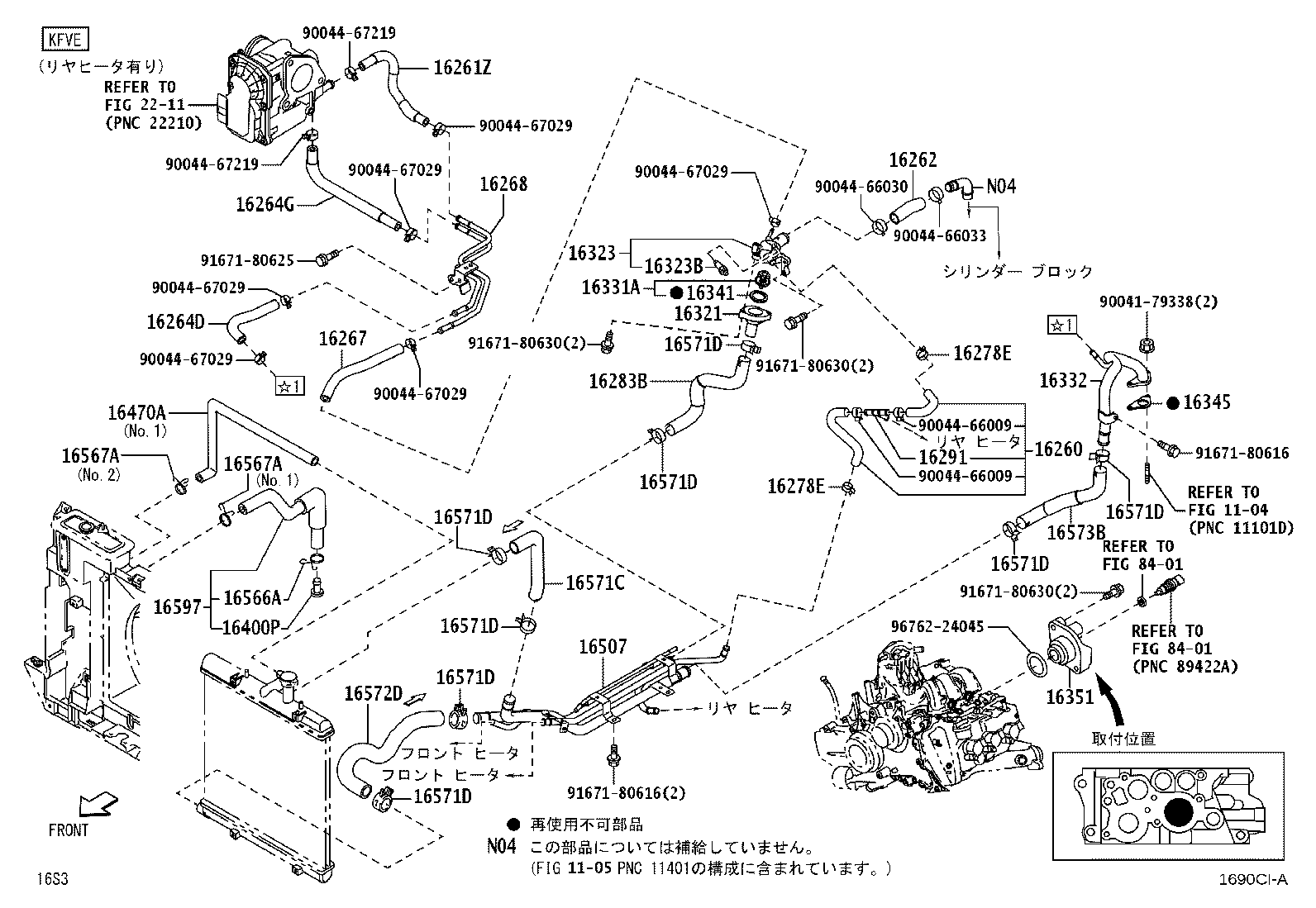

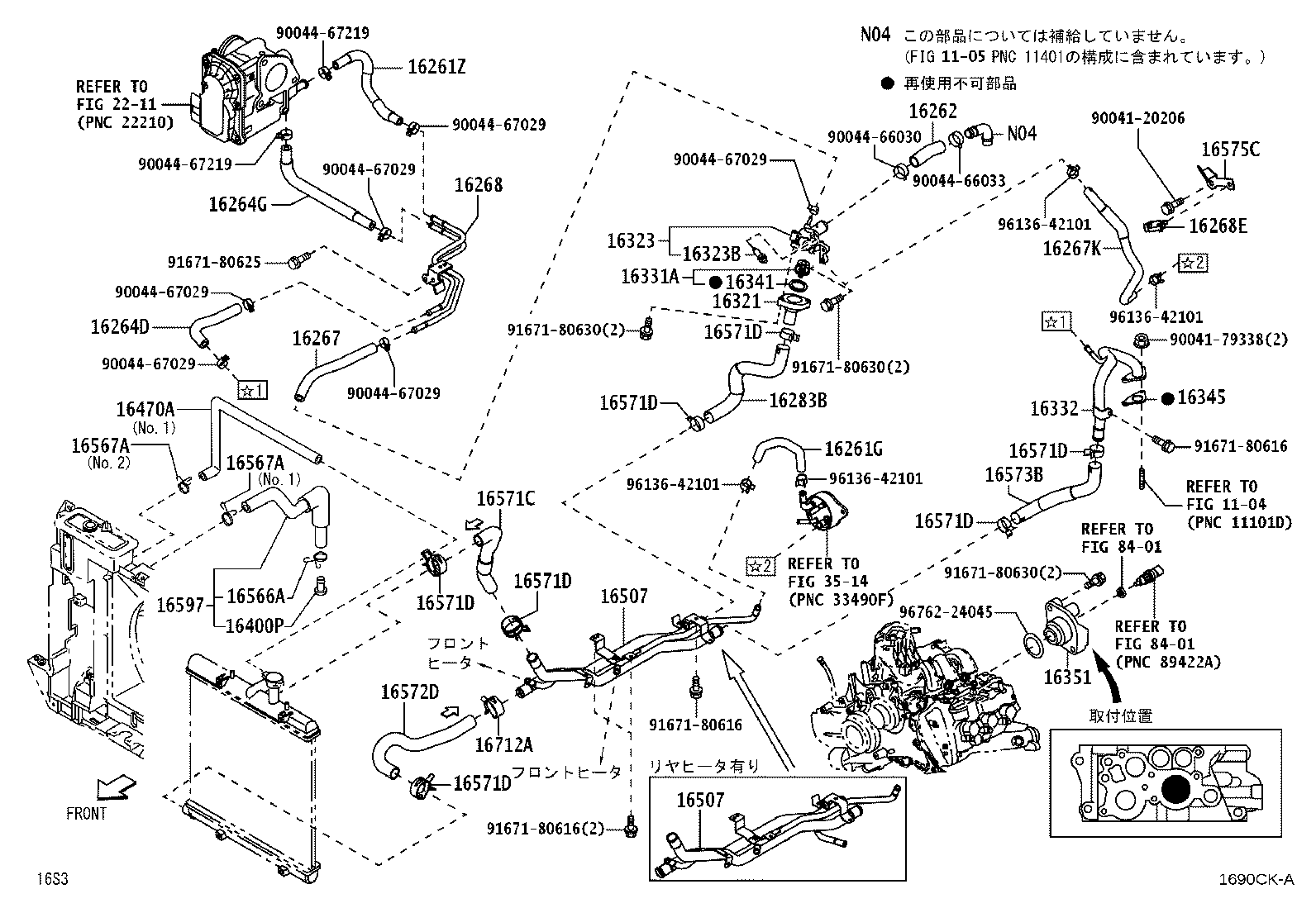

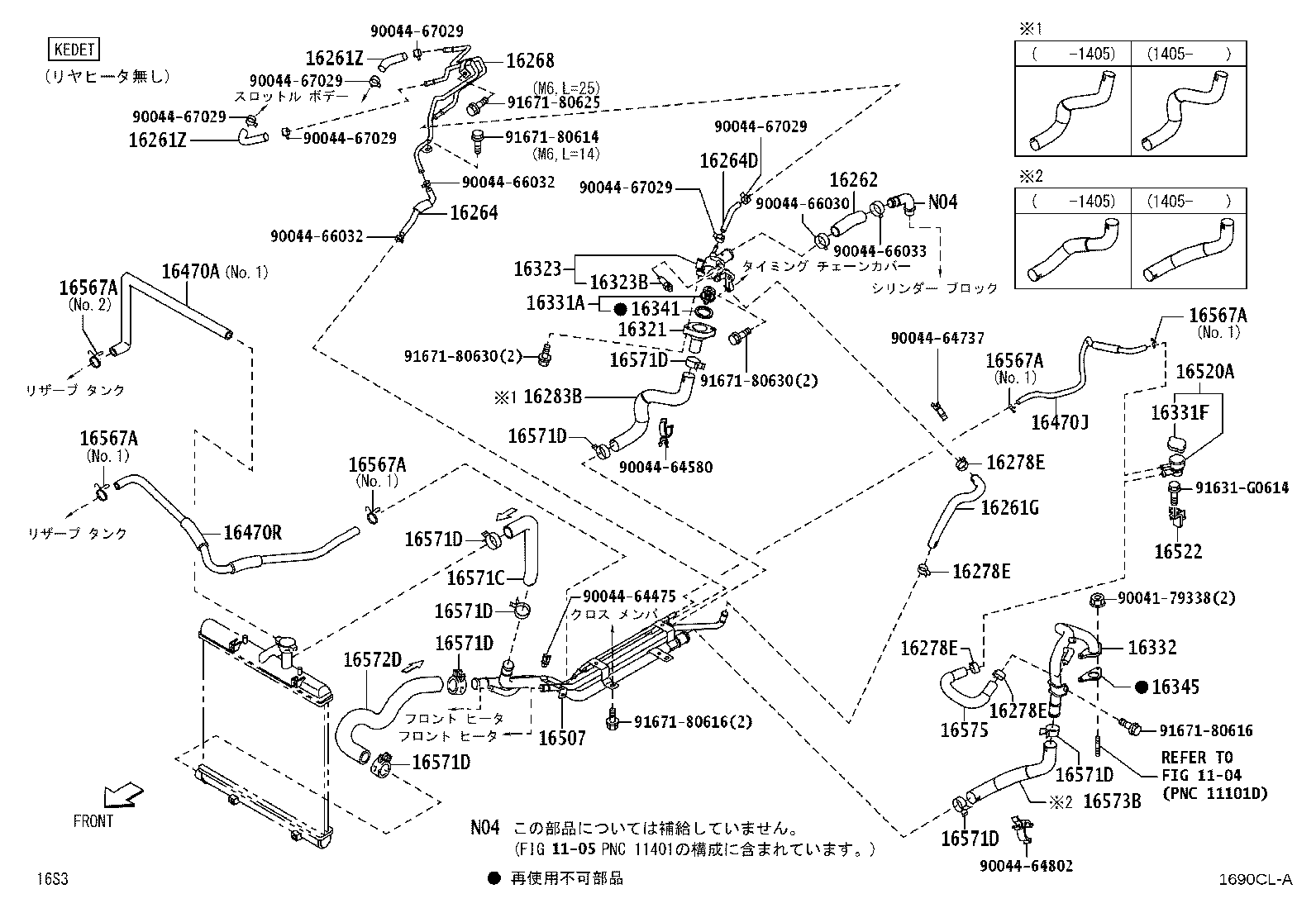

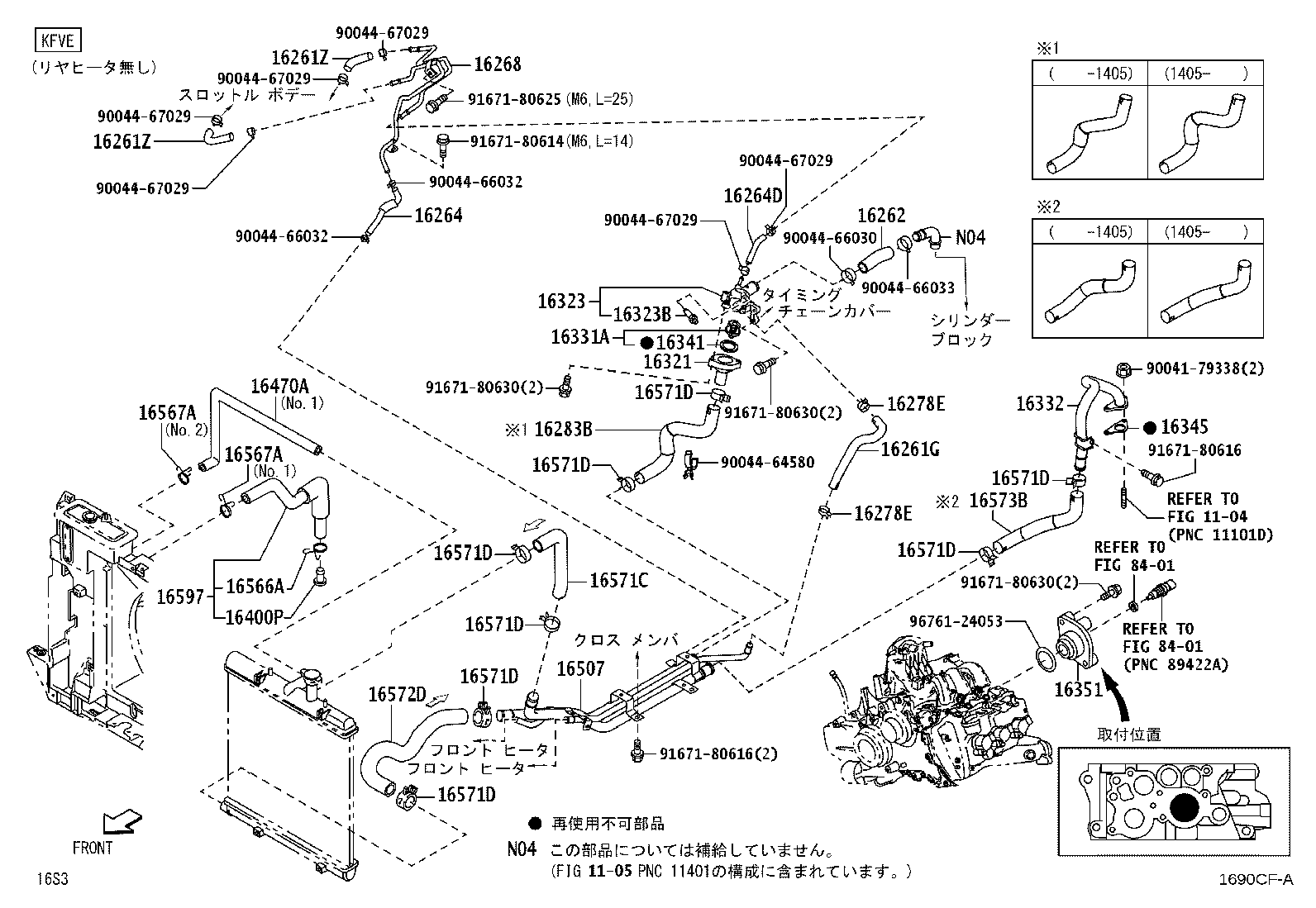

Figure 164706G 164706G 2011-12 → — Figure 1690CFA 1690CFA 2011-12 → 2015-04 Figure 1690CGA 1690CGA 2015-04 → 2017-11 Figure 1690CHA 1690CHA 2011-12 → 2015-04 Figure 1690CIA 1690CIA 2015-04 → 2017-11 Figure 1690CJA 1690CJA 2017-11 → — Figure 1690CKA 1690CKA 2017-11 → — Figure 1690CLA 1690CLA 2011-12 → 2015-04 Figure 1690CMA 1690CMA 2015-04 → 2017-11 Figure 1690CNA 1690CNA 2011-12 → 2015-04 Figure 1690COA 1690COA 2015-04 → 2017-11 Figure 1690CPA 1690CPA 2017-11 → — Figure 1690CQA 1690CQA 2017-11 → — Figure 1690CR 1690CR 2011-12 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16260 Hose Assy, Water By-pass
16261G Hose, Water By-pass, NO.1
16261Z Hose, Water By-pass, NO.1
16262 Hose, Water Inlet
16264 Hose, Water By-pass, NO.2
16264D Hose, Water By-pass, NO.2
16264G Hose, Water By-pass, NO.3
16267 Hose, Water By-pass, NO.3
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268E Clamp, Hose(FOR WATER BY-PASS PIPE)
16278E Clip(FOR WATER BY-PASS HOSE)
16283B Hose, Water By-pass
16284 Hose, Turbo Water, NO.1
16285 Hose, Turbo Water, NO.2
16291 Joint, Water Hose
16305E Outlet Sub-assy, Water By-pass
16321 Inlet, Water
16323 Housing, Water Inlet
16323B Plug(FOR WATER INLET HOUSING)
16331A Thermostat
16331F Cap Sub-assy(FOR WATER OUTLET)
16332 Pipe, Water Outlet, NO.1
16341 Gasket, Water Outlet
16345 Gasket, Water Outlet Pipe
16351 Outlet, Water By-pass
16361 Fan
16363 Motor, Cooling Fan
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400P Plug(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470J Hose, NO.3(FOR RADIATOR RESERVE TANK)
16470K Hose, NO.4(FOR RADIATOR RESERVE TANK)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16507 Pipe Sub-assy, Radiator
16520A Cap Sub-assy, Water Filler
16522 Bracket, Water Filler
16533B Support, Radiator, NO.1
16533C Grommet(FOR RADIATOR SUPPORT)
16535 Support, Radiator, Lower
16565A Clip
16566A Clip(FOR RESERVE TANK OUTLET)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16573B Hose, Radiator, NO.3
16575 Hose, Radiator, NO.5
16575C Bracket, Water Hose Clamp, NO.1
16592 Guide, Radiator Air, NO.3
16593A Guide, Radiator Air, NO.1 RH
16595A Guide, Radiator Air, NO.1 LH
16597 Hose, Reserve Tank Outlet, NO.2
16712A Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
