Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

32 part groups · 9 illustrations

Illustrations

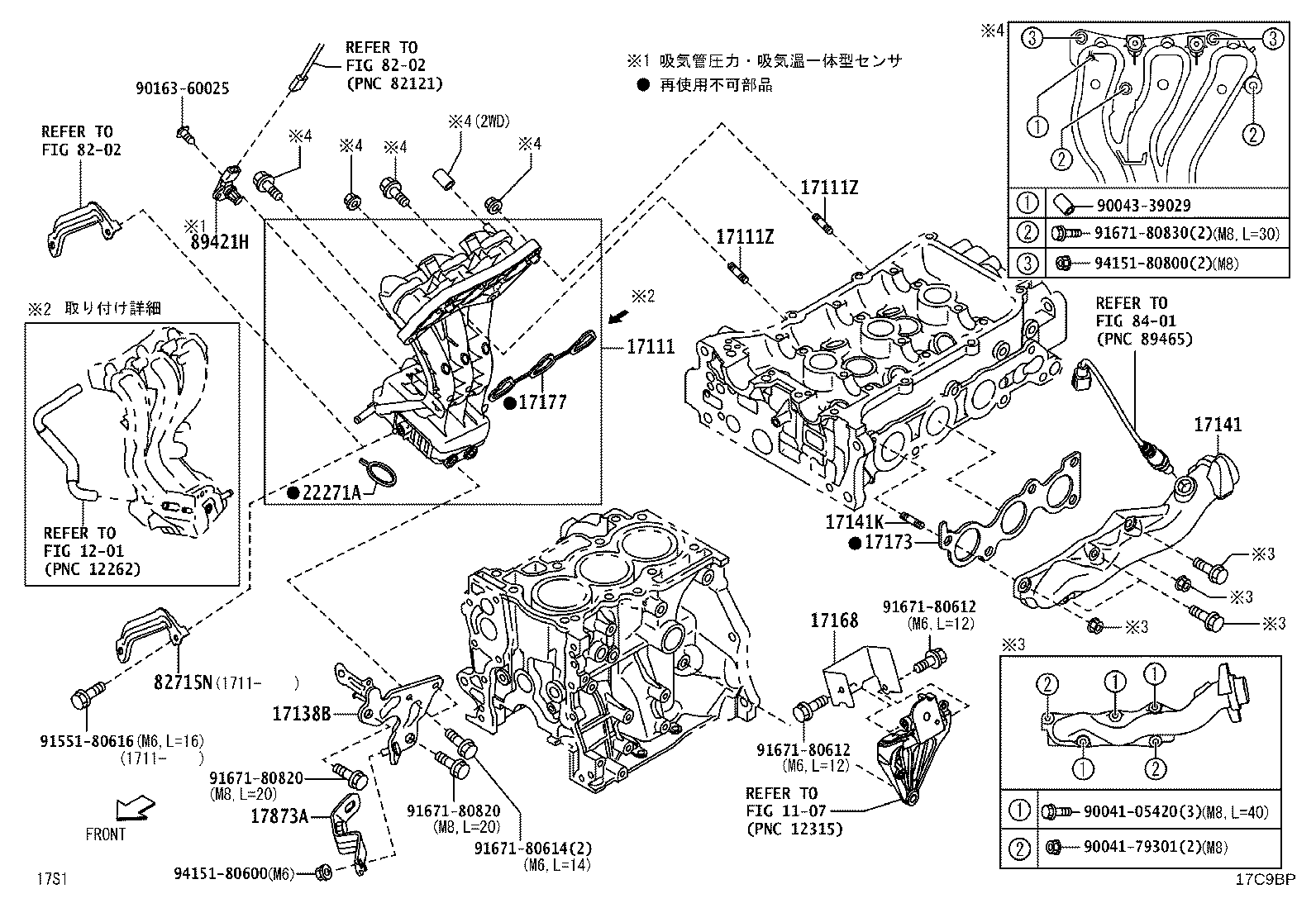

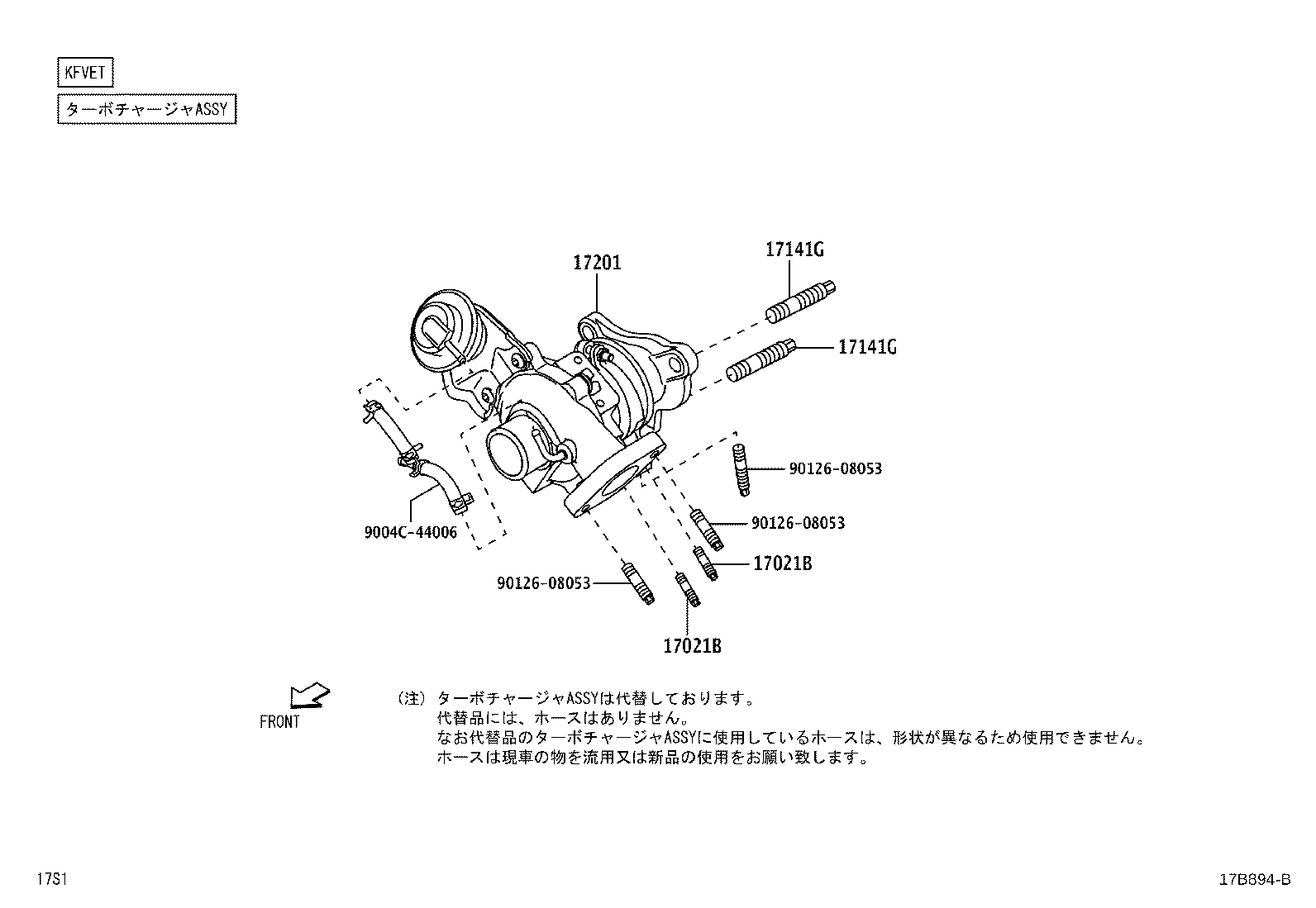

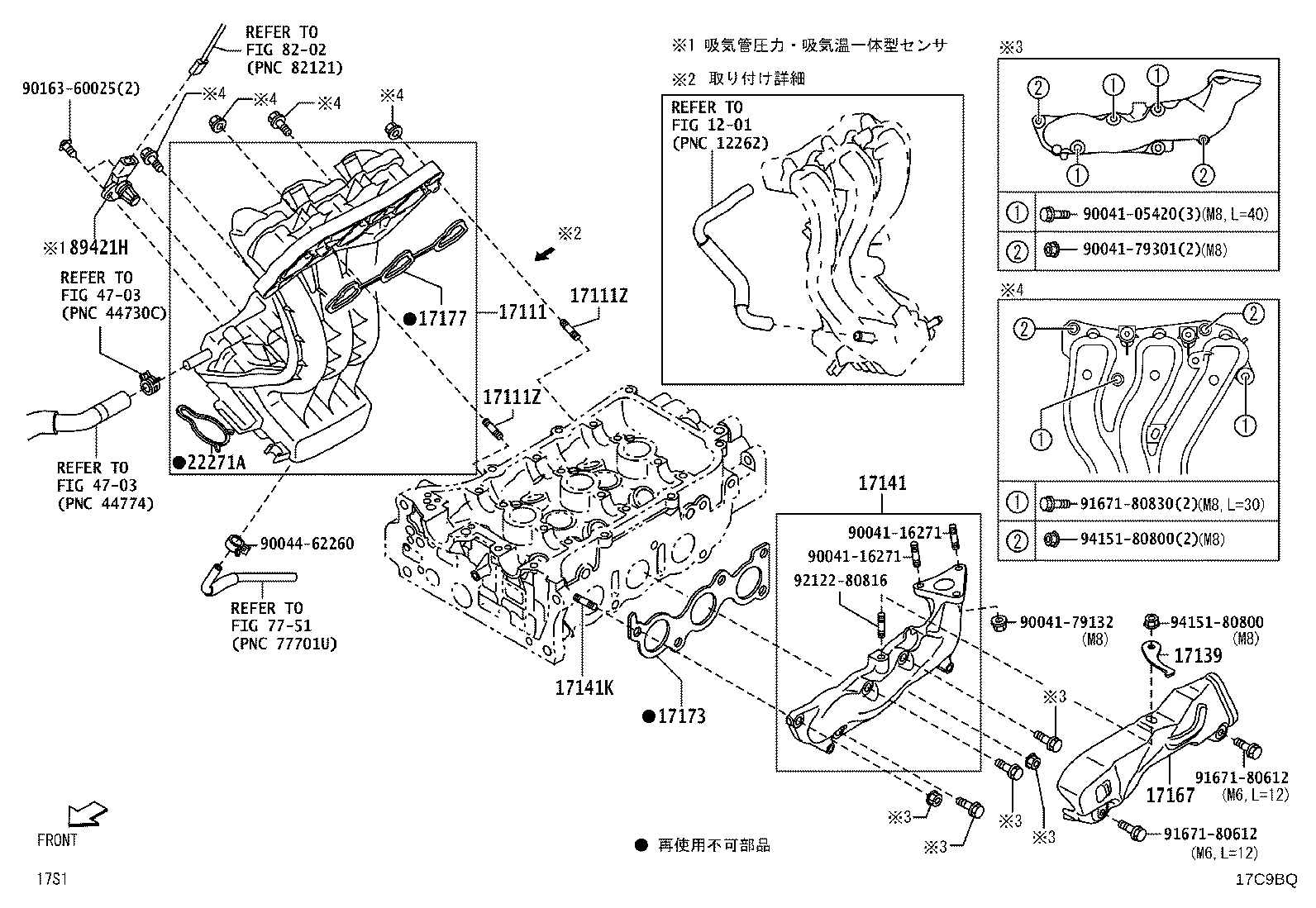

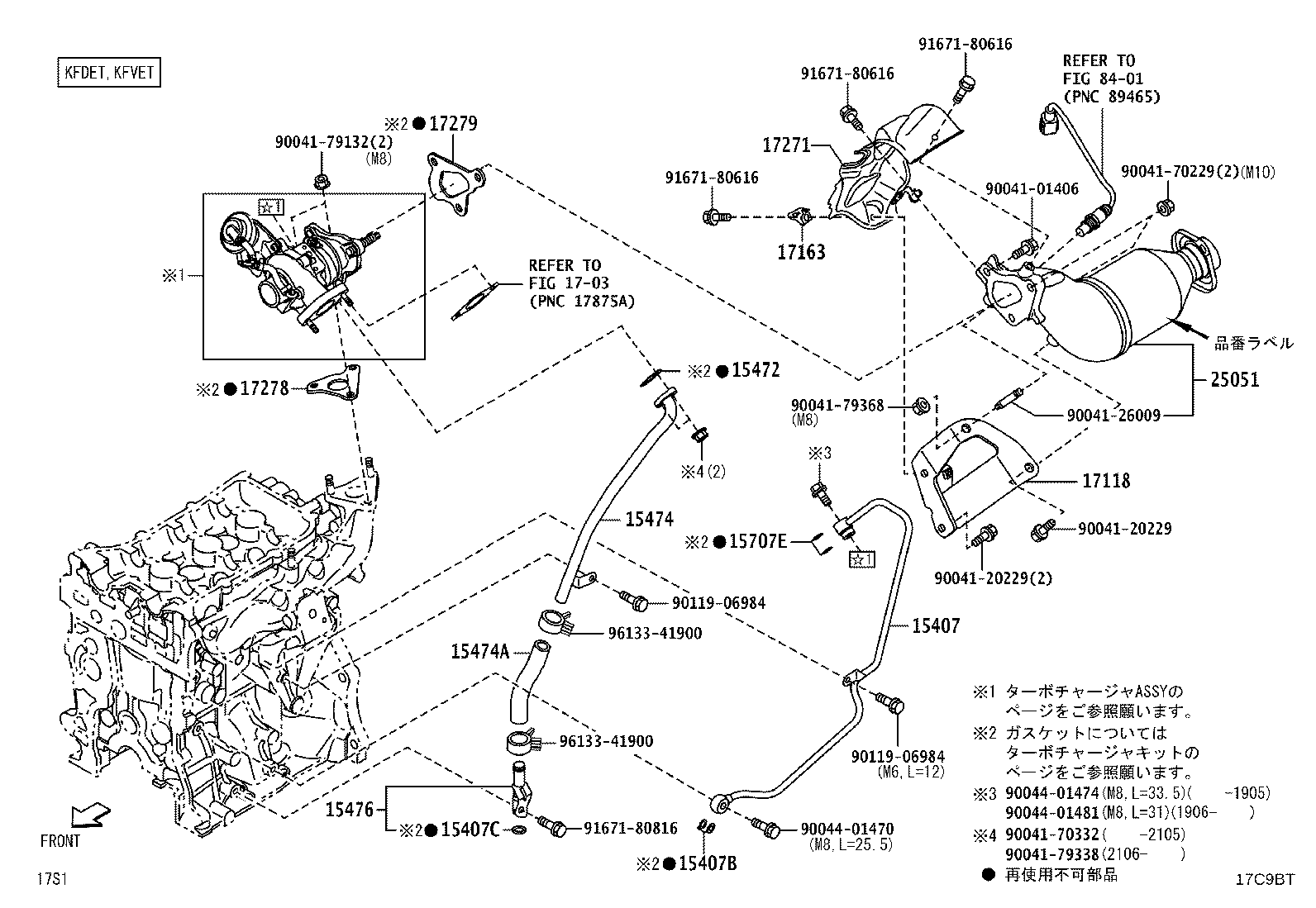

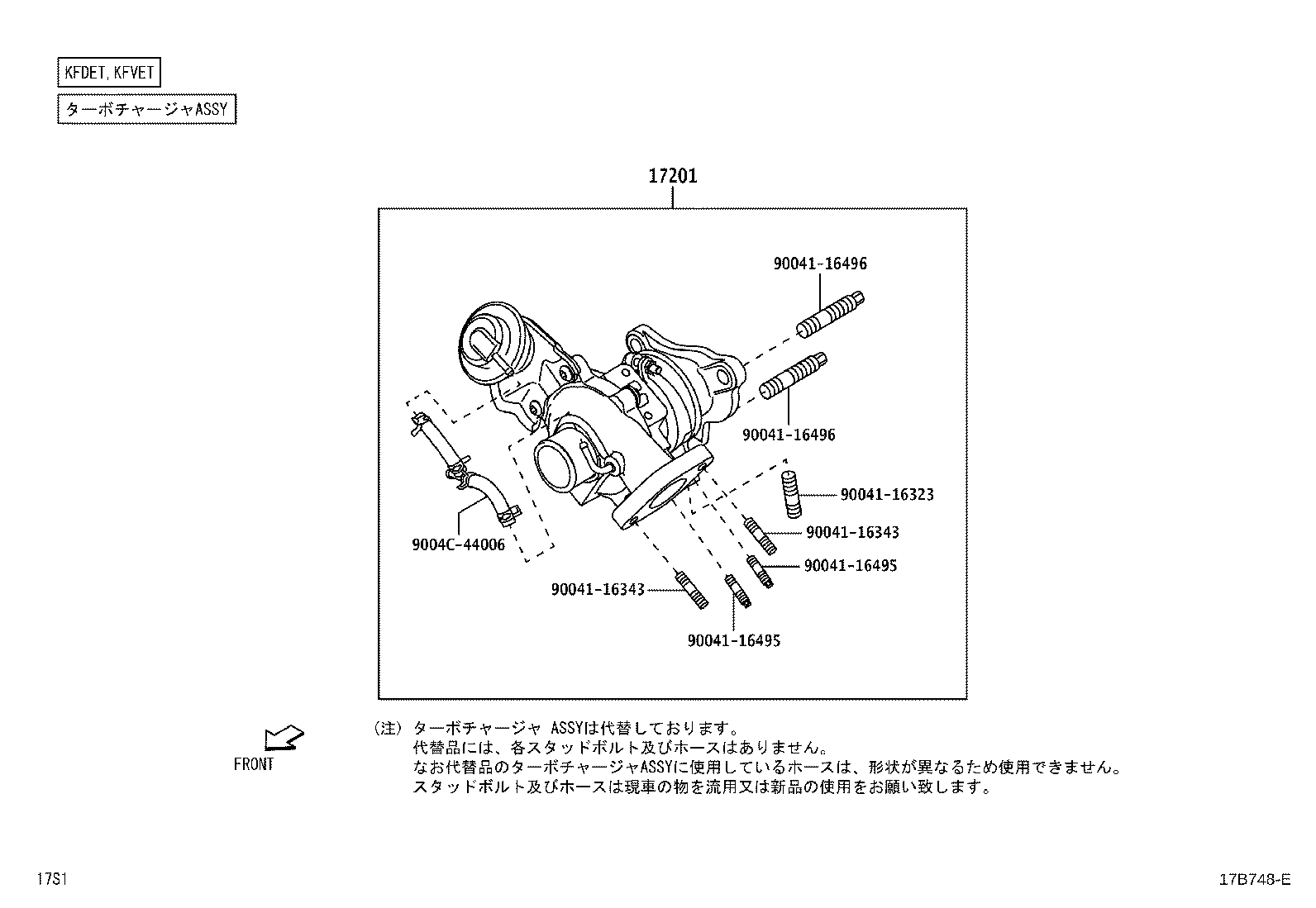

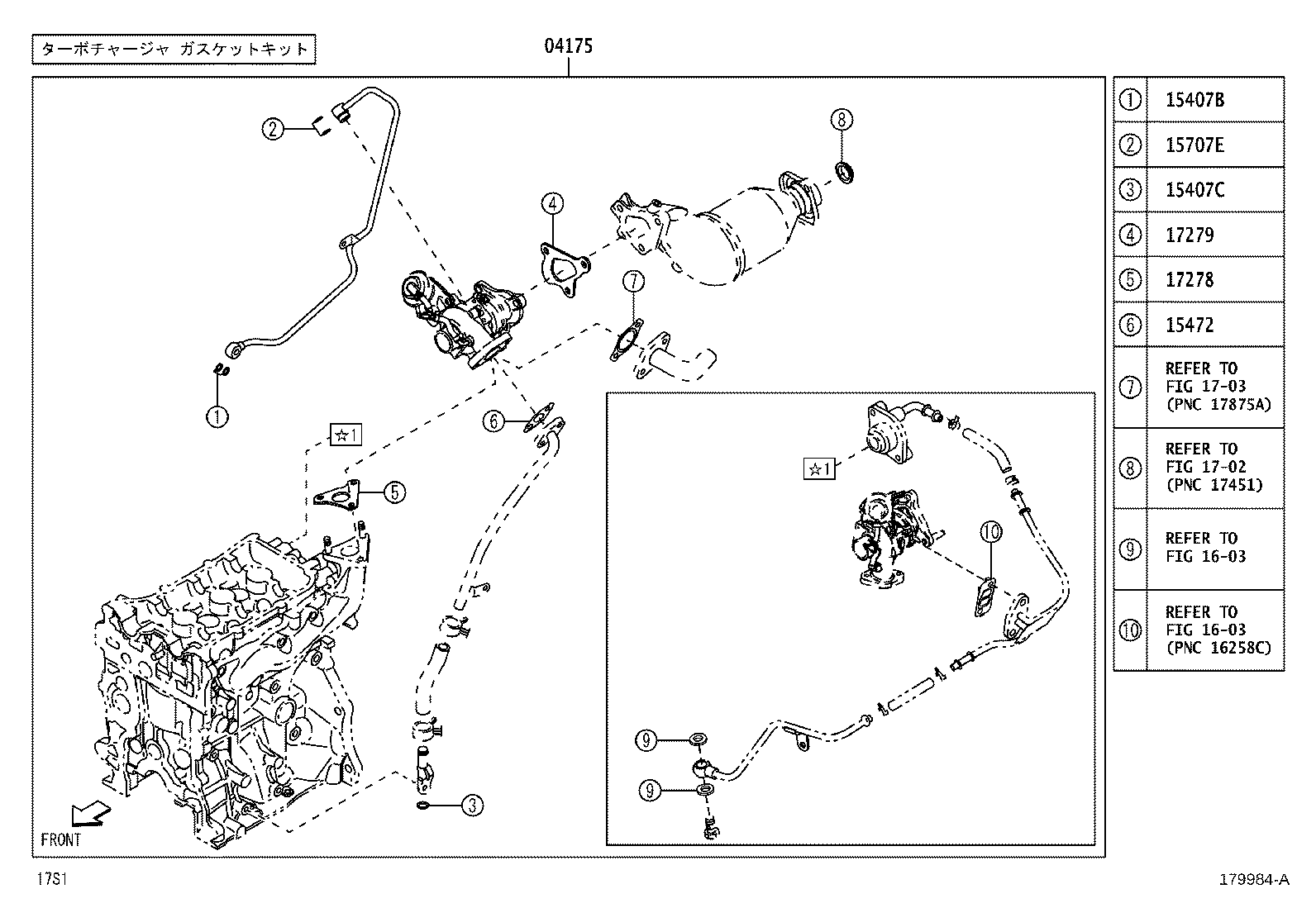

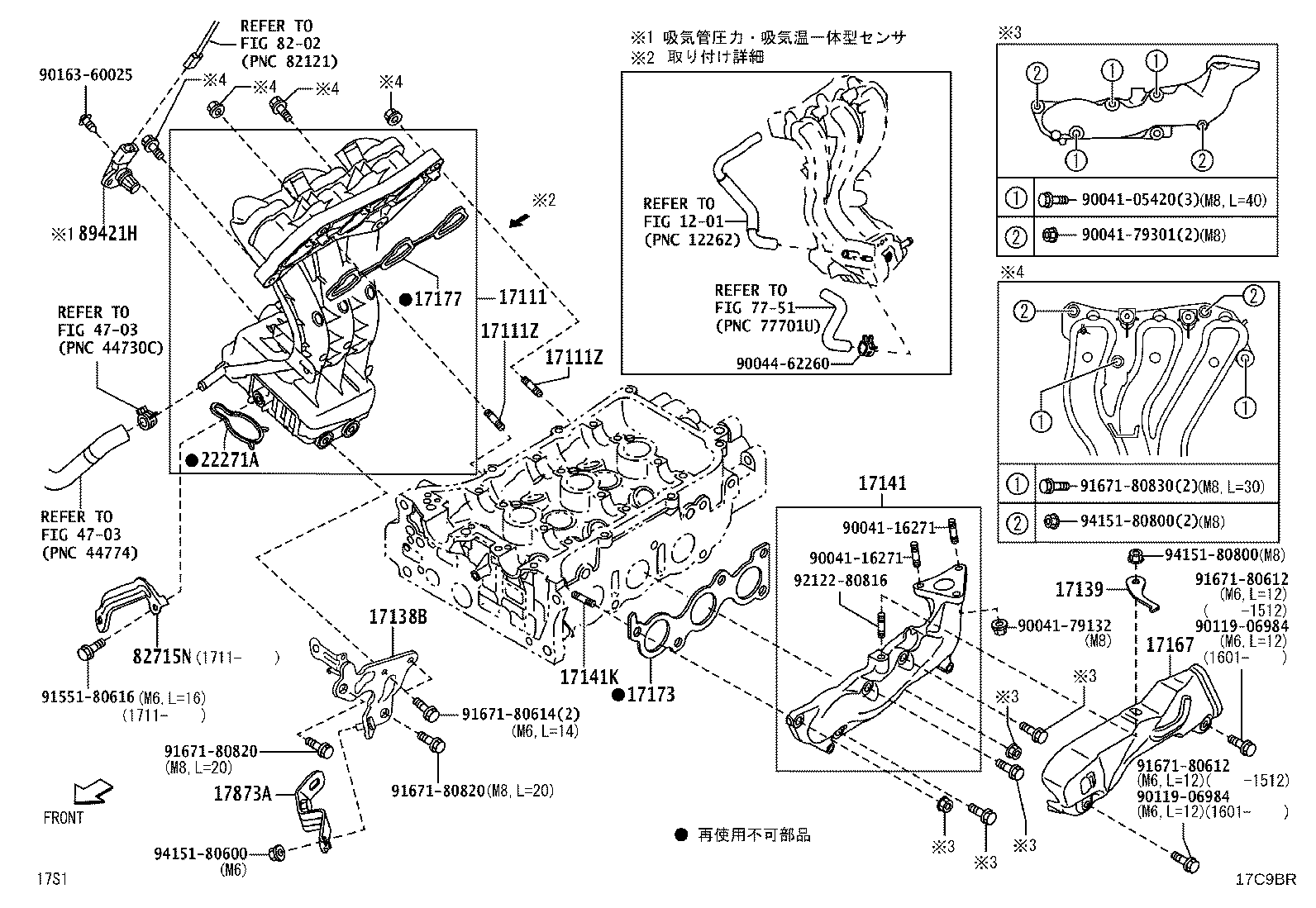

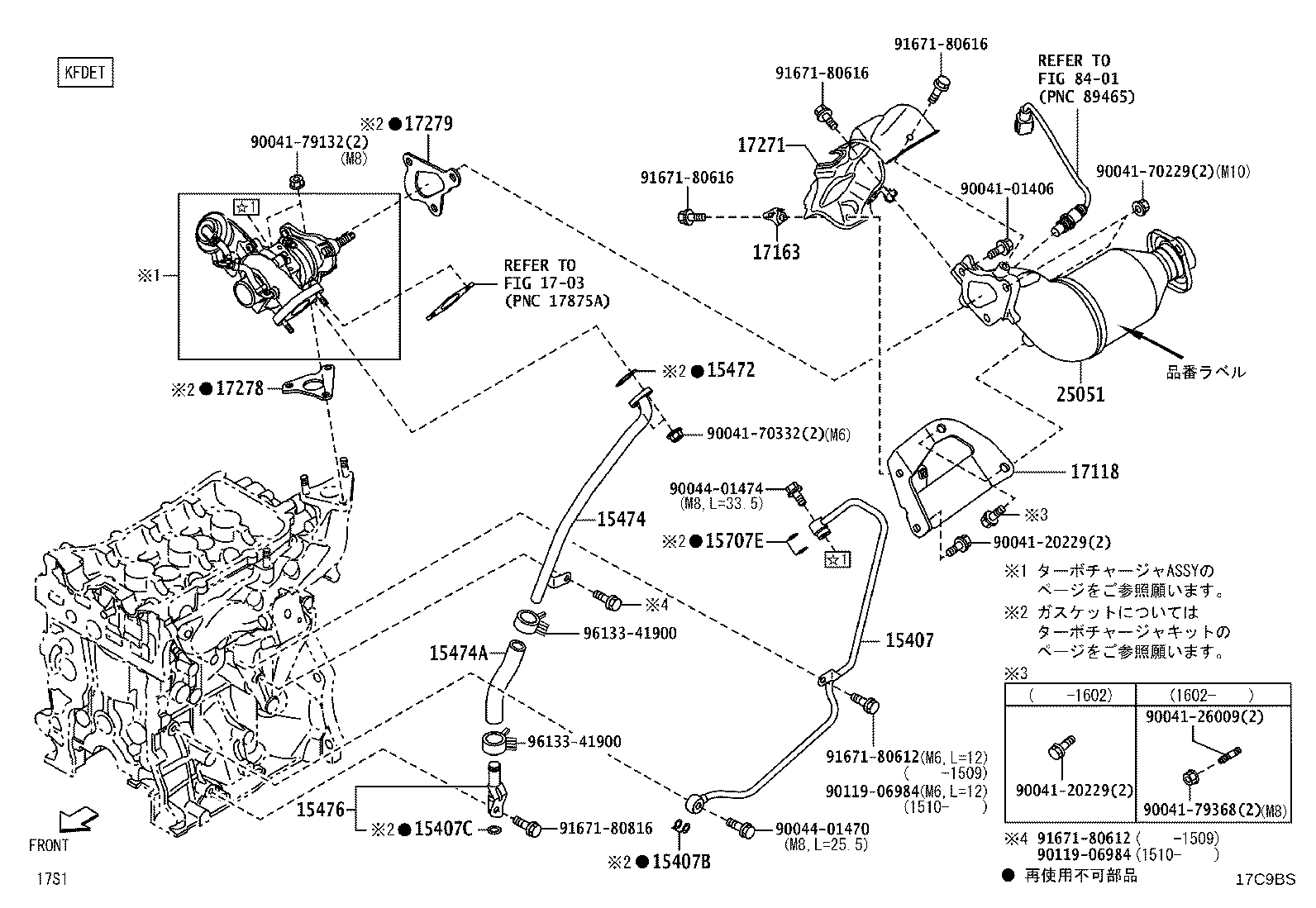

Figure 17C9BO 17C9BO 2011-12 → 2015-04 Figure 17C9BP 17C9BP 2015-04 → — Figure 17C9BQ 17C9BQ 2011-12 → 2015-04 Figure 17C9BR 17C9BR 2015-04 → — Figure 17C9BS 17C9BS 2011-12 → 2017-01 Figure 17C9BT 17C9BT 2017-01 → — Figure 17B748E 17B748E 2011-12 → 2021-11 Figure 17B894B 17B894B 2021-11 → — Figure 179984A 179984A 2011-12 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407B Gasket(FOR TURBO OIL INLET PIPE)
15407C Ring, O(FOR TURBO OIL PIPE)
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15476 Pipe, Turbo Oil Outlet, NO.2
15707E Gasket(FOR OIL PIPE)
17021B Bolt, Stud
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17163 Bracket, Heat Insulator, NO.1
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17873A Bracket, Intake Air Connector, NO.2
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
82715N Bracket, Wiring Harness Clamp
89421H Sensor, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
