Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

35 part groups · 8 illustrations

Illustrations

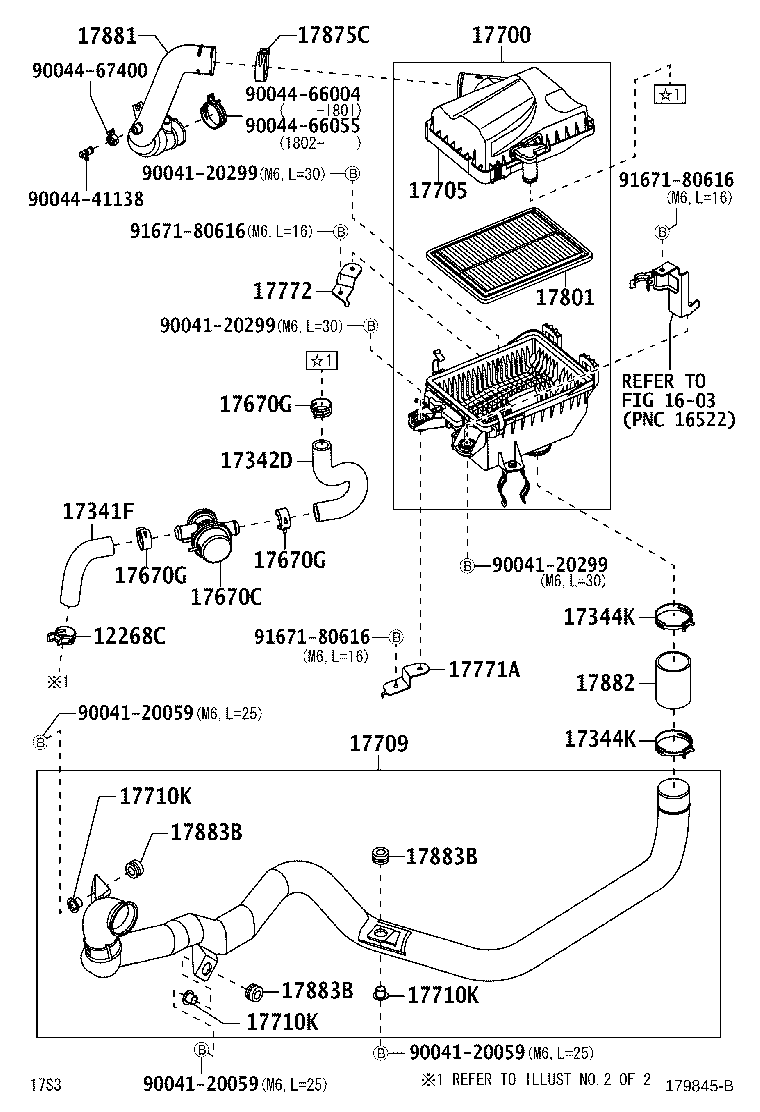

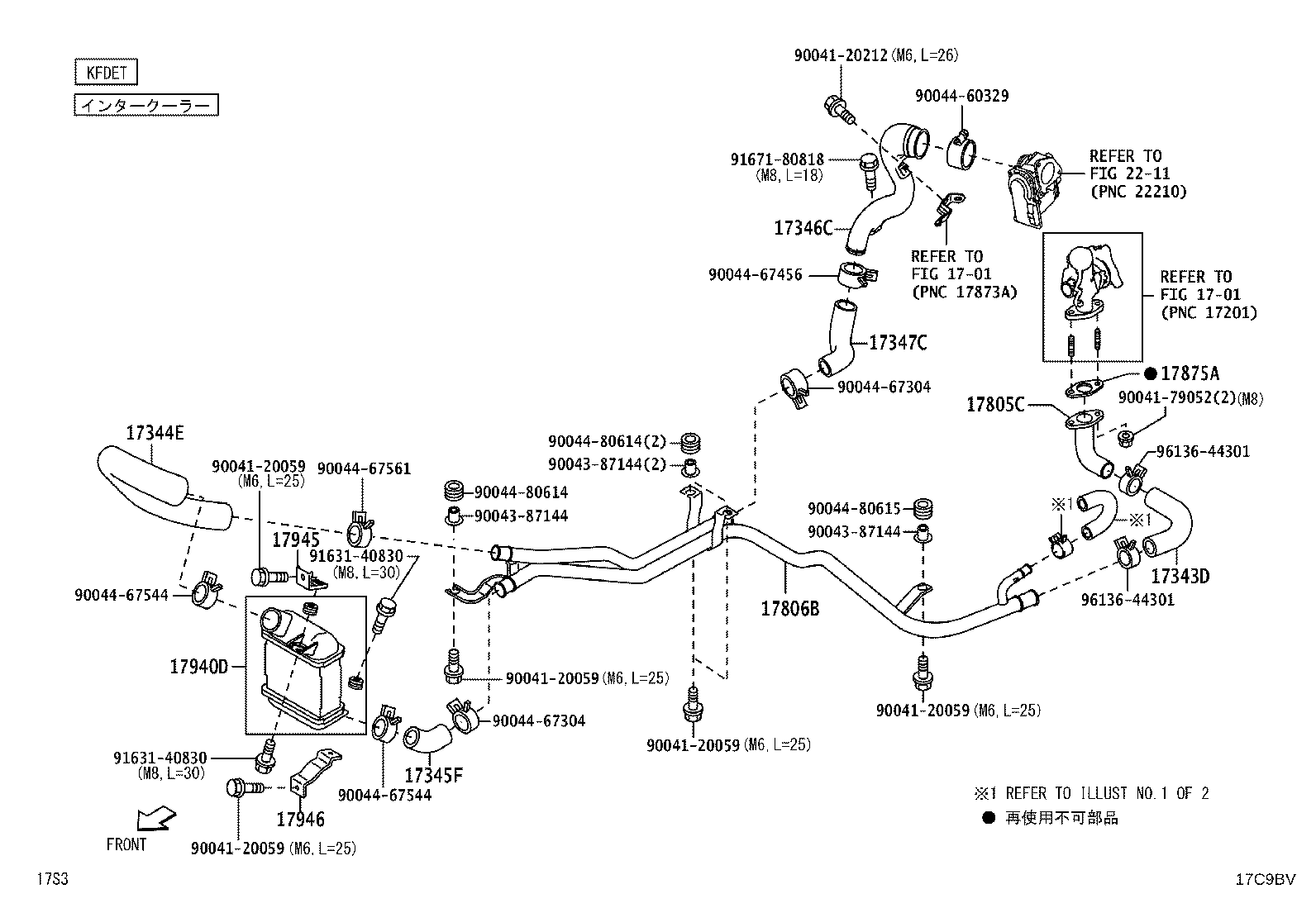

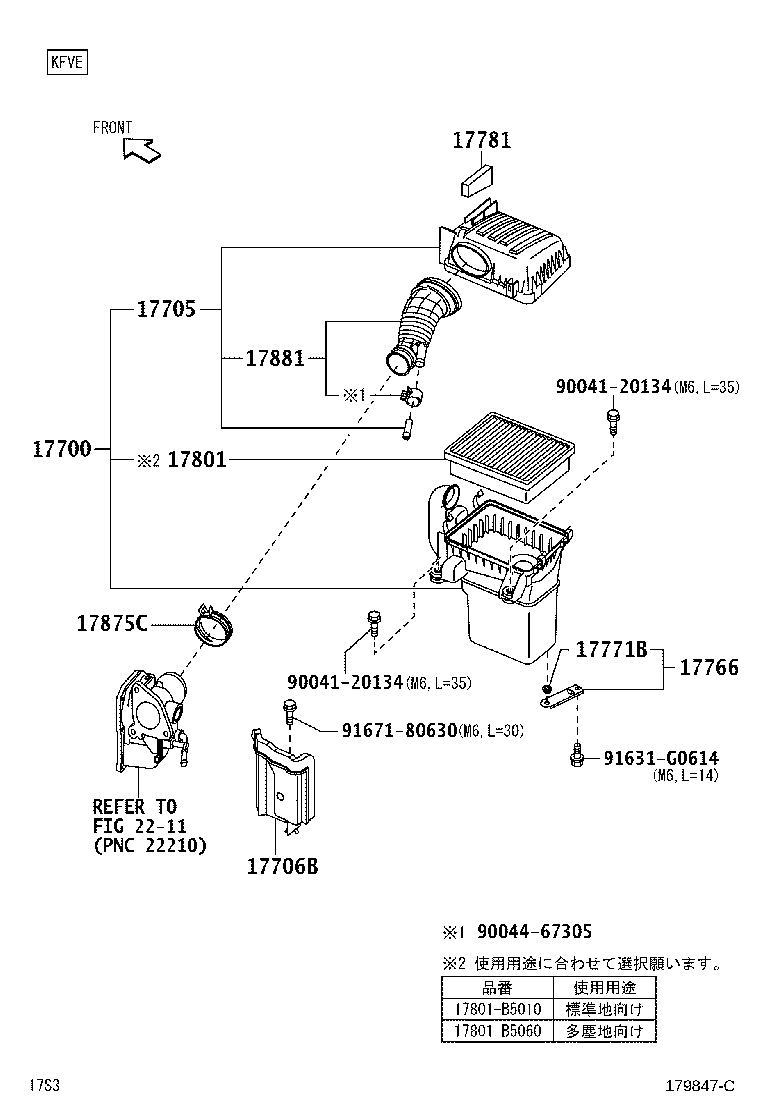

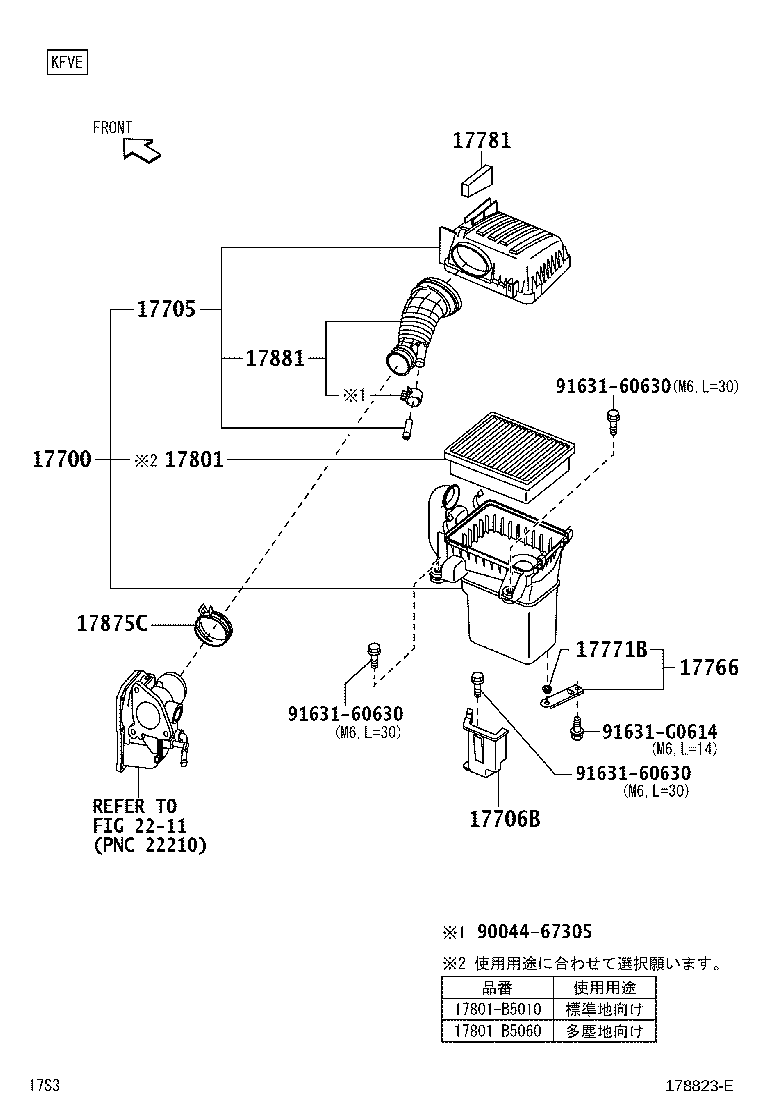

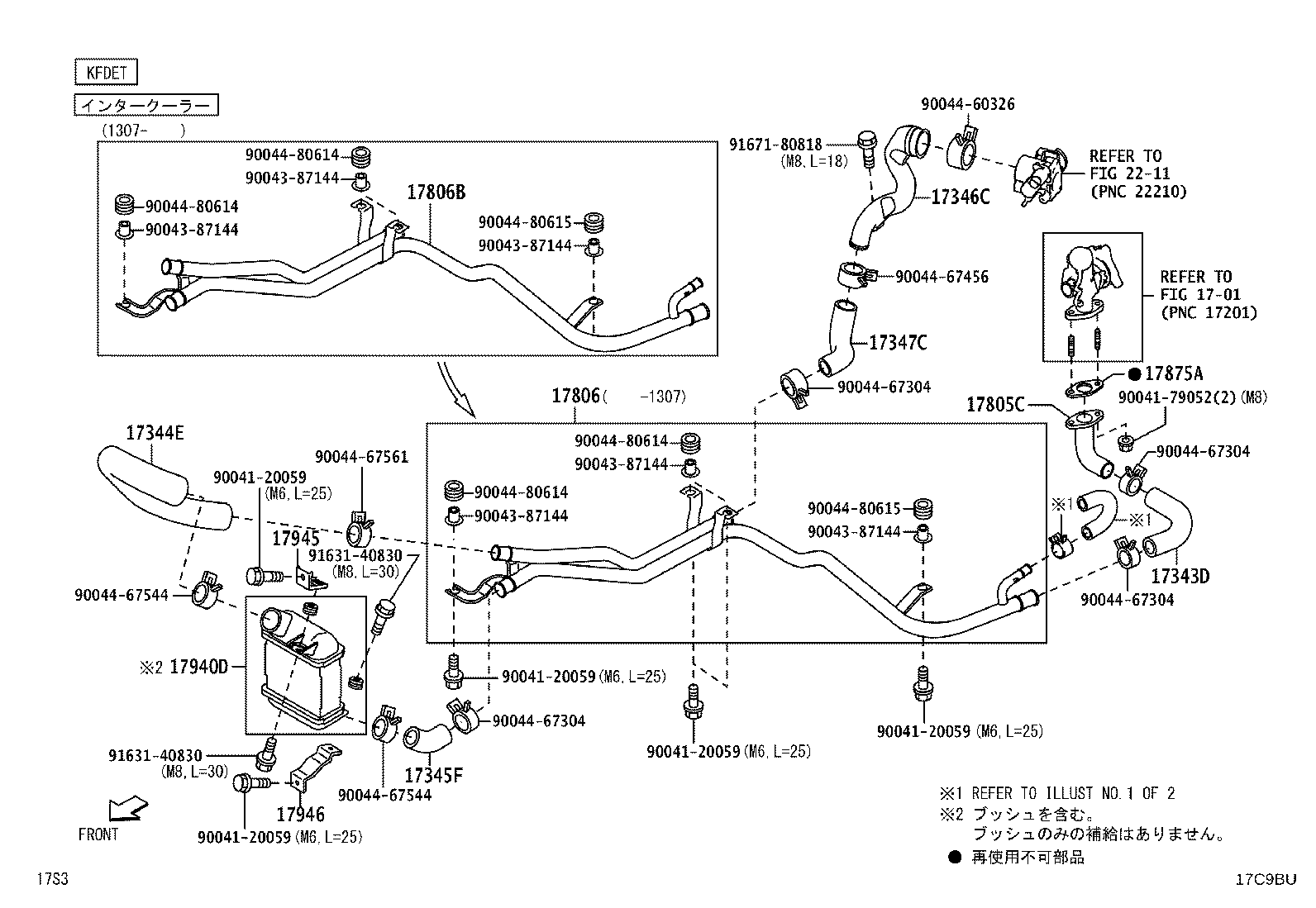

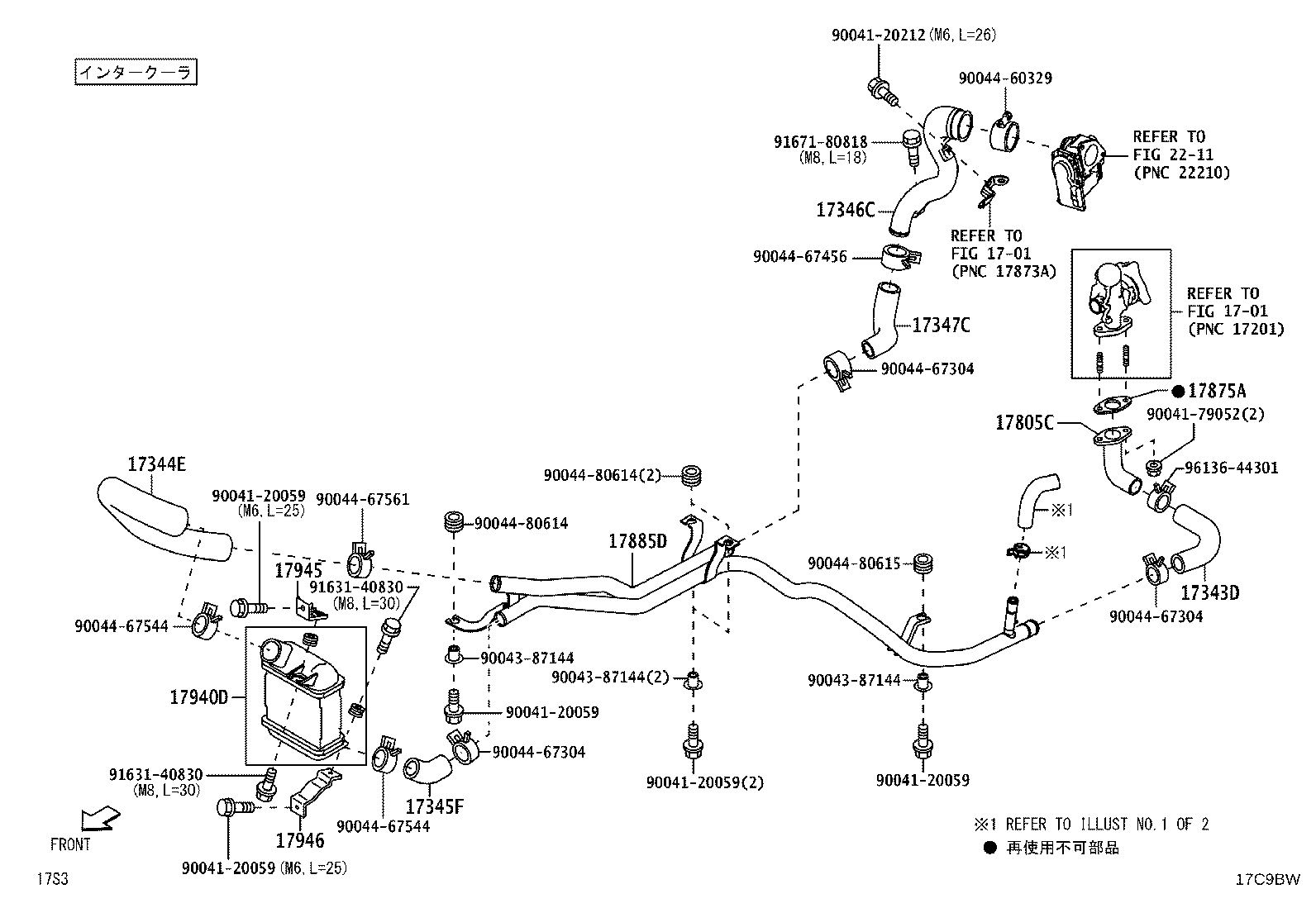

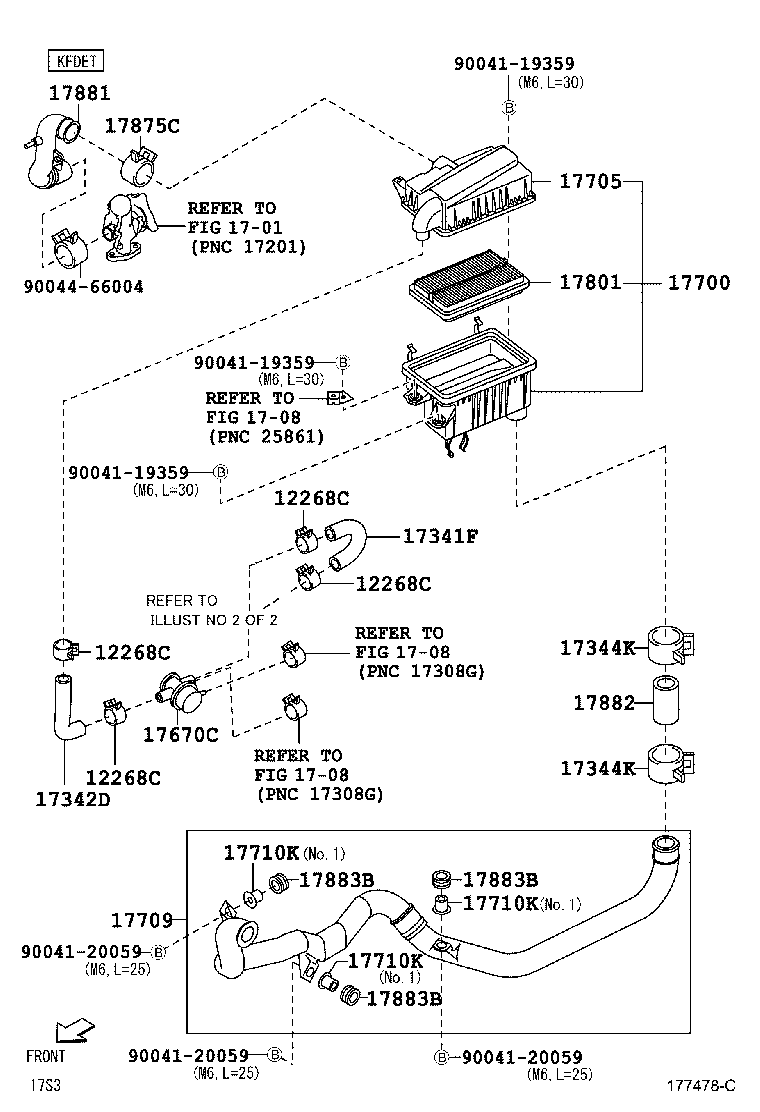

Figure 177479C 177479C 2011-12 → 2015-04 Figure 178823E 178823E 2015-04 → 2017-11 Figure 179847C 179847C 2017-11 → — Figure 177478C 177478C 2011-12 → 2017-11 Figure 179845B 179845B 2017-11 → — Figure 17C9BU 17C9BU 2011-12 → 2015-04 Figure 17C9BV 17C9BV 2015-04 → 2017-11 Figure 17C9BW 17C9BW 2017-11 → —

Part groups

PNCDescription
12268C Clip, Hose
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17343D Hose, Air, NO.3
17344E Hose, Air, NO.4
17344K Clip(FOR AIR HOSE, NO.4)
17345F Hose, Air, NO.5
17346C Hose, NO.6
17347C Hose, Air, NO.7
17670C Valve Assy, Air By-pass
17670G Clip(FOR AIR HOSE NO.1)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17706B Retainer, Air Cleaner Inlet Pipe
17709 Inlet Sub-assy, Air Cleaner
17710K Collar(FOR AIR CLEANER)
17766 Stay, Air Cleaner, NO.2
17771A Bracket, Air Cleaner
17771B Grommet(FOR AIR CLEANER BRACKET)
17772 Bracket, Intake Air Connector, NO.2
17781 Seal, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806B Pipe Sub-assy, Air Cleaner, NO.3
17875A Gasket, Intake Pipe
17875C Clip(FOR HOSE, NO.1)
17881 Hose, Air Cleaner, NO.1
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882 Hose, Air Cleaner, NO.2
17883B Grommet, Air Cleaner Hose
17885D Pipe, Air Cleaner, NO.2
17940D Intercooler Assy
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
