Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

15 part groups · 2 illustrations

Illustrations

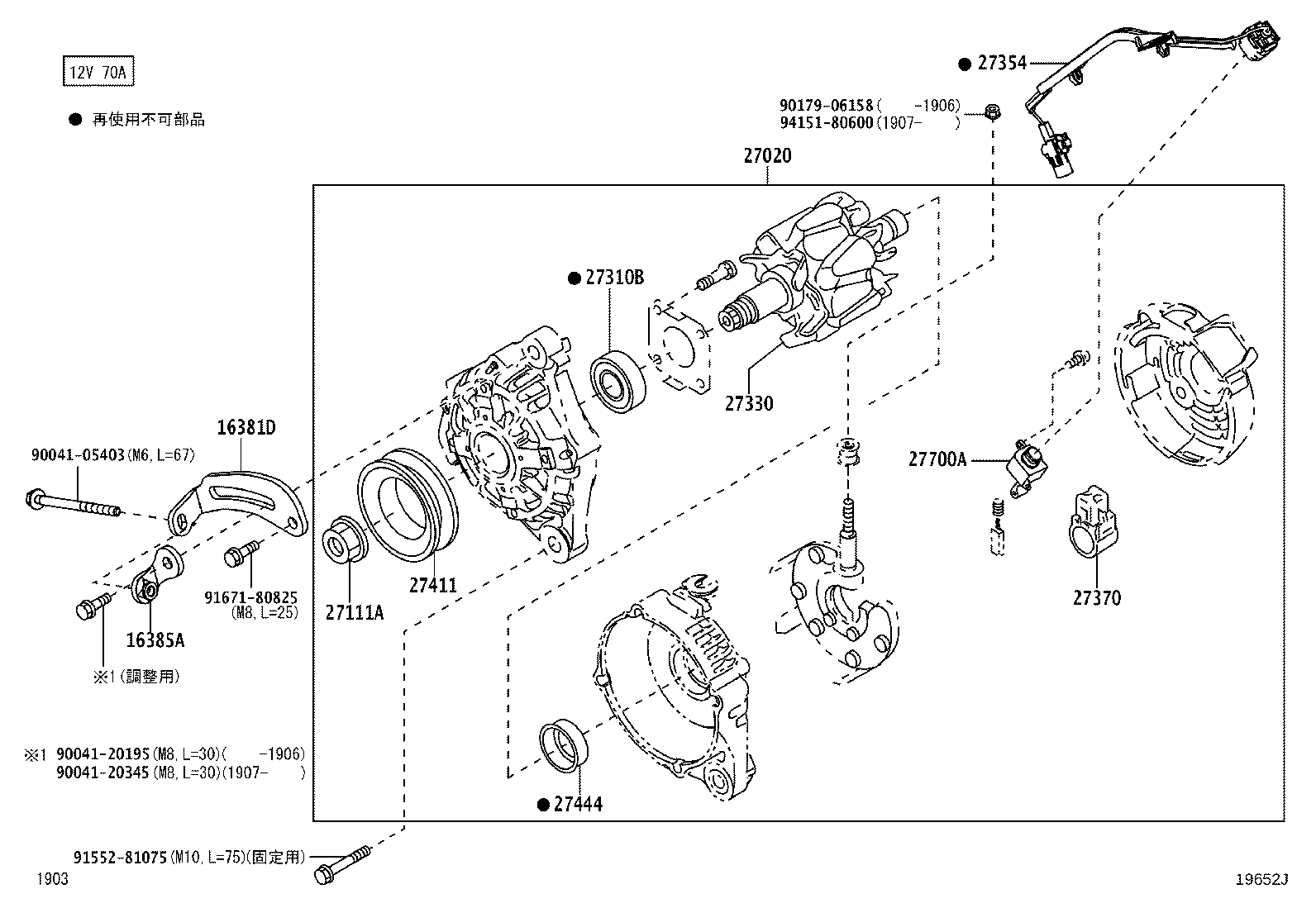

Figure 19652I 19652I 2011-12 → 2017-11 Figure 19652J 19652J 2017-11 → —

Part groups

PNCDescription
16381D Bar, Fan Belt Adjusting
16385A Slider, Fan Belt Adjusting
27020 Alternator Assy
27111A Nut, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27354 Wire Sub-assy, Alternator Lead
27357 Holder, Alternator, W/Rectifier
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27411 Pulley, Alternator
27444 Packing, Alternator Bearing Cover
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
