Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

24 part groups · 6 illustrations

Illustrations

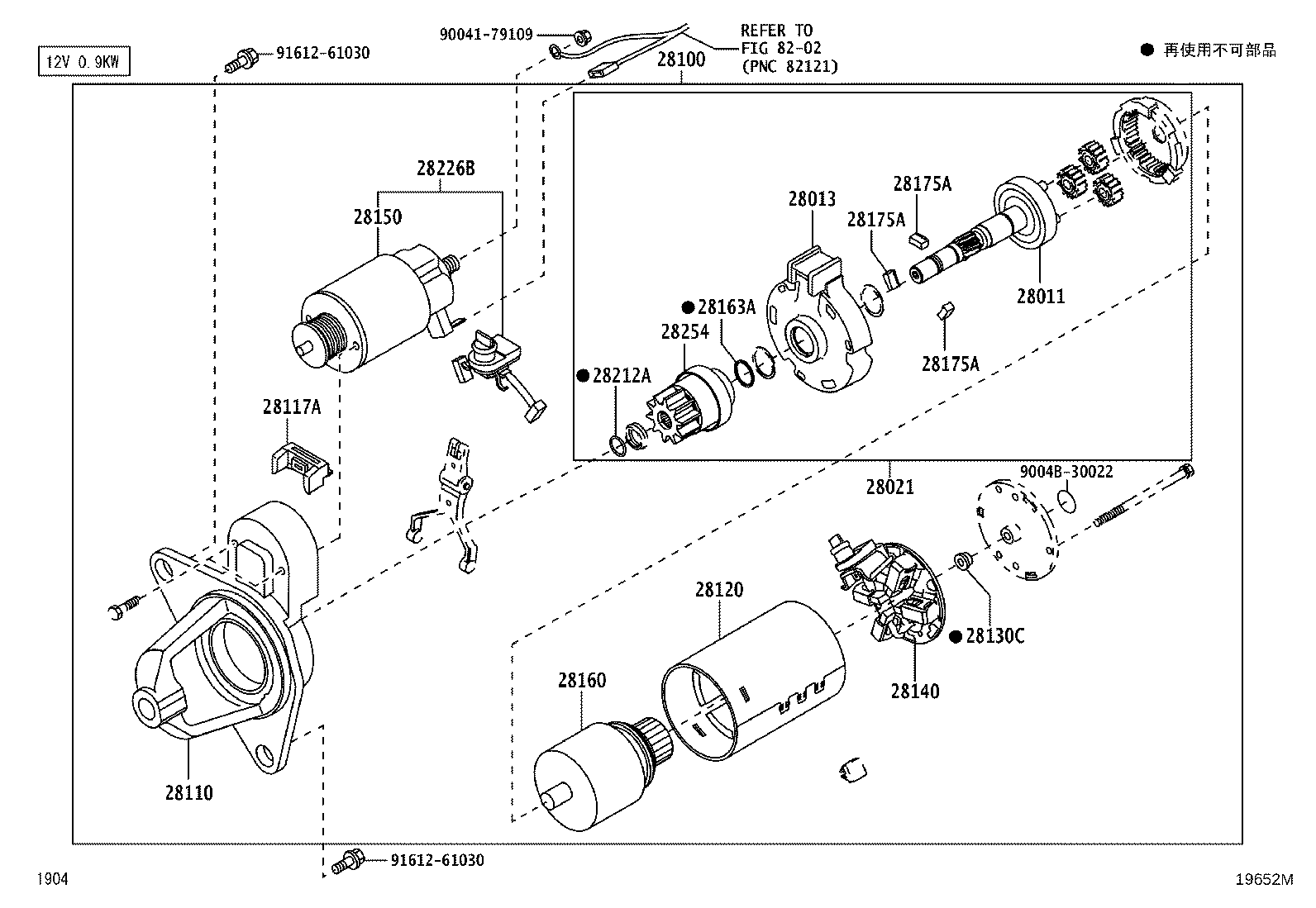

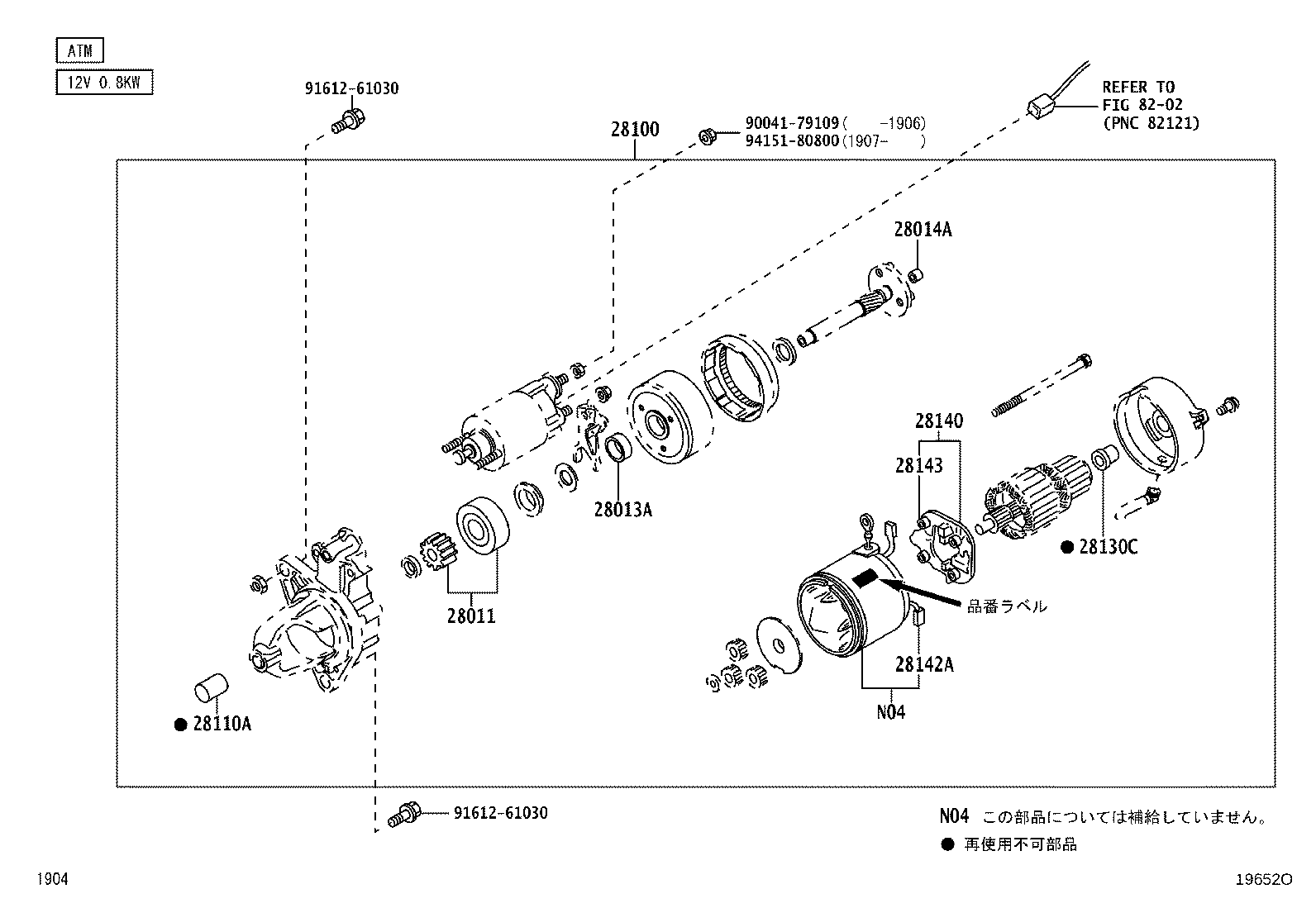

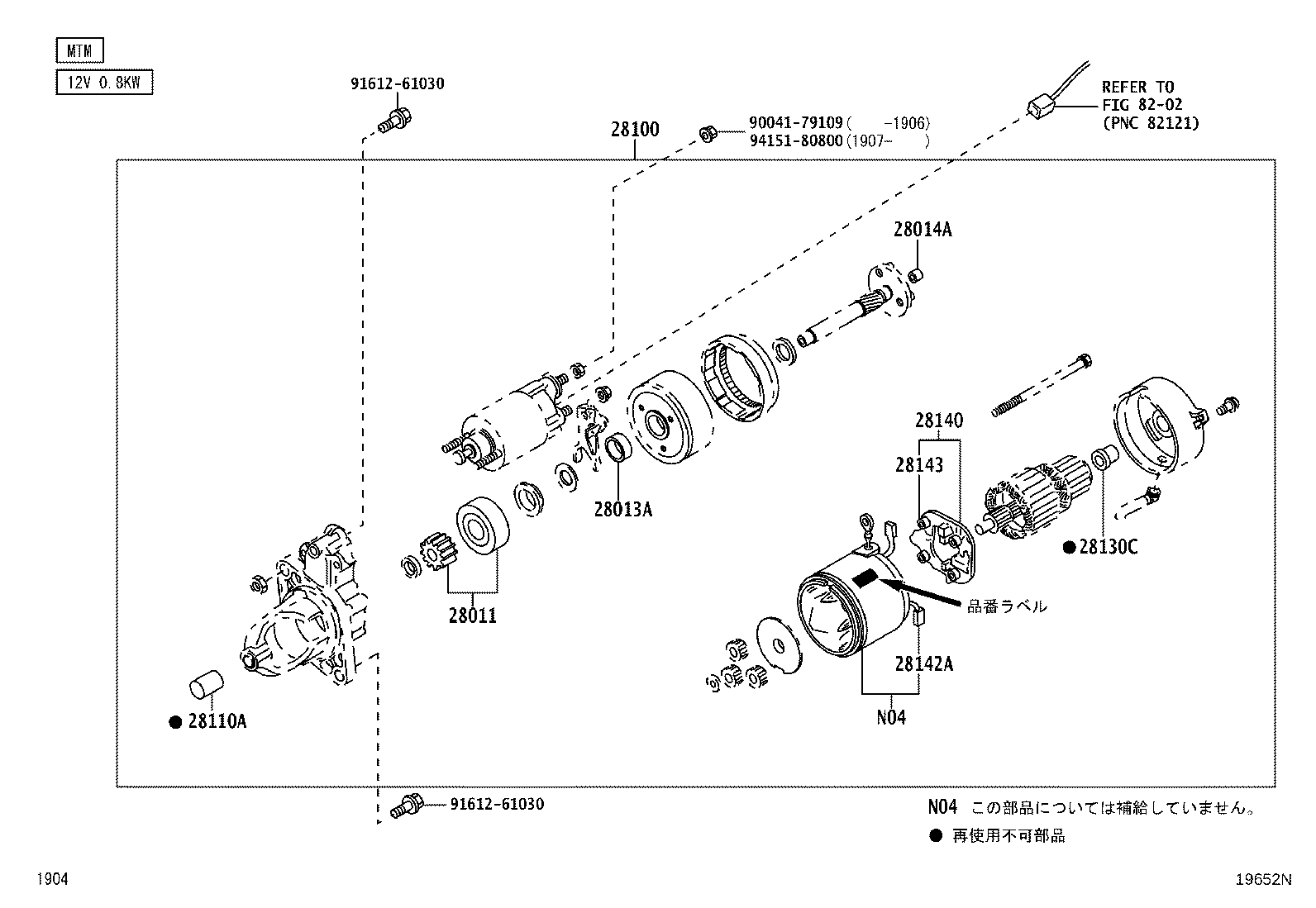

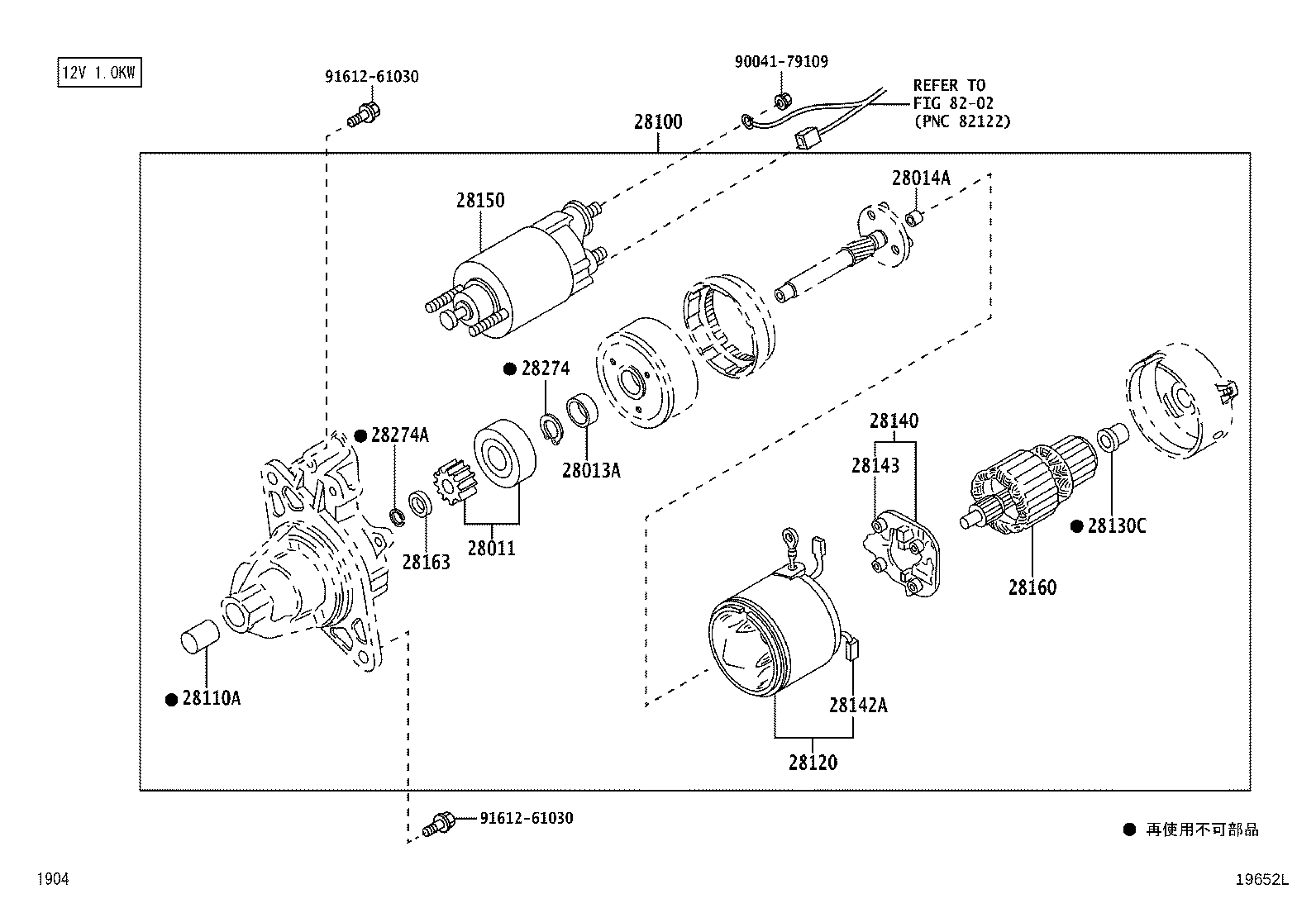

Figure 19652K 19652K 2011-12 → 2017-11 Figure 19652K 19652K 2015-04 → 2017-11 Figure 19652L 19652L 2011-12 → 2015-03 Figure 19652M 19652M 2015-04 → 2017-11 Figure 19652N 19652N 2017-11 → — Figure 19652O 19652O 2017-11 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28013 Bearing, Starter Center & Shock Absorber, NO.1
28013A Bearing, Starter Center & Shock Absorber, NO.2
28014A Bush OR Bearing, Planet Carrier Shaft
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28110A Bearing(FOR STARTER HOUSING)
28117A Seal, Rubber
28120 Yoke Assy, Starter
28130C Bearing, Starter Flange
28140 Holder Assy, Starter Brush
28142A Starter Kit
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28163 Nut OR Collar, Pinion Stop, Starter
28163A Ring, Snap(FOR STARTER PINION STOP NUT)
28175A Gasket, Magnet Switch Cover
28212A Ring, Snap, Starter Clutch Housing Disc
28226B Starter Kit, Repair Service
28254 Pinion, Starter Idle Gear
28274 Snap Ring, Starter, NO.1
28274A Snap Ring, Starter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
