Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

14 part groups · 2 illustrations

Illustrations

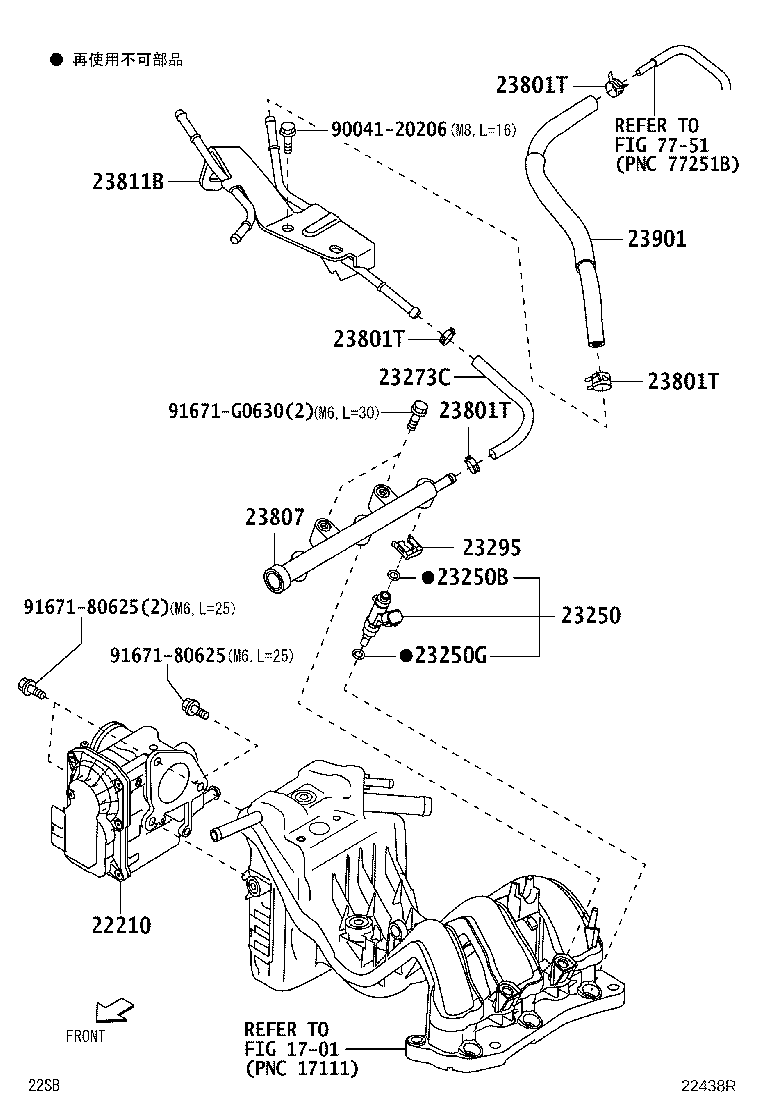

Figure 222743H 222743H 2011-12 → 2015-04 Figure 22438R 22438R 2015-04 → —

Part groups

PNCDescription
22210 Body Assy, Throttle
22267 Bracket, Throttle Body
22268 Bracket, Throttle Body, NO.2
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250G Ring, O, NO.2(FOR FUEL INJECTOR)
23271F Hose, Fuel
23271U Hose, Fuel, NO.1
23273C Hose, Fuel, NO.2
23295 Holder, Injector, NO.1
23801T Clamp OR Clip, Fuel Hose(FOR EFI)
23807 Pipe Sub-assy, Fuel Delivery
23811B Pipe, Fuel, NO.1
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
