Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

15 part groups · 3 illustrations

Illustrations

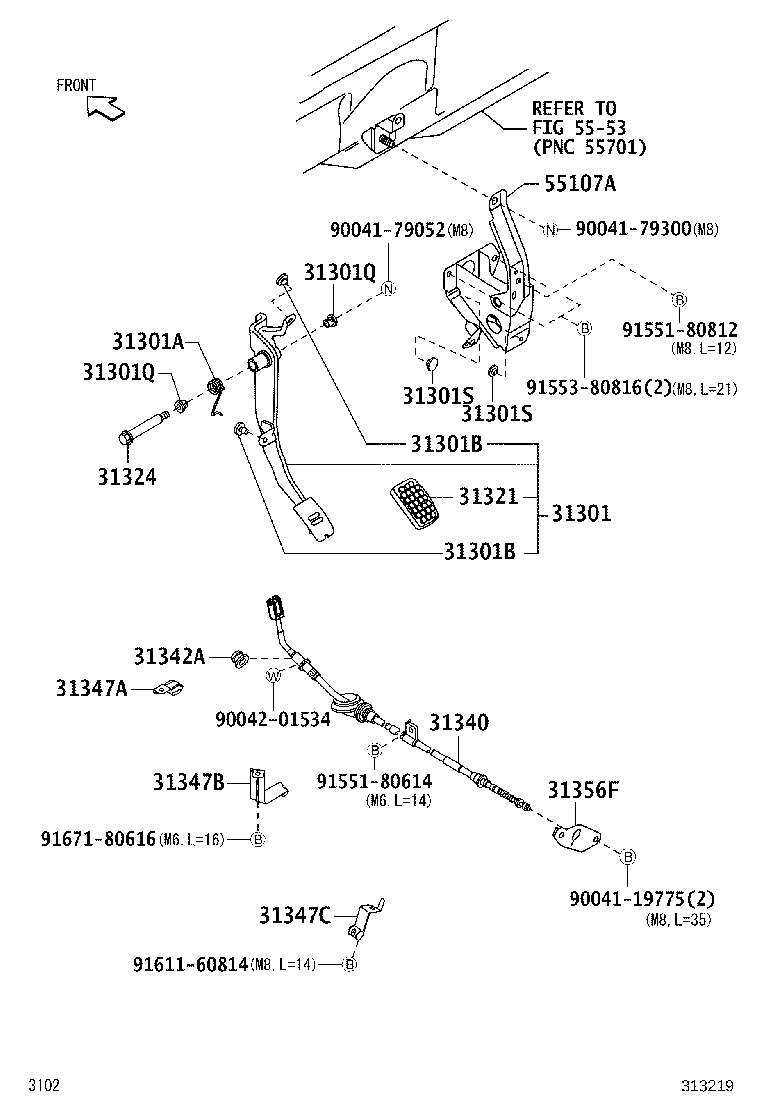

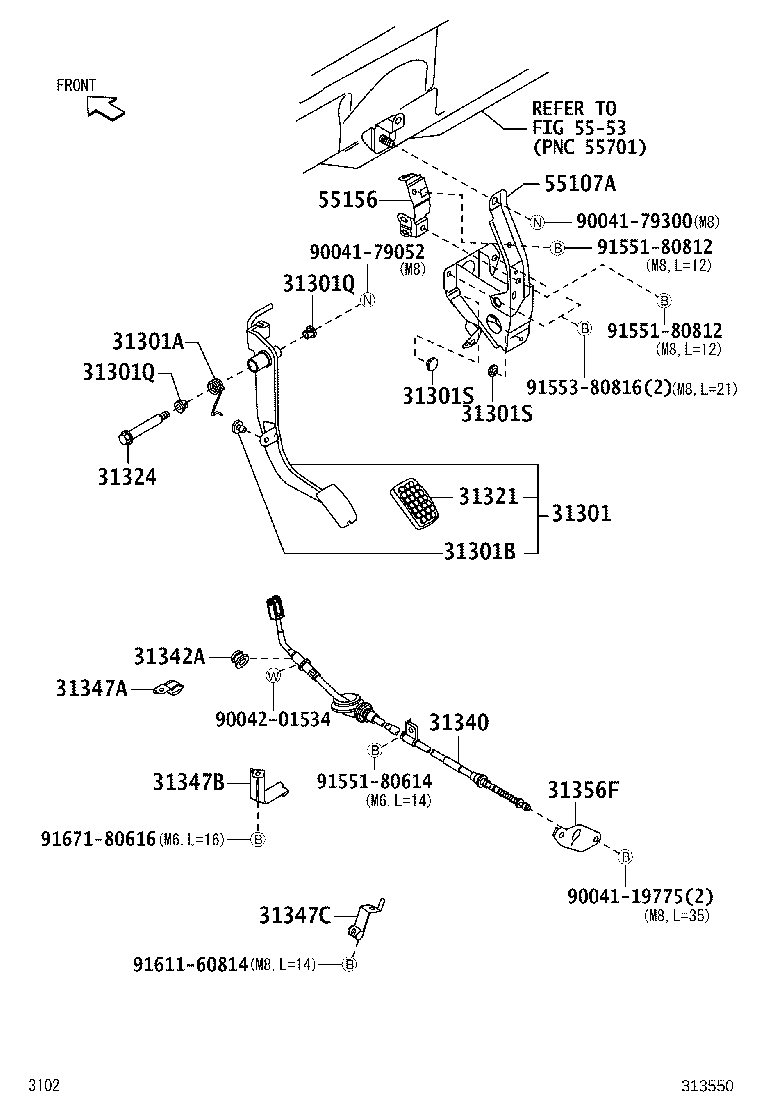

Figure 312675C 312675C 2011-12 → 2017-11 Figure 313219 313219 2017-11 → — Figure 313550 313550 2020-09 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301Q Bush(FOR CLUTCH PEDAL SPRING)
31301S Cushion, NO.2(FOR CLUTCH PEDAL)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31340 Cable Assy, Clutch Release
31342A Bush(FOR CLUTCH RELEASE CABLE)
31347A Clamp, Clutch Cable, NO.1
31347B Clamp, Clutch Cable, NO.2
31347C Clamp, Clutch Cable, NO.3
31356F Plate, Clutch Pedal Over Center, NO.1
55107A Support Sub-assy, Clutch Pedal
55156 Bracket, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
