Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

18 part groups · 6 illustrations

Illustrations

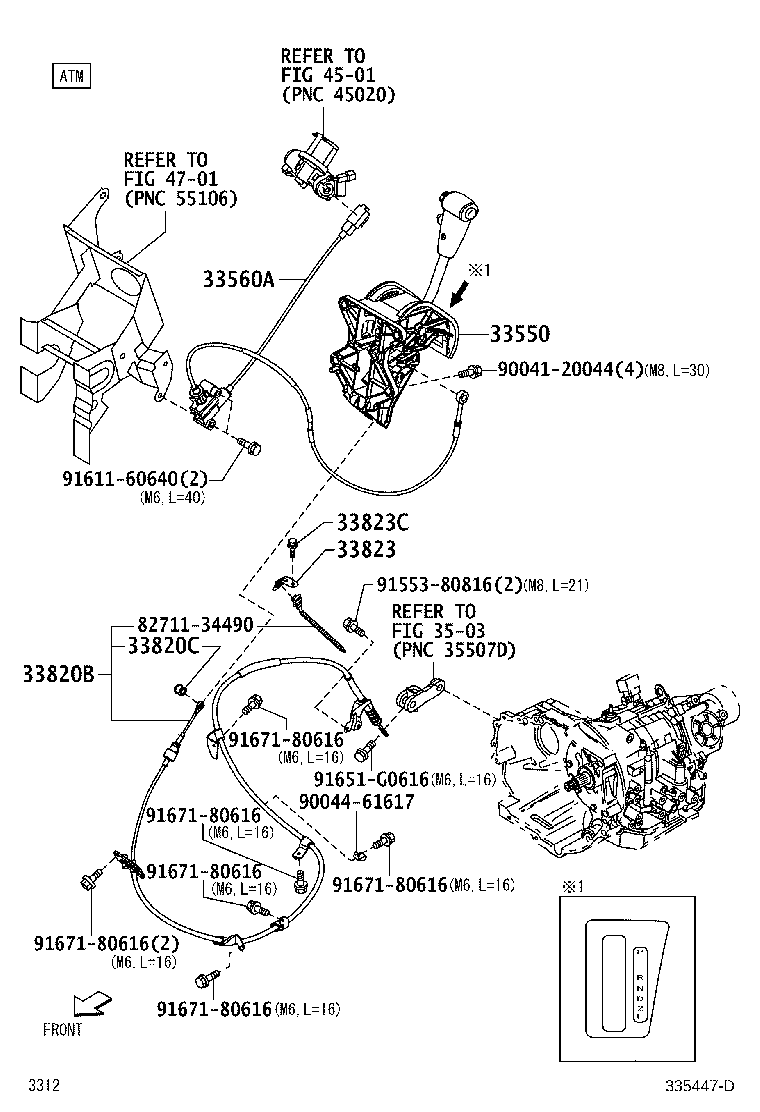

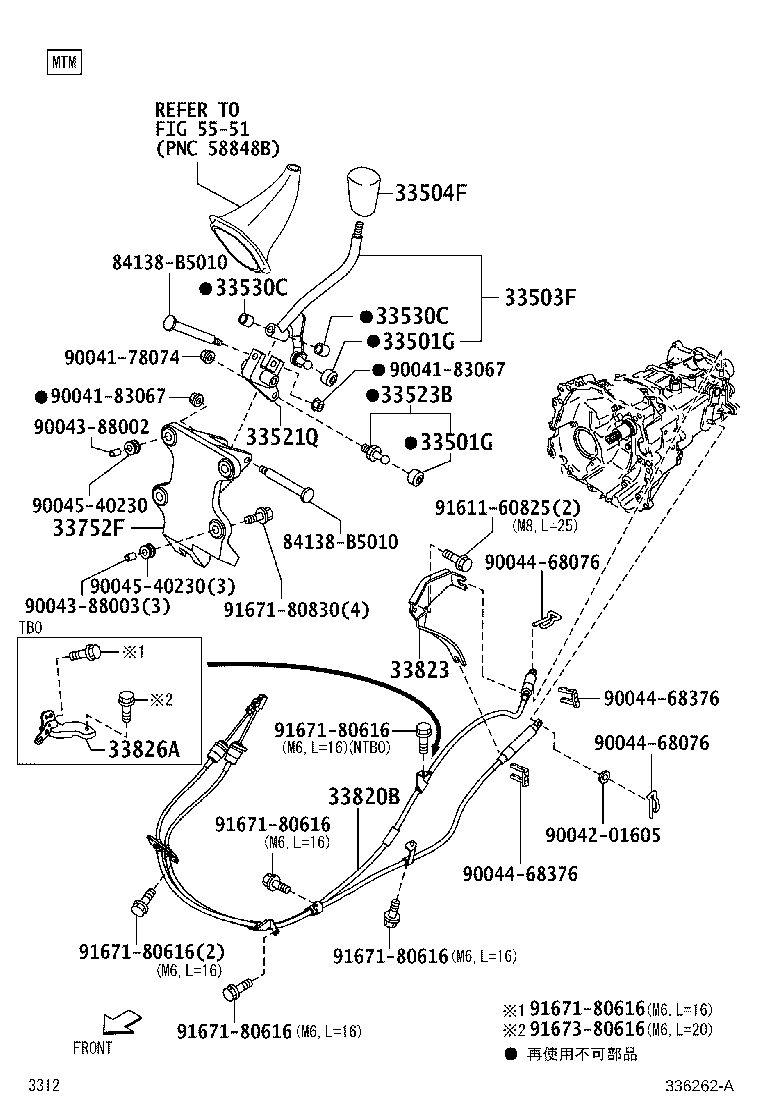

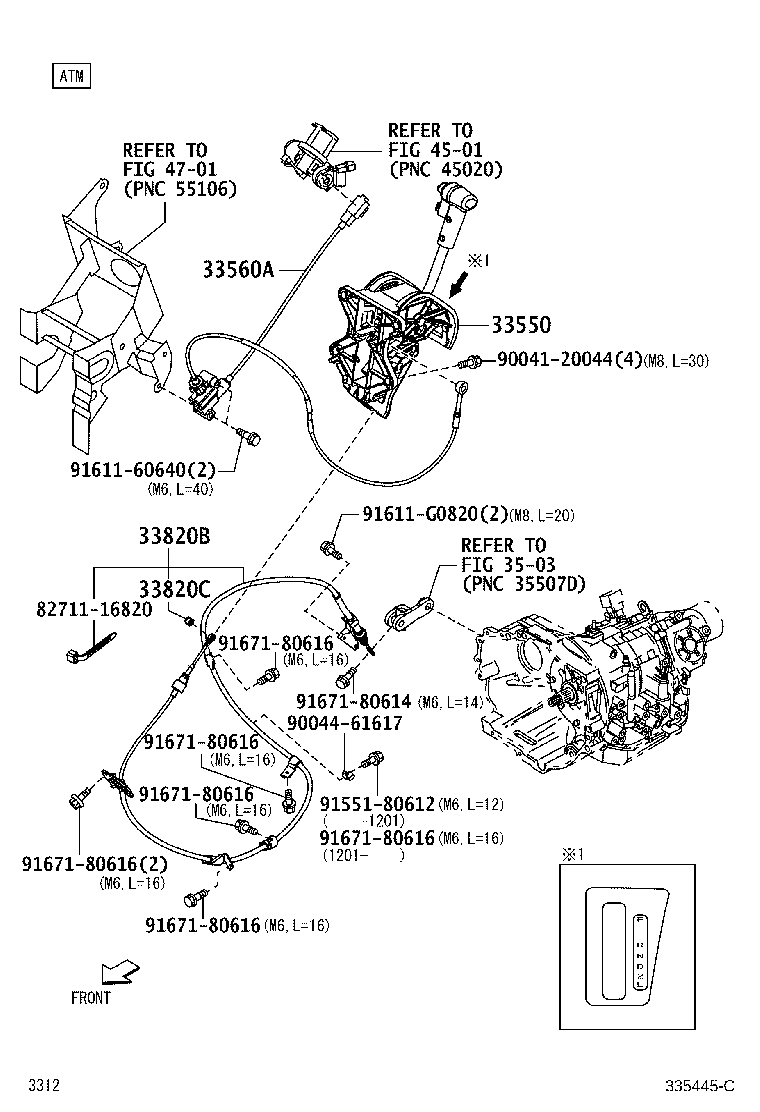

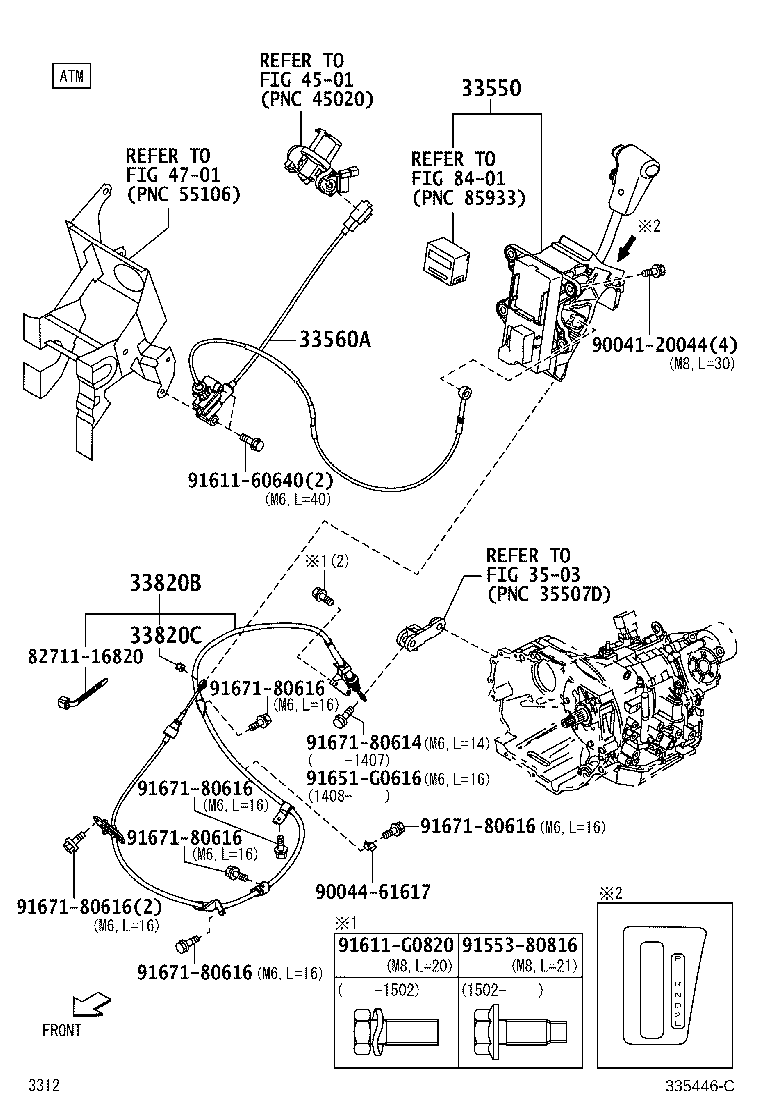

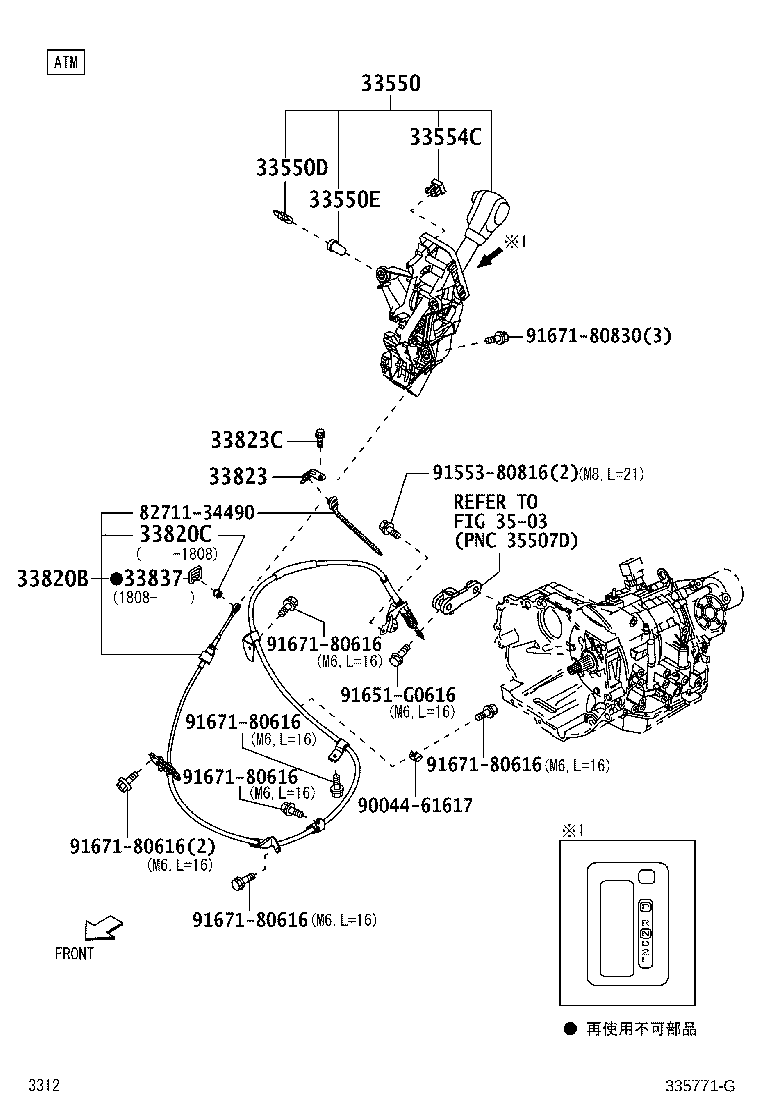

Figure 335222E 335222E 2011-12 → 2017-11 Figure 335445C 335445C 2011-12 → 2012-12 Figure 335446C 335446C 2012-12 → 2015-04 Figure 335447D 335447D 2015-04 → 2017-11 Figure 336262A 336262A 2017-11 → — Figure 335771G 335771G 2017-11 → —

Part groups

PNCDescription
33501G Bush (FOR FLOOR SHIFT CONTROL SHAFT)
33503F Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33504F Knob Sub-assy, Shift Lever
33521Q Housing, Shift Lever (FOR FLOOR SHIFT)
33523B Pin, Shift Lever (FOR FLOOR SHIFT)
33530C Bush (FOR SHIFT LEVER)
33550 Floor Shift Assy, Transmission
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554C Cover, Shift Lock Release Button
33560A Cable Assy, Shift Lock Release
33752F Support, Control Link (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33820C Bush (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33826A Bracket, Transmission Control Cable, NO.2
33837 Clip, Transmission Control Cable Adjust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
