Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Torque Converter, Front Oil Pump & Chain (ATM)

10 part groups · 3 illustrations

Illustrations

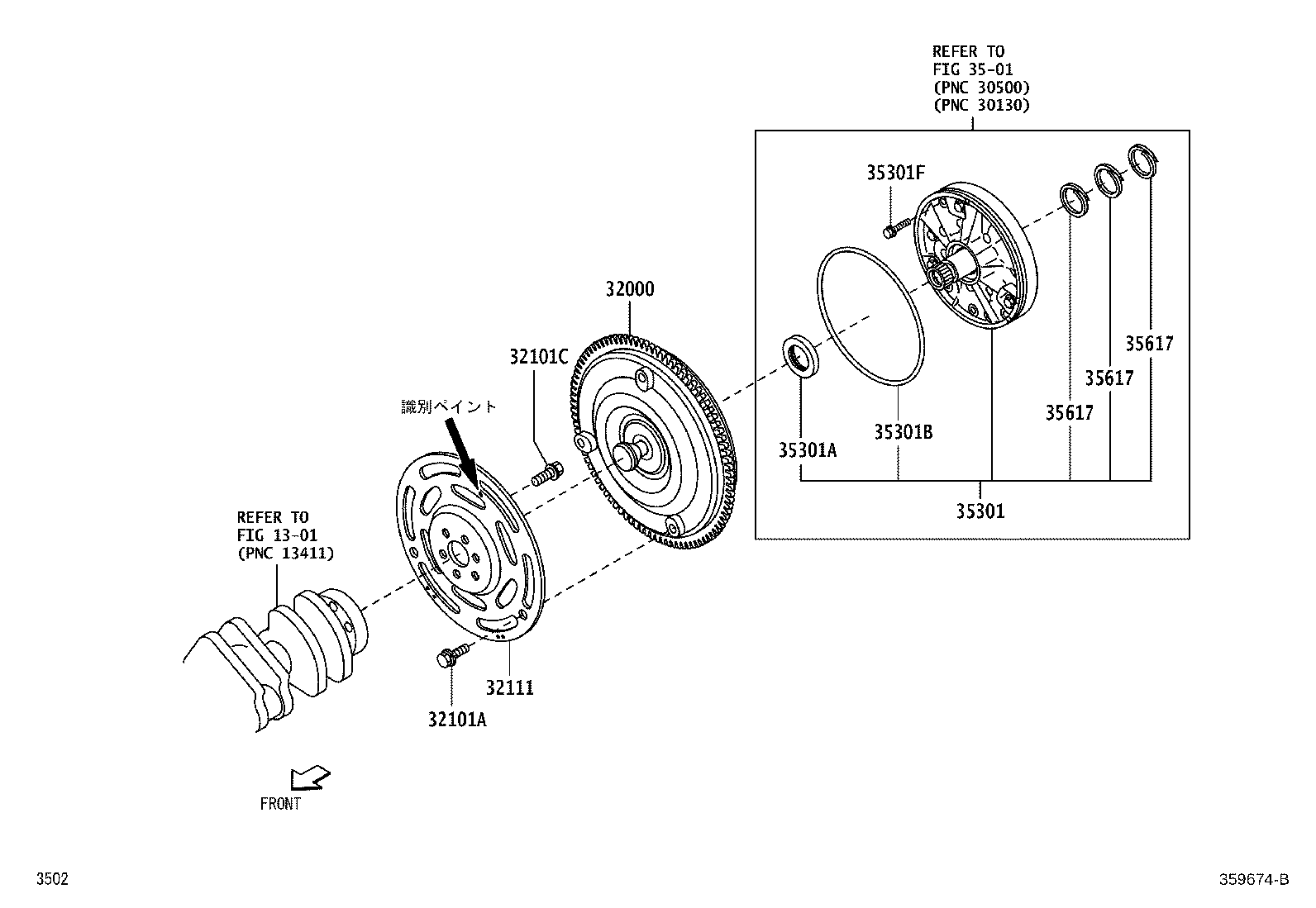

Figure 359675A 359675A 2011-12 → 2015-04 Figure 359674B 359674B 2015-04 → 2017-11 Figure 359674B 359674B 2017-11 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32111 Plate, Pump Impeller Drive
35301 Body Sub-assy, Front Oil Pump
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301B Ring, O (FOR FRONT OIL PUMP BODY)
35301F Bolt (FOR FRONT OIL PUMP SETTING)
35616B Washer, Clutch Drum Thrust (FOR STATOR SHAFT)
35617 Ring, Clutch Drum Oil Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
