Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (ATM)

8 part groups · 6 illustrations

Illustrations

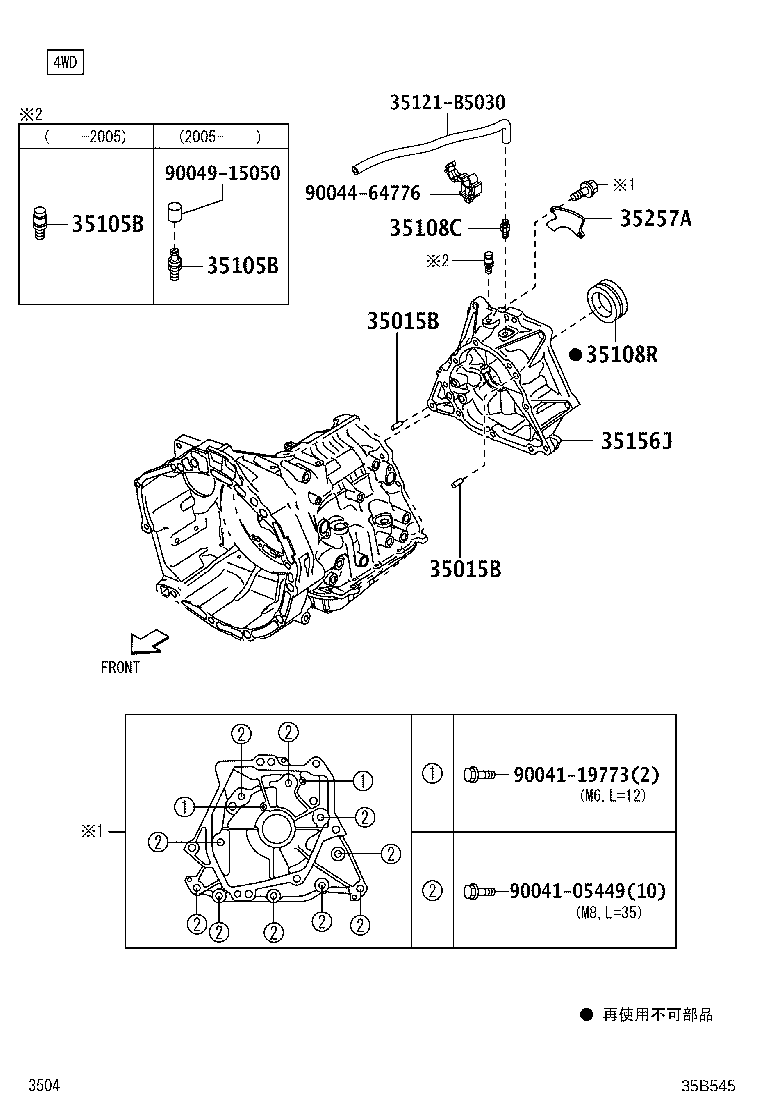

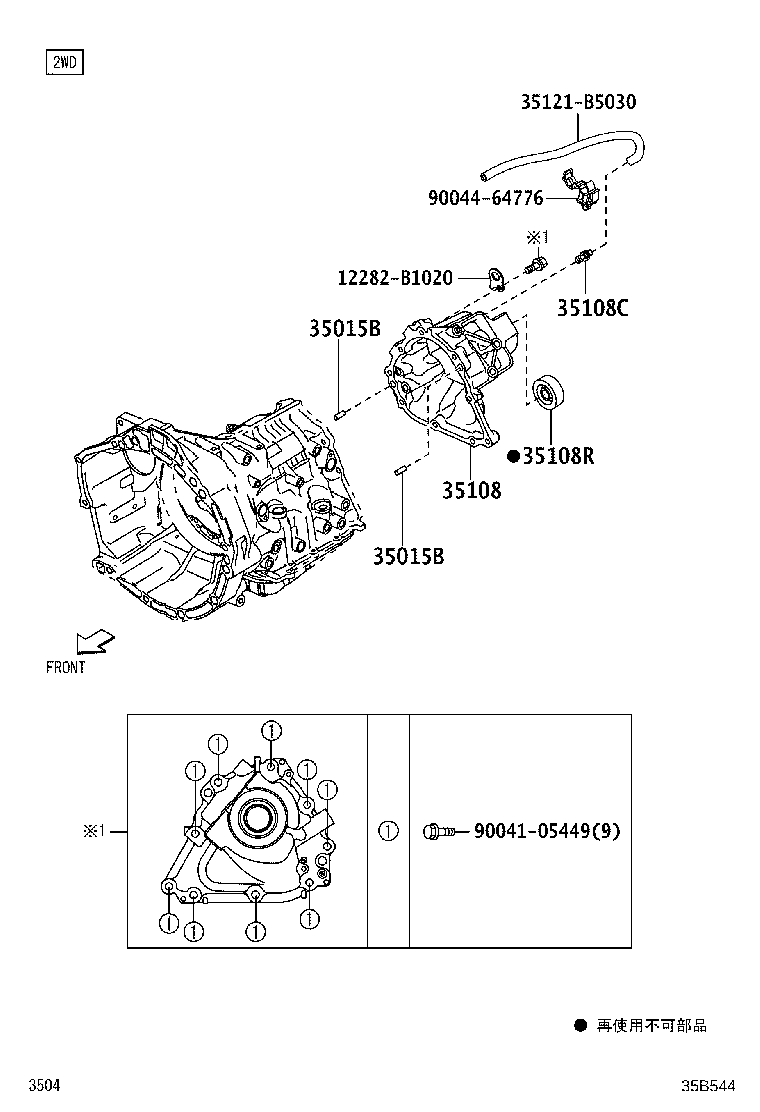

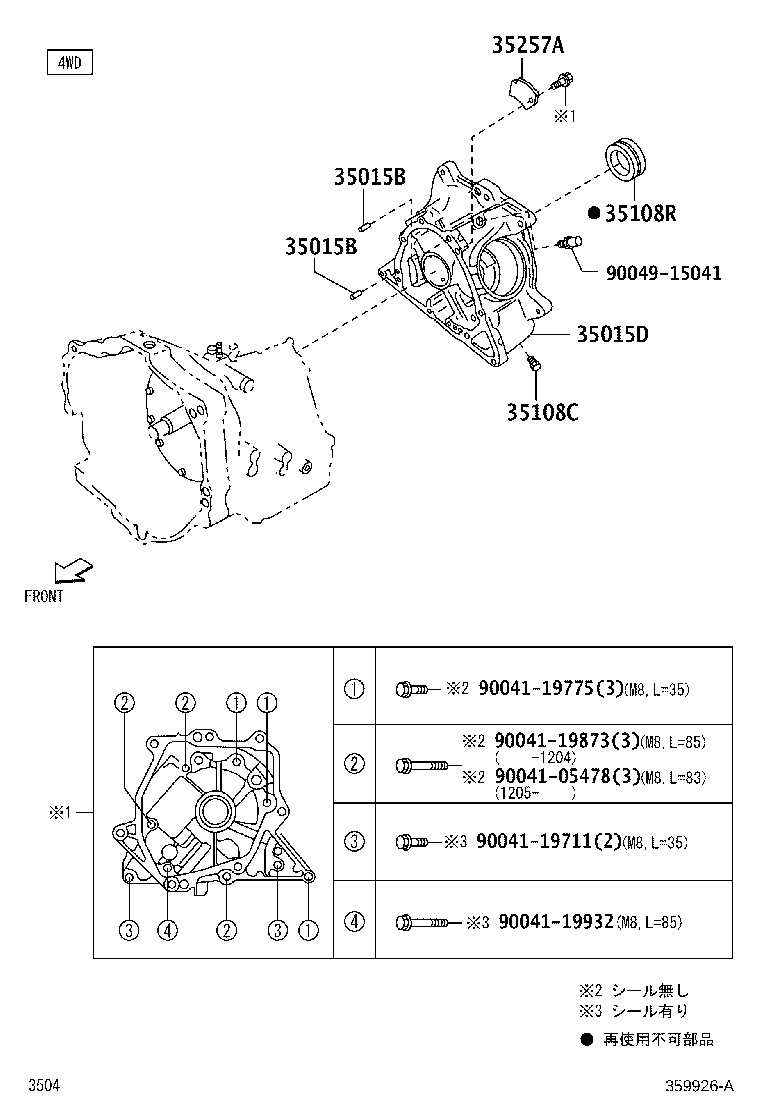

Figure 359925A 359925A 2011-12 → 2015-04 Figure 359926A 359926A 2011-12 → 2015-04 Figure 35B544 35B544 2015-04 → 2017-11 Figure 35B544 35B544 2017-11 → — Figure 35B545 35B545 2015-04 → 2017-11 Figure 35B545 35B545 2017-11 → —

Part groups

PNCDescription
35015B Pin, Straight(FOR TRANSMISSION CASE ADAPTER)
35015D Adapter Sub-assy, Transmission Case
35105B Plug, Breather
35108 Housing Sub-assy, Extension (ATM)
35108C Plug (FOR AUTOMATIC EXTENSION HOUSING)
35108R Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
35156J Cover, Transmission Case Rear Adapter
35257A Plate, Oil Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
