Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

12 part groups · 3 illustrations

Illustrations

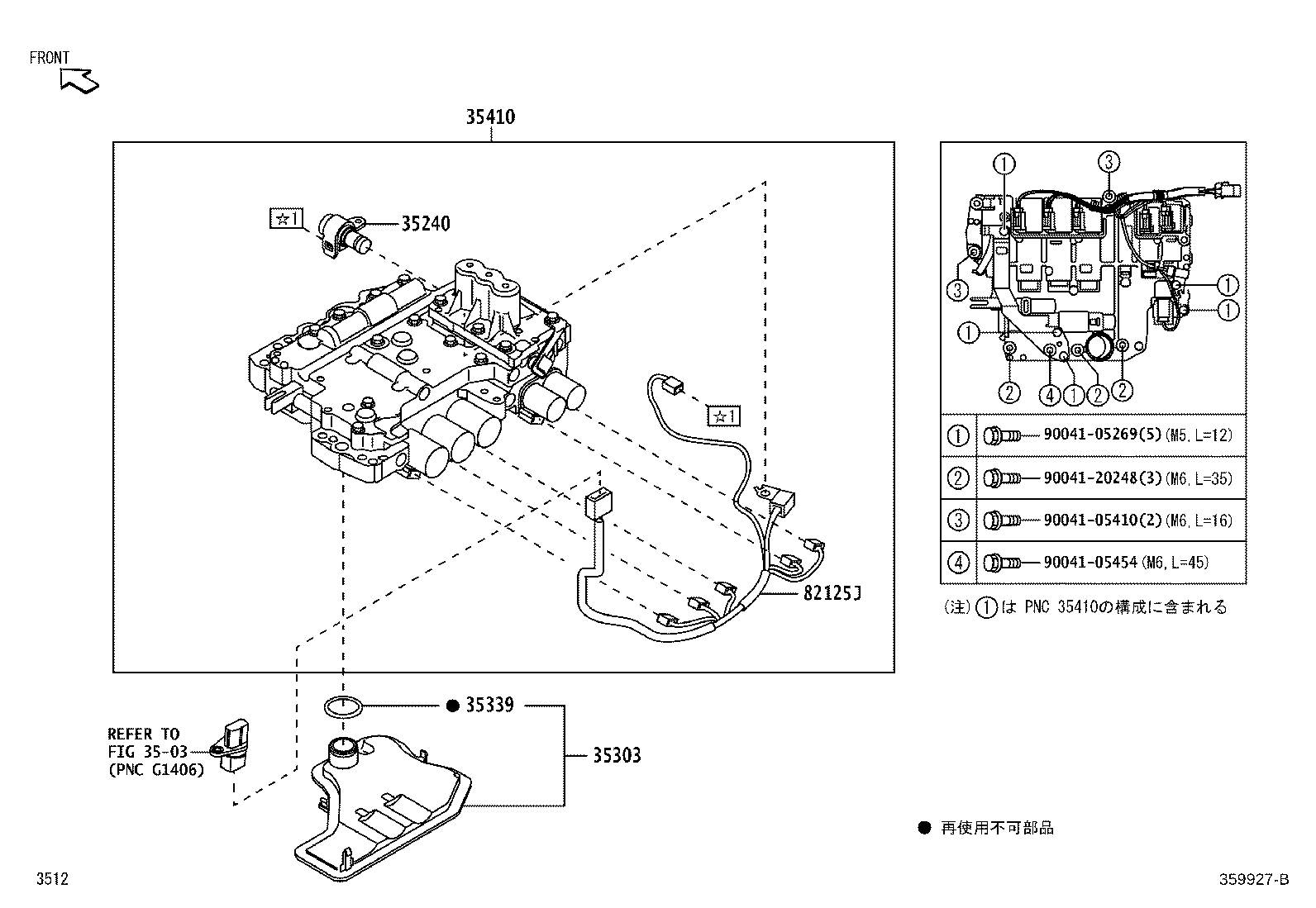

Figure 35B547 35B547 2011-12 → 2015-04 Figure 359927B 359927B 2015-04 → 2017-11 Figure 359927B 359927B 2017-11 → —

Part groups

PNCDescription
35240 Solenoid Assy, Automatic Transmission 3Way
35303 Strainer Sub-assy, Oil
35339 Gasket, Oil Strainer
35381 Tube, Valve Body
35410 Body Assy, Transmission Valve
35418 Valve, Manual
35421 Piston, Accumulator, NO.1
35421A Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421F Piston, Accumulator, NO.2
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35960 Wire, Solenoid
82125J Wire, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
