Toyota Pixis Van
2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan
Supported model
Data version 2020-09

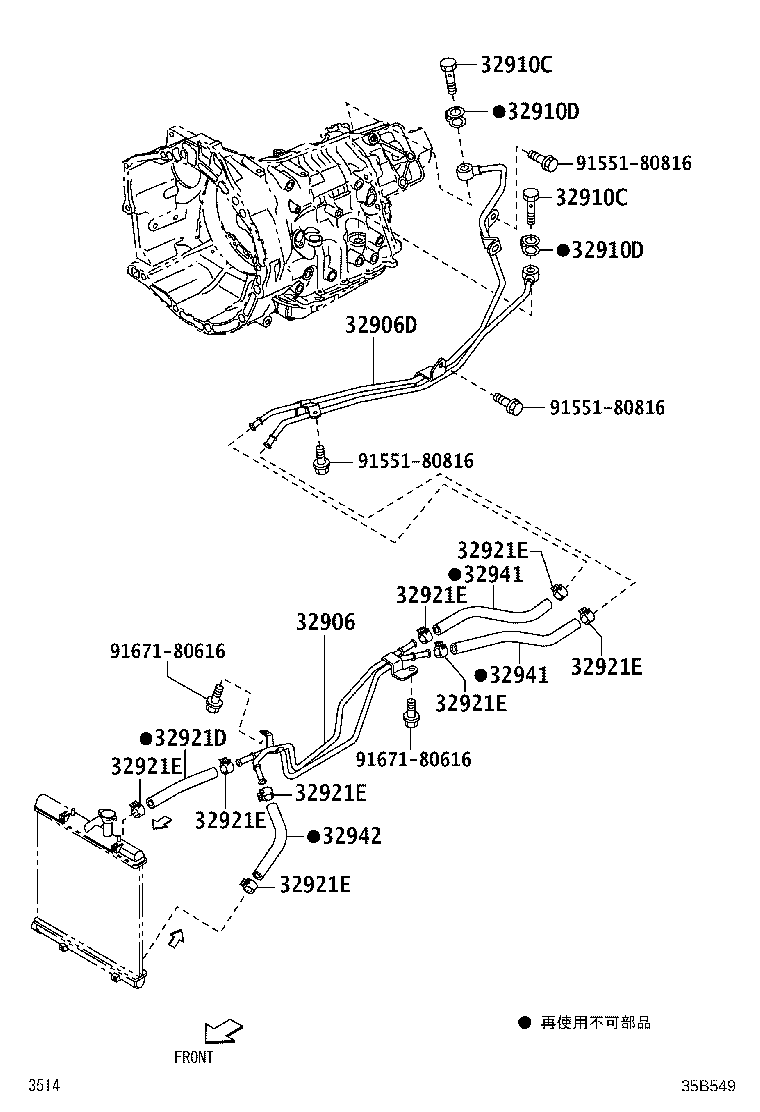

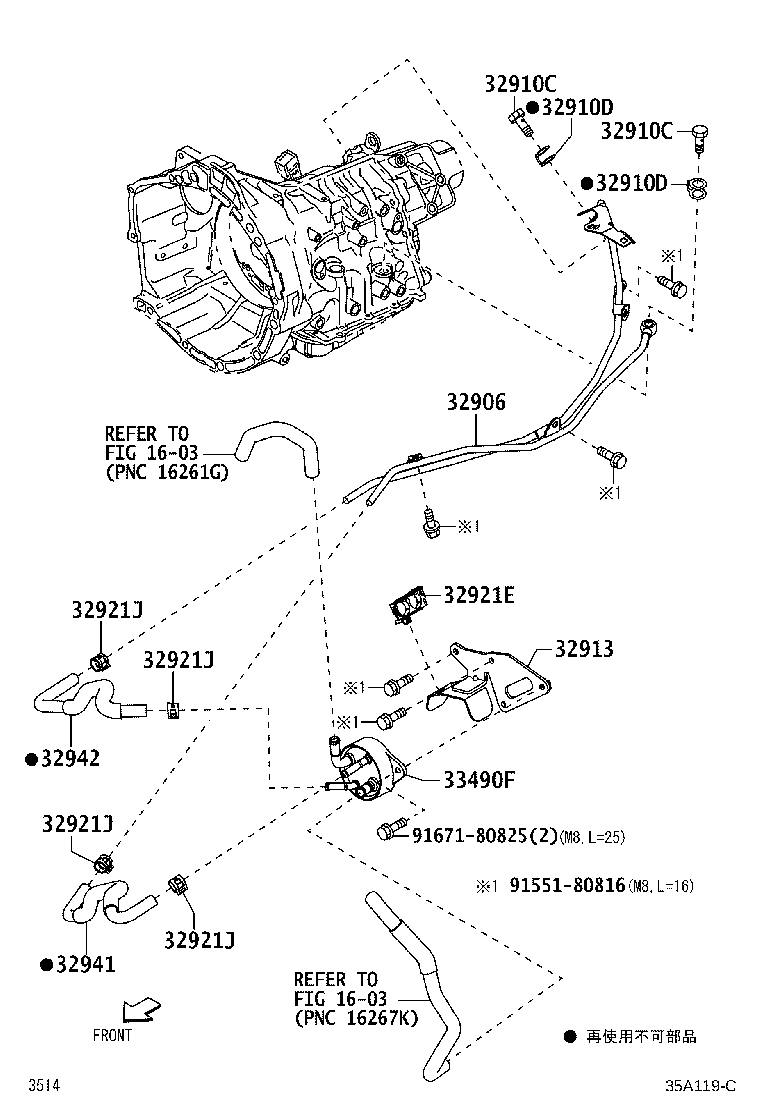

Oil Cooler & Tube (ATM)
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 32906 | Tube Sub-assy, Oil Cooler |
| 32906D | Tube Sub-assy, Oil Cooler, NO.2 |
| 32910C | Bolt, Union(FOR OIL COOLER) |
| 32910D | Gasket(FOR OIL COOLER) |
| 32913 | Bracket, Oil Cooler |
| 32921D | Hose(FOR OIL COOLER INLET) |
| 32921E | Clamp, Hose(FOR OIL COOLER) |
| 32921J | Clip(FOR OIL COOLER HOSE) |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 33490F | Cooler Assy, Transmission Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
