Toyota Pixis Van
2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan
Supported model
Data version 2020-09

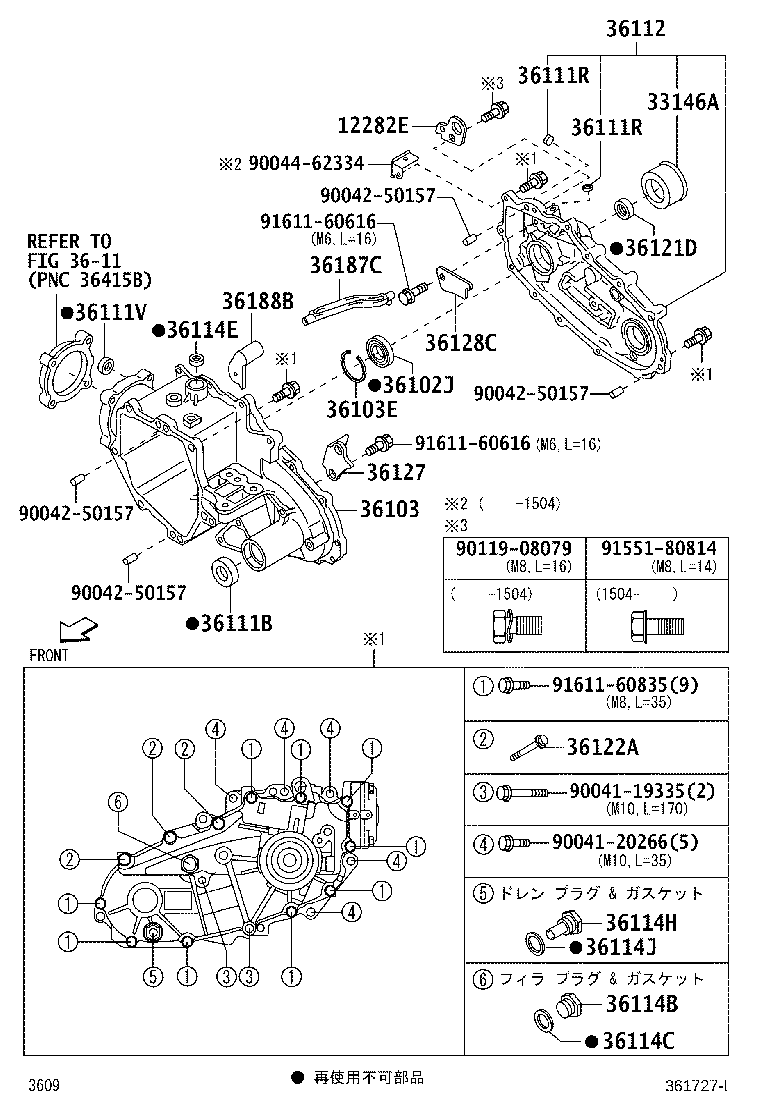

Transfer Case & Extension Housing
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 12282E | Hanger, Transfer Case |
| 33146A | Deflector, Transfer Extension Housing Dust |
| 36102J | Seal, Type T Oil (FOR TRANSFER COVER) |
| 36103 | Case Sub-assy, Transfer |
| 36103E | Ring, Hole Snap (FOR TRANSFER CASE BEARING) |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111R | Plug, Tight (FOR TRANSFER CASE) |
| 36111V | Seal, Oil(FOR TRANSFER CASE DRIVE SHAFT SIDE) |
| 36112 | Case, Transfer, Rear |
| 36114B | Plug, NO.1 (FOR TRANSFER CASE) |
| 36114C | Gasket, NO.1 (FOR TRANSFER CASE) |
| 36114E | Seal, Oil (FOR TRANSFER CASE LH) |
| 36114H | Plug, NO.2 (FOR TRANSFER CASE) |
| 36114J | Gasket, NO.2 (FOR TRANSFER CASE) |
| 36121D | Seal, Oil(FOR TRANSFER CASE COVER) |
| 36122A | Bolt (FOR TRANSFER CASE)Cover NO.2 |
| 36127 | Plate, Transfer Oil |
| 36128C | Plate, Transfer Oil Supply |
| 36143 | Gasket, Transfer Case, Front |
| 36187C | Pipe, Transfer Oil Supply, RH |
| 36188B | Pipe, Transfer Oil Supply, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
