Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Gear

20 part groups · 4 illustrations

Illustrations

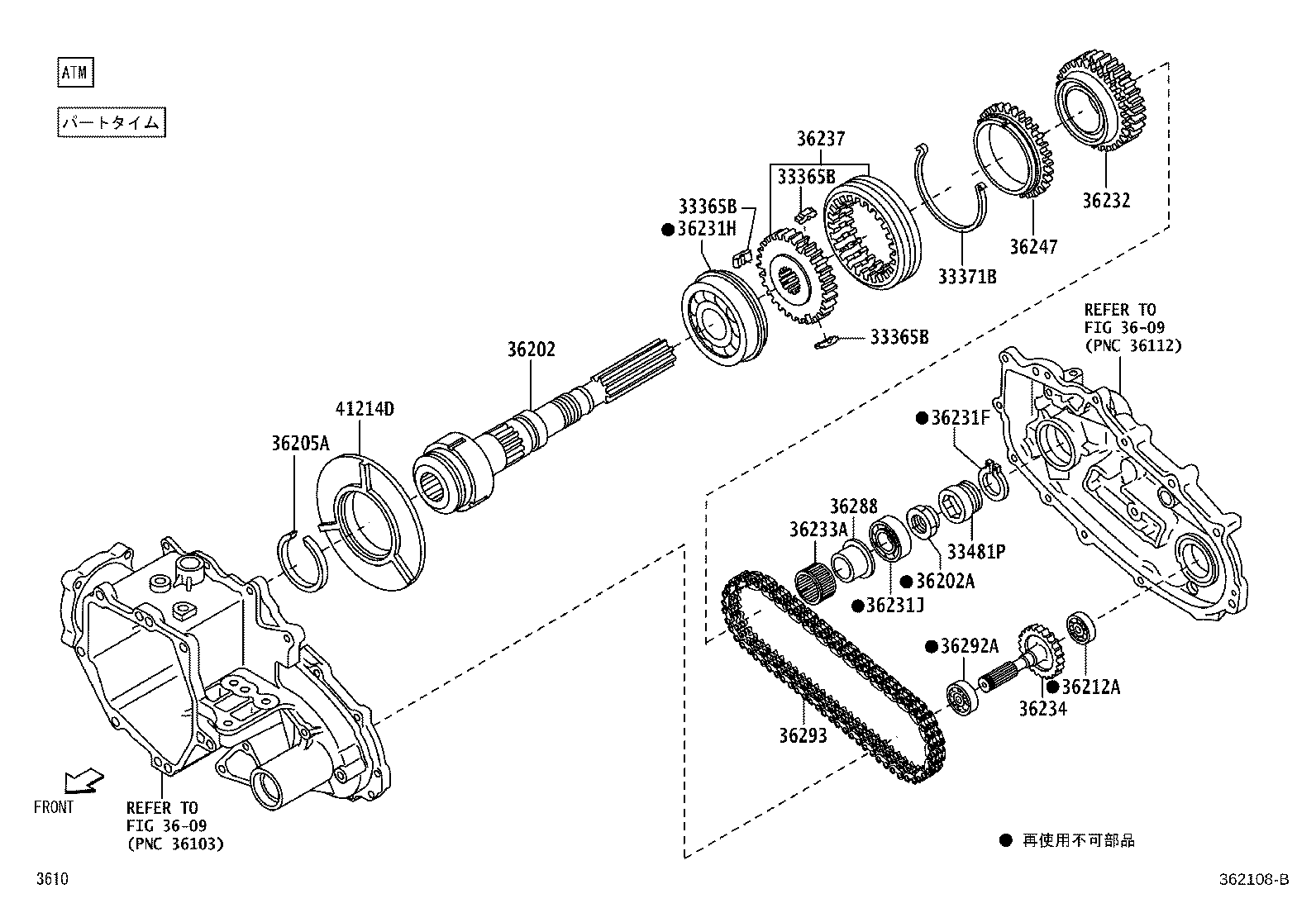

Figure 362107C 362107C 2011-12 → 2017-11 Figure 362107C 362107C 2017-11 → — Figure 362108B 362108B 2011-12 → 2017-11 Figure 362108B 362108B 2017-11 → —

Part groups

PNCDescription
33365B Key, Synchromesh Shifting, NO.1
33371B Spring, Synchromesh Shifting Key (FOR TRANSFER)
33481P Gear, Speedometer Drive (FOR TRANSFER)
36202 Shaft Sub-assy, Transfer Output, Rear
36202A Nut(FOR TRANSFER OUTPUT REAR SHAFT)
36205A Ring, Shaft Snap
36212A Bearing, Radial Ball (FOR TRANSFER INPUT GEAR)
36231 Shaft, Transfer Output, Rear
36231F Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
36231H Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT FRONT)
36231J Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
36232 Gear, Transfer Front Drive
36233A Bearing, Needle Roller (FOR TRANSFER DRIVE GEAR)
36234 Shaft, Transfer Output, Front
36237 Hub, Transfer Clutch
36247 Ring, Transfer Synchronizer
36288 Race, Transfer Thrust Bearing, NO.1
36292A Bearing (FOR TRANSFER DRIVEN SPROCKET)
36293 Chain, Transfer Front Drive
41214D Slinger, Center Differential Drive Pinion Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
